Hoppe HLS9000 Multipoint Lock Manual Tongue Gear 45mm Backset 92mm PZ 1 Inch Deadbolt Throw 36 Inch Handle Height

Part Number:8778075 Price: $159.00

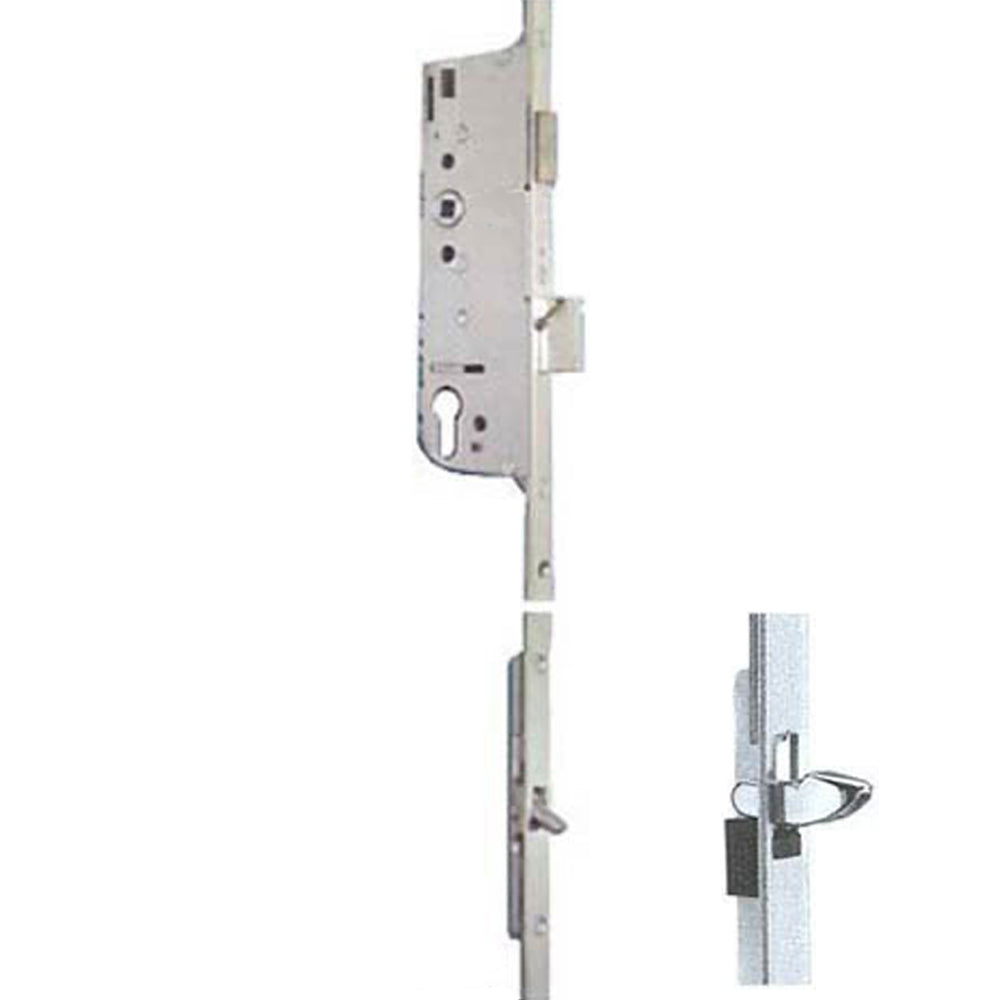

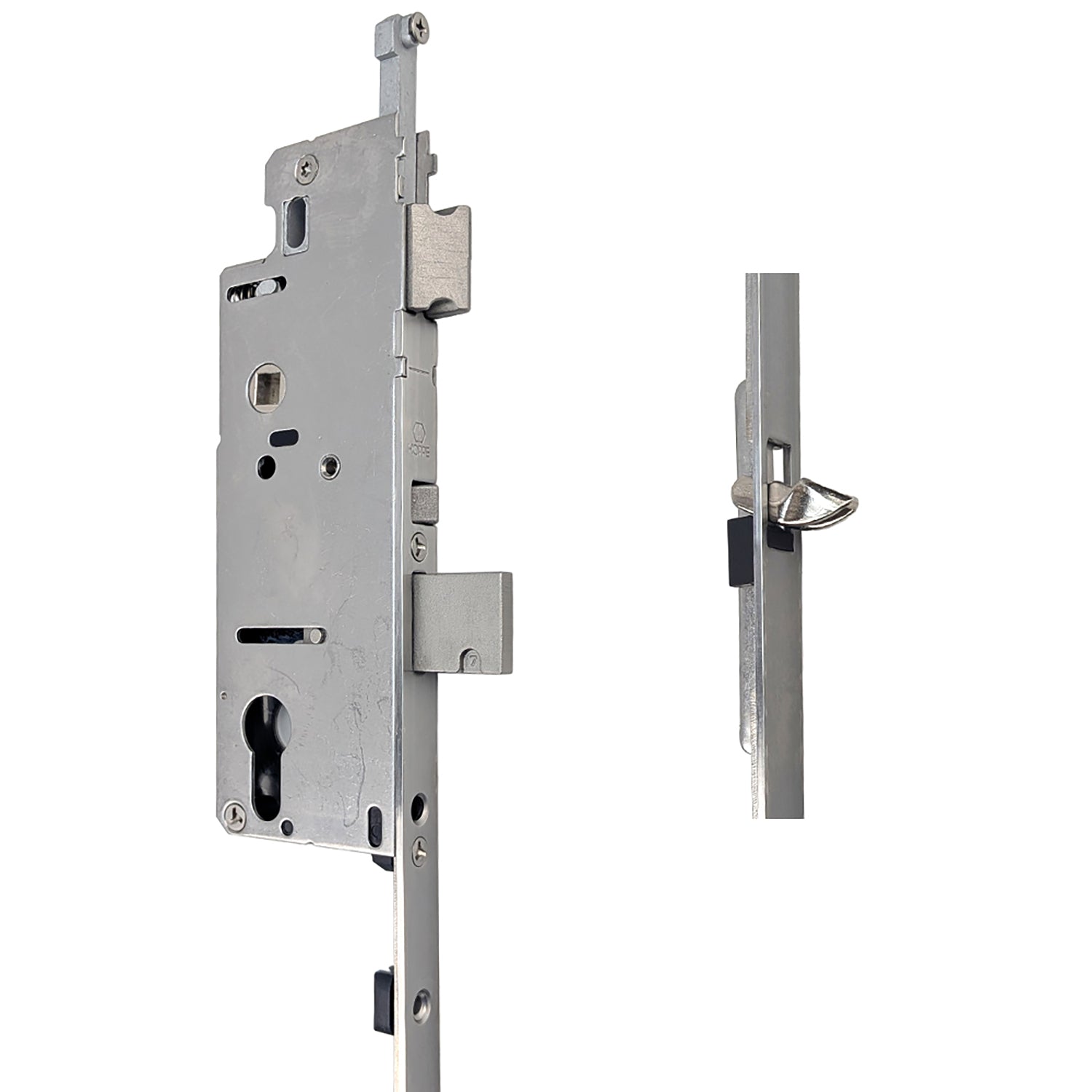

Hoppe 16mm HLS9000 Tongue Version

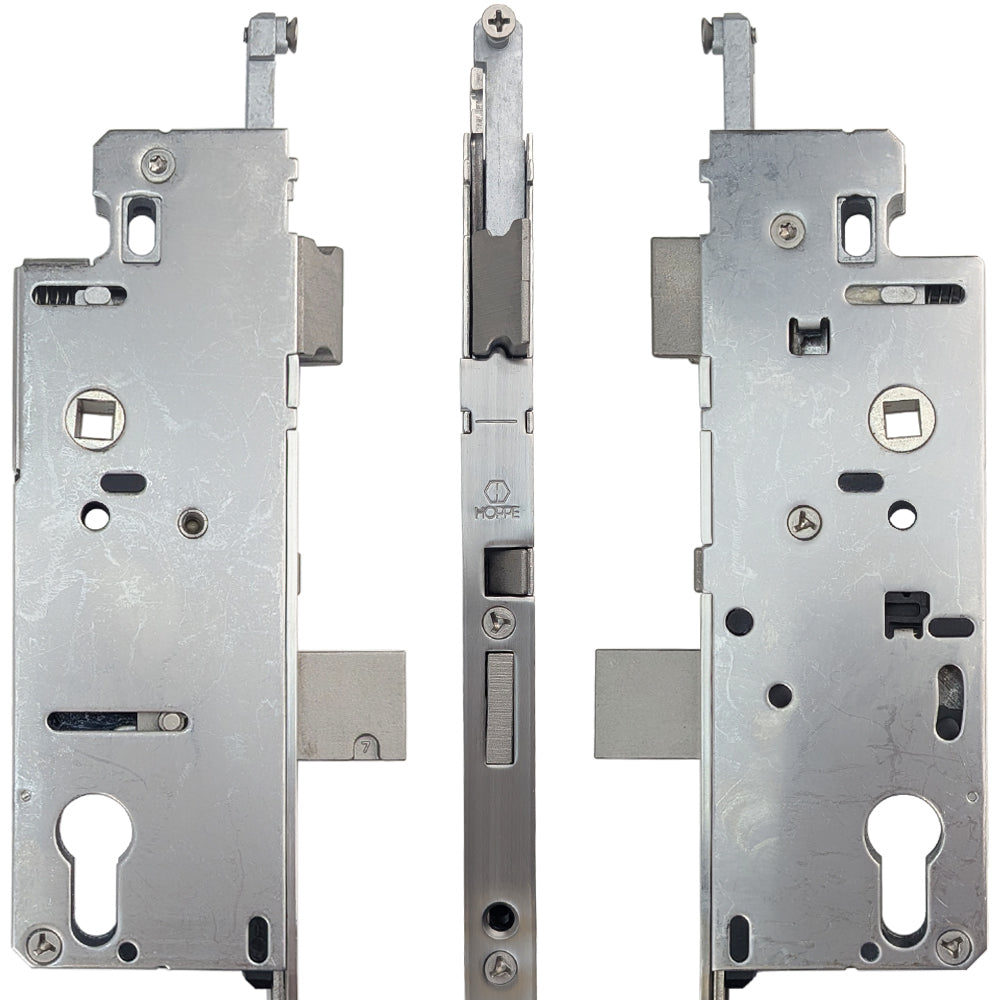

Lock Box with Lower Assembly Featuring a Tongue Locking Point

Combine this lower gear assembly with a top extension tailored to your door height and desired locking function to construct a complete multi-point lock. Browse our Hoppe multipoint locks category or the Related Items section at the bottom of this page to find an upper extension that may suit your needs.

Specifications:

  • Brand: Hoppe
  • Series: HLS9000
  • Faceplate Finish: Stainless Steel

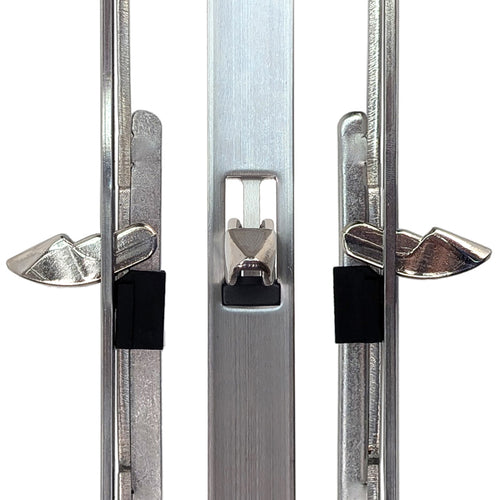

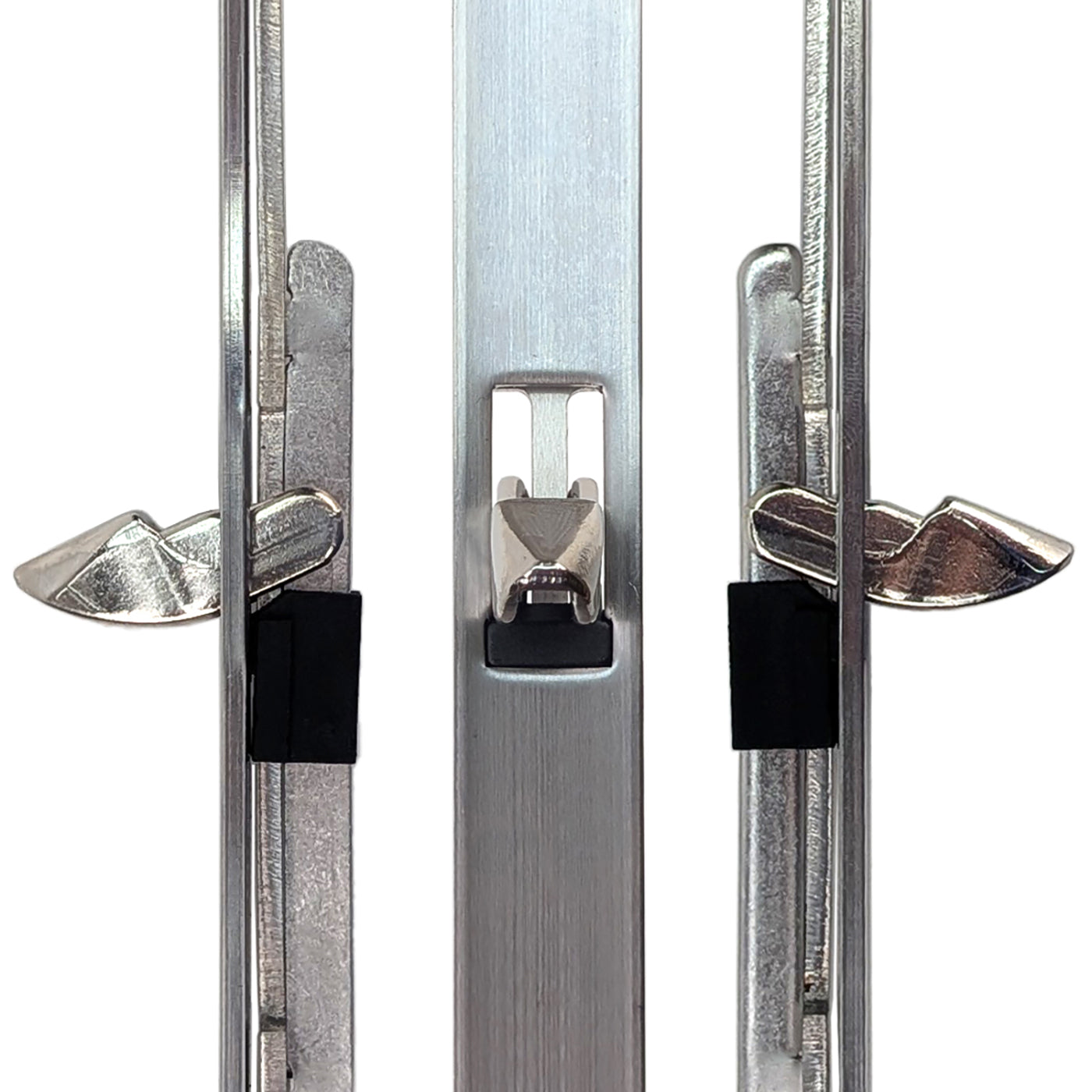

  • Version: Lower Tongue (Horizontal locking device between handle and bottom of door)
  • Function: Manual locking (Lift handle to lock tongue)

Includes:

  • Bottom assembly only, as shown. Does not include additional extensions or other components.

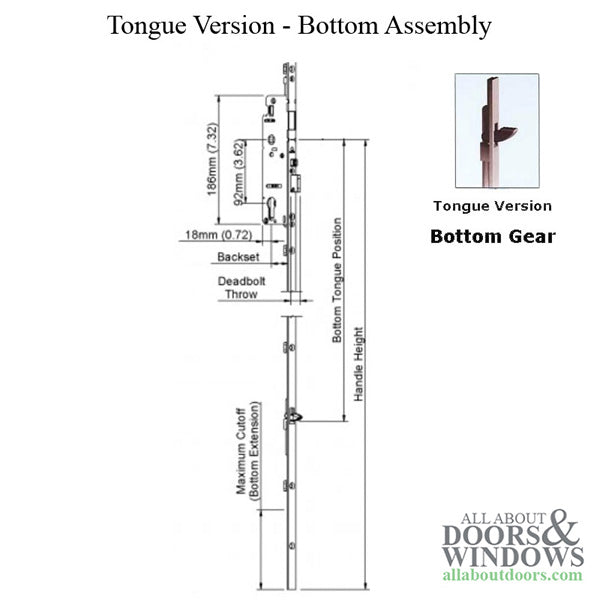

Dimensions:

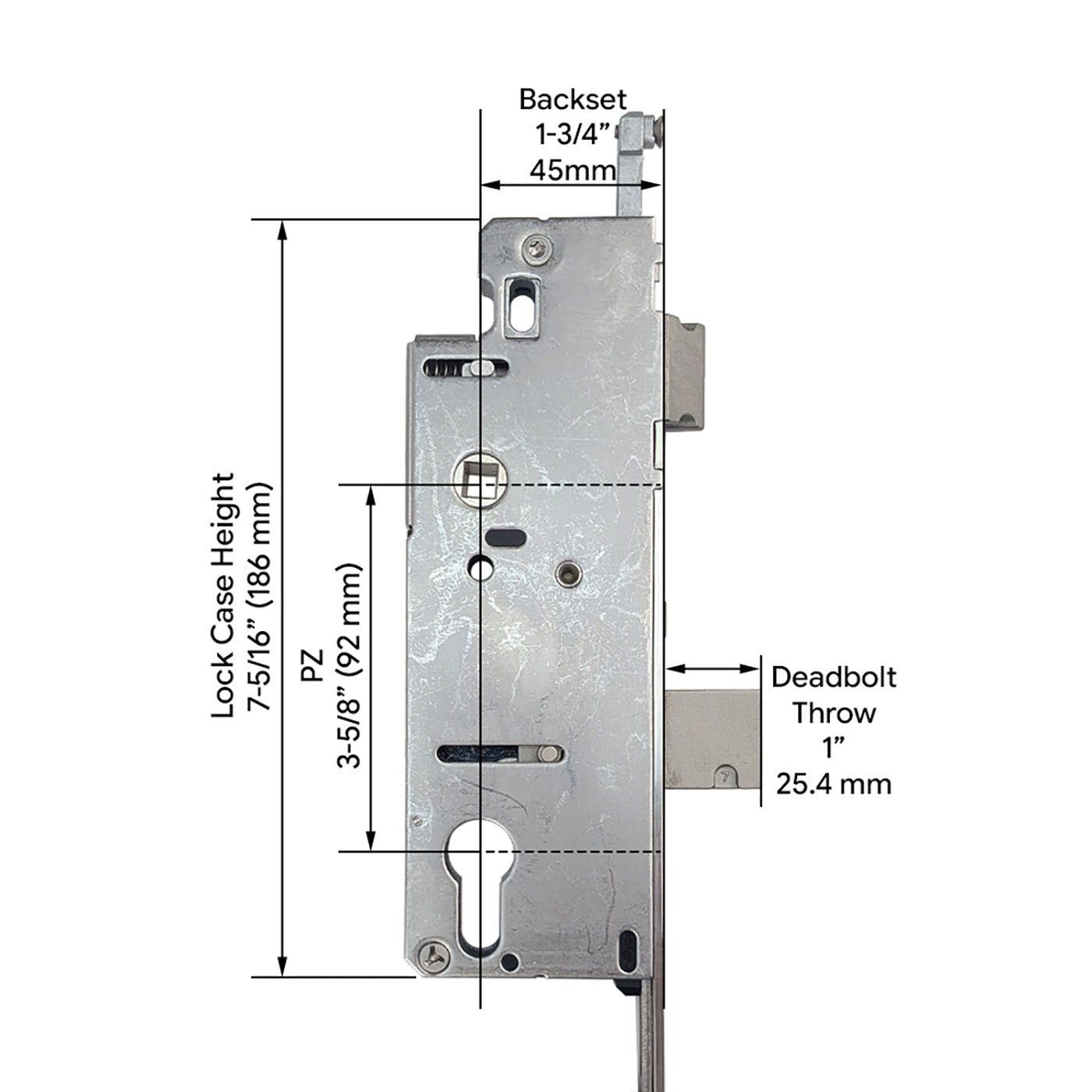

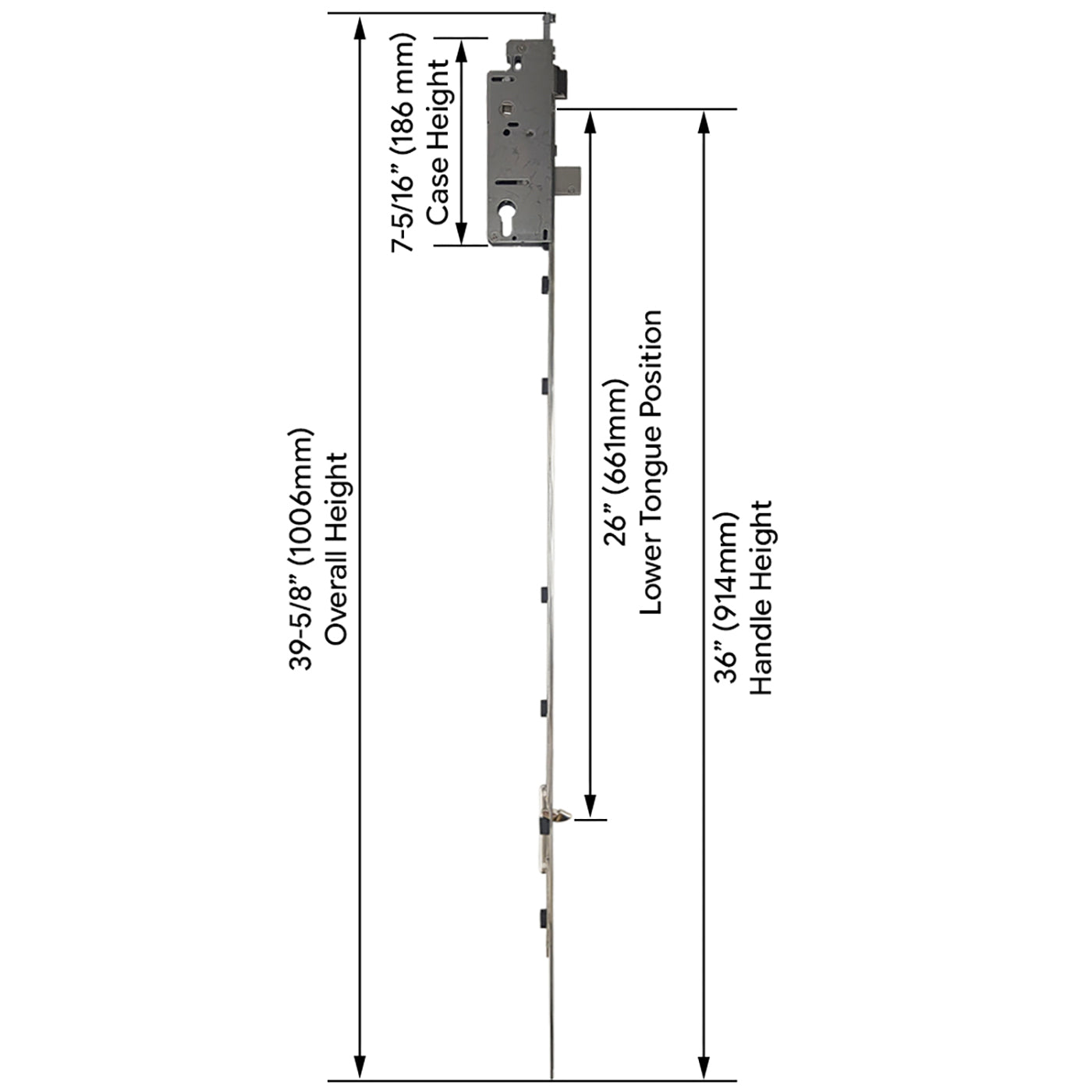

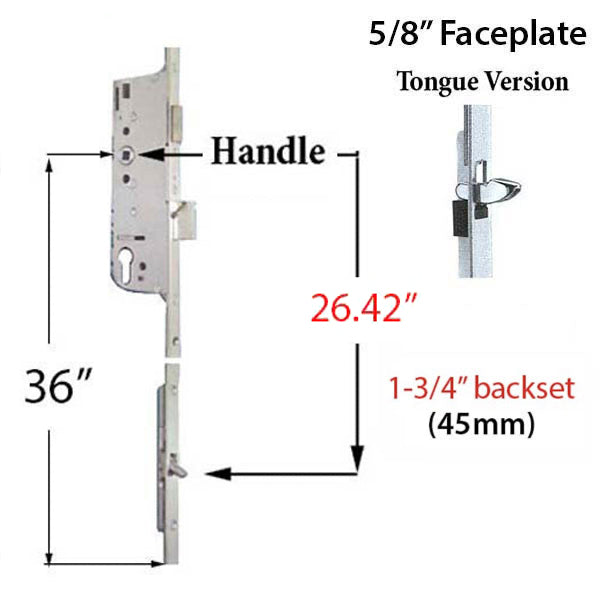

Dimension Imperial (Fraction) Imperial (Decimal) Metric (Decimal)
Faceplate Width:  5/8" 0.63" 16mm
Backset  1.75" 1-3/4" 45mm
PZ  3.62" 3-5/8" 92mm
Deadbolt Throw  1" 1" 25.4mm

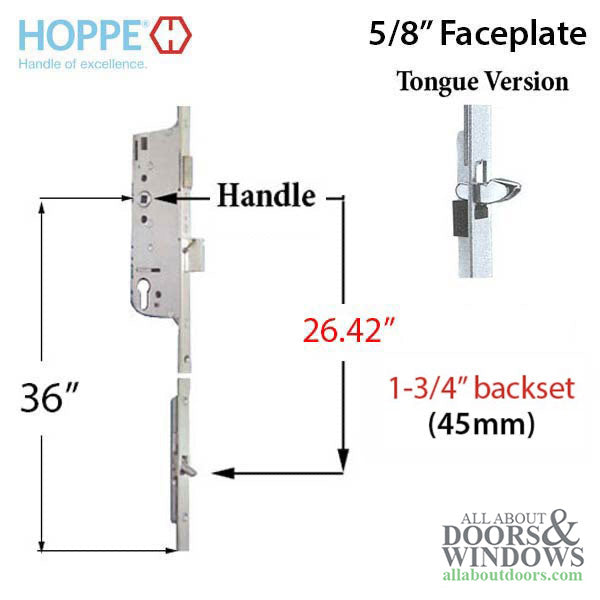

Handle Height  36" 36" 914mm
Bottom Tongue Position  26-7/16" 26.42" 671mm
Maximum Cutoff 4-1/2" 4.53" 115mm

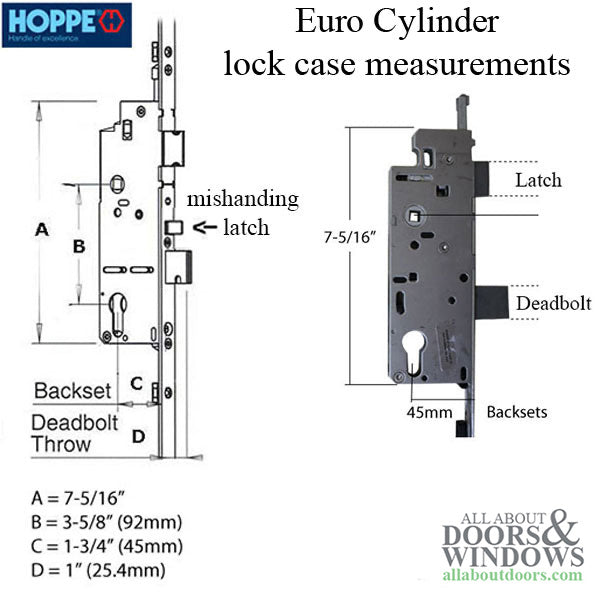

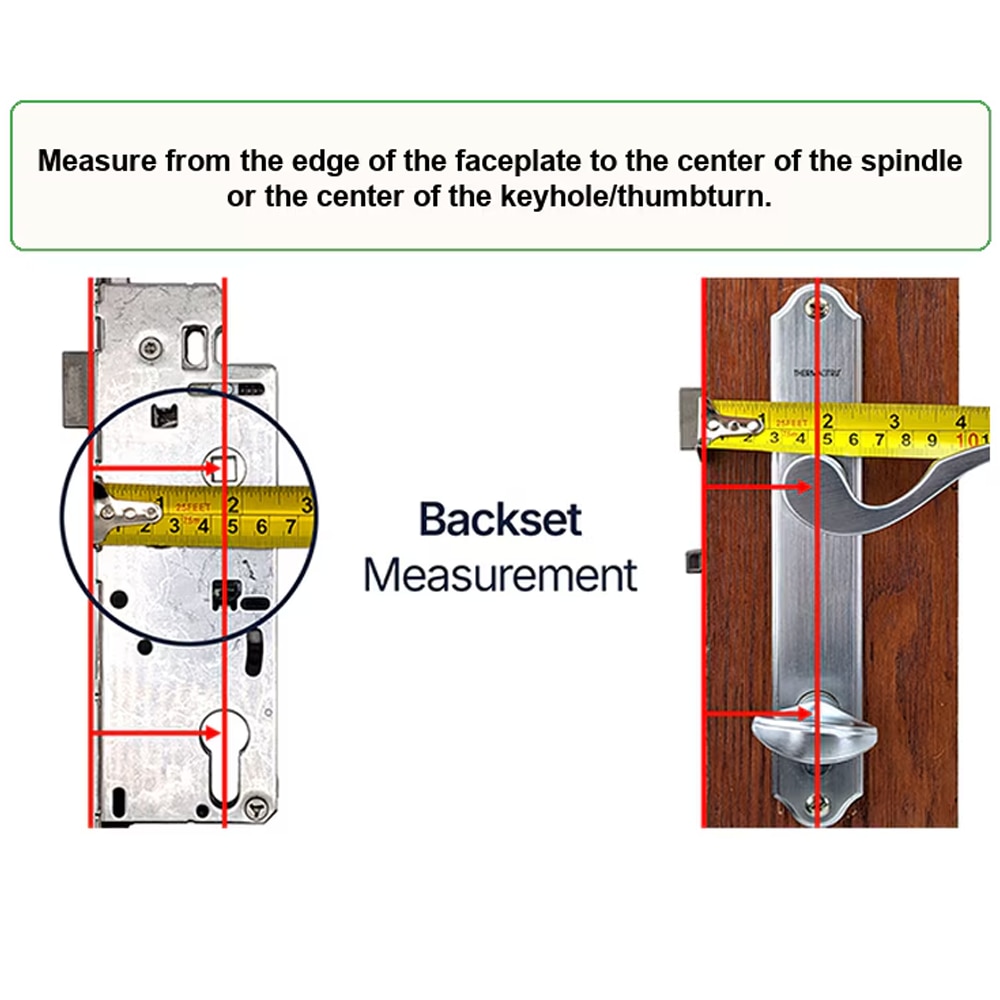

The backset is the measurement from front edge of the faceplate and the center of the cylinder (keyhole or thumbturn)

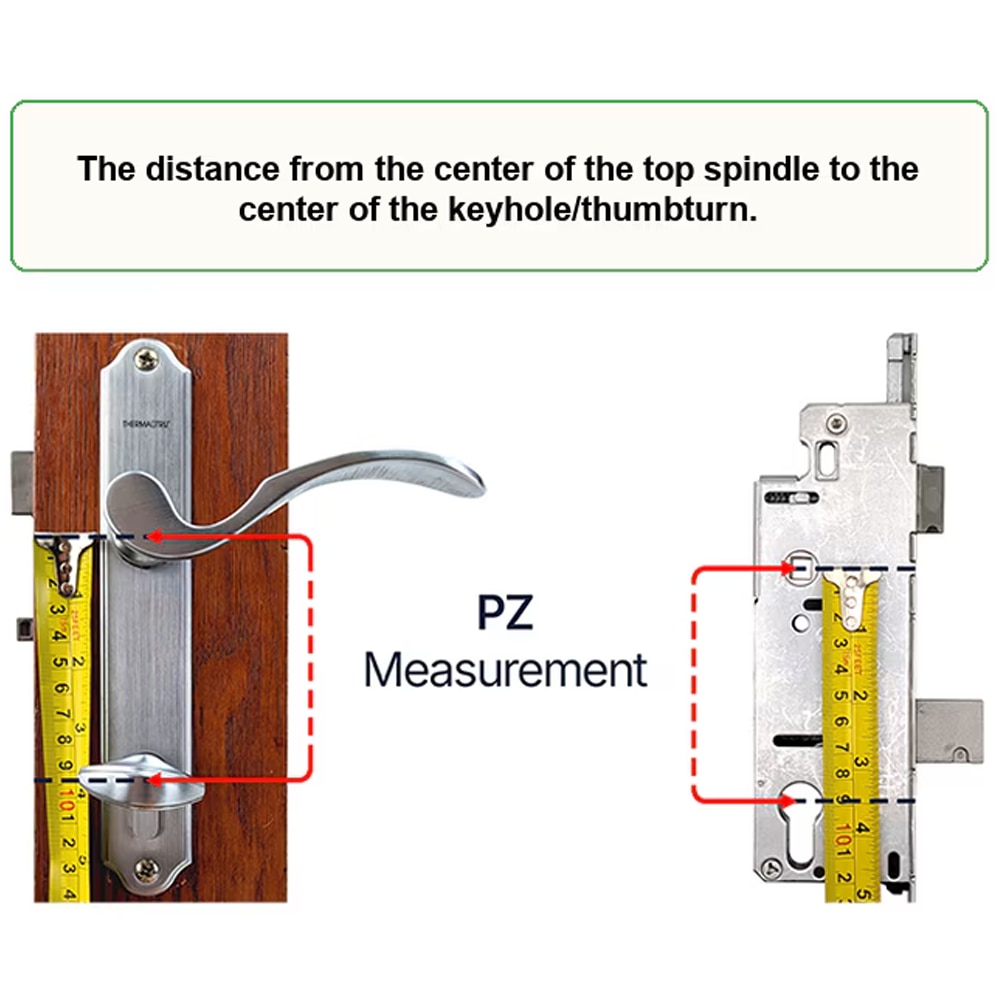

PZ is the measurement from the center of the spindle (handle) and the center of the cylinder (keyhole or thumbturn)
The faceplate is the visible part of the multipoint lock that runs vertically up and down the edge of the door.

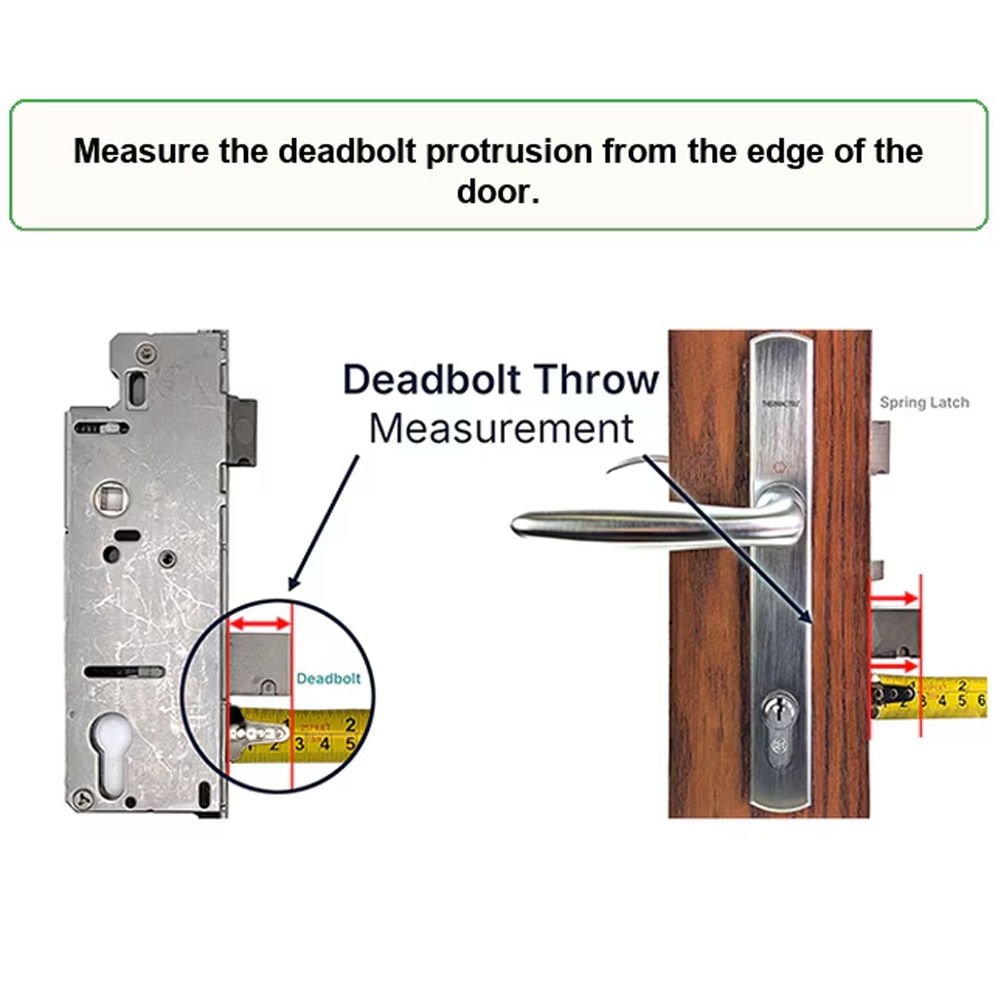

The deadbolt throw is the measurement from front of the faceplate to the end of the extended deadbolt.
<p>90033 Manual Tongue Version</p>
