Part Number:8778163 Price: $140.72

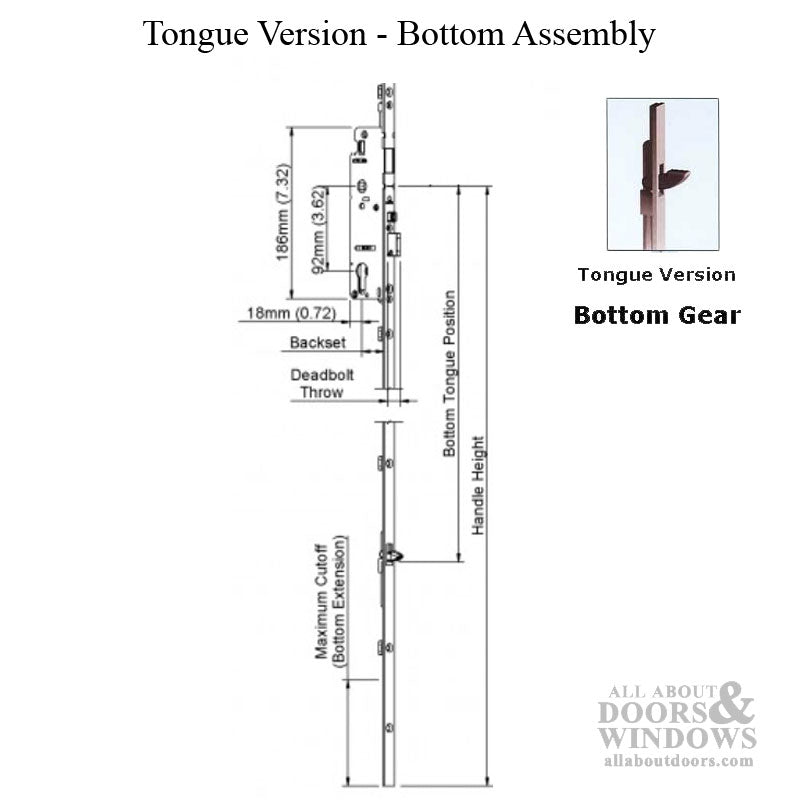

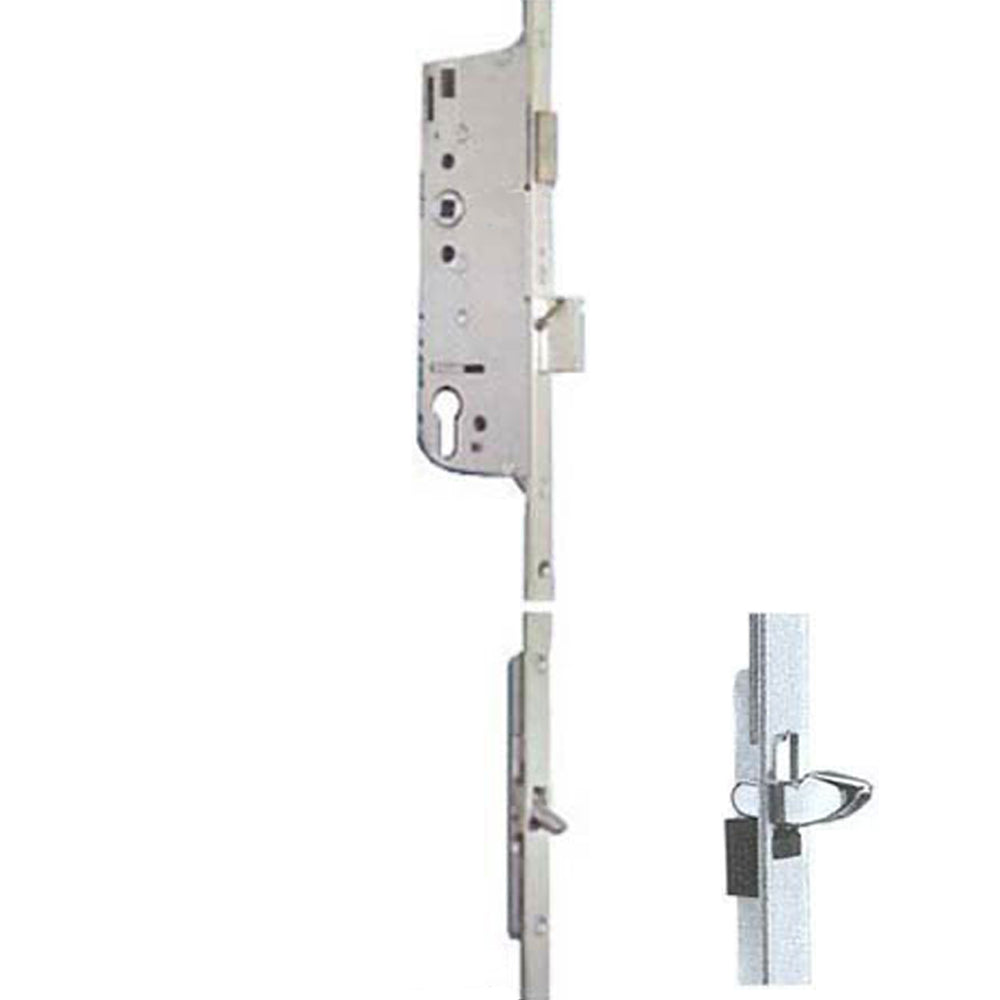

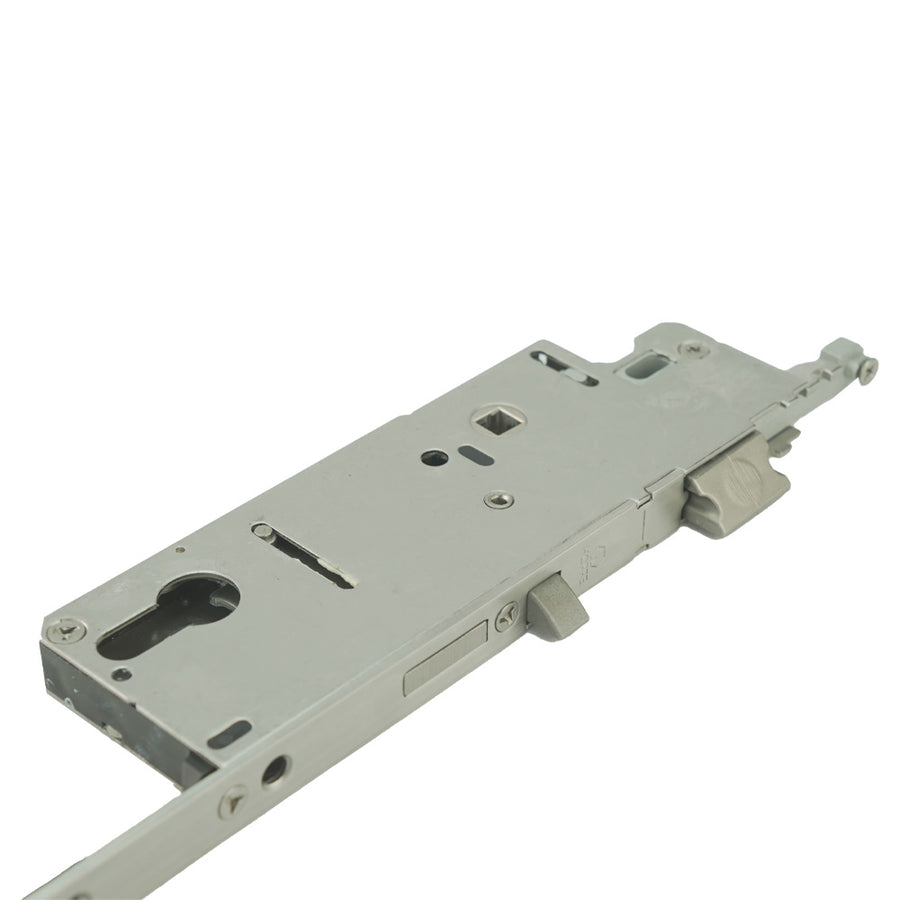

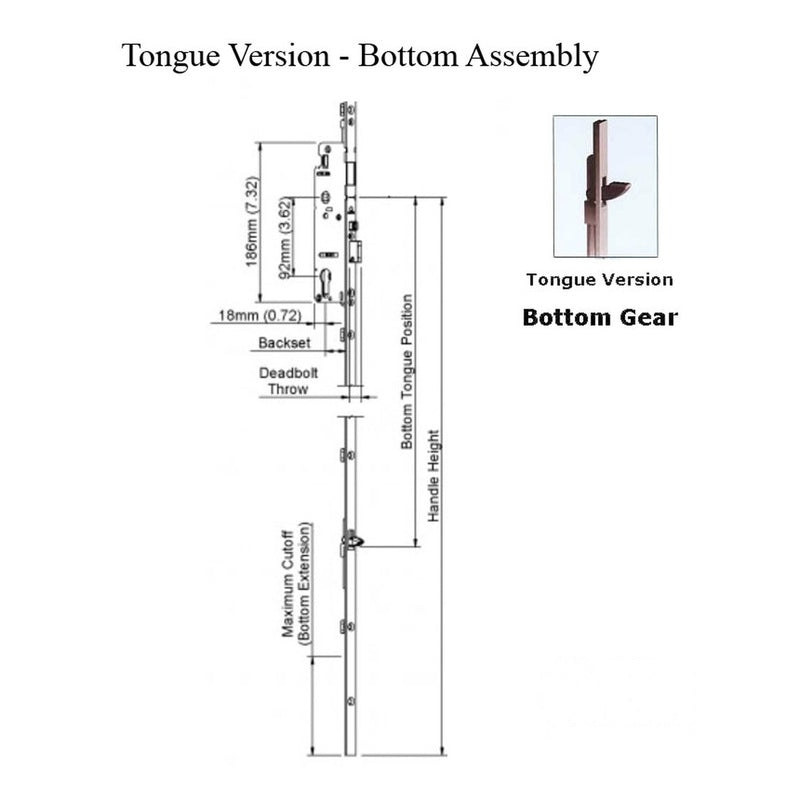

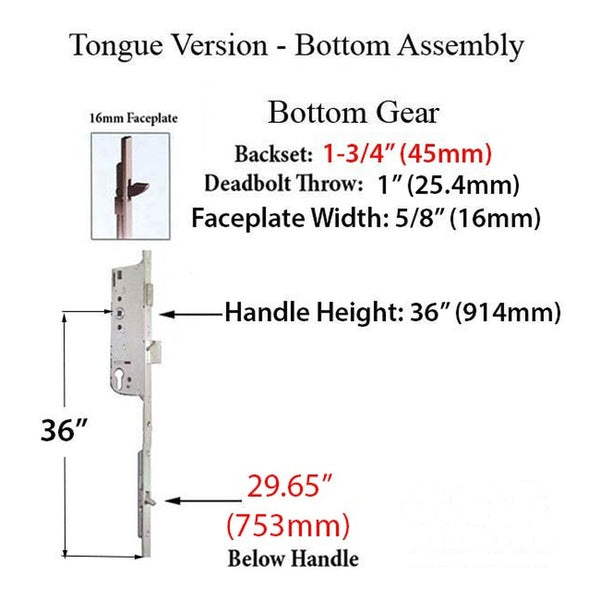

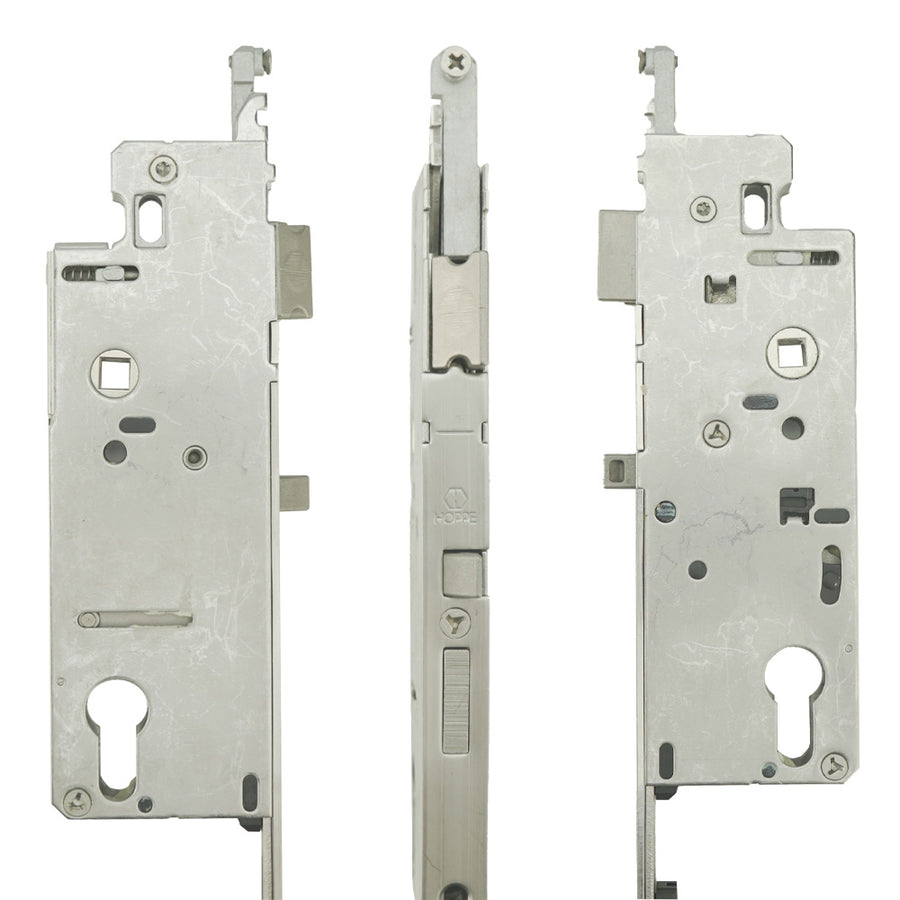

Hoppe 16mm Manual 45/92 Gear, Tongue at 29.65", 1" Deadbolt, 36" Handle Height Multi-point Lock bottom gear for Active Door - Deadbolt and 1 tongue (HLS9000 MP Manual Gear)

When used with top extension, this Multi-point Lock has 3 locking points: 1 Deadbolt, 2 Tongues.

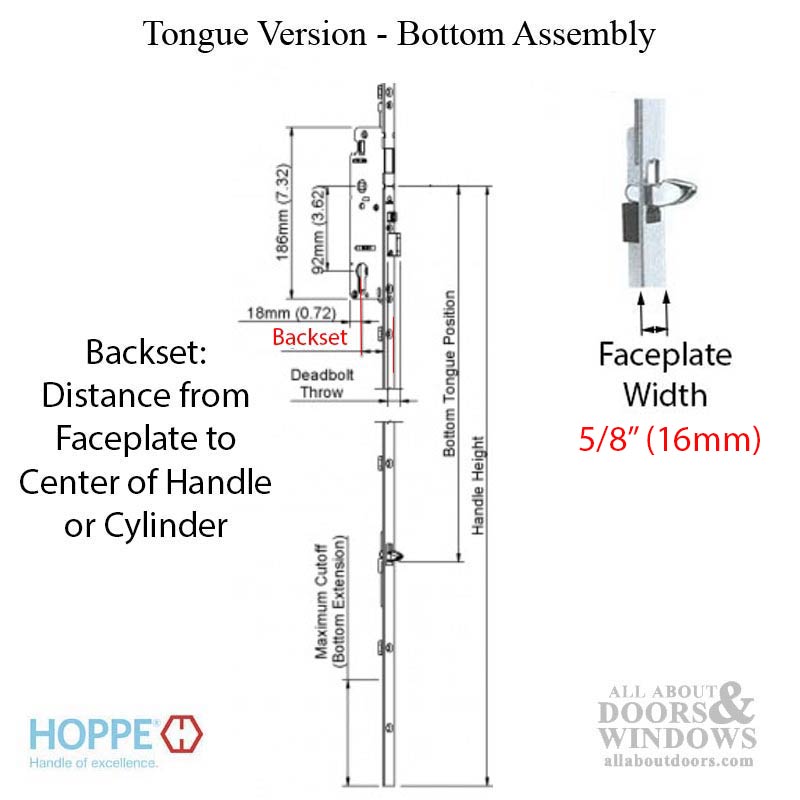

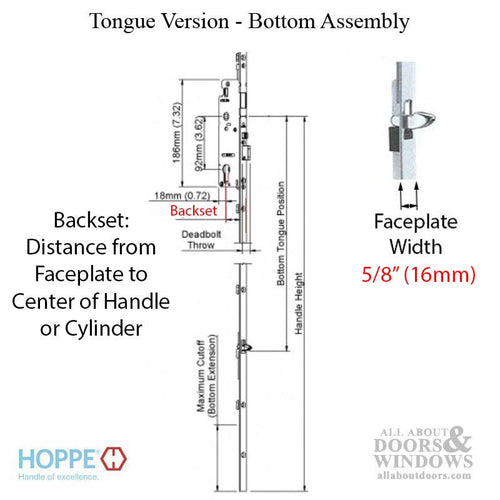

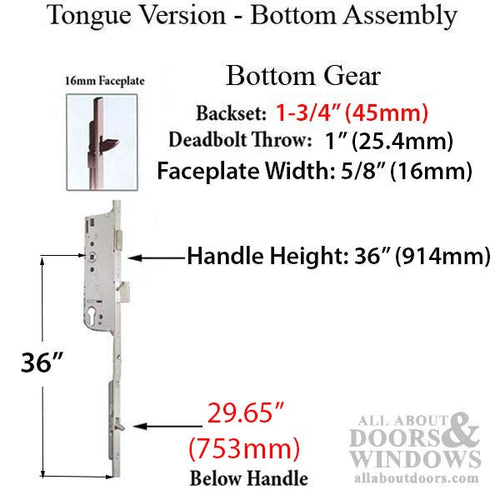

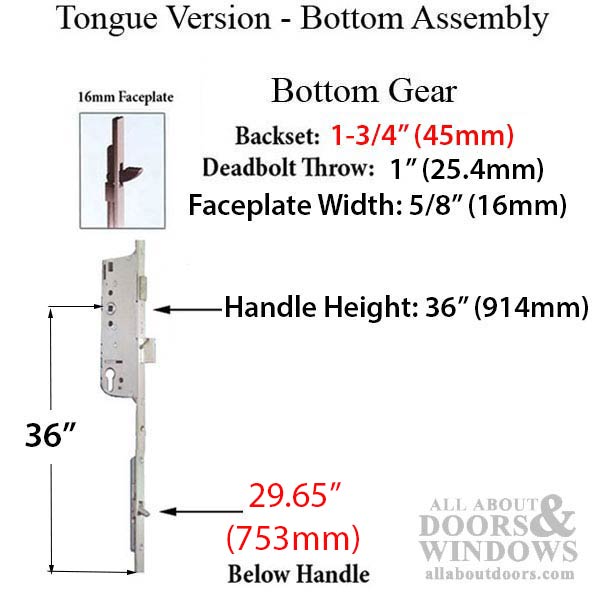

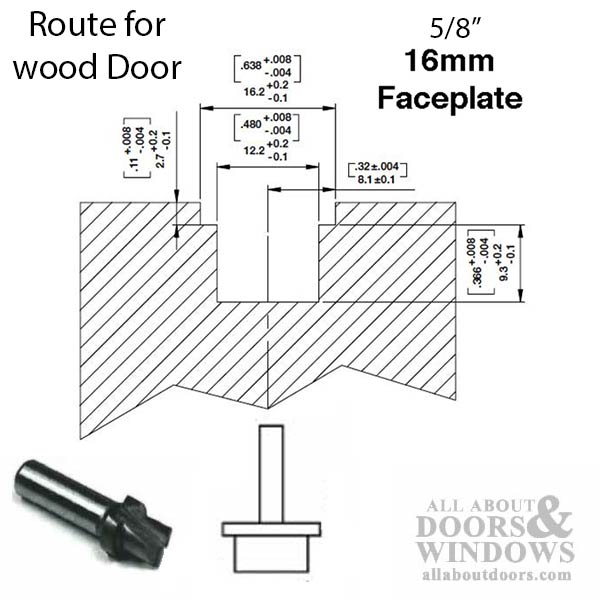

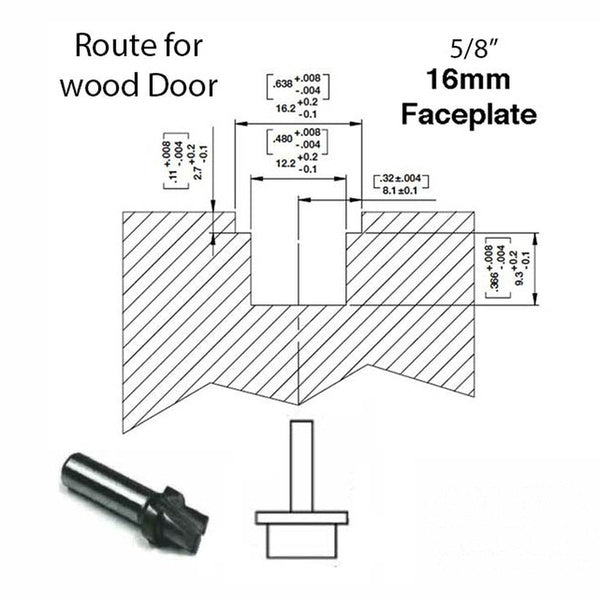

Faceplate: Stainless Steel .63 inch (16mm) width

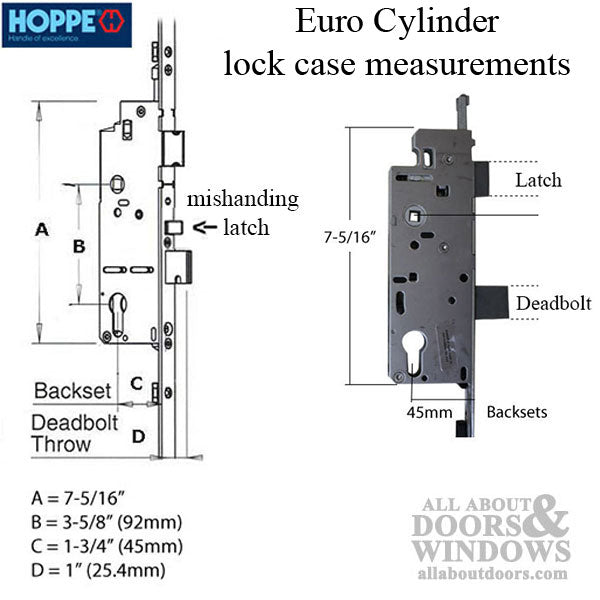

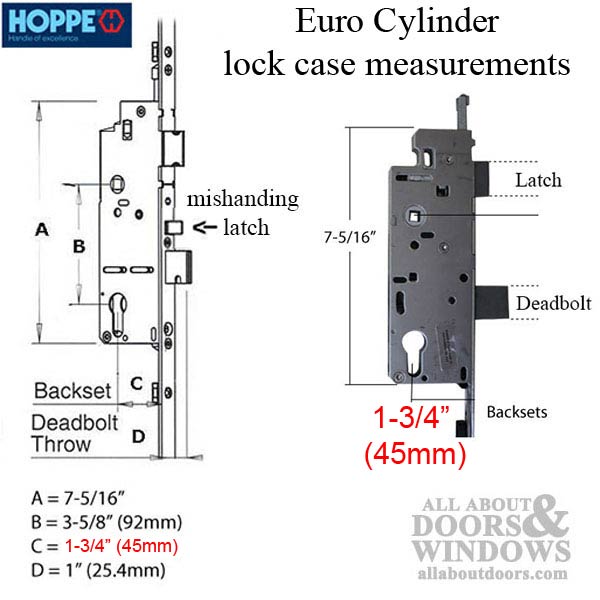

Backset: 1.77 inch (45mm)
Deadbolt throw: 1.0 inch (25.4mm)

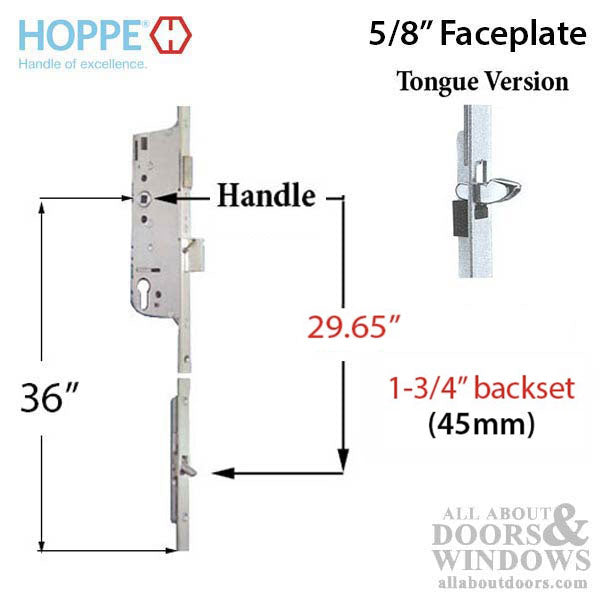

Handle Height: 36.00 inch (914mm)

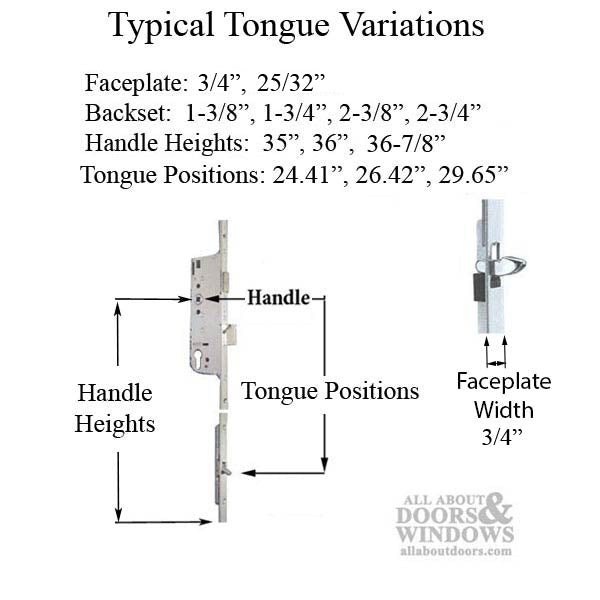

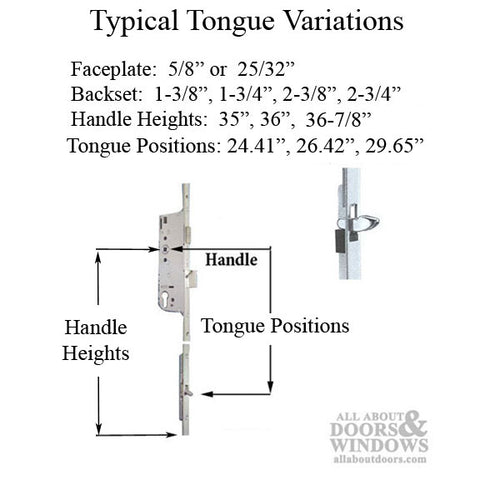

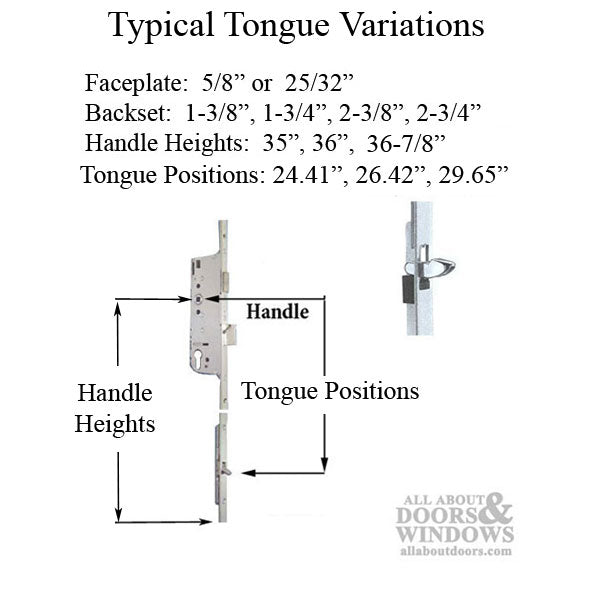

Bottom Tongue Position: 29.65 inches (753mm)
Maximum Cutoff: 1.18 inches (30mm)

Related Parts:
8778183 - Same gear with .55 inch (14mm) Deadbolt Throw
