Hoppe 16mm Manual Tongue Gear, 35/92, Tongue at 29.65 Inch | All About Doors and Windows (Tongue Version Multi-Point Lock - 1 of 2 Pieces.)
This lock Replaces some FUHR locks, and can also be replace with Standard 36" handle height and cut off 1/2" as needed

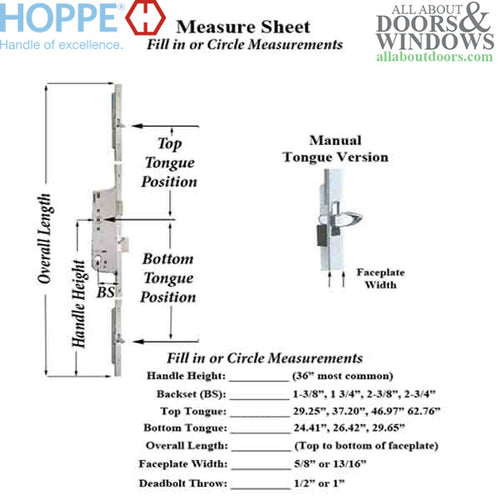

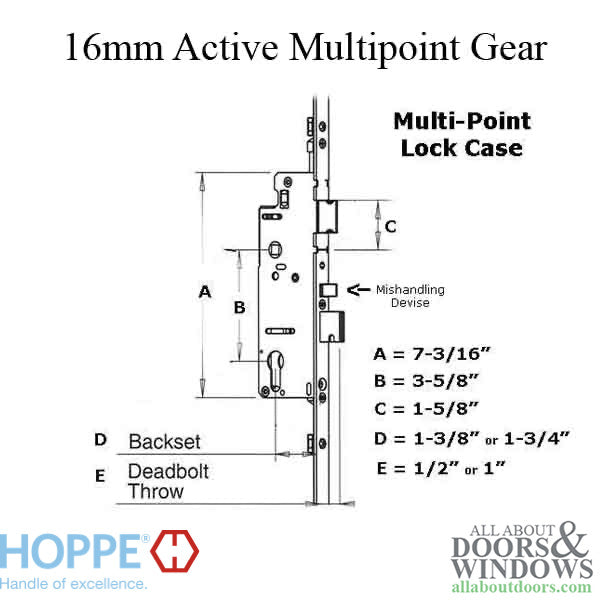

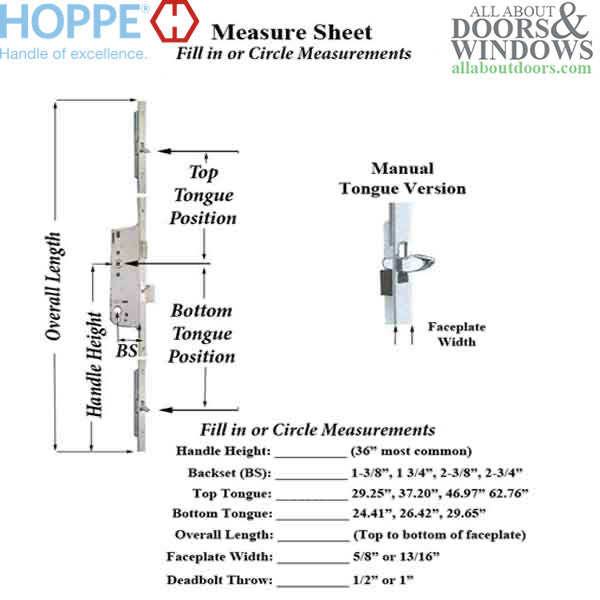

Bottom Gear Section:
Backset: 1-3/8 inches

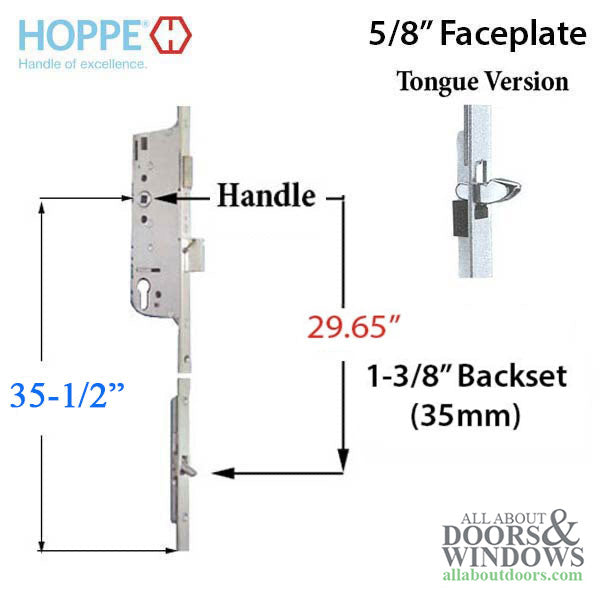

Handle Height: 35-1/2" (902mm)
Face Plate: 5/8” (16mm) wide, Stainless Steel
Tongue Position: 29.65 inches
Handle PZ: 3-5/8 inches (92mm)
Deadbolt: 1” throw
Center of Deadbolt 33 inches to center of spring latch 36-5/8 inches.
Replaces FUHR Patent S-N0 5058938
Operation: Manual Function To lock door
Lift handle and then turn thumbturn or key to extend deadbolt
To unlock door, turn thumbturn or key and then depress lever.
To Change Handling / Reversing Latch
Latch handing may be changed by inserting small screwdriver into small hole in back of latch and pushing forward
Twist latch and release.
See additional pictures.
