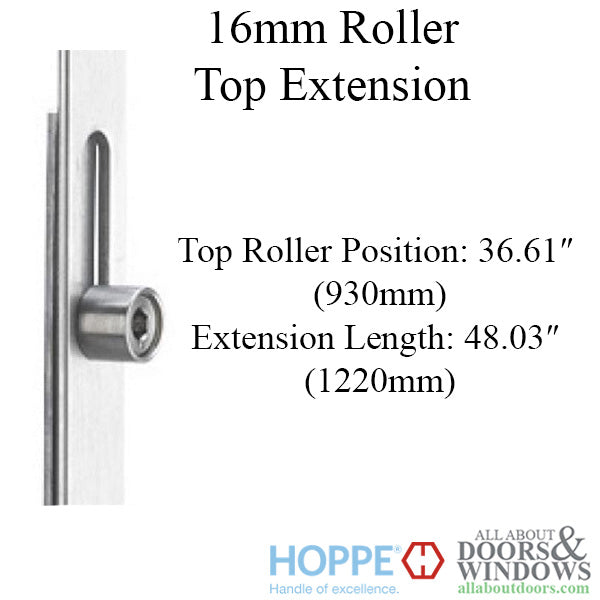

16mm Manual Top Extension, Roller @ 36.61", 48.03" Length
Part Number: Price: $78.07Hoppe HLS9000 upper extension, for Manual locking two roller version multipoint lock
Faceplate Width: 5/8 inch (16mm)

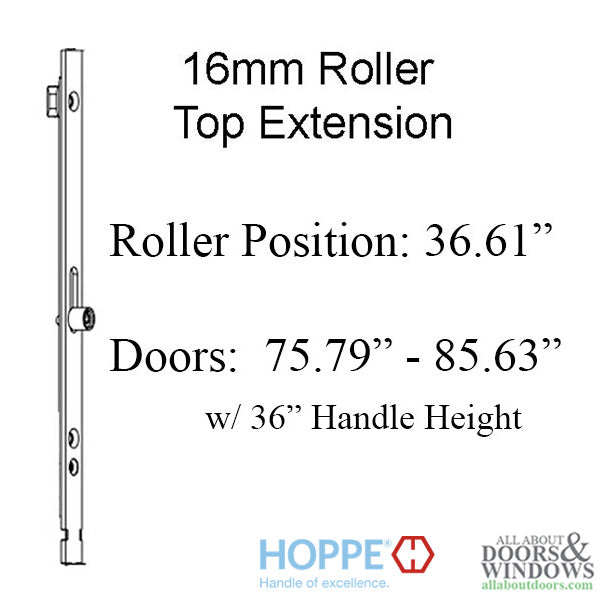

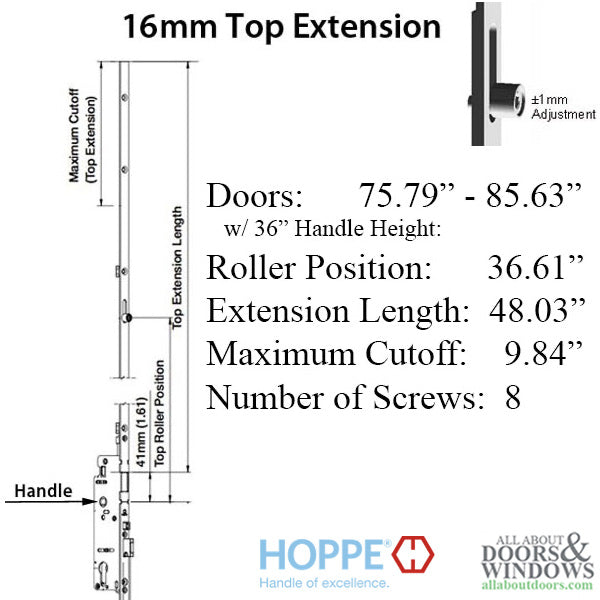

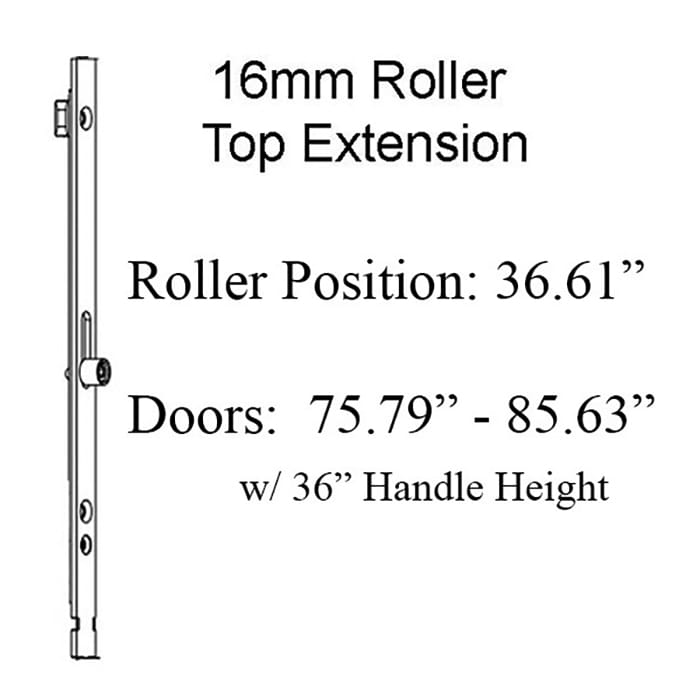

Top Roller Position: 36.61 (930mm) to center of handle
Fits Overall Length: 75.79-85.63 inches (1925mm-2175mm) with 36 inch (914mm) handle Height
Extension Length: 48.03 inches. (1220mm)
Handle Height to top of door is 49.65 inches (1261mm)
Maximum cut off: 9.84 inches (250mm)
Number of screws: 8
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
