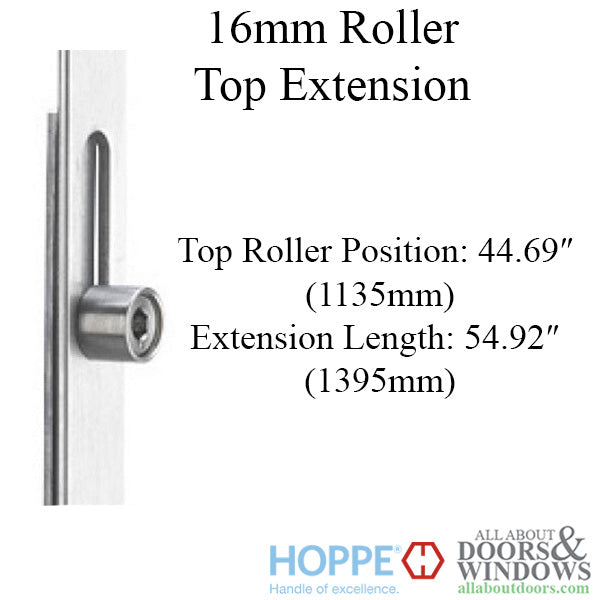

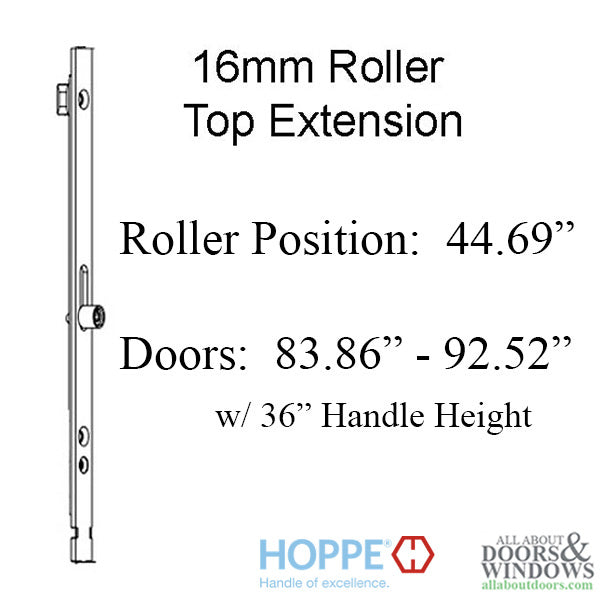

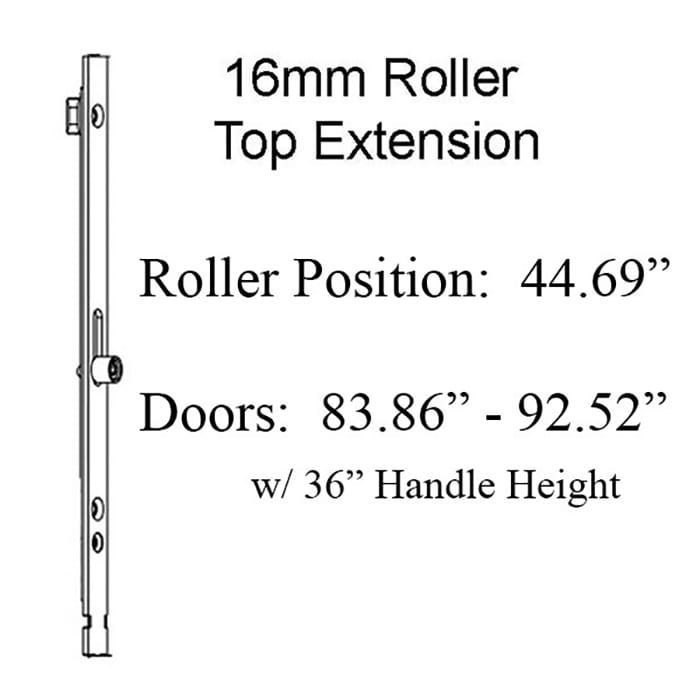

16mm Manual Top Extension, Roller @ 44.69", 54.92" Length
Part Number: Price: $79.81Hoppe HLS9000 Top extension, for manual locking 2 roller version multipoint lock
Locking Version: Manual
Faceplate Width: 5/8 inch (16mm)
Top Roller Position 44.69 (1135mm)
Fits Overall Length: 33.86 to 92.52 inches ( 2130-2350mm) with 36 inch handle Height
Extension Length of 54.92 inches (1395mm)
Handle Height to top of door is 56.54 inches (1436mm) before cut off
maximum cut off: 8.66 inches ( 220mm)
Number of installation screws 9
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
