16mm Manual Top Extension, Roller @ 50.59", 68.70" Length
Part Number: Price: $94.25Hoppe Top Extension, Manual Roller Version - 16mm Faceplate

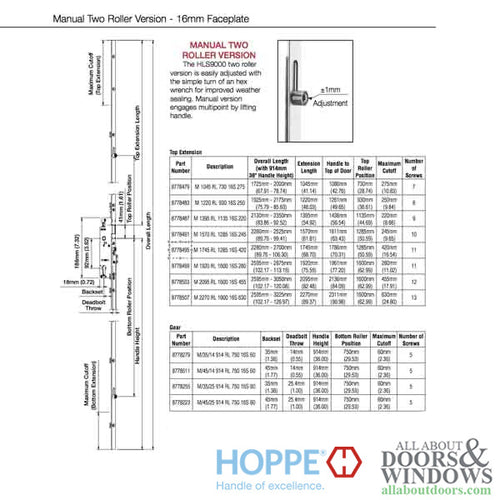

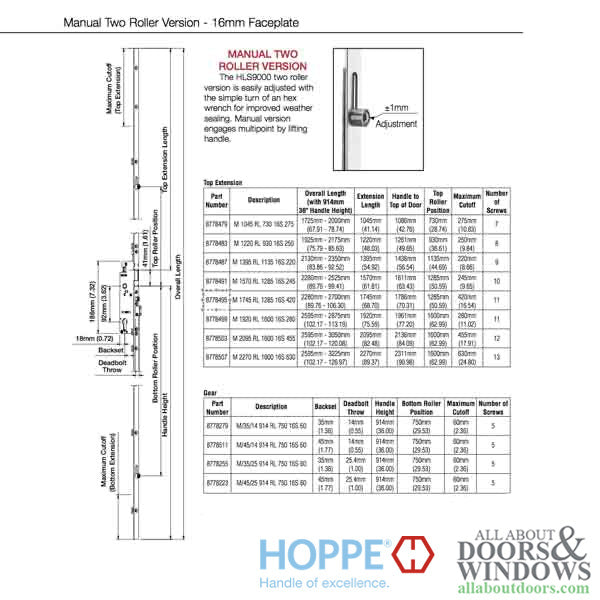

HLS9000 Two Roller, Manual Locking Version ( lift handle to lock )
Faceplate Width: 5/8 inch (16mm)

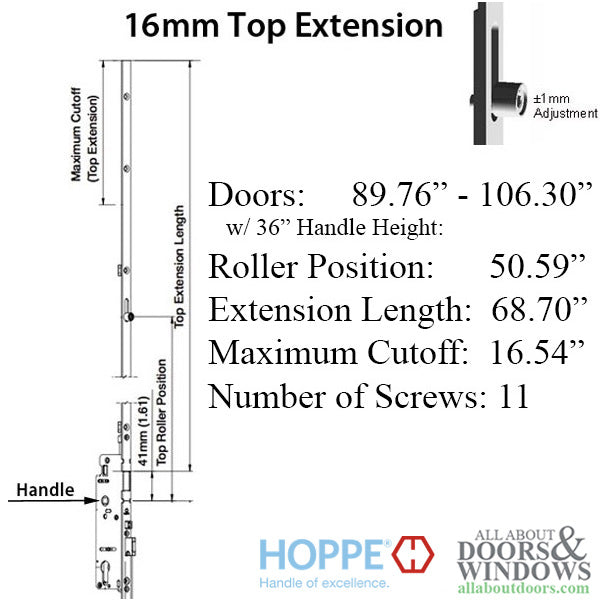

Fits Overall Length (with 36 inch handle Height) 89.76 - 106.30 inches ( 2280-2700mm).
Extension Length: 68.70 inches (1745mm).
Handle Height (HH): 70.31 inches (1786mm) to top of door panel

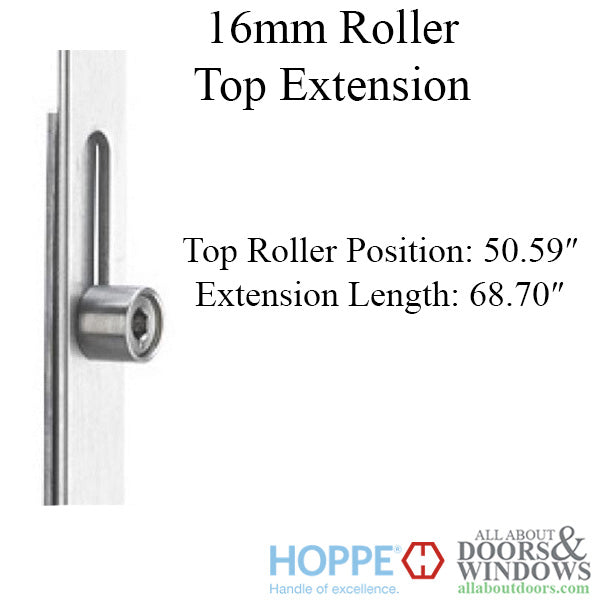

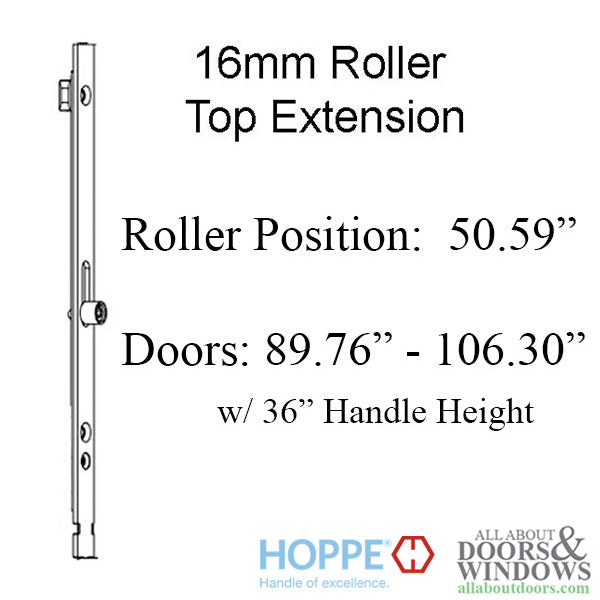

Top Roller Position: 50.59 (1285mm) with a maximum cut off of 16.54 inches (420mm).
Number of Screws: 11
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
