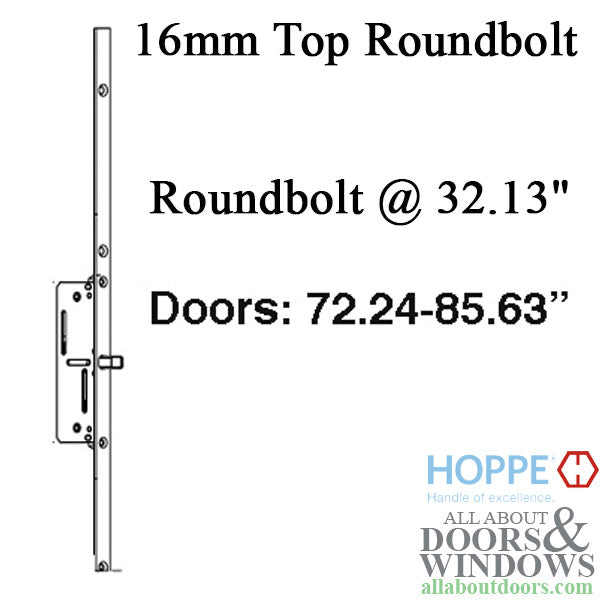

16mm Top Extension Roundbolt @ 32.13" length 48.03" Square End
Use the arrows or swipe left to view all images for this product
16mm Top Extension Roundbolt @ 32.13" length 48.03" Square End
Part Number: $168.29Hoppe Top Extension # 8778663; Used with bottom gear to make complete Multi-point Lock.
Fits doors 72.24 - 85.63 inches (1835-2175mm) with 36 inch (914mm) handle height

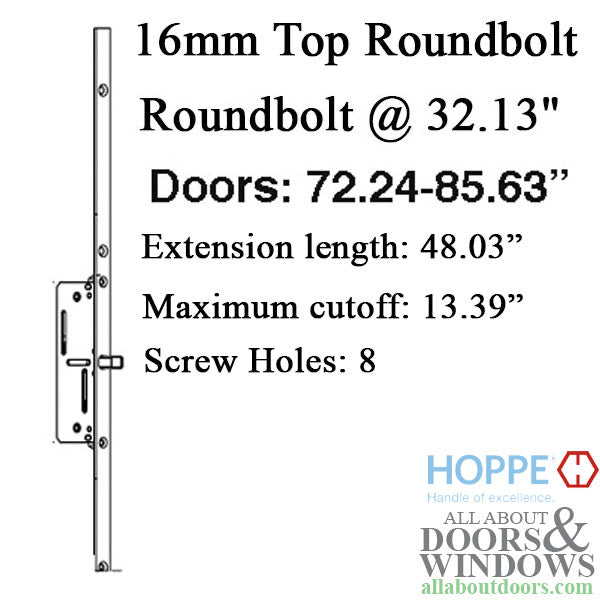

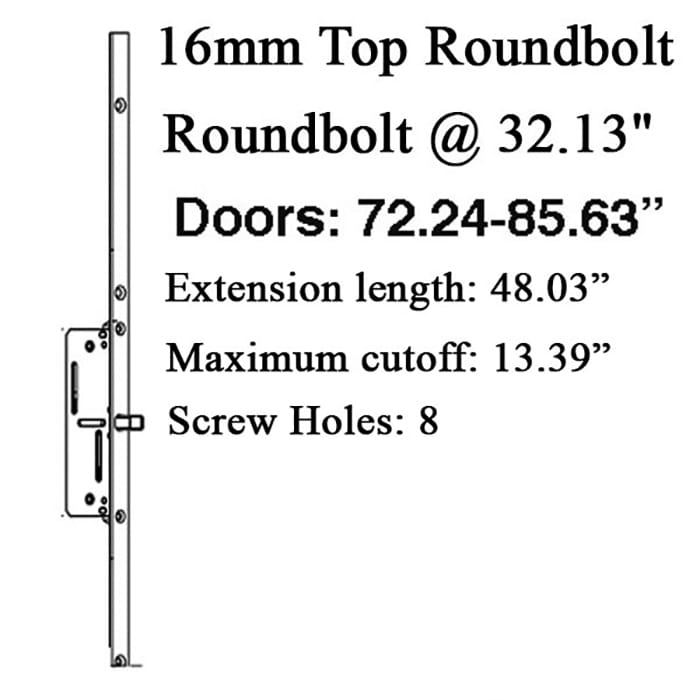

Extension length: 48.03 inches (1220mm)
Handle to top of door: 49.65 inches (1261mm)

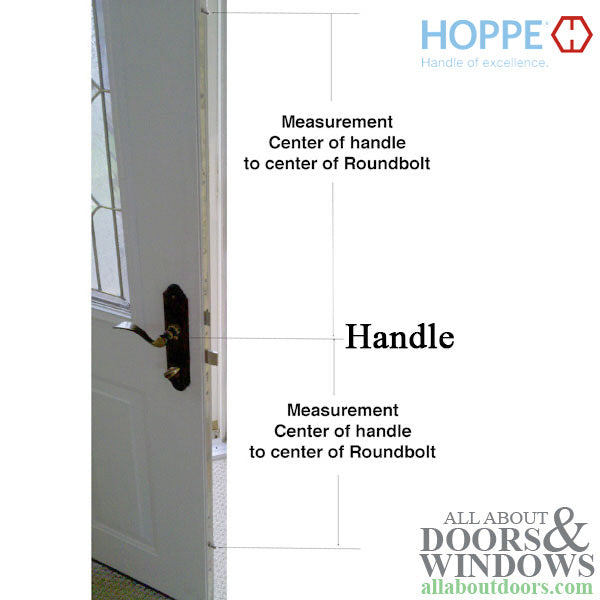

Top Roundbolt position: 32.13 (816mm); From center of bolt to center of handle
Maximum cutoff: 13.39 inches (340mm)
Number of Screw Holes: 8
