16mm Top Shootbolt Extension for ACTIVE Hoppe HLS9000 Multipoint Lock
This is the top shootbolt extension with Croppable end, for adjustable door heights

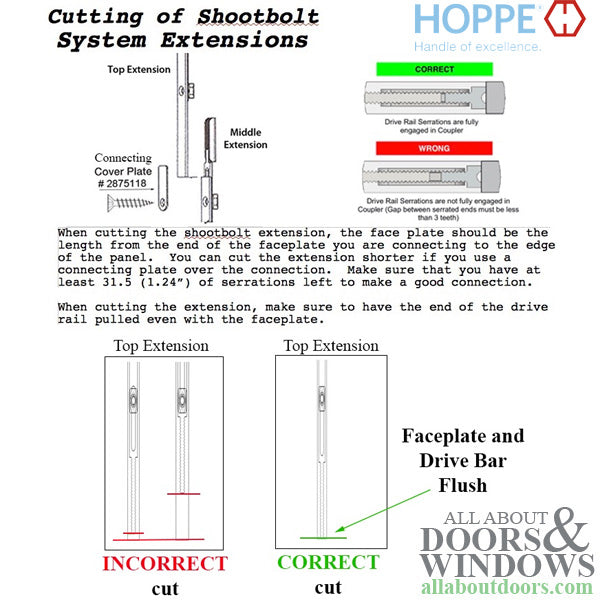

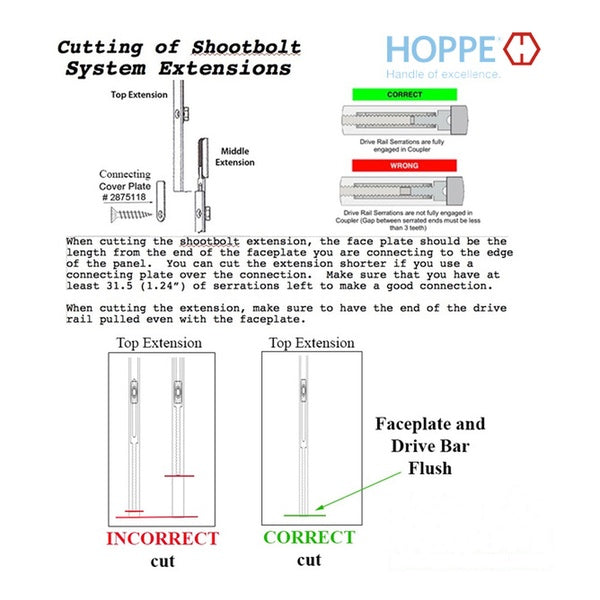

When Cropping (cutting) to desired lengths, be sure the faceplate and drive bar are flush when cutting.

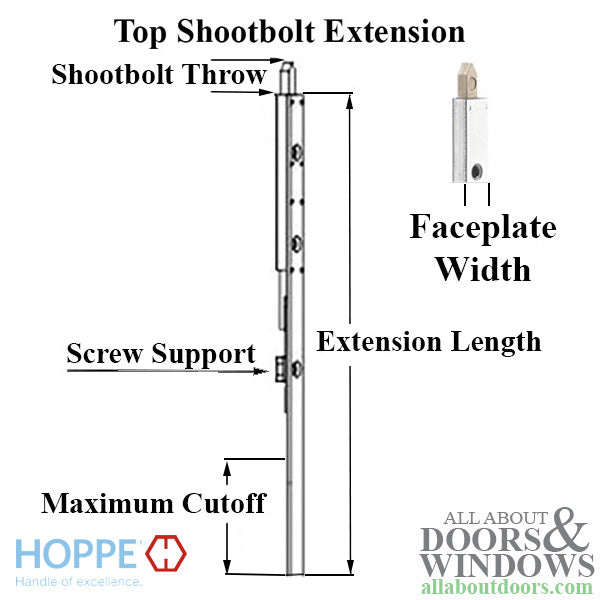

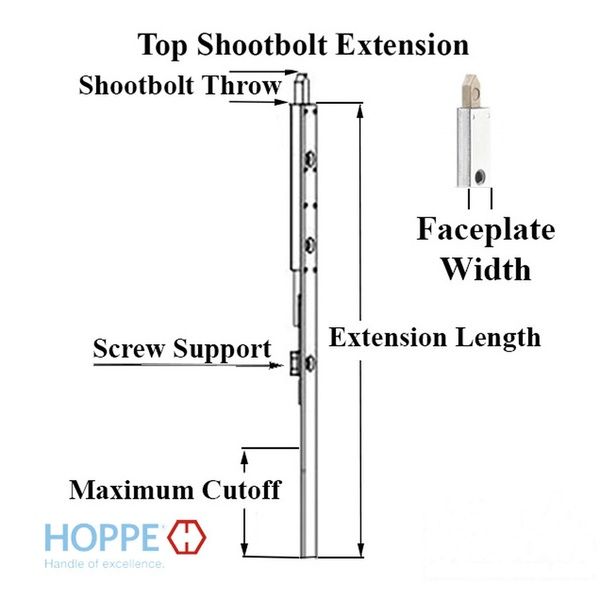

Faceplate width: 5/8 inch (16mm)

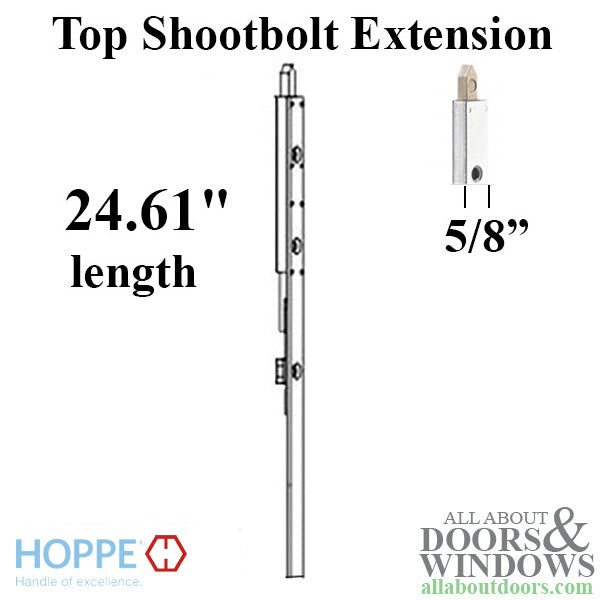

Top Extension Length: 24.61 (625mm)
Shootbolt Throw: 3/4 inch (20mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of Screws: 4
Material: Stainless Steel
Popular Hoppe Combinations:
Overall Lock Lengths- when combined with Middle Extensions and 36 inch handle height
8778691 - 27.20 inch Middle Extension; Door Heights 85.47-89.41 (2171-2271mm)
8778695 - 44.92 inch Middle Extension; Door Heights 103.19-107.13 (2621-2721mm)
8778699 - 62.64 inch Middle Extension; Door Heights 120.91-124.84 (3071-3171mm)
NOTE: 6 middle extensions and 6 Top shootbolt extensions available for various door heights

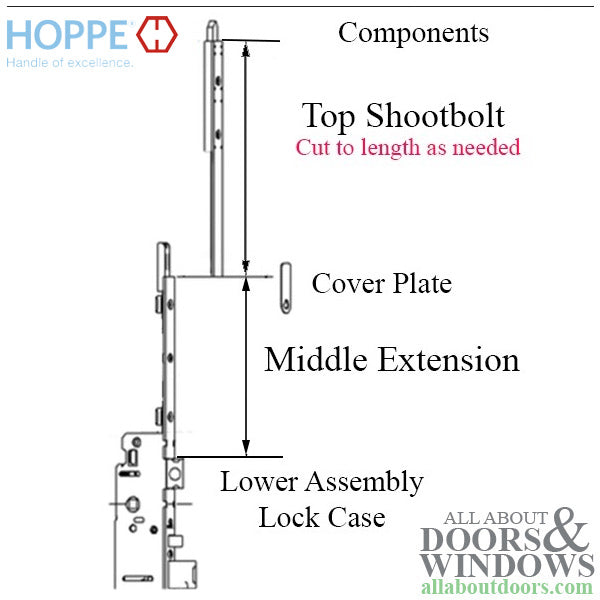

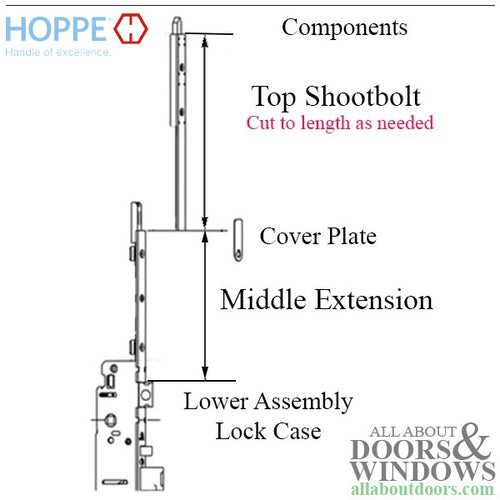

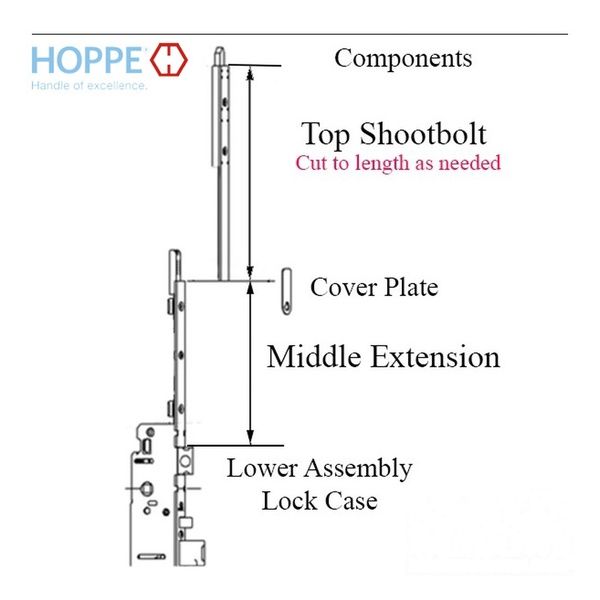

Handle Height + 1.61 + Middle Extension Length + Top Shootbolt length = Maximum Overall Length
