16mm Top Shootbolt Extension for ACTIVE Hoppe HLS9000 Multipoint Lock
This is the top shootbolt extension with croppable end, for adjustable door heights

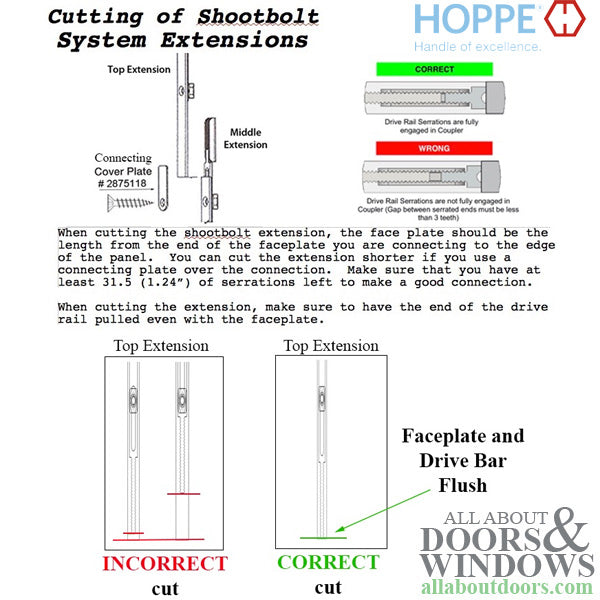

When cropping (cutting) to desired lengths, be sure the faceplate and drive bar are flush

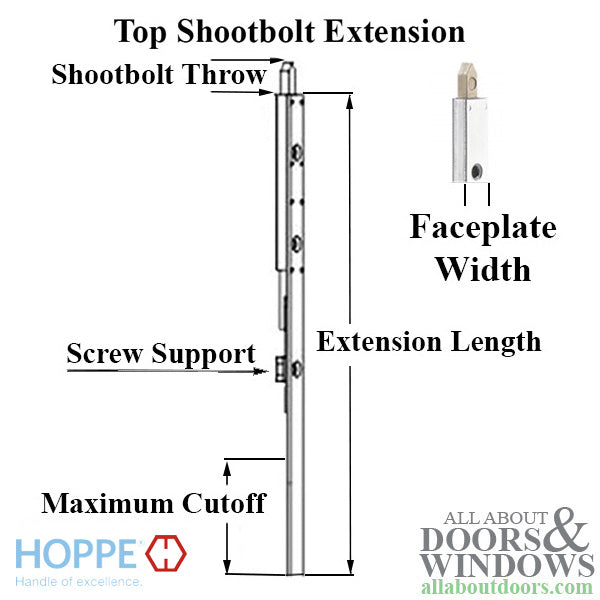

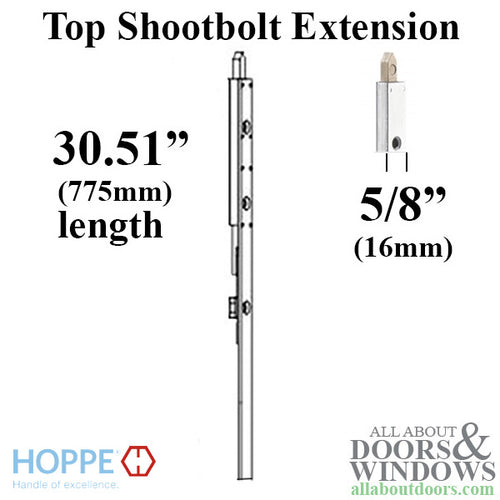

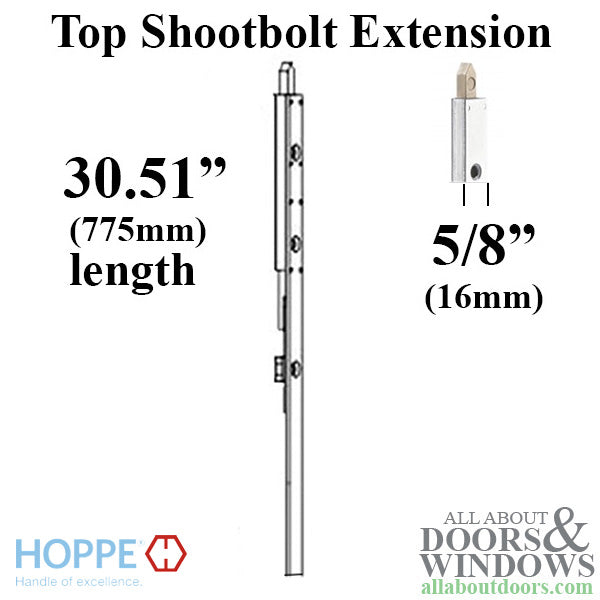

Faceplate width: 5/8 inch (16mm)
Top Extension Length: 30.51 (775mm)
Shootbolt Throw: 3/4 inch (20mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of Screws: 5
Material: Stainless Steel
Popular Hoppe Combinations:

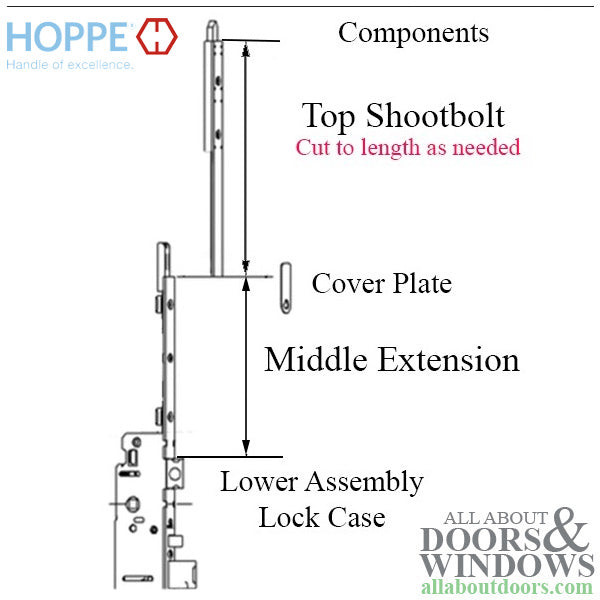

Overall Lock Lengths- when combined with Middle Extensions and 36 inch handle height
8778691 - 27.20 inch Middle Extension; Door Heights 91.38-95.31
8778695 - 44.92 inch Middle Extension; Door Heights 109.09-113.03
8778699 - 62.64 inch Middle Extension; Door Heights 126.81-130.75
NOTE: 6 middle extensions and 6 top shootbolt extensions available for various door heights
Handle height + 1.61 + middle extension length + top shootbolt length = maximum overall length
