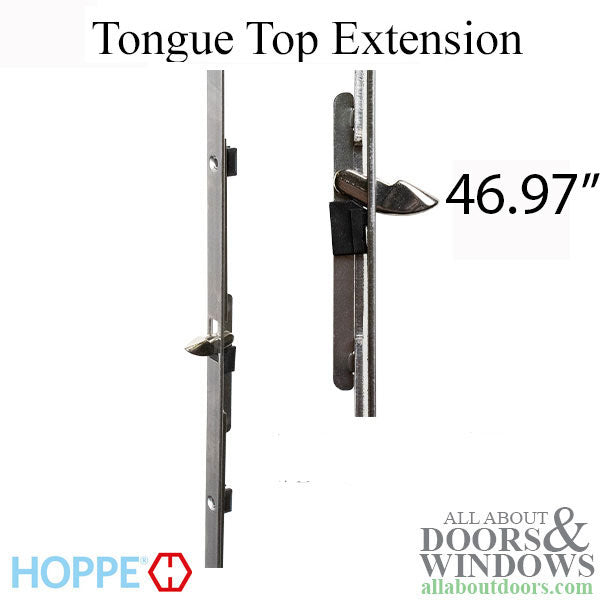

This is the Top Extension only, does not include the bottom assembly with gearbox - 1 of 2 Pieces.

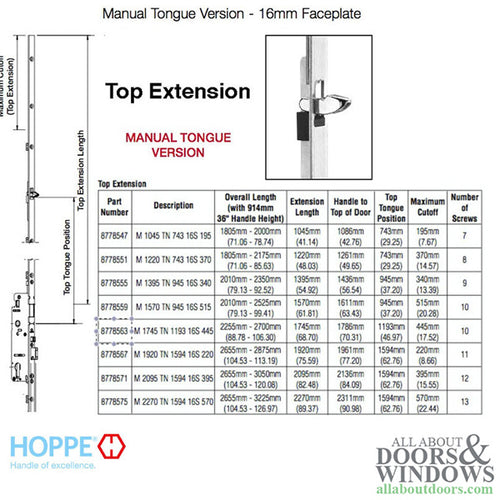

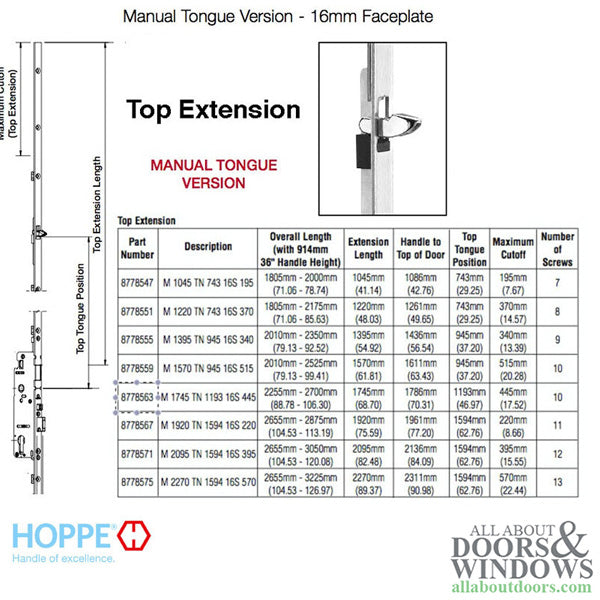

Top Section: Manual Tongue Faceplate Width: 5/8 inch (16mm) Top Tongue Position: 46.97 inches (1193mm) Extension Length: 68.70 inches (1745mm) Maximum Cutoff: 17.52 inches (445mm) Number of Screws: 10 Material: Stainless Steel
Note: When both Upper and Lower assemblies are connected fits doors from 88.78 to 106.30 inches tall with 36 inch handle height.

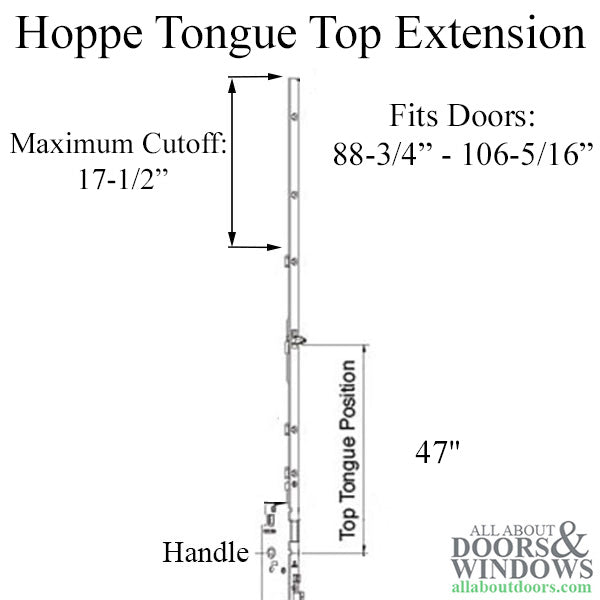

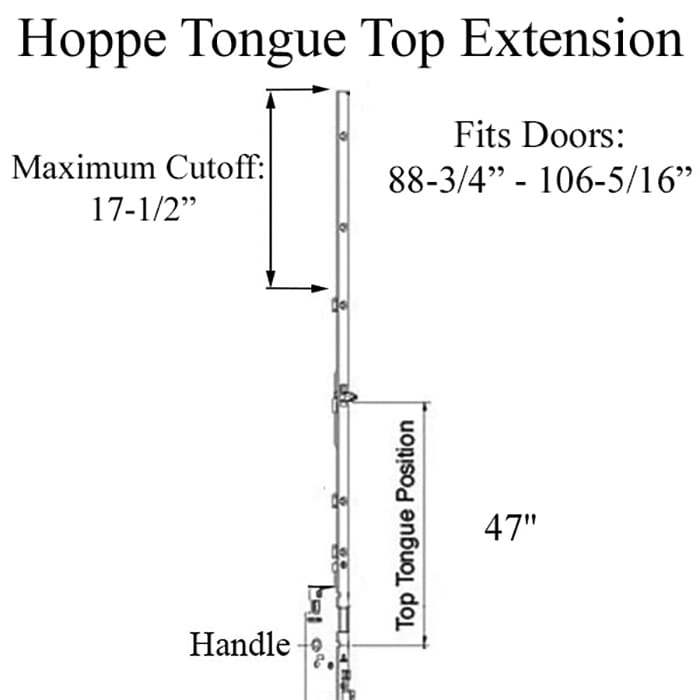

The top may be cut a maximum of 17.52 inches, to adjust for different door heights. Overall Handle to Top of Door 68.70 inches with 36 inch handle height.
Related Hoppe 16mm Tongue Extensions: 2333474 - Hoppe Top Extension with Tongue 37.79" 8778551 - Hoppe Top Extension with Tongue 48.03" 8778555 - Hoppe Top Extension with Tongue 54.92" 8778559 - Hoppe Top Extension with Tongue 61.81" 8778563 - Hoppe Top Extension with Tongue 68.70" 8778567 - Hoppe Top Extension with Tongue 75.59"
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
<p>Hoppe 16mm Manual Top Extension</p><p><i><u>This is the Top Extension only, does not include the bottom assembly with </u></i><a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank"><i><u>gearbox</u></i></a><i><u> - 1 of 2 Pieces.</u></i><br /><br />Top Section: Manual Tongue<br /><a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a> Width: 5/8 inch (16mm)<br /><a href="https://www.allaboutdoors.com/multipoint-locking-positions" target="_blank">Top Tongue Position</a>: 46.97 inches (1193mm)<br />Extension Length: 68.70 inches (1745mm)<br />Maximum Cutoff: 17.52 inches (445mm)<br />Number of Screws: 10<br />Material: Stainless Steel<br /><br /><strong>Note: </strong>When both Upper and Lower assemblies are connected fits doors from 88.78 to 106.30 inches tall with 36 inch handle height.</p><p><i>The top may be cut a maximum of 17.52 inches, to adjust for different door heights. Overall Handle to Top of Door 68.70 inches with 36 inch handle height.</i><br /><br /><strong>Related Hoppe 16mm Tongue Extensions:</strong><br /><a href="https://www.allaboutdoors.com/16mm-Manual-Top-Extension-Tongue-at-32.12-Radius-end">2333474</a> - Hoppe Top Extension with Tongue 37.79"<br /><a href="https://www.allaboutdoors.com/16mm-Manual-Top-Extension-Tongue-29-25-48-03-Length">8778551</a> - Hoppe Top Extension with Tongue 48.03"<br /><a href="https://www.allaboutdoors.com/16mm-Manual-Top-Extension-Tongue-37-20-54-92-Length">8778555</a> - Hoppe Top Extension with Tongue 54.92"<br /><a href="https://www.allaboutdoors.com/16mm-Manual-Top-Extension-Tongue-37-20-61-81-Length">8778559</a> - Hoppe Top Extension with Tongue 61.81"<br />8778563 - Hoppe Top Extension with Tongue 68.70"<br /><a href="https://www.allaboutdoors.com/16mm-Manual-Top-Extension-Tongue-62-76-75-59-Length">8778567</a> - Hoppe Top Extension with Tongue 75.59"<br /><br />Attaching HOPPE Multipoint Lock Top Extension<br /><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/PFShuqIlFa0" title="YouTube video player" width="360"></iframe><br />Rehanding a Hoppe HLS9000 Multipoint Lock<br /><iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen="" frameborder="0" height="210" src="https://www.youtube.com/embed/0l9w2W90jZk" title="YouTube video player" width="360"></iframe></p>
Add to Card
16mm Manual Top Extension, Tongue @ 46.97", 68.70" Length
