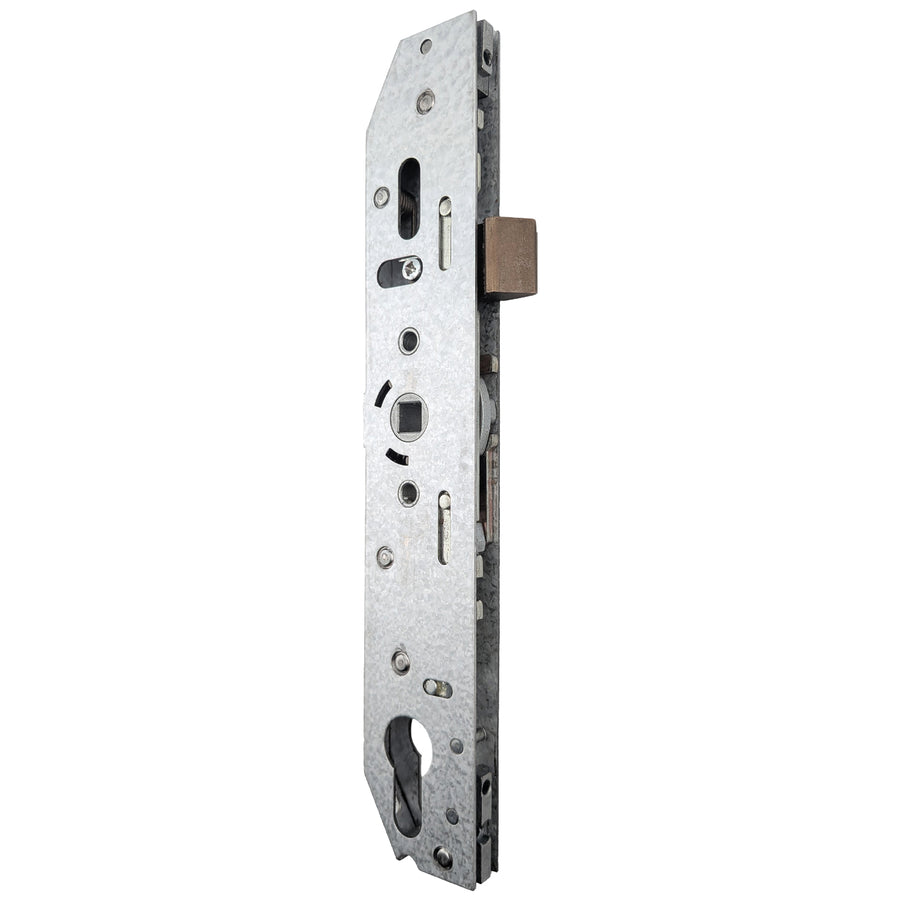

Mila 25mm Backset Lock Body - Latch Only, No Deadbolt
Part Number: $117.07Mila Lock Body
Latch only, No Deadbolt
This is a replacement for the 4-roller version that has been discontinued.

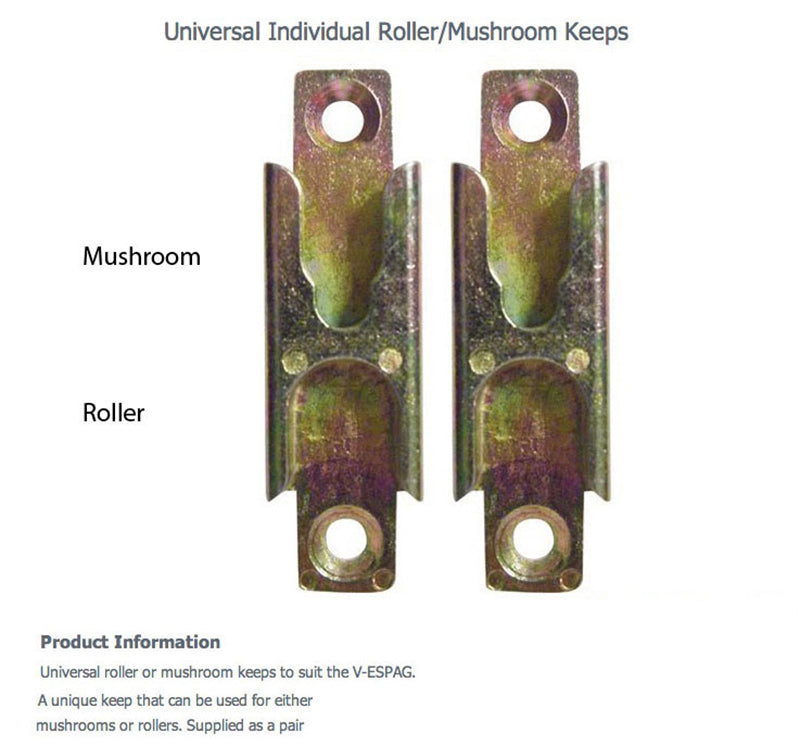

If you have ordered this part before, please be aware that we are now receiving these replacements for the lock case with latch only—the faceplate, cams, rollers, keeps, and deadbolt are not included.

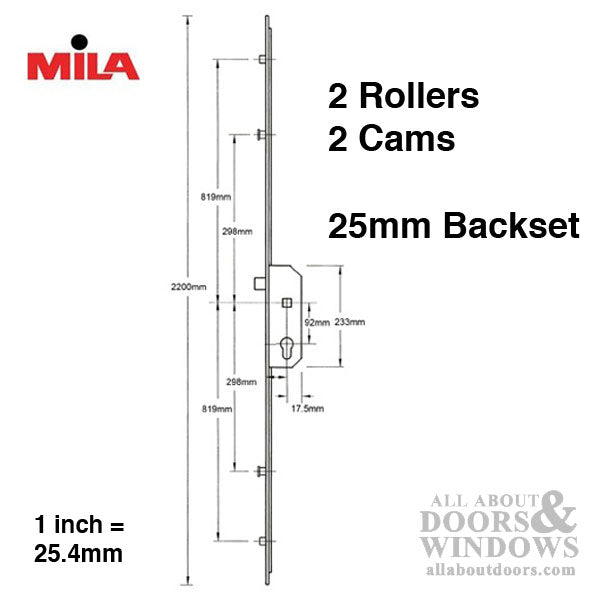

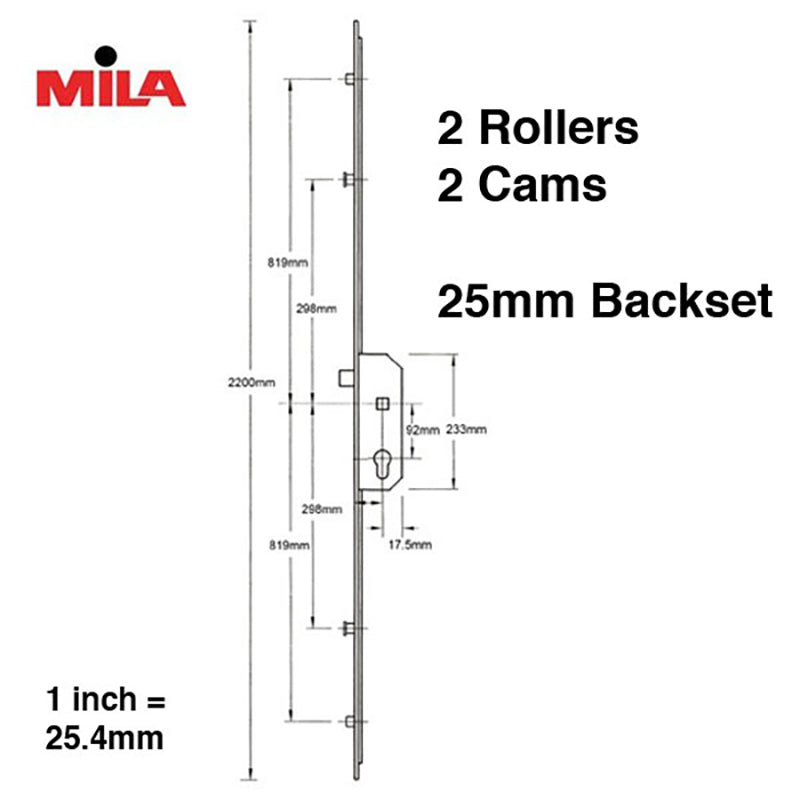

- Lock Body Height: 9-3/16 inches (233mm)
- Lock Body Width (After attaching faceplate): 1-11/16 inch (43mm)
- Backset: 1 inch (25.4mm)
- PZ (Distance from center-of-spindle to center-of-cylinder): 3-5/8 inches (92mm)
- Spindle Hub: 5/16 inch (8mm)
- Faceplate (Not Included) Width: 5/8 inch (16mm)
- Faceplate (Not Included) Height: 86-5/8 inches (2200mm)
-
Lock Devices (Not Included):
- 2 Rollers
- 2 Mushroom Cams
- No Deadbolt
- Markings: MI-009 01/14

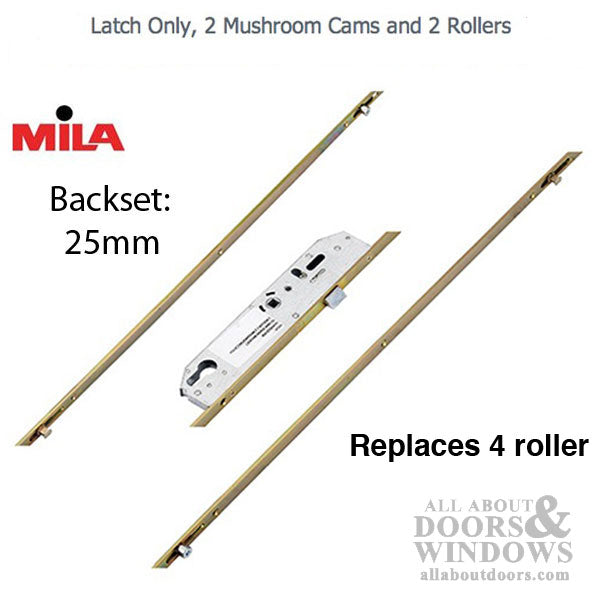

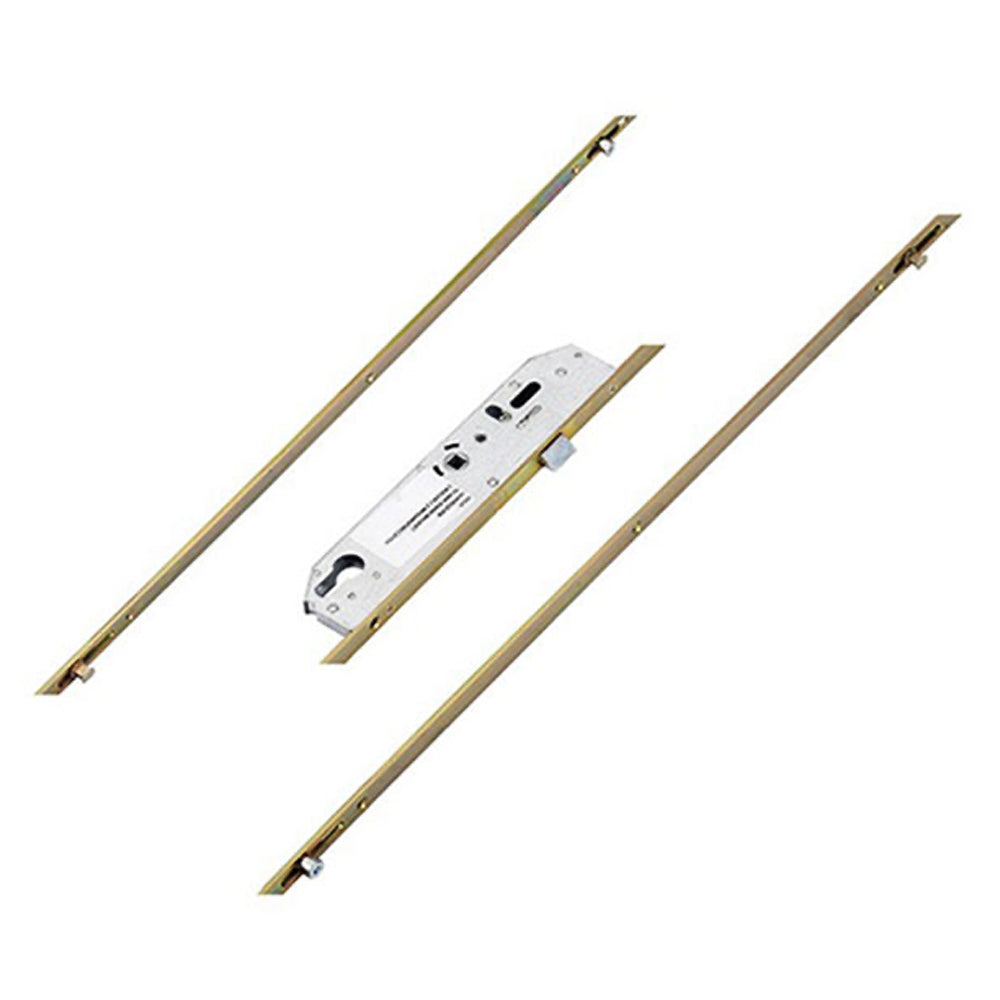

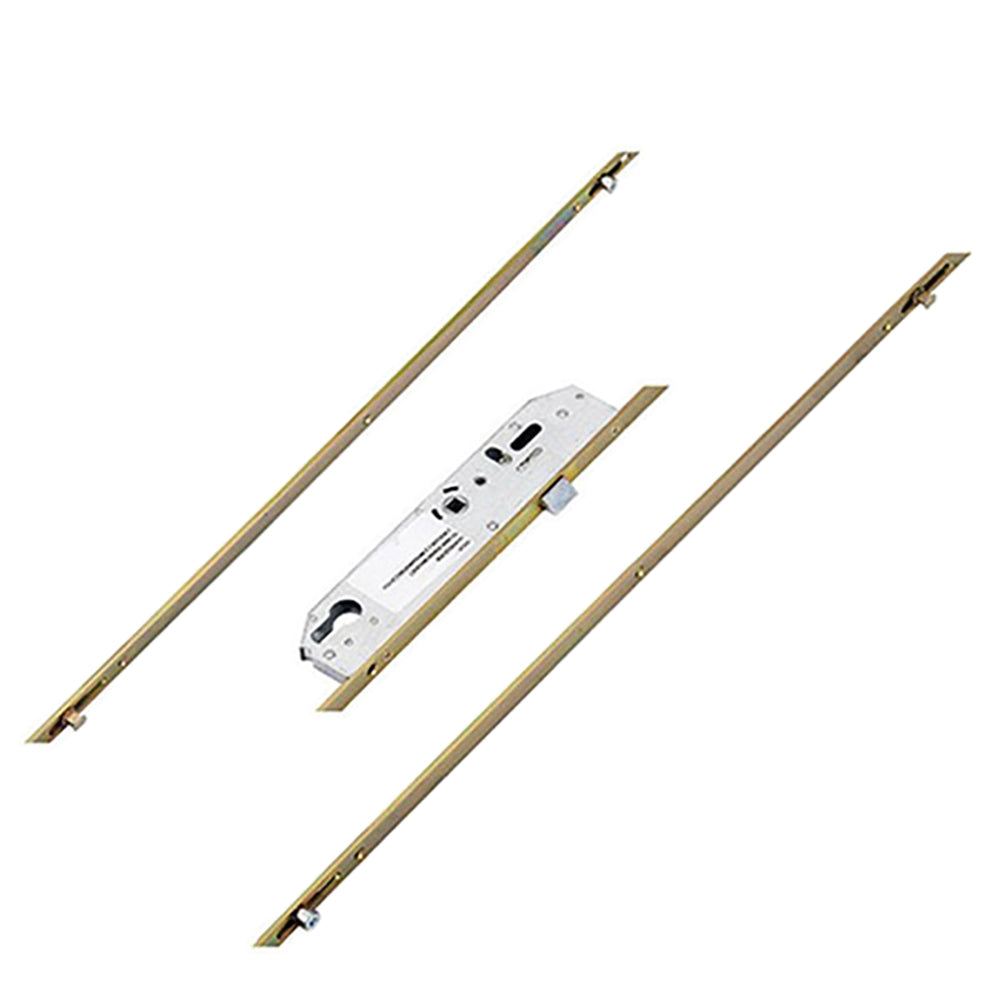

16mm Mila 2 rollers, 2 mushroom cams 25mm backset, Latch only, No Deadbolt
This is the replacement for the 4 roller version, that has been discontinued
Faceplate Width: 5/8 inch (16mm)
Backset: 1 inch (25.4mm)
Lock Devices: 2 Rollers and 2 Mushroom cams, NO deadbolt
Handle - Cylinder PZ: 3-5/8 inches (92mm)
Spindle Hub: 5/16 inch (8mm)
Overall Length: 86-5/8 inches (2200mm)
Markings: MI-009 01/14
Note:
This multipoint lock is also available with Deadbolt
