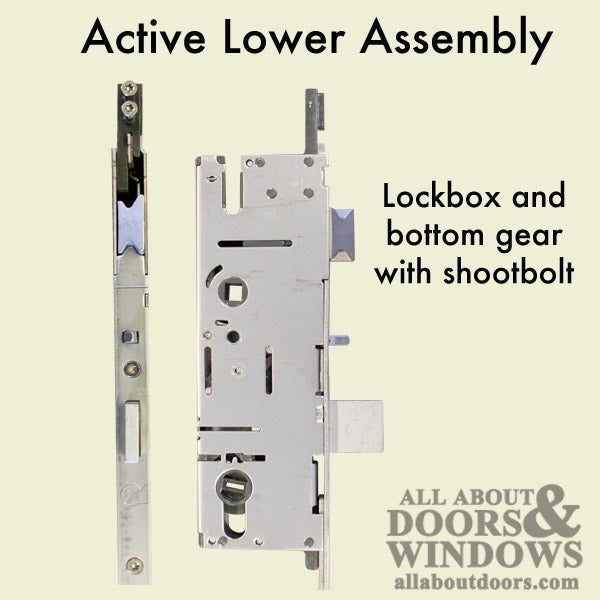

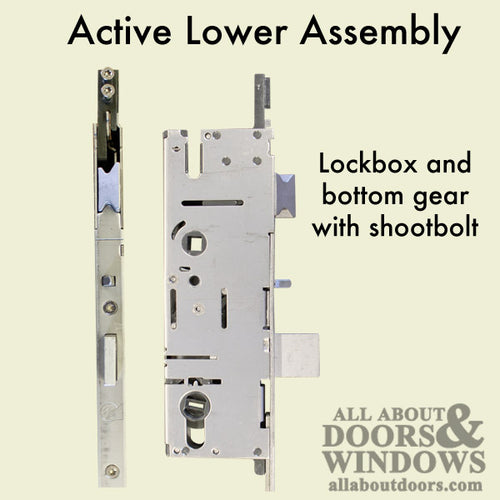

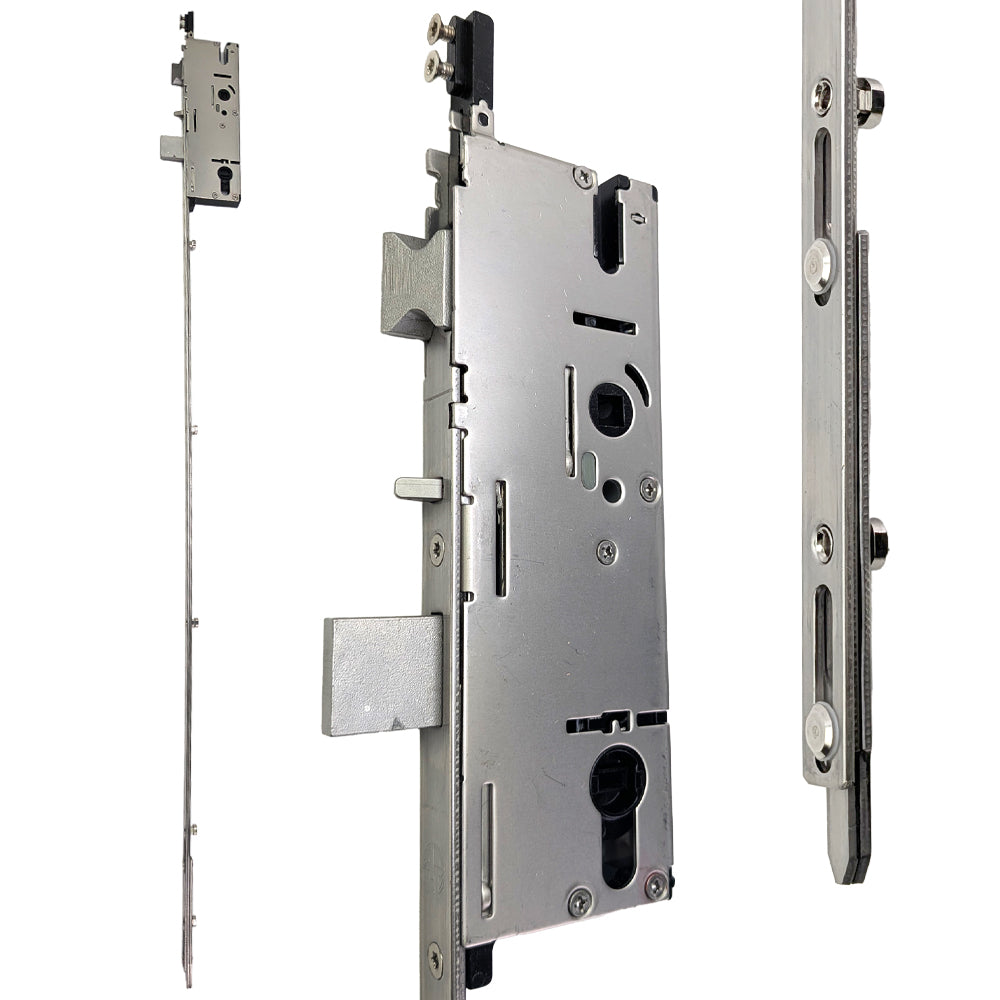

16mm P2000 Active Lower 45/92 Shootbolt Gear

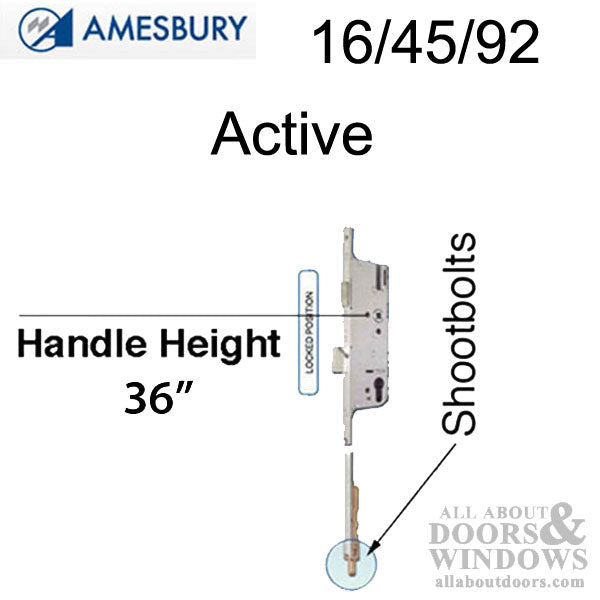

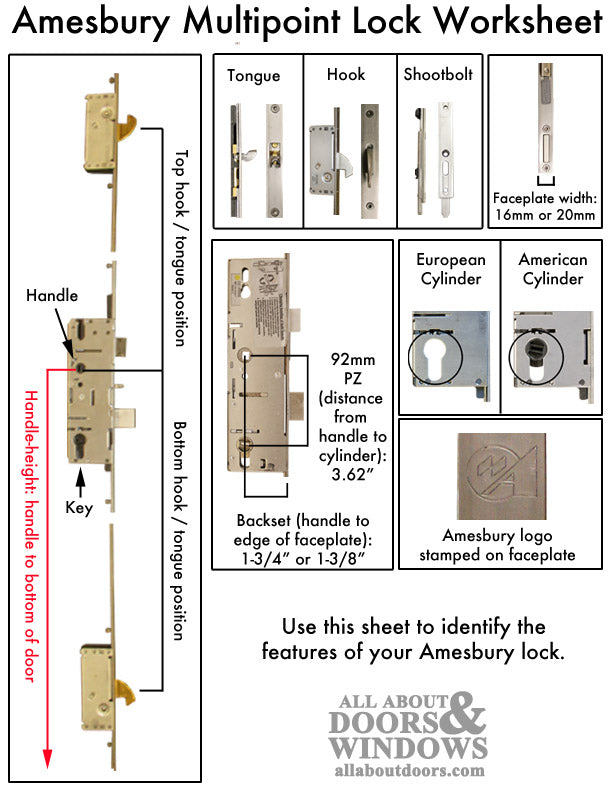

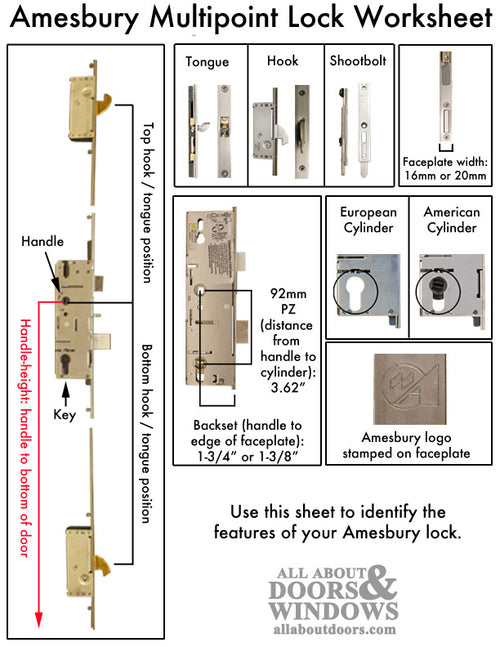

Handle Height 36"

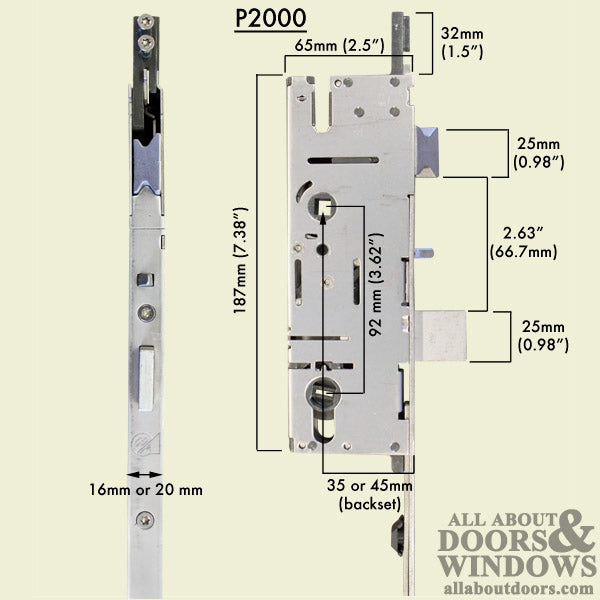

Backset: 45mm(1.77inches)
Used mostly as a 3 point locking system.
Note: If used with appropriate upper extension and shoot tip, can fit doors from 69 inches to 121.5 inches.
Markings: Front LF2310 - Back LD2310

RELATED PARTS
NOTE:  When used with gears 8135-2310-81LA  OR  8145-2310-81-LA and shootbolt 5670-81 will fit doors with: Panel Length: 69 inch Minimum,  82-1/2 Inch Maximum  with 36 inch Handle Height (HH)

Bottom Gear with Shootbolt -   8145-2310-81-LA
Top Shootbolt - 5670-81
Middle Ext. - 69" to 82.5" door  -  16-2094-UA
                     82" to 95.5" door  -  16-2095-UA
                     95" to 108.5" door - 16-2096-UA
                  108" to 121.5" door  - 16-2097-UA

To Change Handing / Latch Reversal:
1. Extend Deadbolt and pull spring latch out
2. Rotate to correct position
3. Check function of lock before closing door
