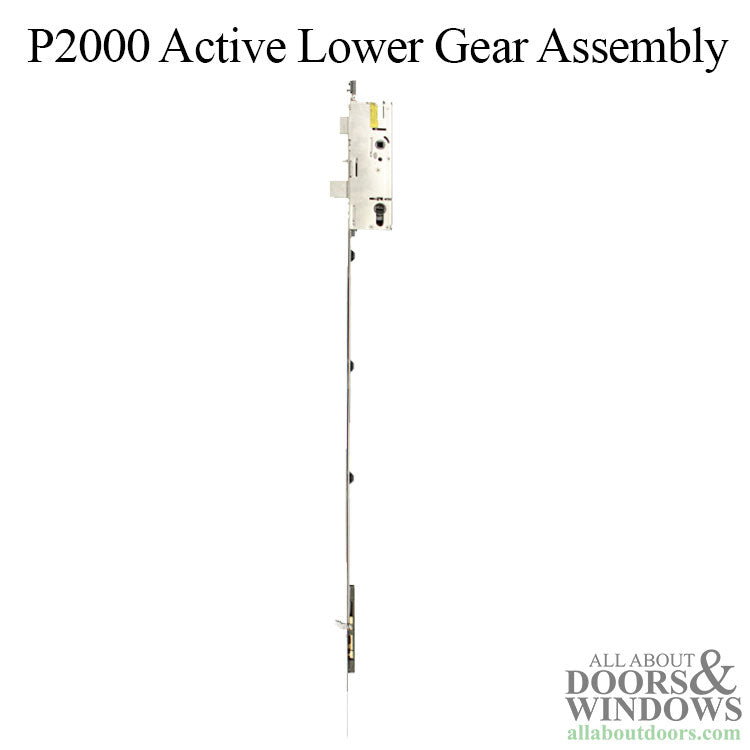

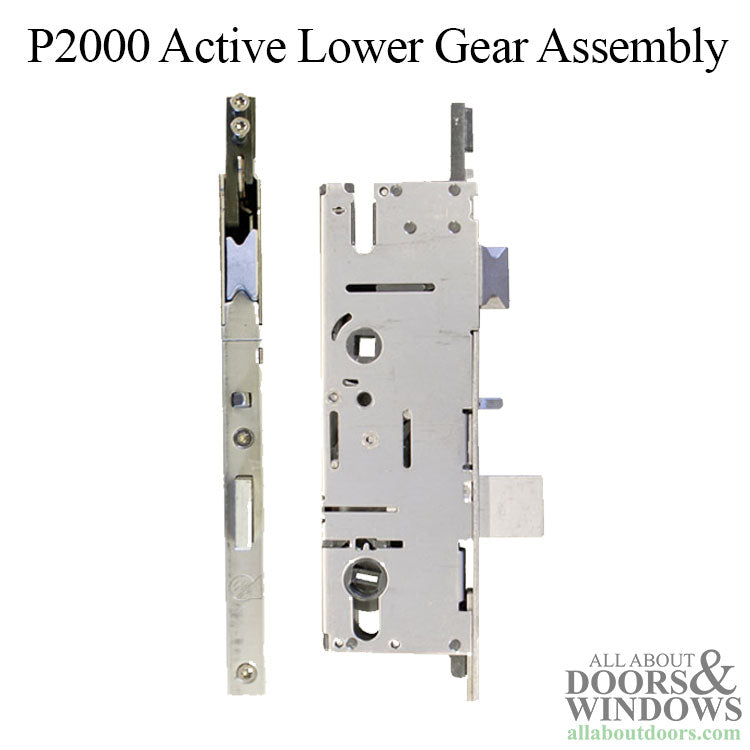

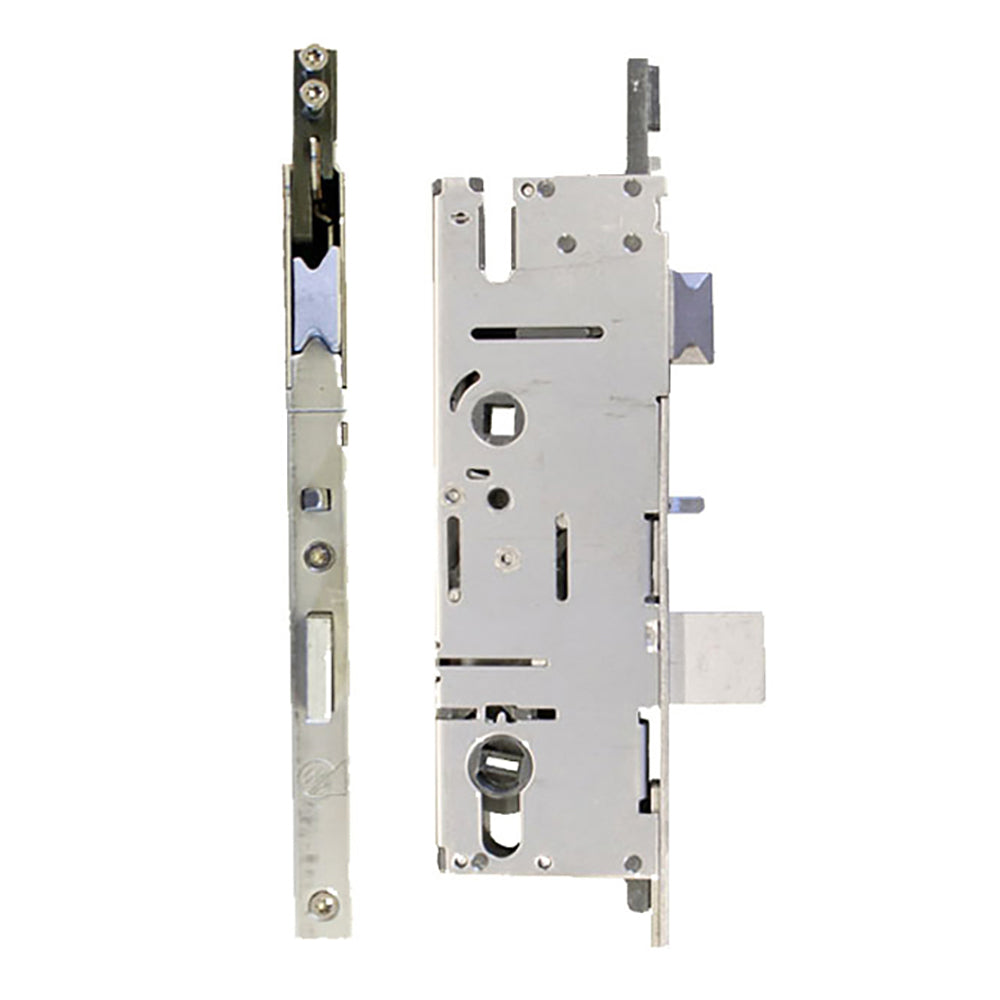

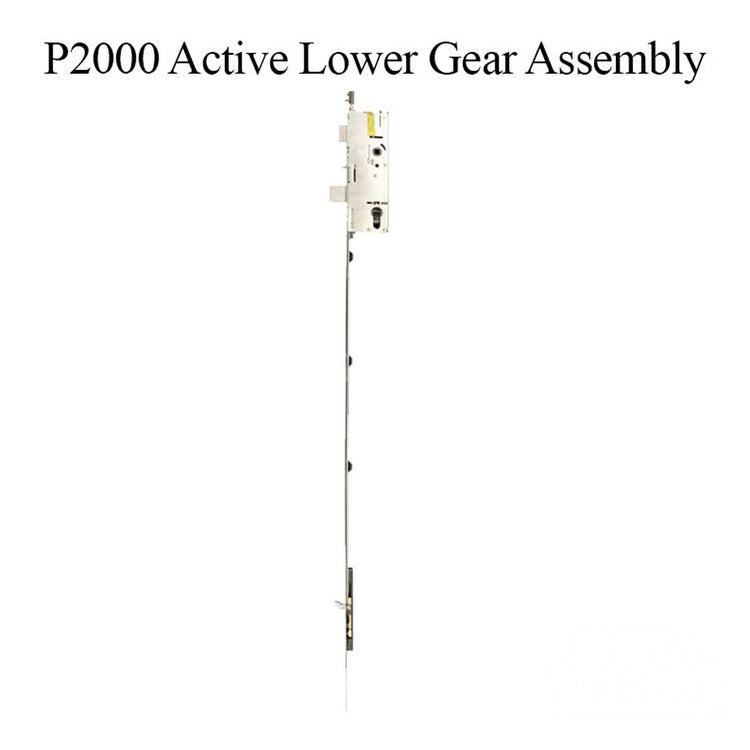

Amesbury Multipoint Lock P2000 American Style Active Mortise Lock With Tongue

P2000 16mm Active 45mm Gear with Tongue Locking System

Cylinder Type: American

Handle Height: 36 inches (914mm)

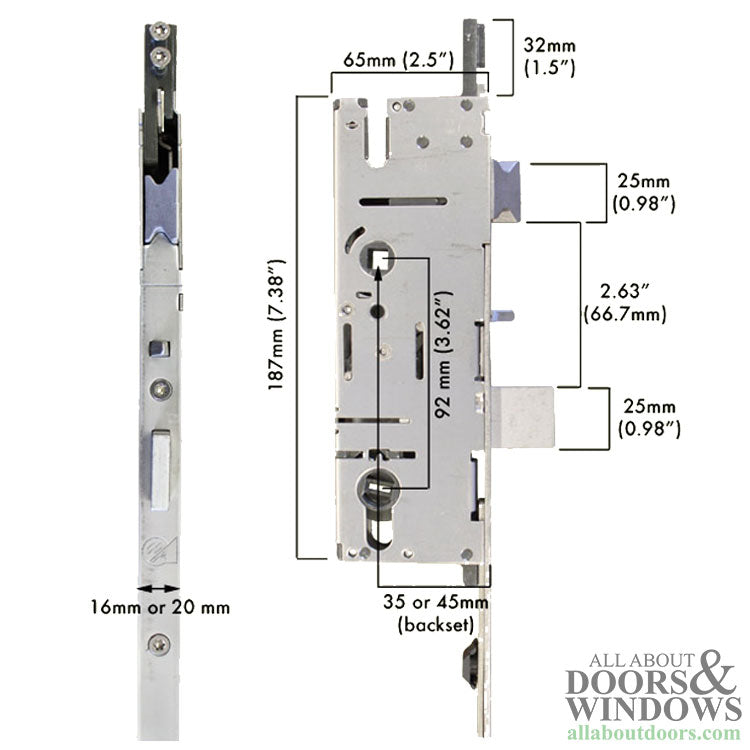

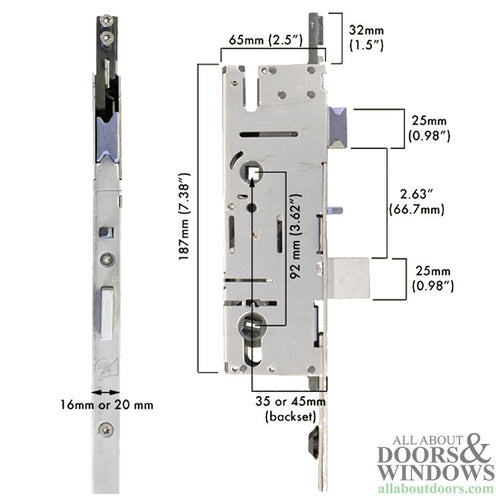

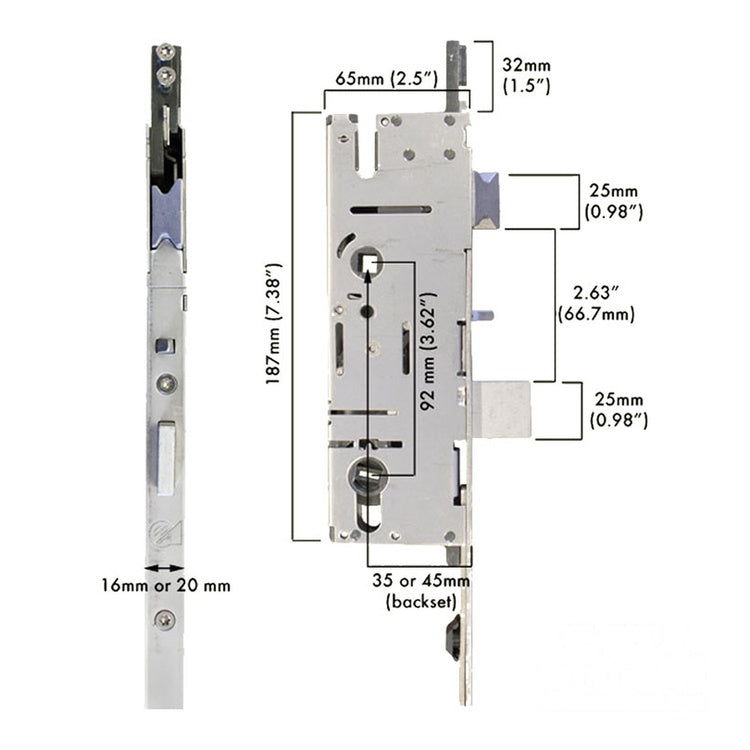

Backset: 1.77 inches (45mm)

Faceplate Width: 5/8 inch ( 16mm)

Material: Stainless Steel

Bottom Tongue Position: 26.42 inches (671mm)

Tongue versions are used with Astragals. The Rhino and Shootbolt can be used with or without astragal.

Stamped numbers on front of gear LF2113 - Back of gear LD2113

Note: If used with appropriate upper extension, can fit doors from 69 inches to 108.5 inches.

Premiere P2000 Active American 3 Point Tongue Locking System

For Door heights from 69 in. to 108.5 in. use these parts:

Bottom Gear with Tongue - 8145-2113-81-LA

Upper Ext. - 69" to 82.5" door - 16-2084-UA (tongue position 18.92")

82" to 95.5" door - 16-2085-UA (tongue position 26.39")

95" to 108.5" door - 16-2086-UA (tongue position 32.89")
