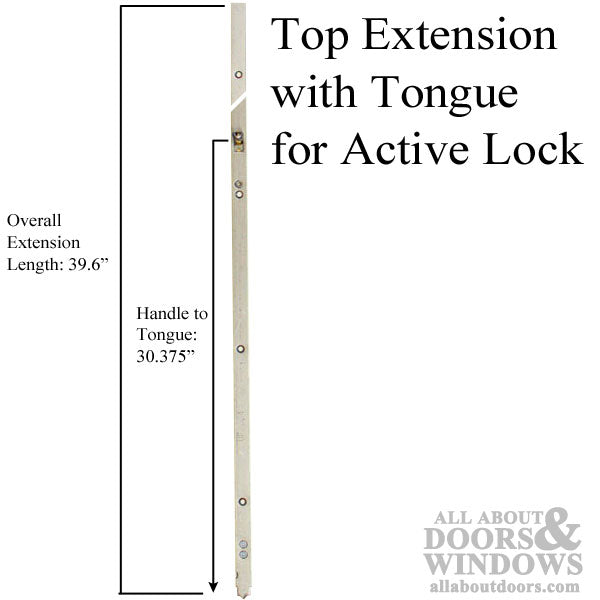

16mm P2000 Active Upper Tongue @ 30.375 Assembly (39-9/16 length), Doors 77
Part Number: Price: $36.91Amesbury 16-2029UA - upper assembly for multipoint lock
Version: Tongue
Faceplate Width: 5/8 (16mm)
Extension Length: 39-9/16 inches
Overall Length w/ Handle Height: 36 inches: 77 inches
Croppable: Yes
Faceplate Markings: UF2029
Tongue versions are used with Astragals. The Rhino and Shootbolt can be used with or without astragal.
When combined with Lower assmbly -
8145-2029-81LA - Lower assembly HH36" , BS 1-3/4"
Overall Length: 77 inches
Version: Tongue
Faceplate Width: 5/8 (16mm)
Extension Length: 39-9/16 inches
Overall Length w/ Handle Height: 36 inches: 77 inches
Croppable: Yes
Faceplate Markings: UF2029
Tongue versions are used with Astragals. The Rhino and Shootbolt can be used with or without astragal.
When combined with Lower assmbly -
8145-2029-81LA - Lower assembly HH36" , BS 1-3/4"
Overall Length: 77 inches
