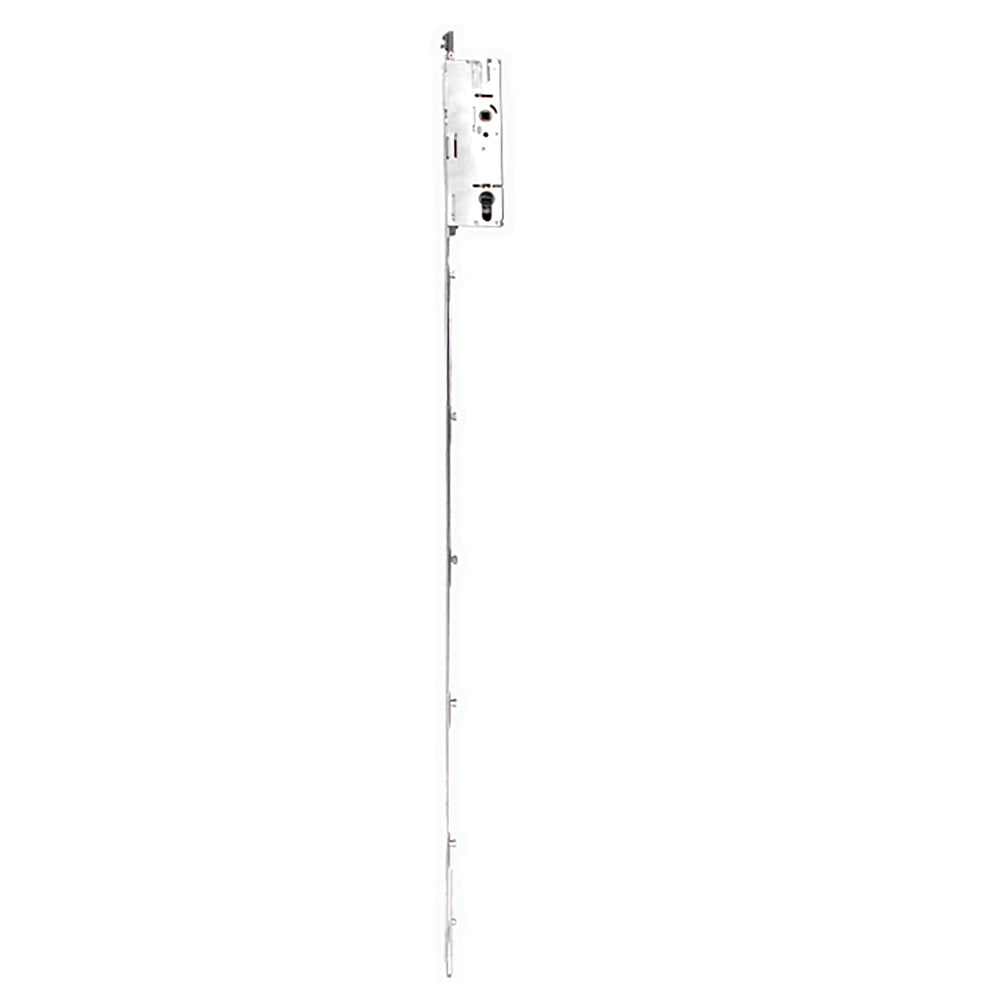

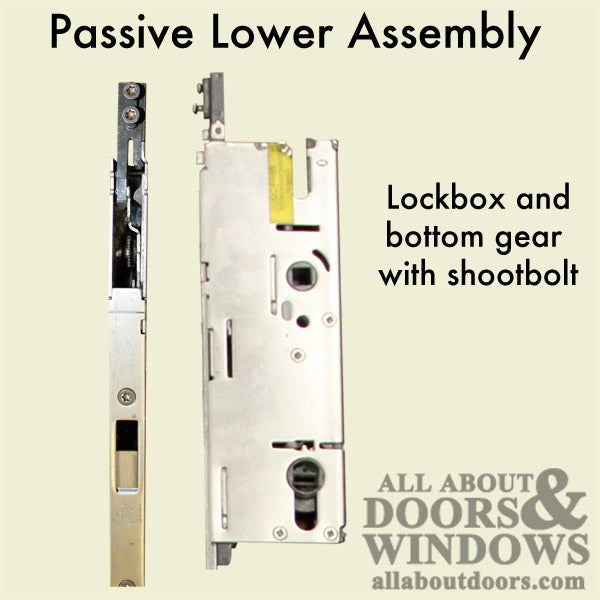

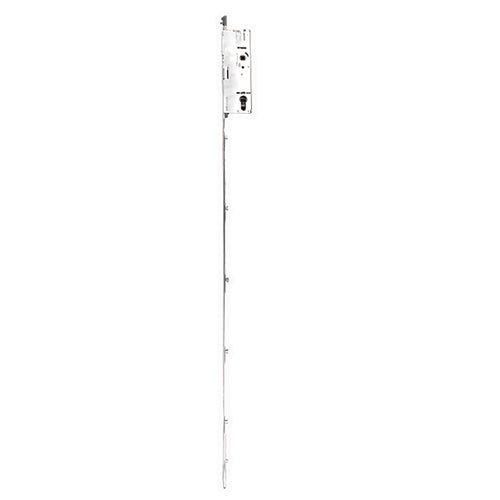

Amesbury P2000 16mm 35/92 Passive Lower Assembly

Rhino Hook Receptacle / Shootbolt

The passive gear can be used on doors with astragals or without (when the locks are face to face).

When the active door deadbolt extends into the passive gear box, it restricts movement of the top and bottom shootbolts.

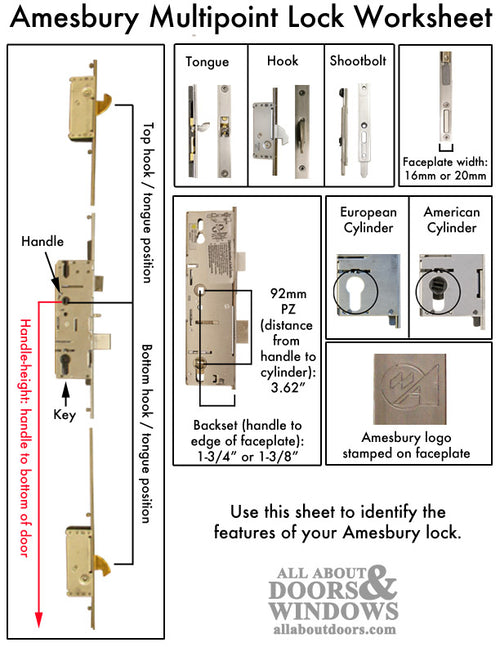

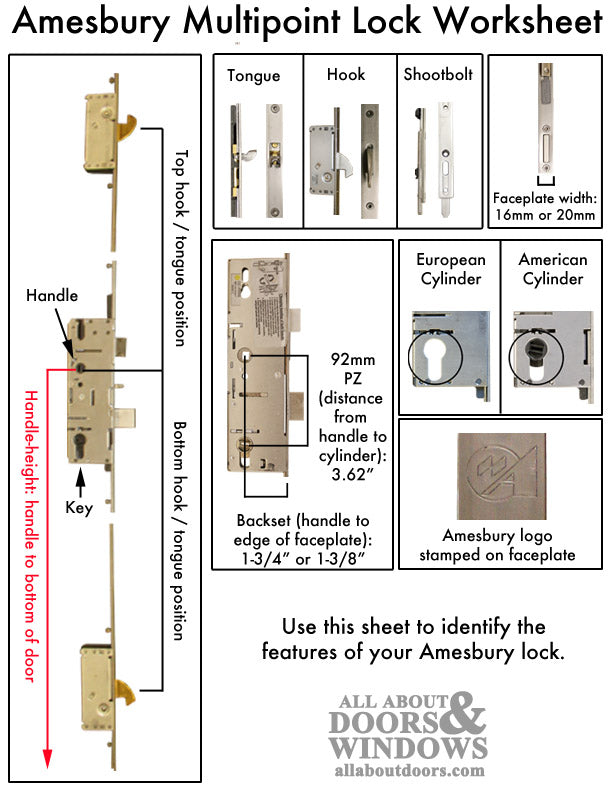

• Backset:35mm (1.38 inches)
• PZ (Distance from center-of-handle to center-of-cylinder):92 mm (3-5/8 inches)
• Handle Height:914.5 mm (36 inches)
• Markings:
  • Front:LF2070
  • Back:LD2070

Note:If used with appropriate upper extension and shoot tip, can fit doors from 69 inches to 121.5 inches. See related items for extensions and shootbolt.
