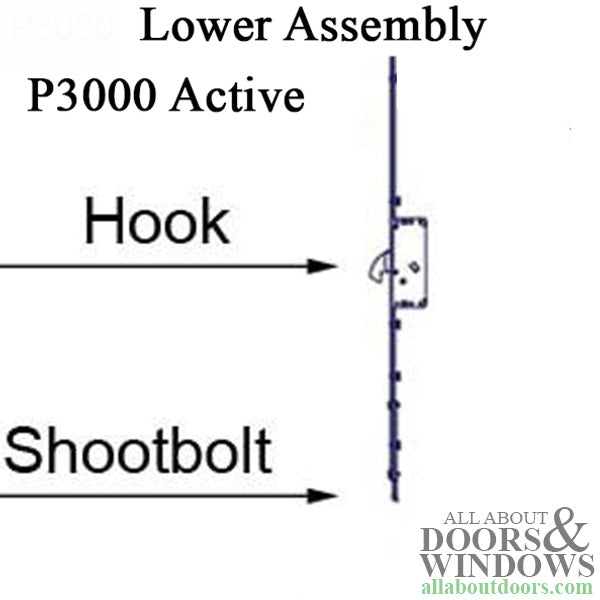

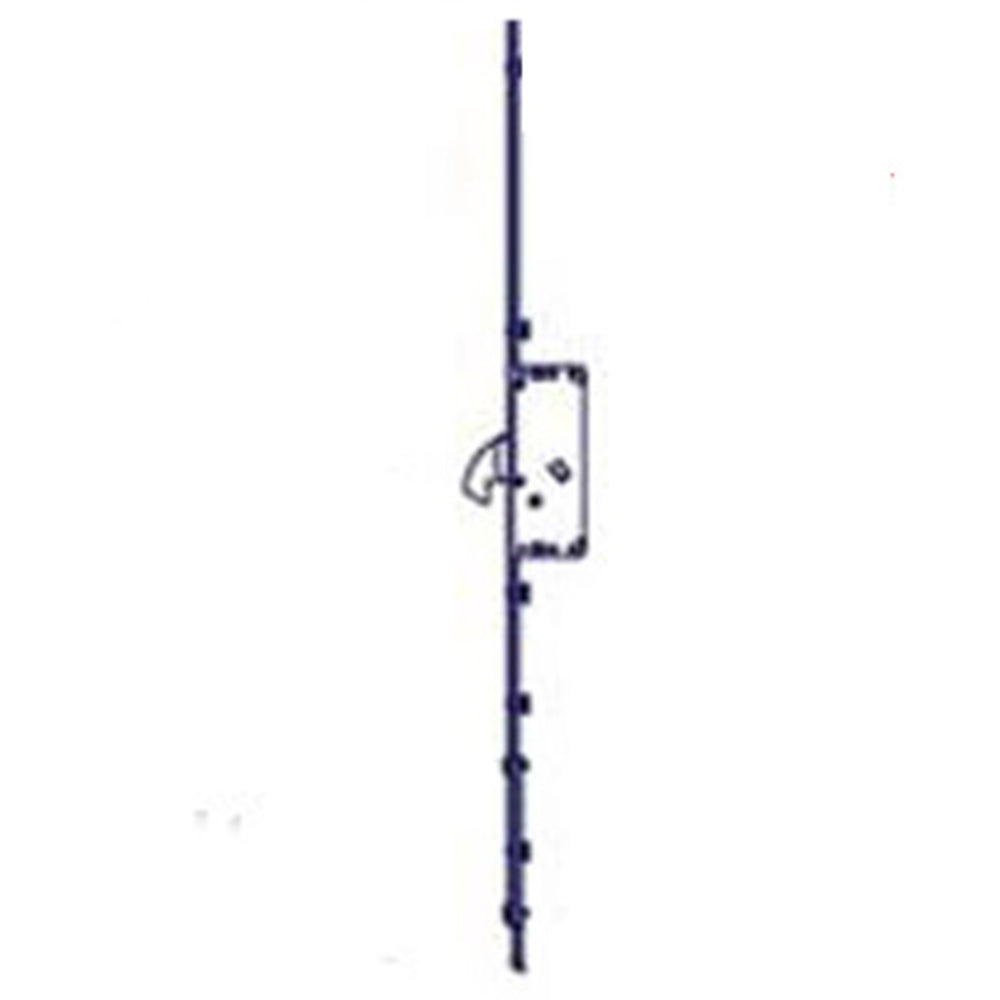

Amesbury P3000 Active Rhino Hook and Lower Shootbolt Gear
Use the arrows or swipe left to view all images for this product
Amesbury P3000 Active Rhino Hook and Lower Shootbolt Gear
Part Number: $108.34Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook: 24.87" (632mm)
This P3000 gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
664530017UA for doors 69-82.5", Upper hook at 14.47"
664530018UA for doors 82-95.5", Upper hook at 27.47"
664530019UA for doors 95-108.5", Upper hook at 40.47"
664530020UA for doors 108-121.5", Upper hook at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Rhino Hook / Tongue Strike Plates: 2856-82
Passive Gear for Double Doors: 16mm Faceplate, 45/92, 36" Handle height 36" # 16-30013LA

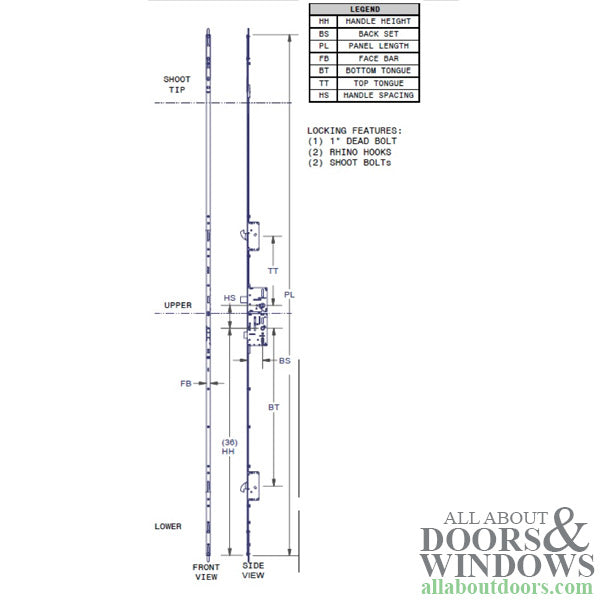

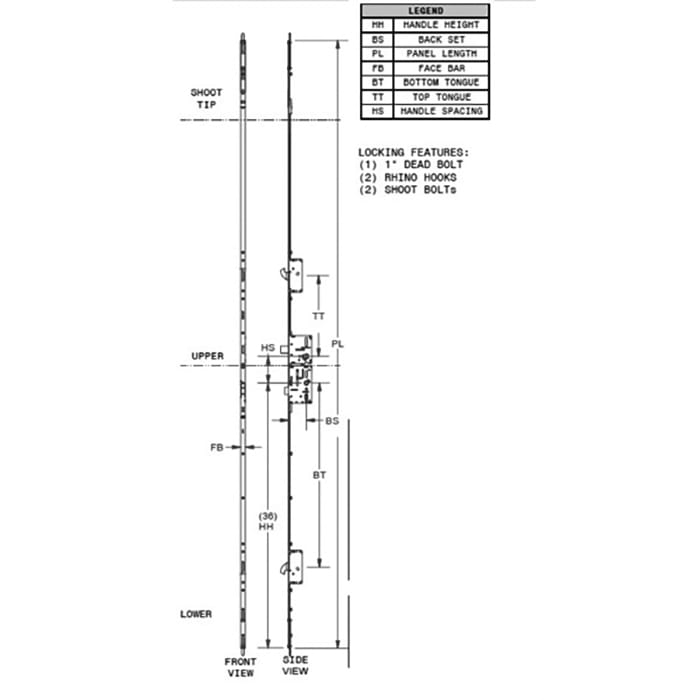

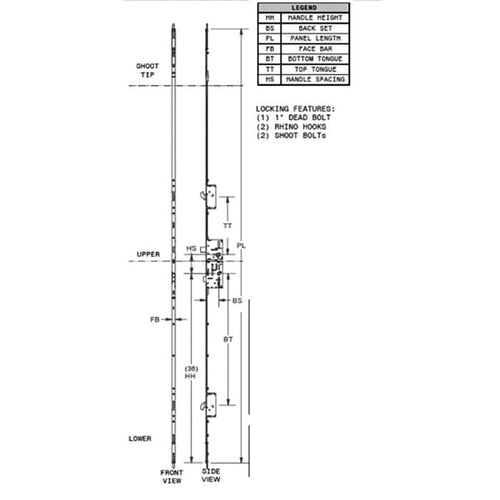

Amesbury P3000 Multipoint lock gear for 5-point, Rhino hooks and shootbolts
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook: 24.87" (632mm)
This P3000 gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
664530017UA for doors 69-82.5", Upper hook at 14.47"
664530018UA for doors 82-95.5", Upper hook at 27.47"
664530019UA for doors 95-108.5", Upper hook at 40.47"
664530020UA for doors 108-121.5", Upper hook at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Rhino Hook / Tongue Strike Plates: 2856-82
Passive Gear for Double Doors: 16mm Faceplate, 45/92, 36" Handle height 36" # 16-30013LA
