P3000 Series MPL - Key above Handle - Possible replacement for WInkhaus

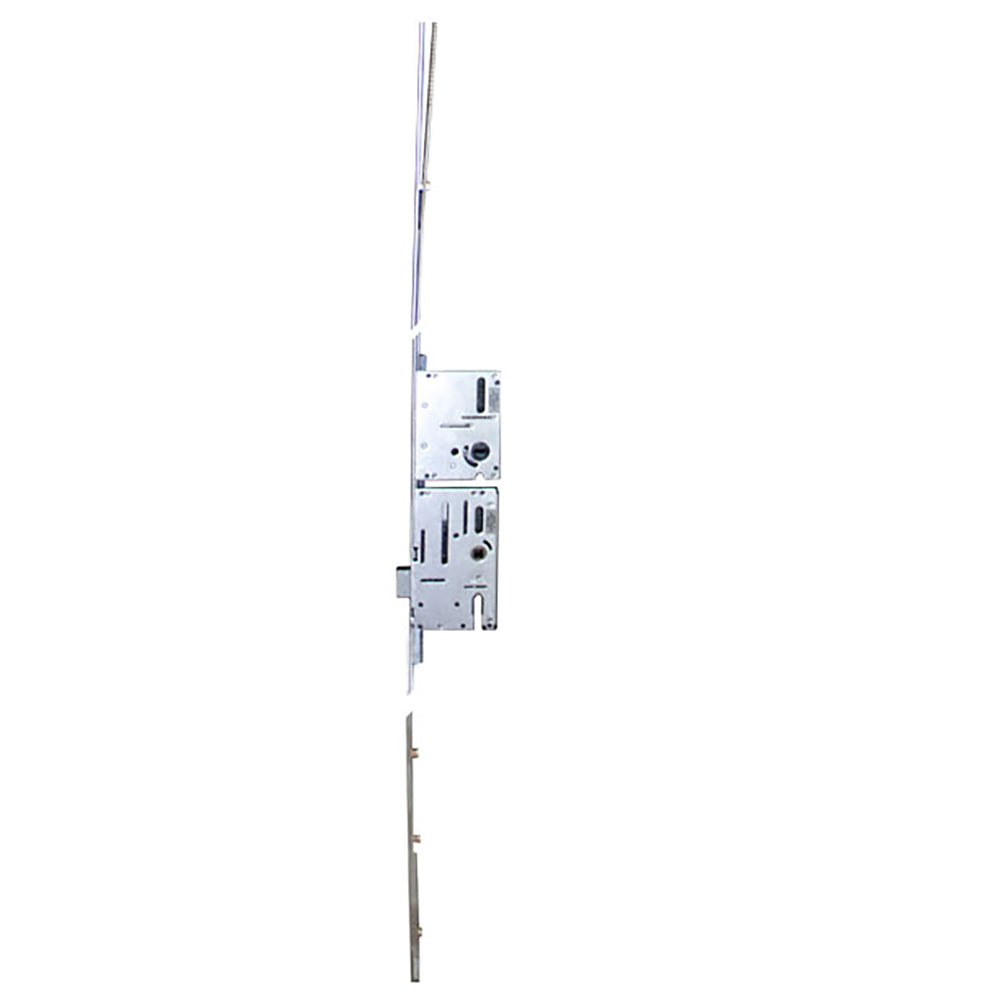

P 3000 Active shootbolt Mechanism - Needs top Shootbolt to complete lock

The Premiere 3000 multi-point lock system incorporates an American style look with the thumbturn oriented above the handle and the deadbolt operation is independent of the satellite locking points. Available with a multitude of locking options, this system is the premium solution in today's multi-point locking technology.

- HIGH SECURITY STAINLESS STEEL MULTI-POINT LOCKING SYSTEM.
- AVAILABLE IN 1.38i (35MM), 1.77i (45MM), 1.97" (50MM) AND 2.36" (60MM) BACKSETS.
- SUITABLE FOR DOORS WITH 0.63" (16MM) AND 0.79i (20MM) EURO GROVE ROUTING.
- NON-HANDED PULL AND TWIST LATCH BOLT REVERSES EASILY WITH LOCK INSTALLED.
- NON-HANDED ANTI-SLAM FEATURE
- ACCEPTS HANDLE SETS WITH 3.62i (92MM) HOLE SPACING. 2 PIECE GERARBOX DESIGN ALLOWS FOR
LARGER SPACING. (CENTER OF SPINDLE TO CENTER OF KEY CYLINDER).
- SCREW SUPPORTS PREVENT FACE BAR FROM FLEXING DURING
INSTALLATION, ENCOURAGING SMOOTH OPERATION.
- HANDLE HEIGHT CAN BE CUSTOMIZED TO YOUR NEEDS.
- OVERALL LOCK LENGTH CAN BE CUSTOMIZED TO FIT YOUR DOOR PRECISELY.
- DUAL CUT-DOWN LOCK SYSTEMS ARE AVAILABLE.
- LOWER AND UPPER ASSEMBLIES CAN BE SHIPPED TO YOU AS A
SINGLE UNIT OR AS TWO SEPARATE ITEMS.

How To Operate P3000 Lock - This is a different design than most Multipoint Locks
1. To Lock Door: Throw the deadbolt, then lift handle to engage the Auxiliary locks
2. To Unlock Door: Retract deadbolt and push lever down to open

SWING DOOR HARDWARE - PREMIERE 3000

ACTIVE - 3 POINT 2 SHOOTS
ACTIVE - 3 POINT 2 TONGUE (NO SHOOTS)
ACTIVE - 5 POINT 2 TONGUE 2 SHOOTS
PASSIVE - 2 SHOOTS
ACTIVE - 3 POINT 2 RHINO (NO SHOOTS)
ACTIVE - 4 POINT 2 RHINO (UPPER SHOOT ONLY)
ACTIVE - 5 POINT 2 RHINO & 2 SHOOTS
