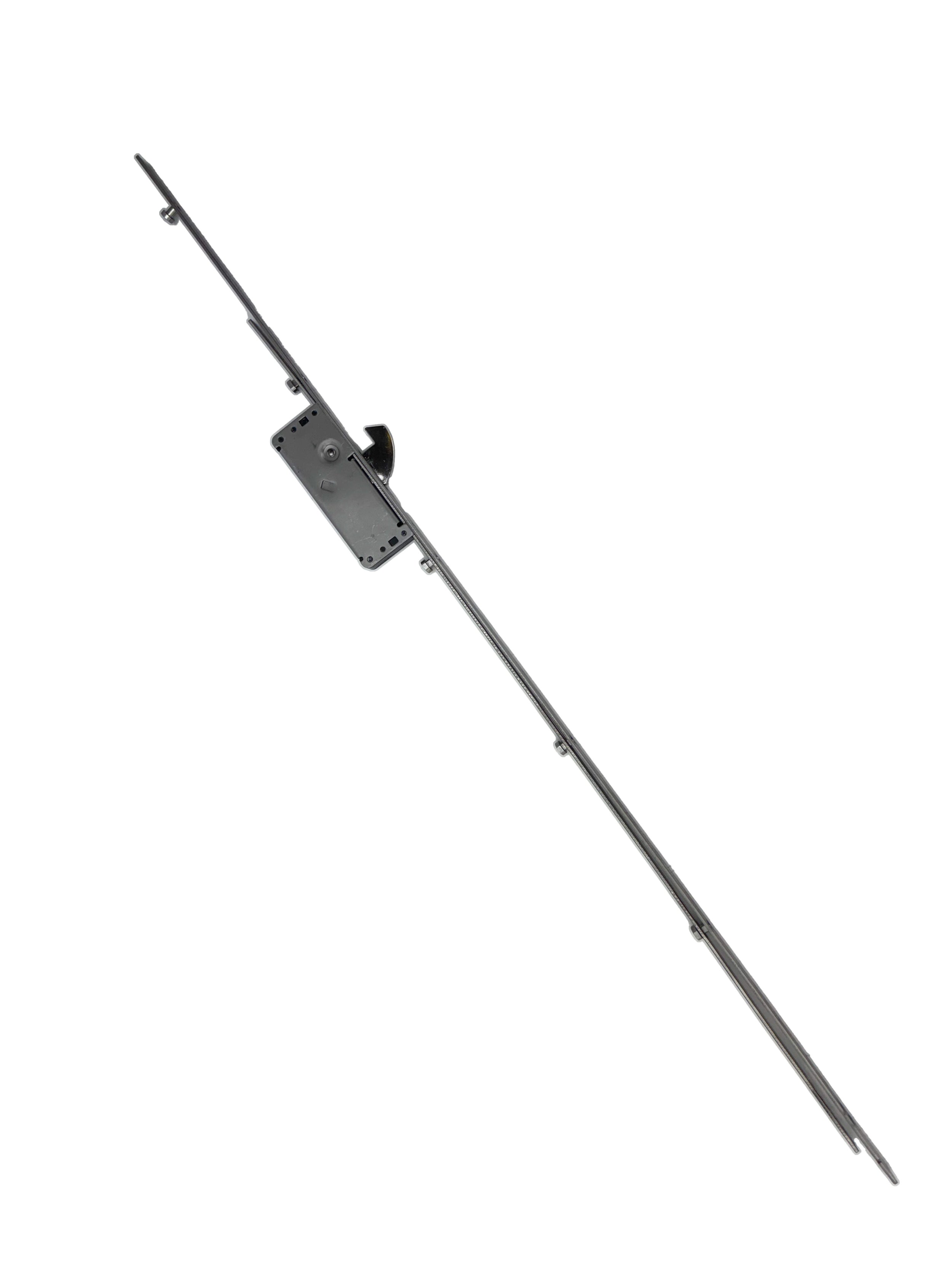

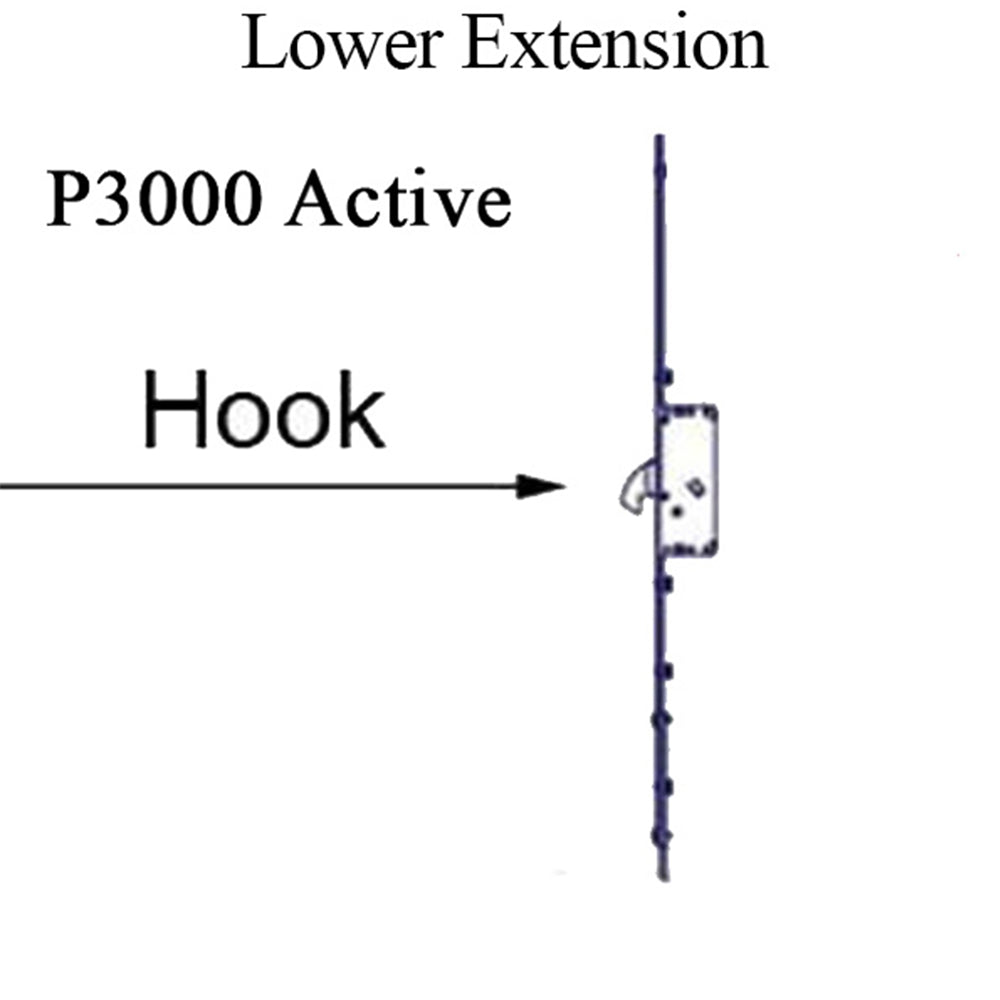

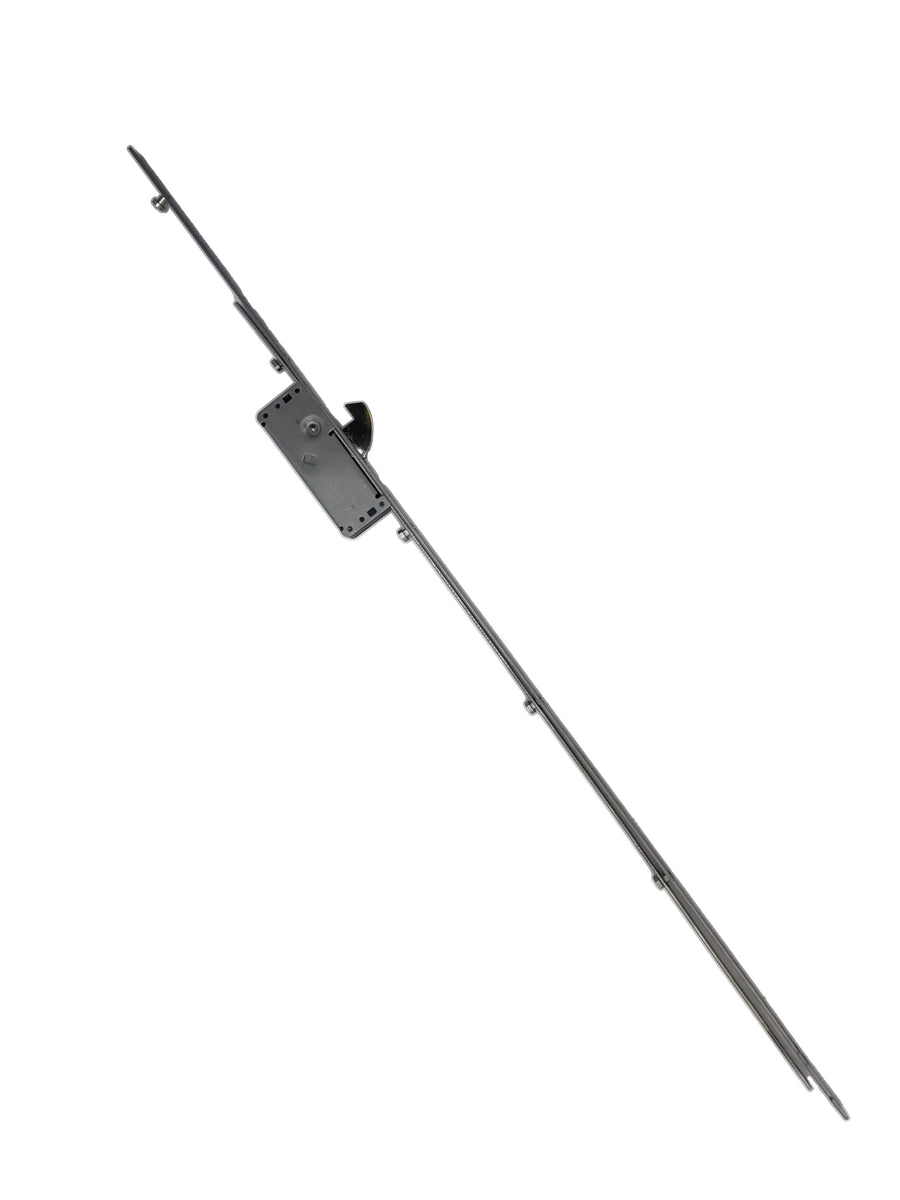

16mm P3000 Active Lower Extension, Rhino Hook at 24.87"

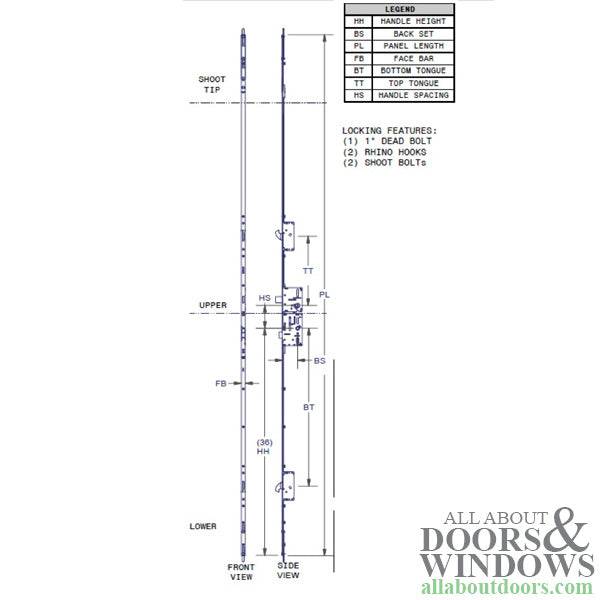

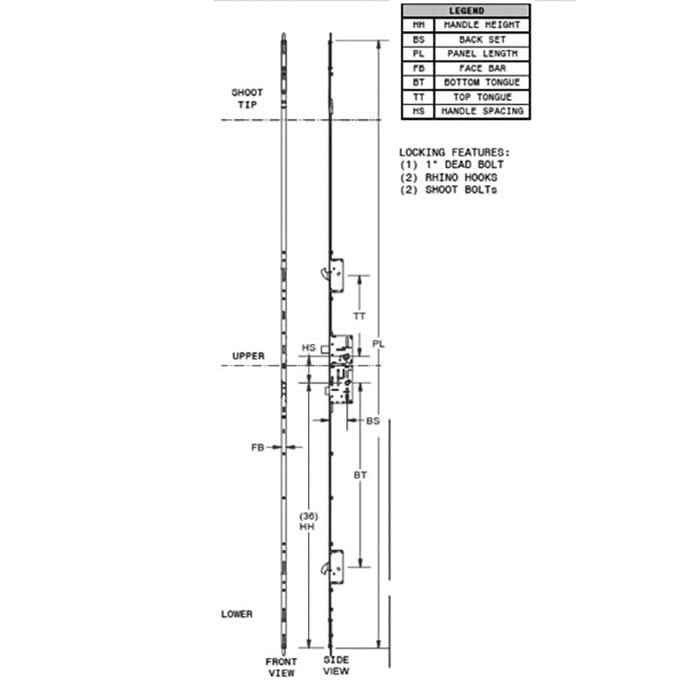

Part Number: Price: $150.80Amesbury P3000 Multipoint lock gear for 5-point, Rhino hooks and shootbolts
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook: 24.87" (632mm)
This P3000 gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
664530017UA for doors 69-82.5", Upper hook at 14.47"
664530018UA for doors 82-95.5", Upper hook at 27.47"
664530019UA for doors 95-108.5", Upper hook at 40.47"
664530020UA for doors 108-121.5", Upper hook at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Rhino Hook / Tongue Strike Plates: 2856-82
Passive Gear for Double Doors: 16mm Faceplate, 45/92, 36" Handle height 36" # 16-30013LA
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook: 24.87" (632mm)
This P3000 gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
664530017UA for doors 69-82.5", Upper hook at 14.47"
664530018UA for doors 82-95.5", Upper hook at 27.47"
664530019UA for doors 95-108.5", Upper hook at 40.47"
664530020UA for doors 108-121.5", Upper hook at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Rhino Hook / Tongue Strike Plates: 2856-82
Passive Gear for Double Doors: 16mm Faceplate, 45/92, 36" Handle height 36" # 16-30013LA
