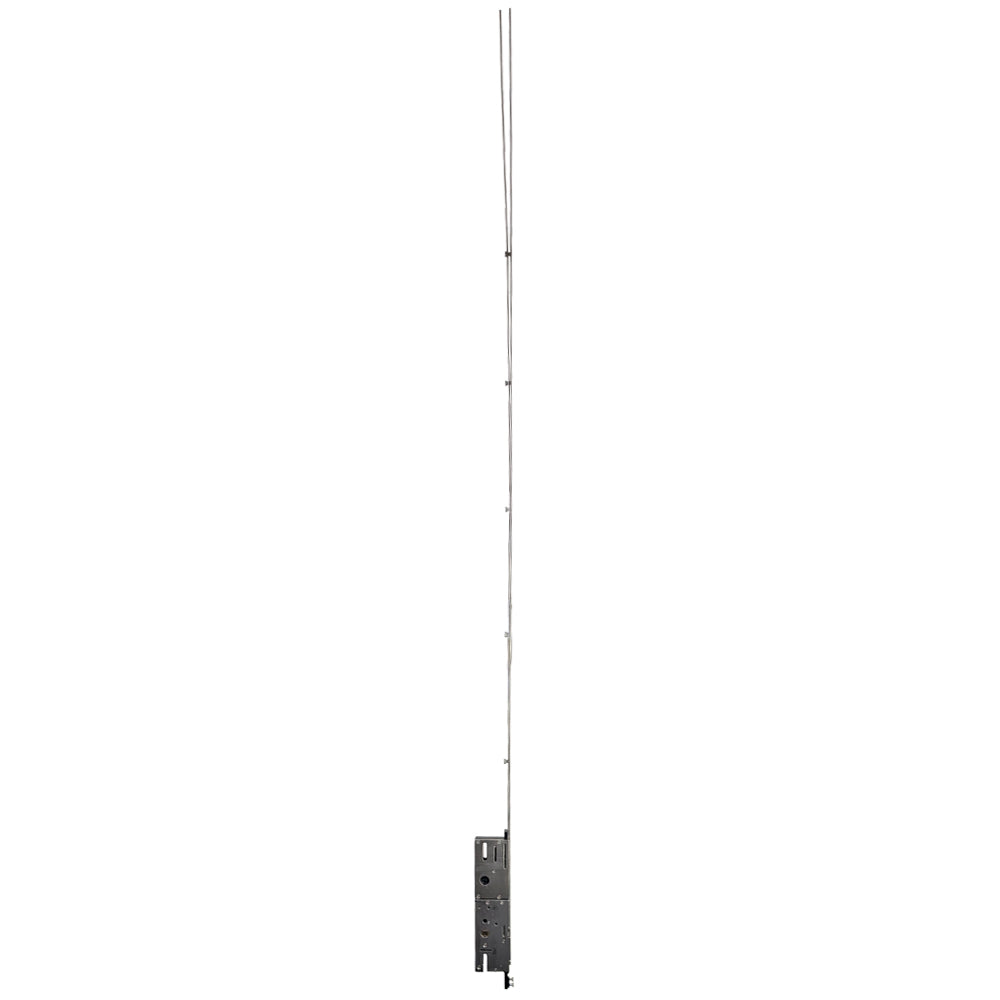

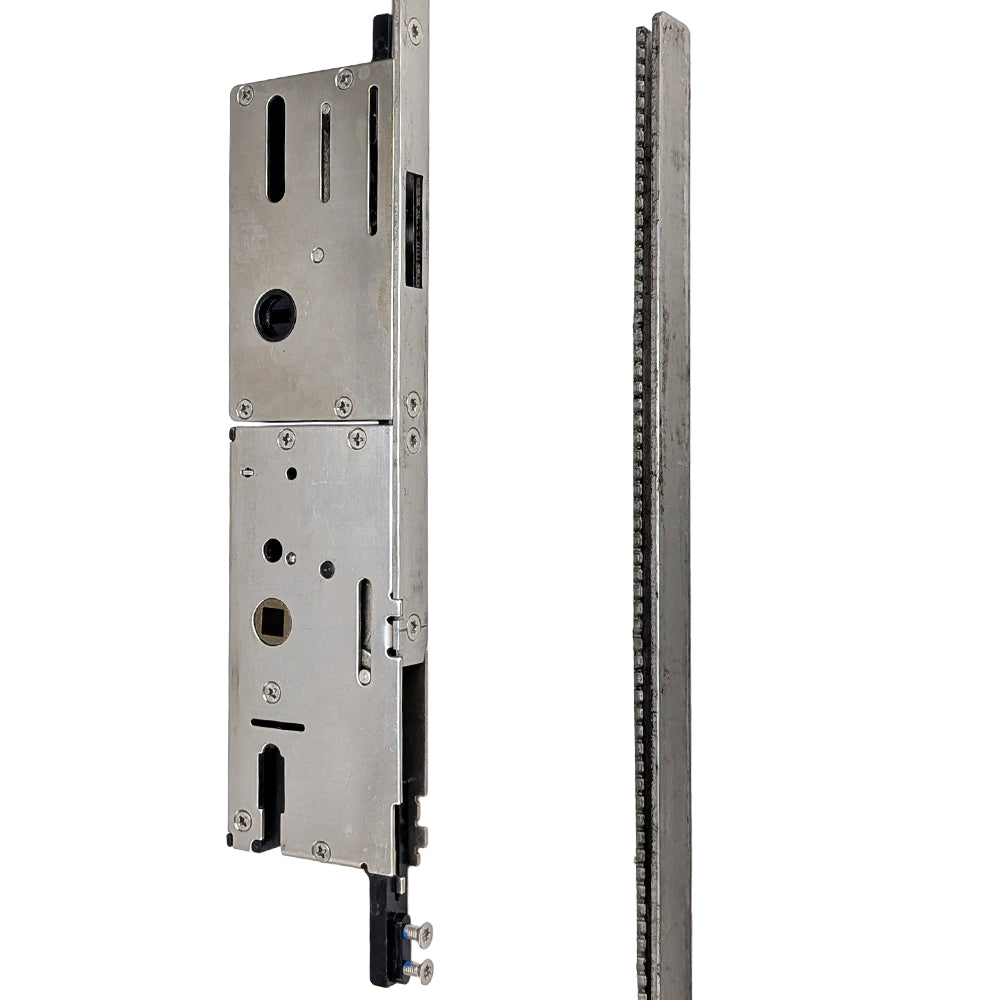

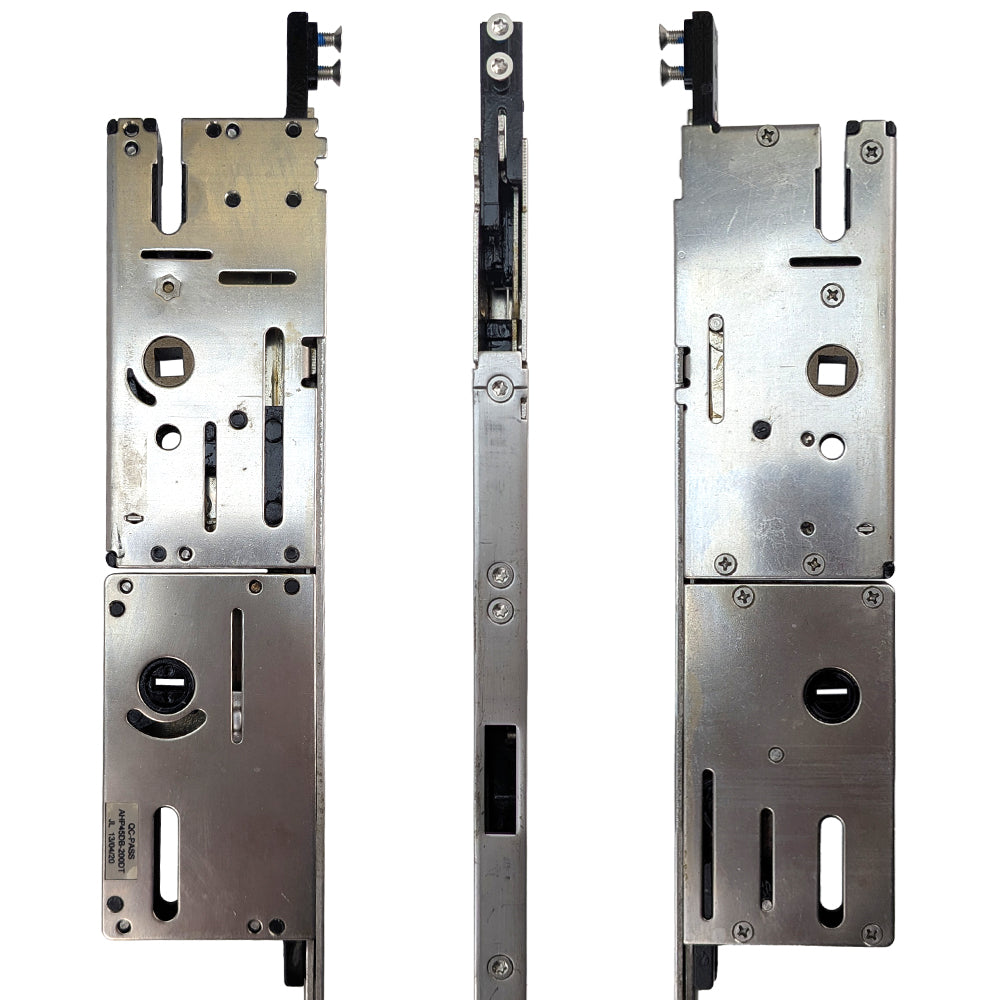

Amesbury Truth 16mm P3000 Passive 45/92 Upper Assembly for Doors 95-108.5

Premiere 3000 Series Multi-Point Lock (MPL)

Key Above Handle Design – Potential replacement for Winkhaus and other systems.

Product Overview

The P3000 Series MPL combines an American-style look with advanced multi-point locking technology. The key/thumbturn is oriented above the handle, and the deadbolt operates independently of the satellite locking points for superior security and flexibility.

Key Feature: Passive Deadbolt & Latch Assembly

P3000 Series MPL - Key Above Handle (Upper Assembly Only)
This passive lock features holes for both deadbolt and latch, allowing for a face-to-face application without requiring an astragal.

• Series:  Premiere 3000
• Faceplate Width:  16 mm (5/8 inch)
• Handle Position:  Key above handle
• Backset:  45 mm (1-3/4 inch)
• PZ (Distance from center-of-handle to center-of-cylinder):  92 mm (3-5/8 inches)
• Passive Overall Length: 1606.5 mm (63-¼ inches) Please verify for your specific door
• Markings on Faceplate: UF30015

Please Note: This listing is for the upper assembly only, not the complete lock system.

Active Shootbolt Mechanism

P3000 Active Shootbolt Mechanism – Requires top shootbolt to complete the lock.

• Operation: Lift handle to extend shootbolts, then turn key or thumbturn to secure the lock.

Premium Features & Benefits

• High-security stainless steel multi-point locking system.
• Available in multiple backsets. Please see our other P3000 offerings if you need a different configuration.
• Non-handed pull and twist latch bolt reverses easily after installation.
• Non-handed anti-slam feature for enhanced durability.
• Screw supports prevent face bar flexing during installation, ensuring smooth operation.
• Fully customizable: Handle height and overall lock length can be tailored to fit your door precisely.
• Dual cut-down lock systems are available.
• Upper and lower assemblies can be shipped together as a single unit or as two separate items.
