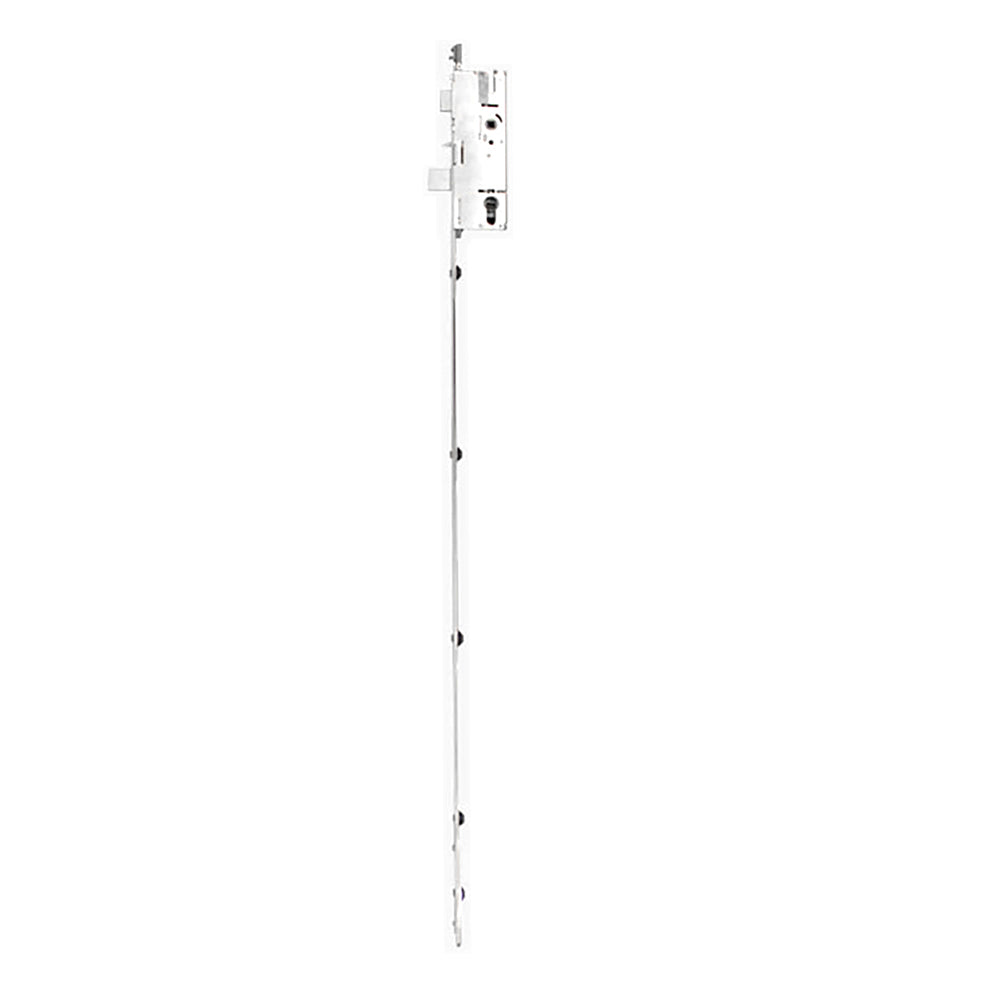

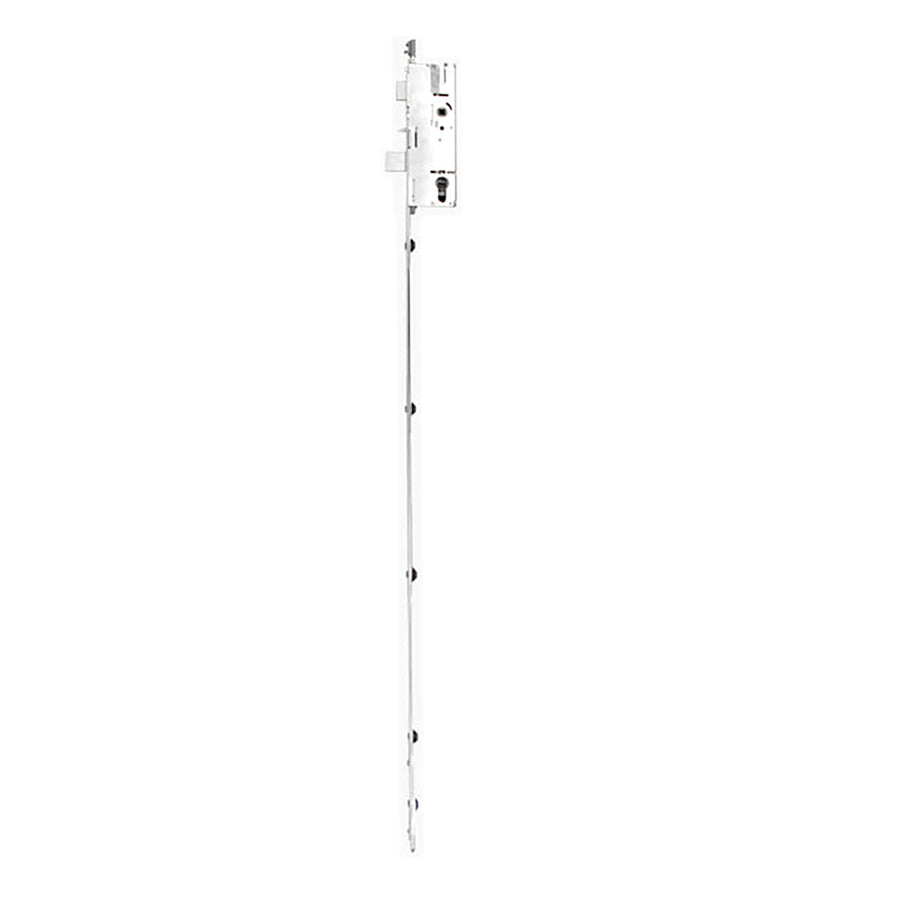

Amesbury Multipoint Lock P2000 Active Mortise Lock With 3 Point Shootbolts
Part Number: Price: $308.67Special Size

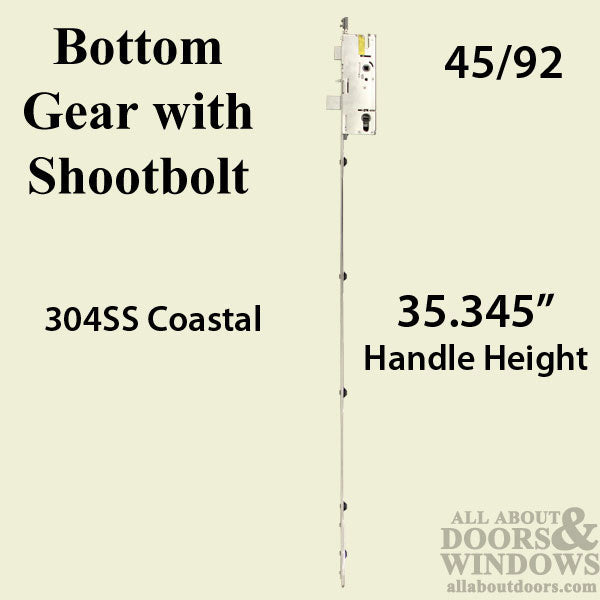

Lower - LF2300 Amesbury lower assembly active door with shootbolt attached
Used on active doors with 3-point shoot bolt system
SPECIAL SIZE:

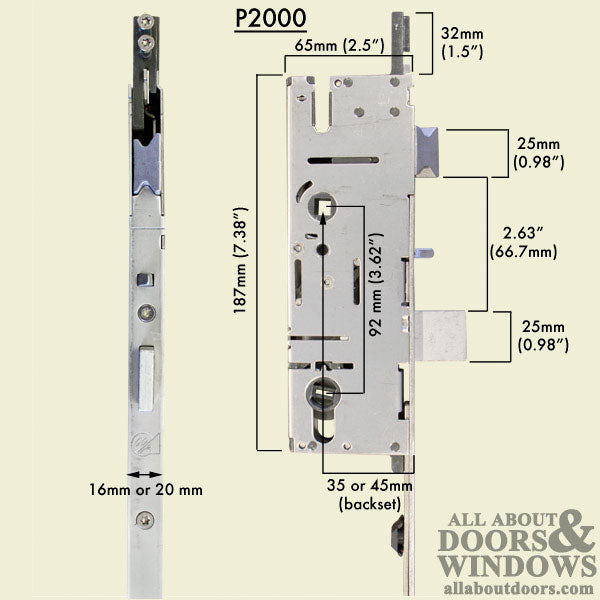

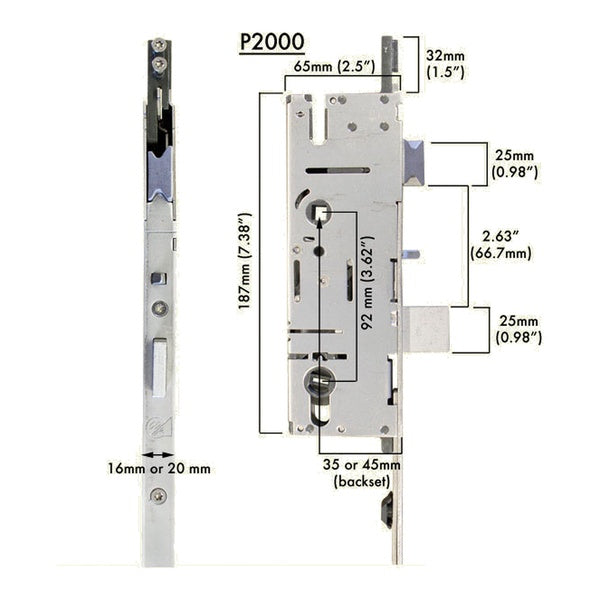

Backset: 1-3/4 inch (45mm)
Handle Height: 35.345 (397.763mm) inch with shootbolt retracted
Faceplate Width: 5/8 inch ( 16mm)
Material: 304SS, Coastal applications, High Grade 304 Stainless Steel
Gear Markings: stamped on front: LF2300, back: LD2300, shootbolt: 055 S
NOTE:
Same Size - Different Materials
16-8045-2300LA Lower Assembly 304SS Coastal
16-8045-2400LA Lower Assembly 430SS Standard
LOCK OPERATION:
To Lock door: Lift the handle to lock door and turn thumbturn to secure in locked position
When the handle is lifted the Deadbolt extends with other locking devices.
To unlock door: Turn thumb turn or key to unlocked position and push down on lever
Lower - LF2300 Amesbury lower assembly active door with shootbolt attached
Used on active doors with 3-point shoot bolt system
SPECIAL SIZE:
Backset: 1-3/4 inch (45mm)
Handle Height: 35.345 (397.763mm) inch with shootbolt retracted
Faceplate Width: 5/8 inch ( 16mm)
Material: 304SS, Coastal applications, High Grade 304 Stainless Steel
Gear Markings: stamped on front: LF2300, back: LD2300, shootbolt: 055 S
NOTE:
Same Size - Different Materials
16-8045-2300LA Lower Assembly 304SS Coastal
16-8045-2400LA Lower Assembly 430SS Standard
LOCK OPERATION:
To Lock door: Lift the handle to lock door and turn thumbturn to secure in locked position
When the handle is lifted the Deadbolt extends with other locking devices.
To unlock door: Turn thumb turn or key to unlocked position and push down on lever
