16mm Top Extension Swing Hook @ 19.69" & 35.43"

Part Number:3868817 Price: $128.46

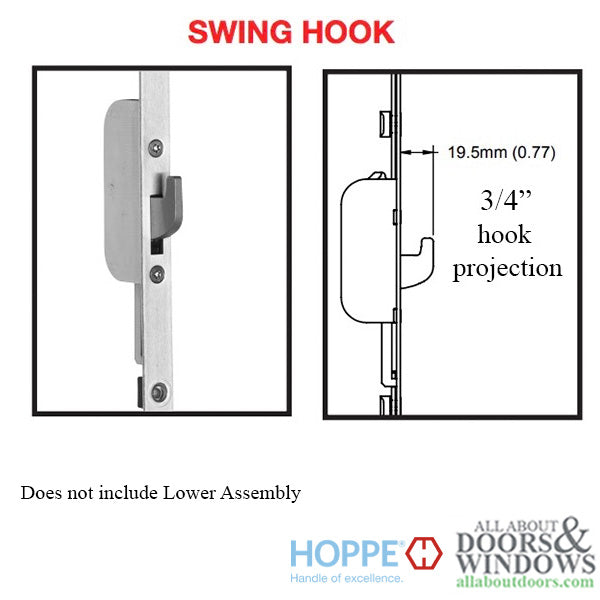

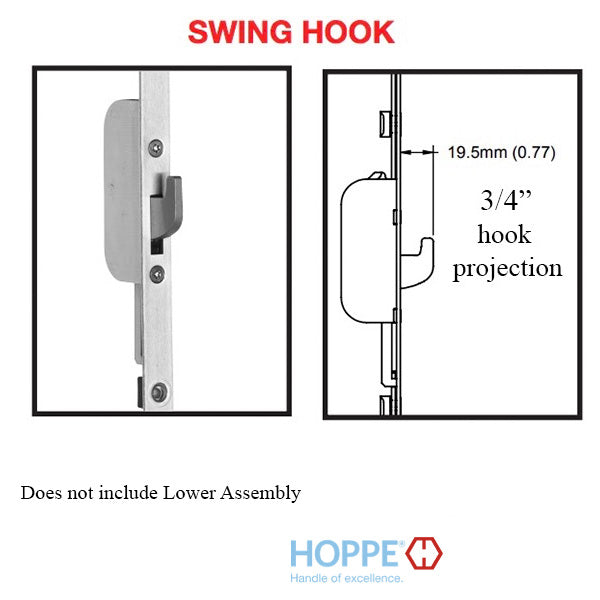

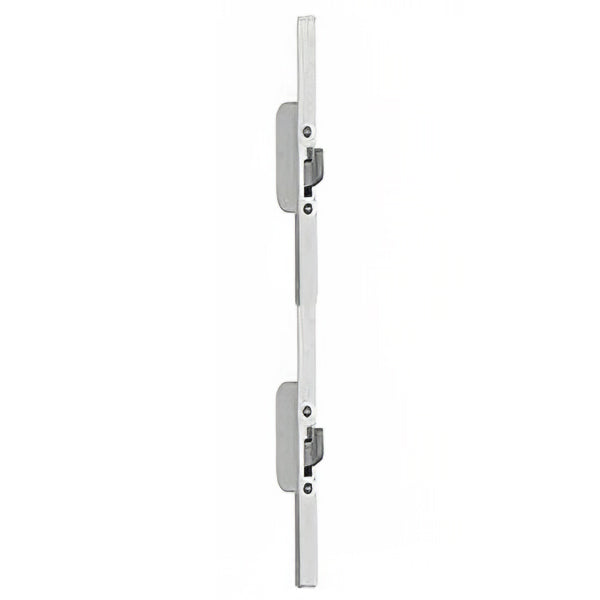

HOPPE 16mm HLS9000 manual top extension with two Swing Hooks.


Application: Doors 78.54-92.24” w/ 36" handle height
Locking Type: 2 swing hooks

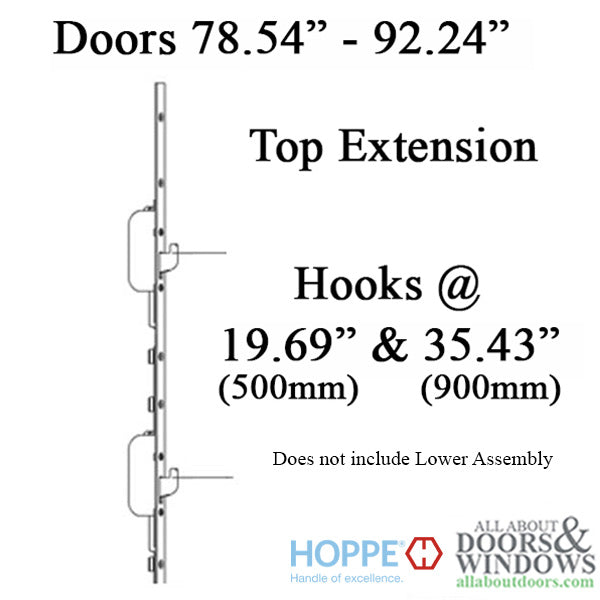

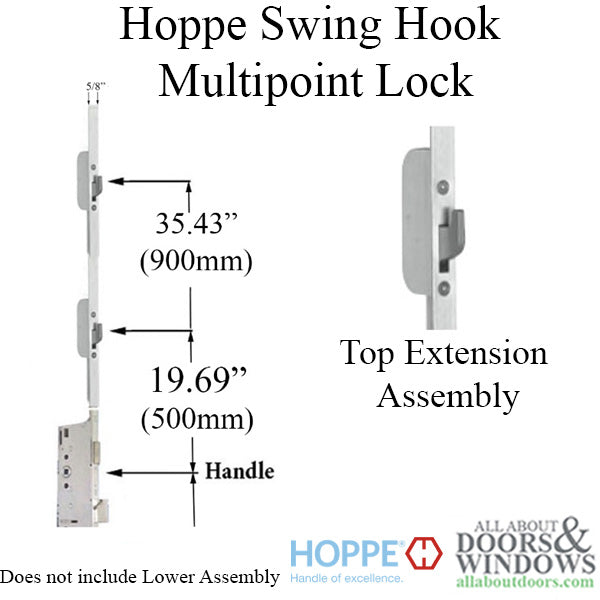

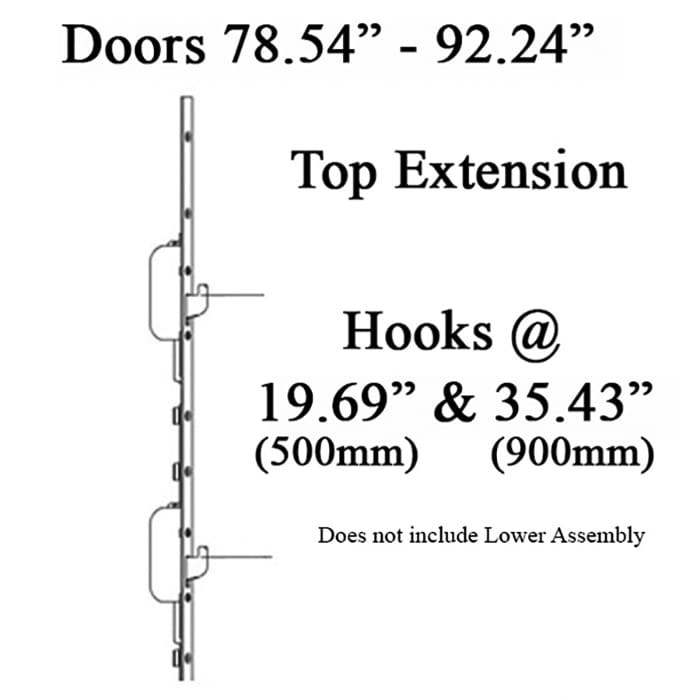

1st  Top Hook: 19.69 inches ( 500mm)
2nd Top Hook: 35.43 inches (900mm) square end
Hook Projection: 3/4 inch (19.5mm)
Face Plate Width: 5/8 inch (16mm)
Overall Extension Length: 54.65  (1388mm)
Handle to top of Door: 56.26 inches (1429mm)
Maximum Cutoff: 13.7 inches (348mm)
Number of Screws: 8 Stainless Steel

Related Parts:
Available Bottom Gears: Hook at 29.65"
3868868 - 35/92 / 1-3/8" (35mm) Backset
3868876 - 45/92 / 1-3/4" (45mm) Backset
3868884 - 60/92 / 2-3/8" (60mm) Backset
3868892 - 70/92 / 2-3/4" (70mm) Backset

SPECIAL SIZE Hook @ 25.7" / 41.11" Handle Height - 3814341

Available Top Extensions
Part Number     Doors Panels Height:  Hook Position
3868770 - Doors 62.80-79.25”        hook @ 19.69“
3868796 - Doors 78.54-79.25”        hook @ 35.43“
3868809 - Doors 78.54-92.24”       hook @ 35.43“
3868817 - Doors 78.54-92.24”       hook @ 19.69“ & 35.43”
3868825 - Doors  90.08-106.30"    hook @ 23.62“ & 46.97”
3868833 - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”

To better understand please see our Multipoint Lock Glossary Of Terms

Hoppe Multipoint Lock Resources:
Multipoint Lock Introduction
How to Rehand a Hoppe HLS9000 MPLock
How to Remove & Install Hoppe 90° Cylinder
How to Remove & Install Hoppe HLS9000 MPLock
How to Trim a Hoppe Multipoint Lock
HOPPE/FUHR Infosheet

Related Videos:
Connecting the Top Extension on a HOPPE Multipoint Lock
How to Convert a HOPPE 90º Cylinder into a 360º Cylinder
How to Rehand HOPPE Multipoint Lock

For further assistance, please fill out the HOPPE Worksheet for your lock and send it to us.
