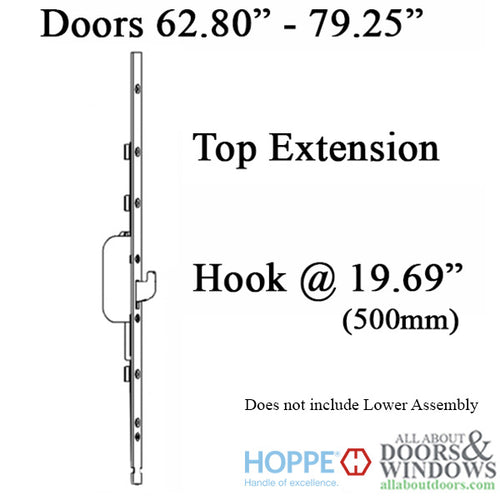

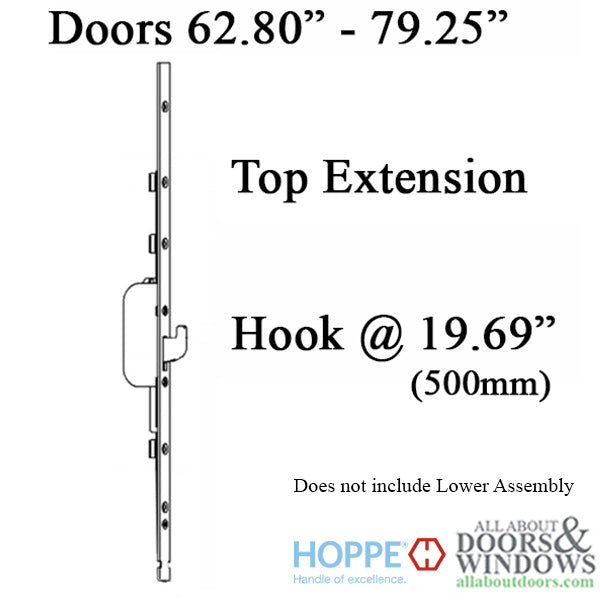

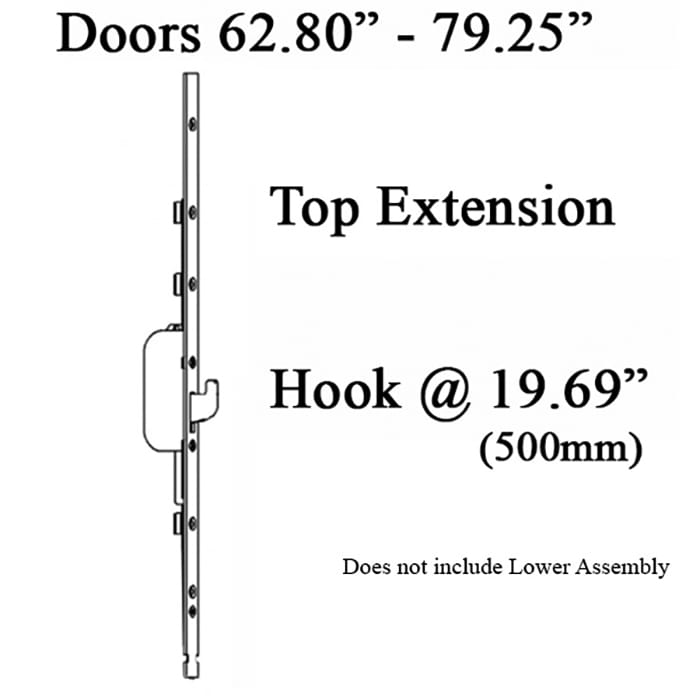

Hoppe 16mm Top Extension with one (1) Swing Hook @ 19.69 inches above handle.

Application: Doors 62.80-79.25” w/ 36" handle height
Lock Type: 1 swing hook

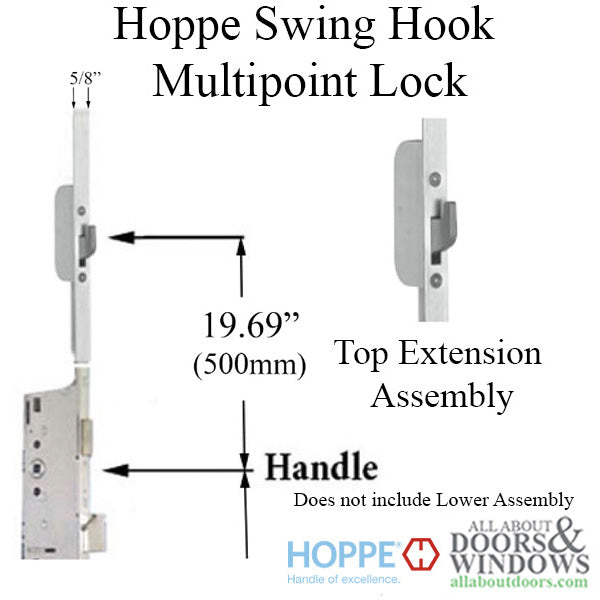

Hook Position: 19.69 inches ( 500mm) above handle

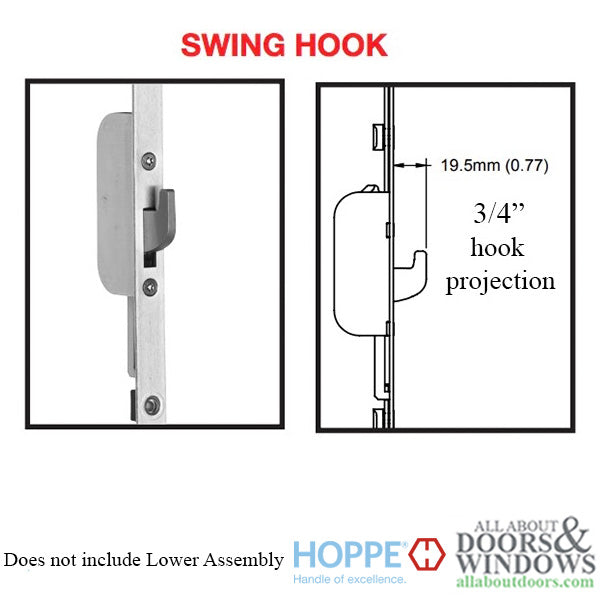

Hook Projection: 3/4 inch (19.5mm)
Faceplate Width: 5/8 inch (16mm)
Overall Extension Length: 41.65  (1058mm) square end
Handle to top of Door: 43.27 inches (1099mm)
Maximum Cutoff: 16.46 inches ( 418mm)
Number of Screws:  6 Stainless Steel

Related Parts:
Available Bottom Gears: Hook at 29.65"
3868868 - 35/92 / 1-3/8" (35mm) Backset
3868876 - 45/92 / 1-3/4" (45mm) Backset
3868884 - 60/92 / 2-3/8" (60mm) Backset
3868892 - 70/92 / 2-3/4" (70mm) Backset

SPECIAL SIZE Hook @ 25.7" / 41.11" Handle Height - 3814341

Available Top Extensions
Part Number     Doors Panels Height:  Hook Position
3868770 - Doors 62.80-79.25”        hook @ 19.69“
3868796 - Doors 78.54-79.25”        hook @ 35.43“
3868809 - Doors 78.54-92.24”       hook @ 35.43“
3868817 - Doors 78.54-92.24”       hook @ 19.69“ & 35.43”
3868825 - Doors  90.08-106.30"    hook @ 23.62“ & 46.97”
3868833 - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”
