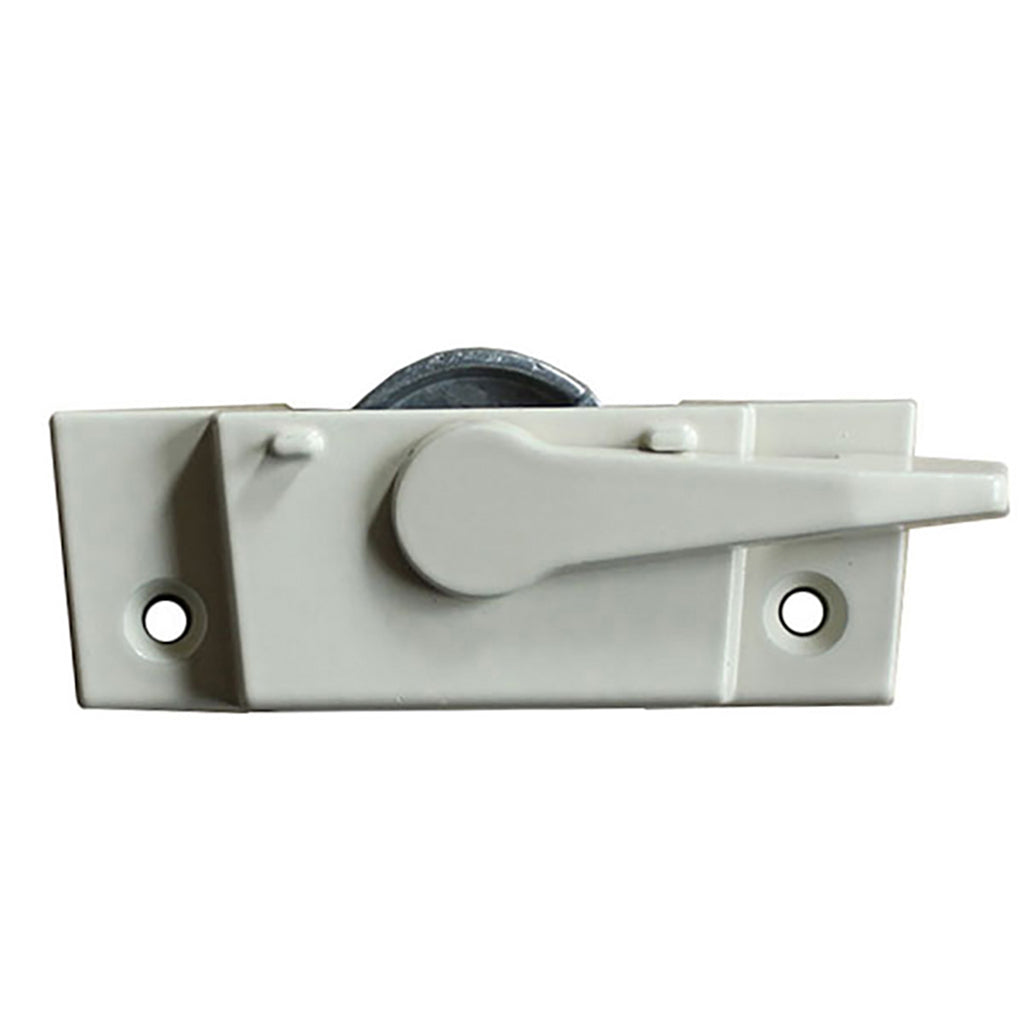

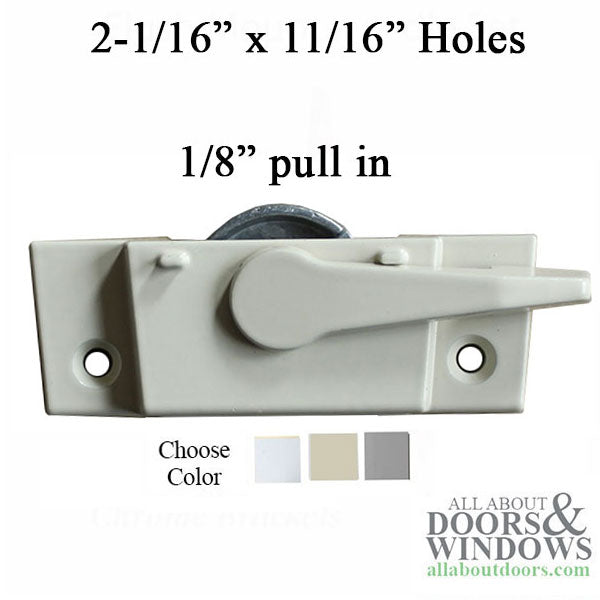

2-1/16" x 11/16" Sash Lock with 1/8" Cam , LH
Part Number: 500553-L-ALMDGeneric Sash Lock designed for both single and double hung windows.
The sash lock has the large 1/8 inch cam pull in and is thicker than the 1-16 pull in

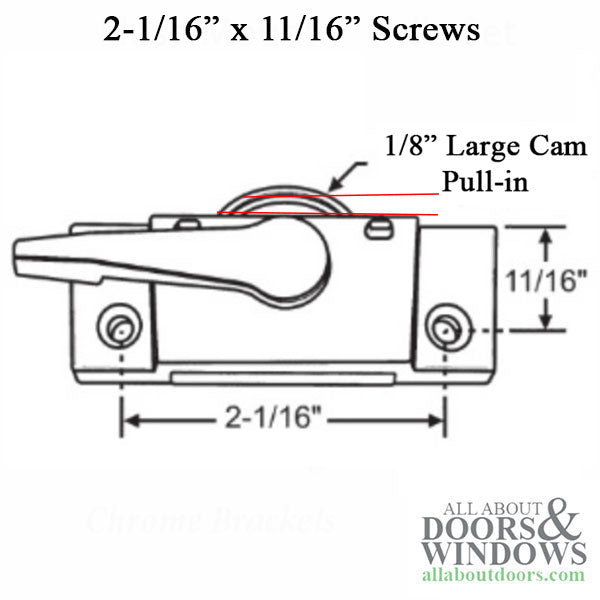

Screw Holes: 2-1/16
Offset Screws: 11/16 inch from front of lock
Cam Pull In: 1/8 inch
Handled: Yes, As Shown
Color: Clay
Material: Diecast

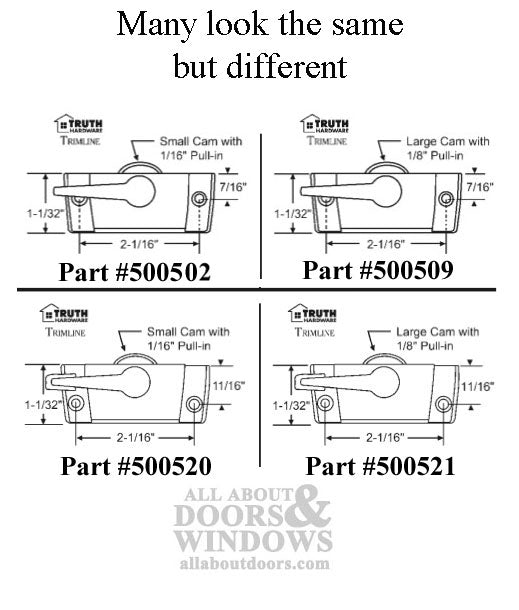

Related Parts:
500551 = 1/16" Cam Pull In
500553 = 1/8" Cam Pull In
The sash lock has the large 1/8 inch cam pull in and is thicker than the 1-16 pull in
Screw Holes: 2-1/16
Offset Screws: 11/16 inch from front of lock
Cam Pull In: 1/8 inch
Handled: Yes, As Shown
Color: Clay
Material: Diecast
Related Parts:
500551 = 1/16" Cam Pull In
500553 = 1/8" Cam Pull In
