Basic two hook mortise lock without the faceplate for sliding patio doors.

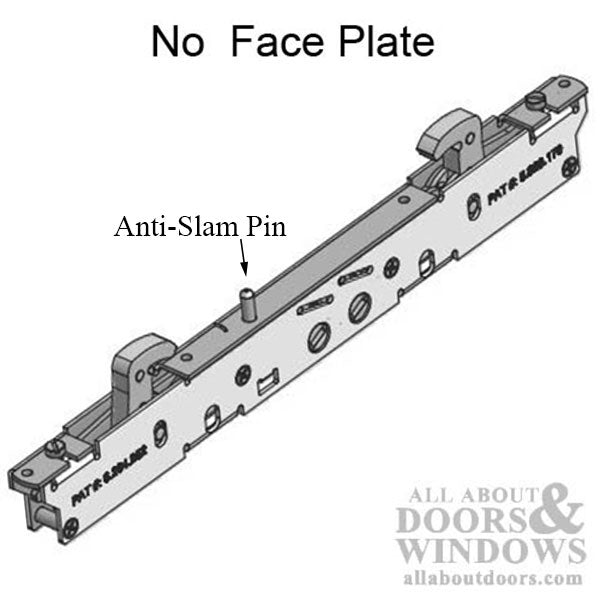

Anti-slam pin feature, replaces older style locks with pin.
Double drive actuators for centered or 3/4 inch offset handles.
Withstands up to 2000 pounds of forced entry.
Separate in and out hook adjustments for accurate door alignment.
Up and down adjustment provides easy keeper alignment.

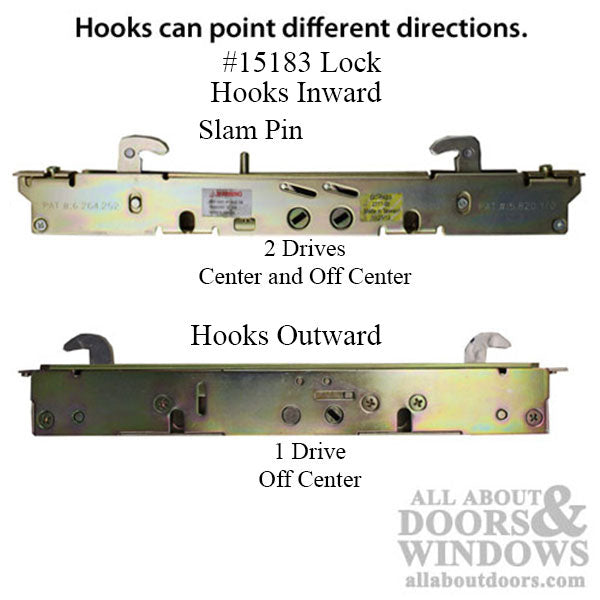

Hooks: Double locking hooks - pointing inward
Overall Length: 10.19 inches
Screw holes: 9.87 inches

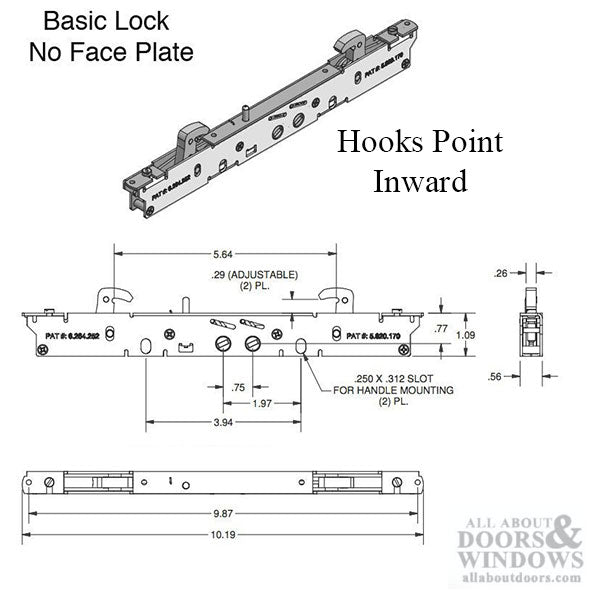

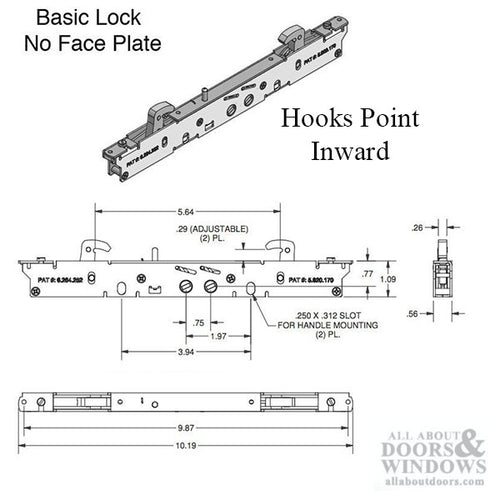

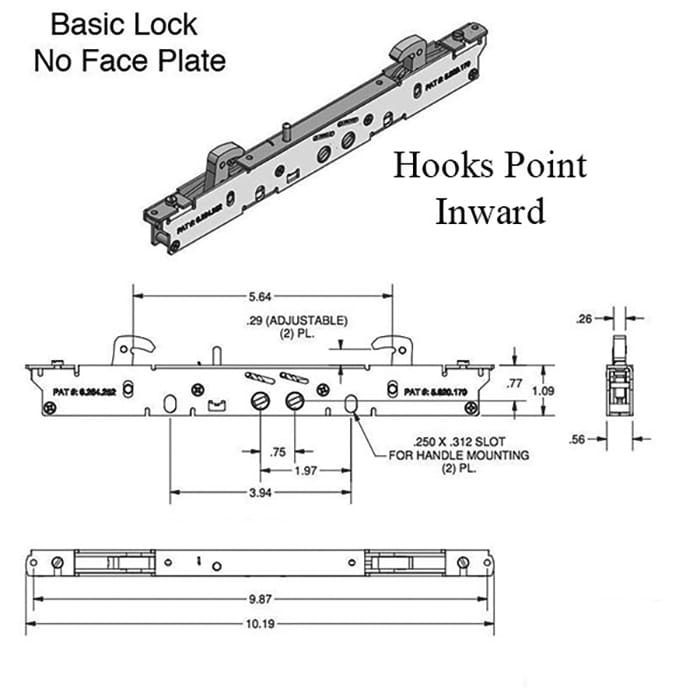

See additional images/line drawings

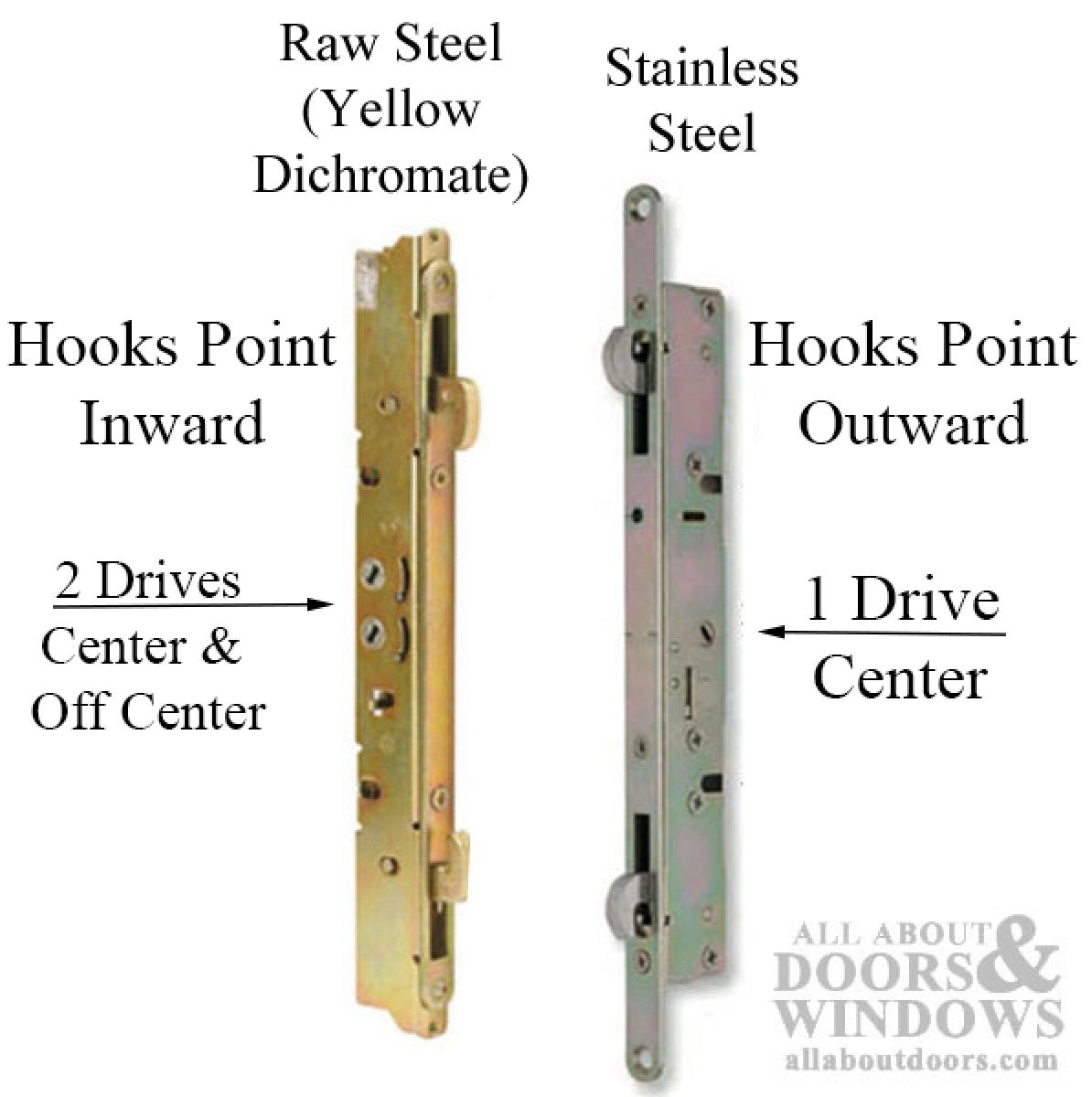

Finish Options:
Stainless Steel
Yellow Dichromate
Most popular faceplates that can be used with this lock: 15194, 15195
The 15183 has several face plates that are used depending on application.
Some flat, others are raised.
Basic screw hole spacing for the plate to lock mounting is 4 inch
the offset holes are for the anti-slam pin.
Priced and sold each.
