2 Point Mortise Lock for Sliding Patio Door
Use the arrows or swipe left to view all images for this product
2 Point Mortise Lock for Sliding Patio Door
Part Number: $33.21 to $162.412 Point Mortise Lock with Small 9-3/8" Faceplate for Vinyl Sliding Patio Door
Specifications:
- Application: Vinyl or Aluminum Glass Doors

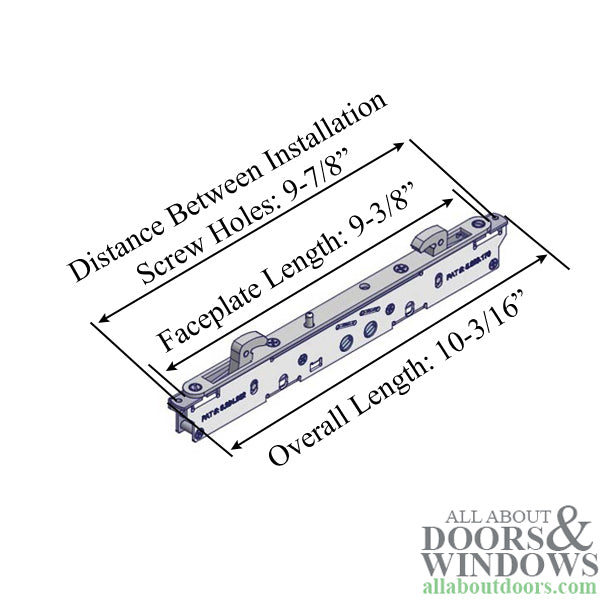

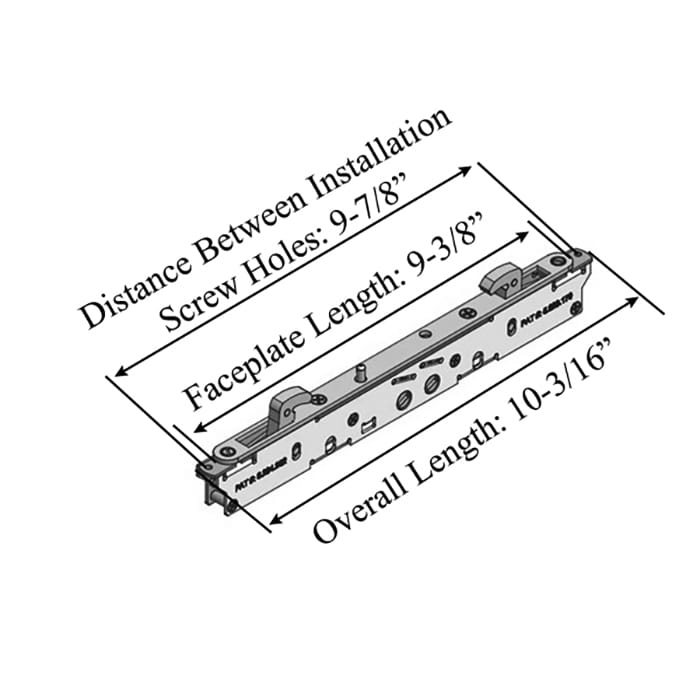

- Face Plate Size: 1/2 x 9-3/8 Radius Ends
- Installation Screw Holes: 9-7/8
- Overall Length: 10-3/16
- Hooks: Point Inward

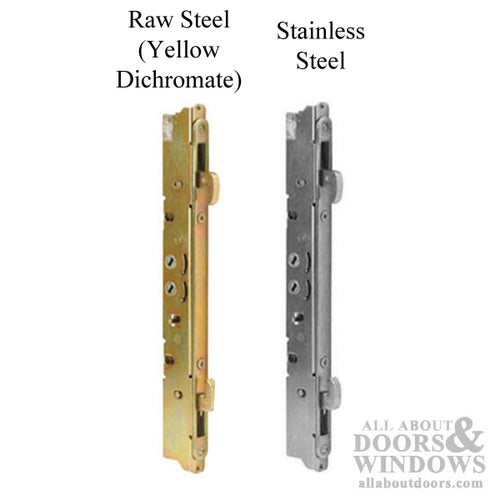

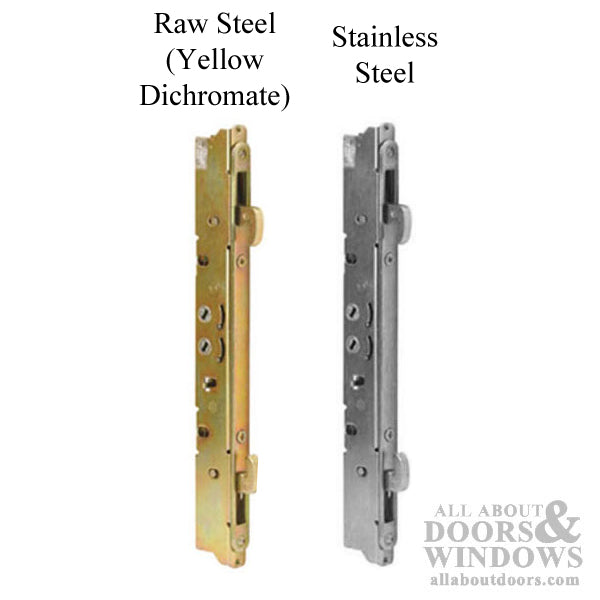

- Material Options: Yellow Dichromate, Stainless Steel, E-Gard Plated (White)
- Handle set Type: Works with Center or Off center Thumb Turn
- Markings: PAT # 6.264.252 / 5.820.170
NOTE:
Strike Plate not Included.
2 Point Mortise Lock with small 9-3/8 faceplate for primarily Vinyl Sliding Patio Door
Application: Vinyl or Aluminum Glass Doors
Face Plate Size: 1/2 x 9-3/8 Radius Ends
Installation Screw Holes: 9-7/8
Overall Length: 10-3/16
Hooks: Point Inward
Material Options:
Yellow Dichromate
Stainless Steel
E-Gard Plated (White)
Handle set Type: Works with Center or Off center Thumb Turn
Markings: PAT # 6.264.252 / 5.820.170
Includes: Mortise lock with small faceplate
Strike Plate: Not Included, There are several sizes and types for different applications. Suggested options: 15162 or 15163
