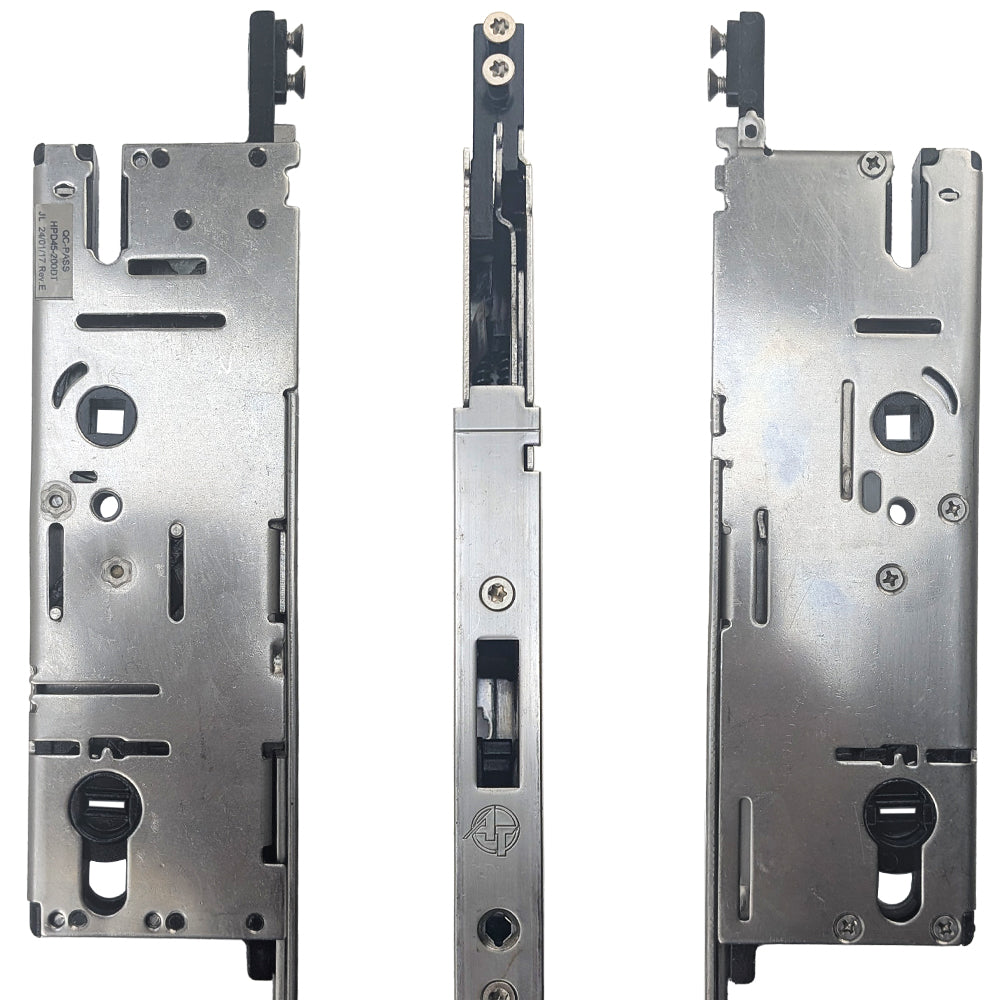

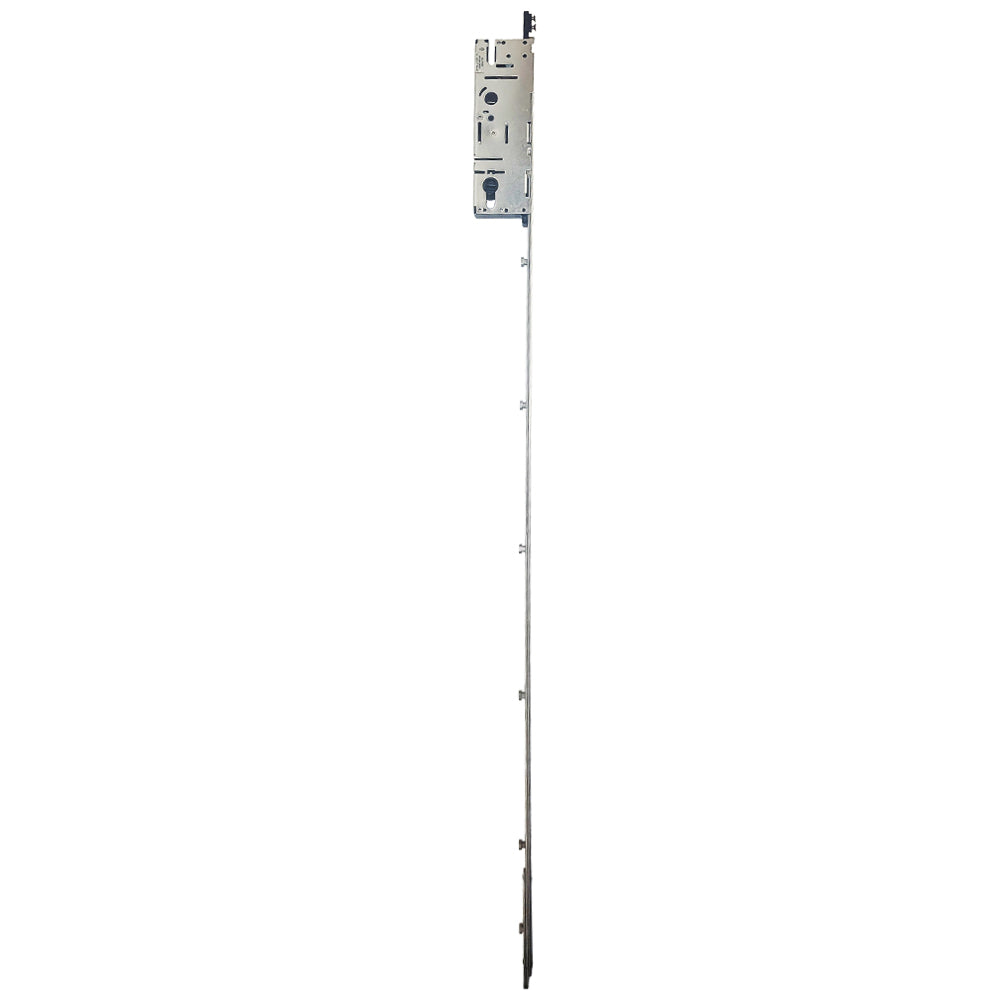

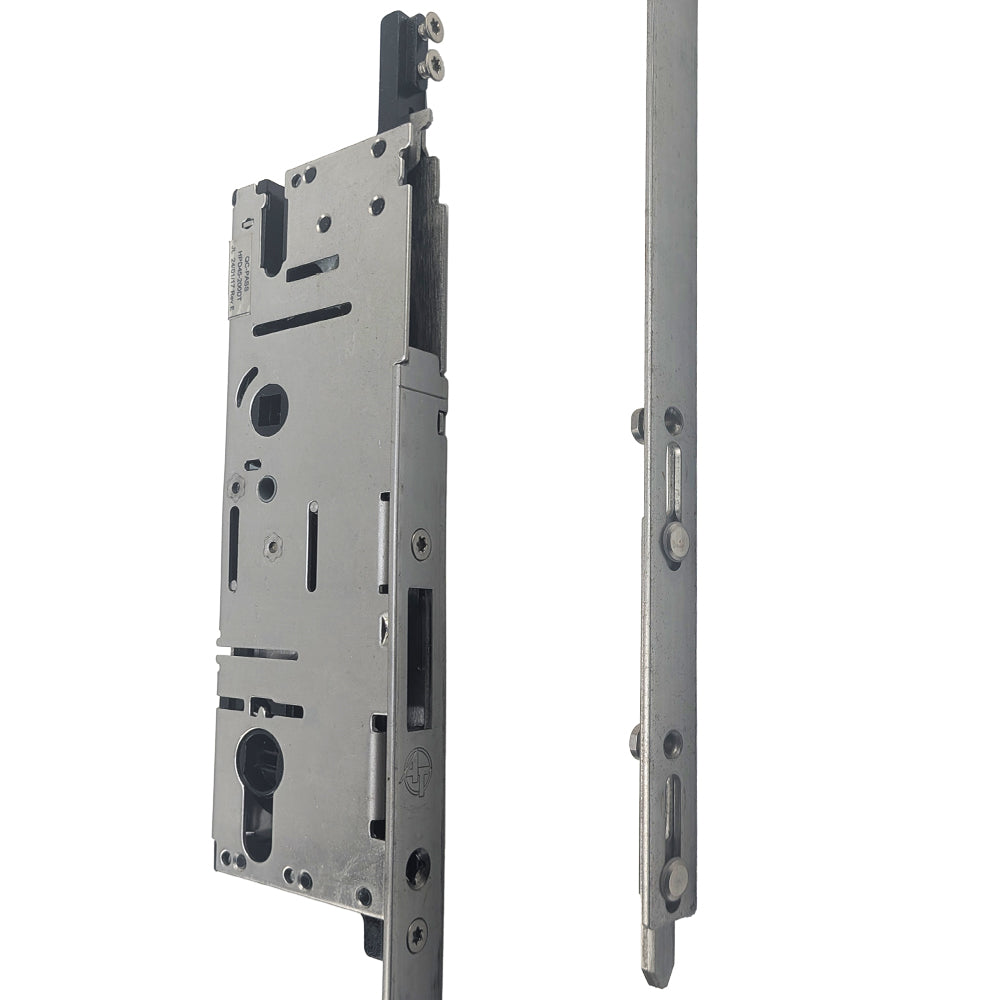

20mm P2000 Passive Lower 45/92 Shootbolt Assembly
Part Number: Price: $155.0020mm P2000 Passive Lower 45/92 Shootbolt, Essve 8-0, 36 HH
The passive gear and be used on doors with astragals or without when the locks are face to face.
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts
Version: American Gearbox

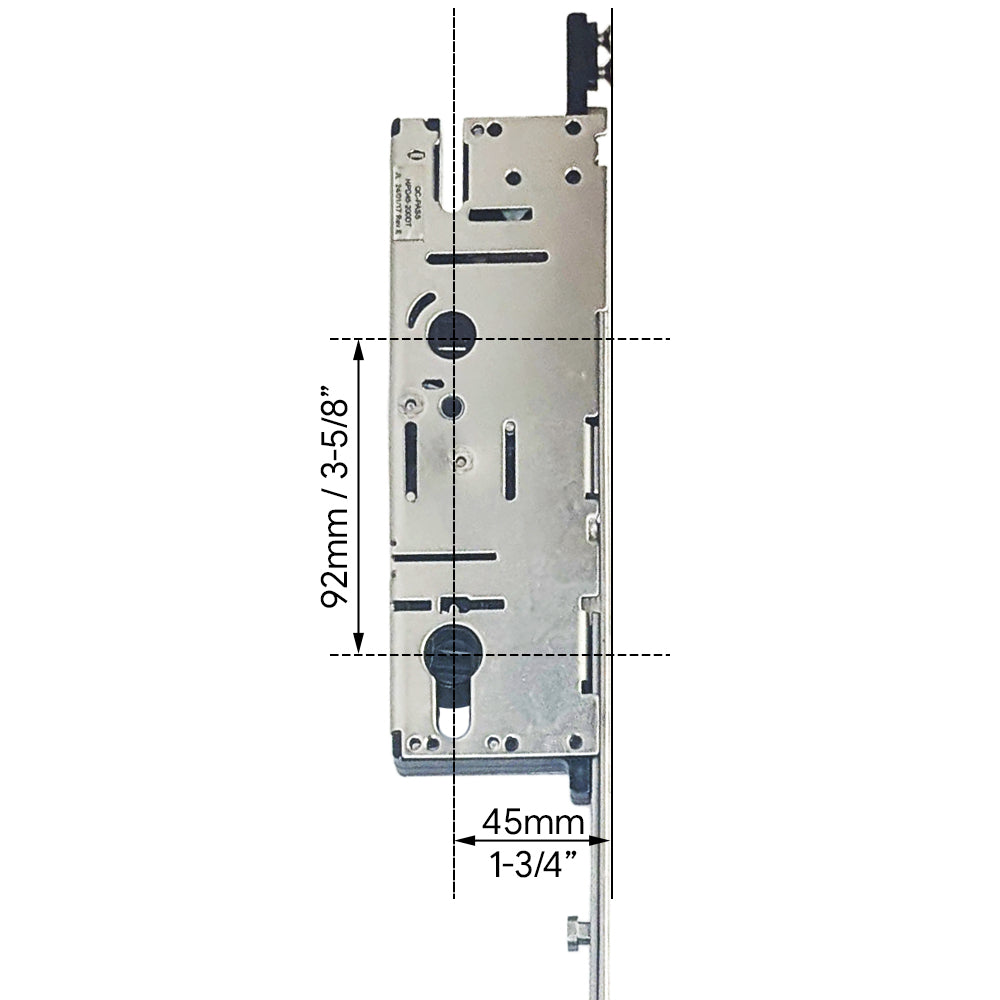

Faceplate Width: 25/32 inch ( 20mm)
Backset: 1-3/4 inch (20mm)

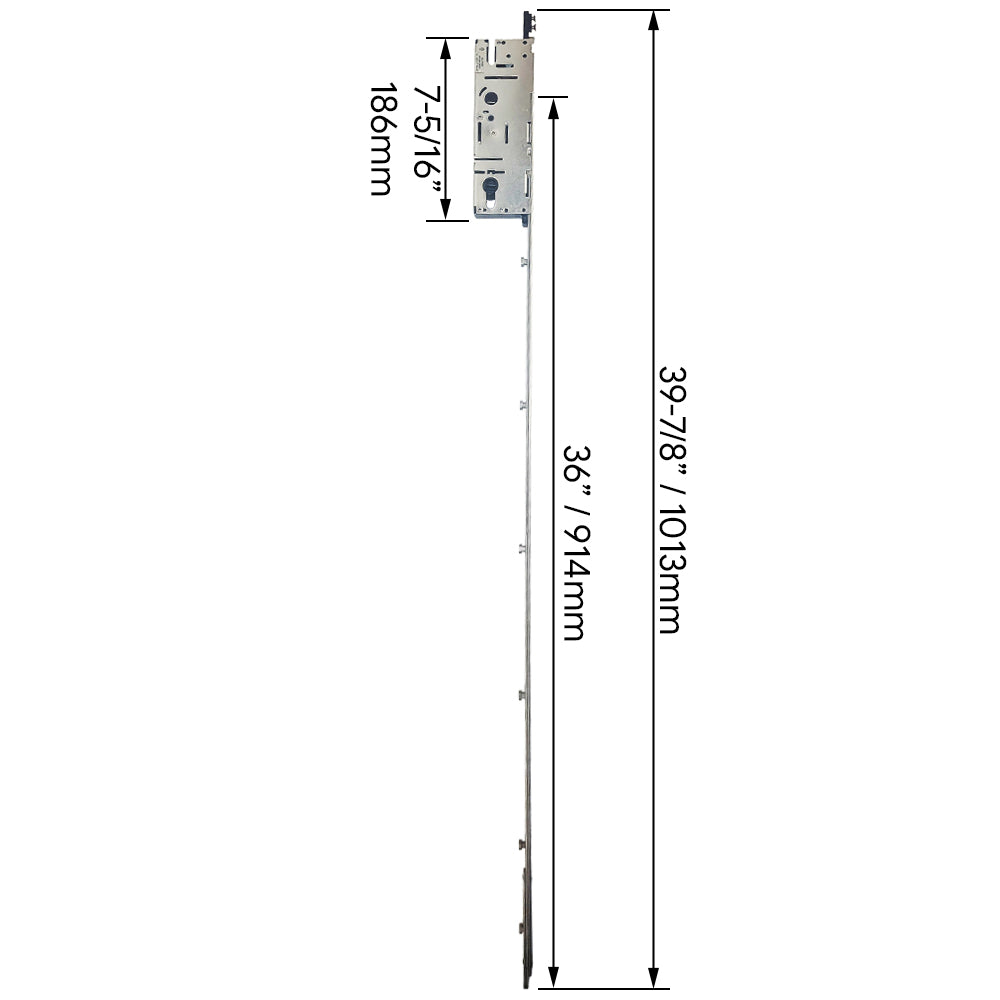

Handle Height: 36 inch (914mm)
Related Parts for 8-0 Active door - Fits doors from 95.0" to 108.5"
8045-2264-81-LA - Lower Gear
2296UA - Upper extension
5670-80-81 - Upper Shootbolt Tip
Related Parts for 8-0 Passive door - Fits doors from 95.0" to 108.5"
8545-2270-81-LA - Lower Gear
2276UA - Upper Extension
5670-80-81 - Upper Shootbolt Tip
The passive gear and be used on doors with astragals or without when the locks are face to face.
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts
Version: American Gearbox
Faceplate Width: 25/32 inch ( 20mm)
Backset: 1-3/4 inch (20mm)
Handle Height: 36 inch (914mm)
Related Parts for 8-0 Active door - Fits doors from 95.0" to 108.5"
8045-2264-81-LA - Lower Gear
2296UA - Upper extension
5670-80-81 - Upper Shootbolt Tip
Related Parts for 8-0 Passive door - Fits doors from 95.0" to 108.5"
8545-2270-81-LA - Lower Gear
2276UA - Upper Extension
5670-80-81 - Upper Shootbolt Tip
