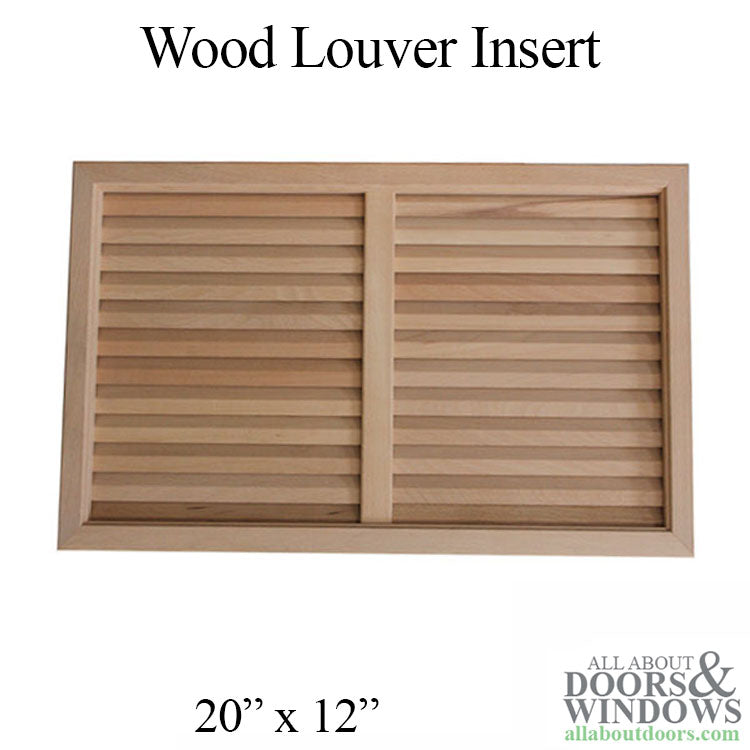

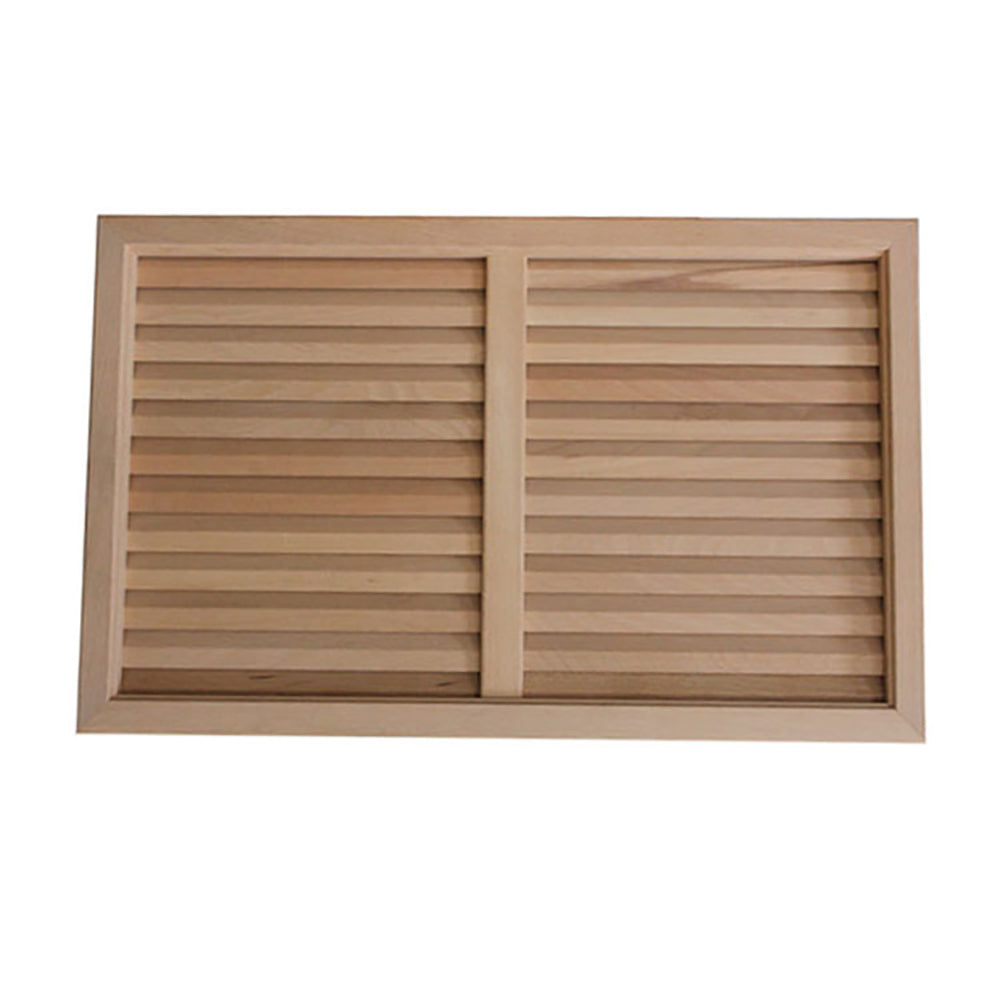

Chevron 20 x 12 Wood Louver Insert for 1-3/4" thick door LVR20124
Chevron louvers provide air movement while maintaining privacy in both directions.
Vented slots allow for air movement, which may be required to meet certain codes.
Used for Furnace Rooms, Utility Rooms and to convert a plain door into something nicer.
Center Mullion is standard on units 20 inches or wider

Call Size: 20 x 12
Cut Out Size: 21 x 13 ( 1" more than call size )
Outside Tip - Tip Width: 21-7/16 inches
Outside Tip - Tip Height: 13-1/4 inches

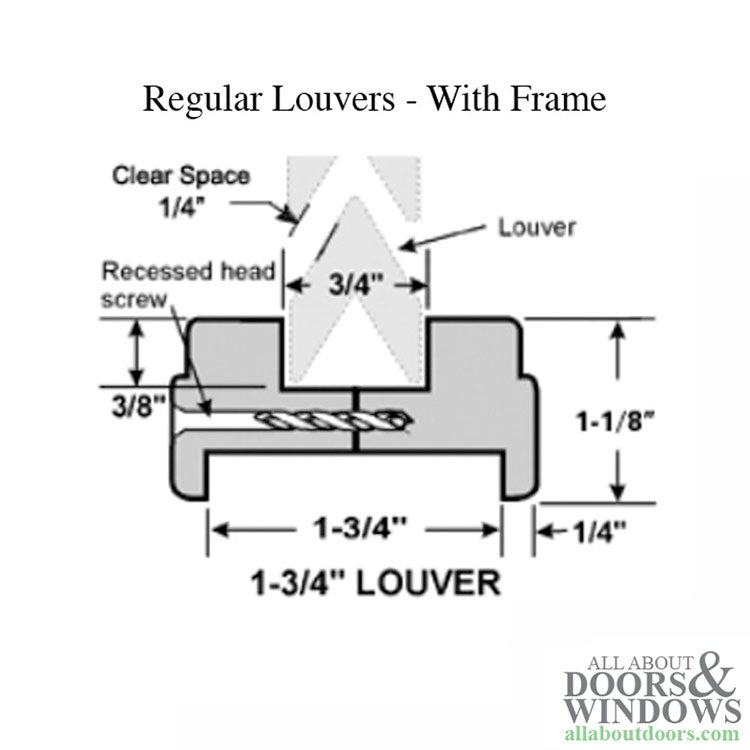

Door Thickness: 1-3/4 inch
Installed with 8 Screws from Inside

Available Sizes: Some may be special Order
1-3/4" Thick Doors
12x12 1-3/4”
16x12 1-3/4”
20x12 1-3/4”
20x20 1-3/4”
20x24 1-3/4”

1-3/8" Thick Doors
12x14 1-3/8”
16x12 1-3/8”
20x12 1-3/8”
20x20 1-3/8”
20x24 1-3/8”
