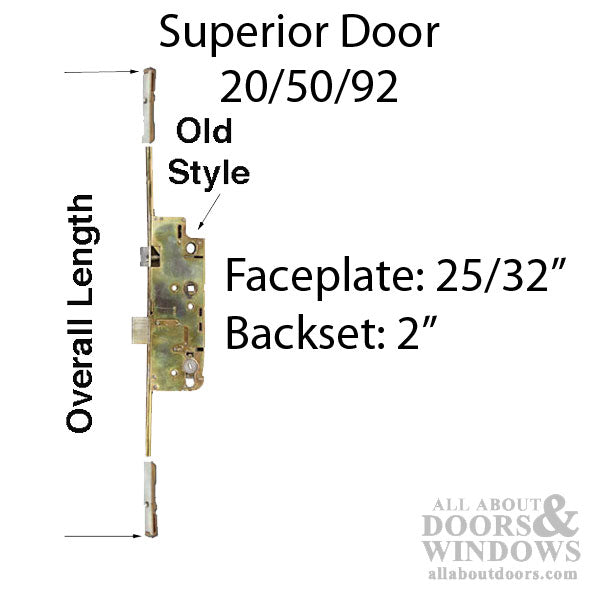

20mm Active 50/92 Shootbolt G-U replacement for 74-3/4" Superior Door - YDI

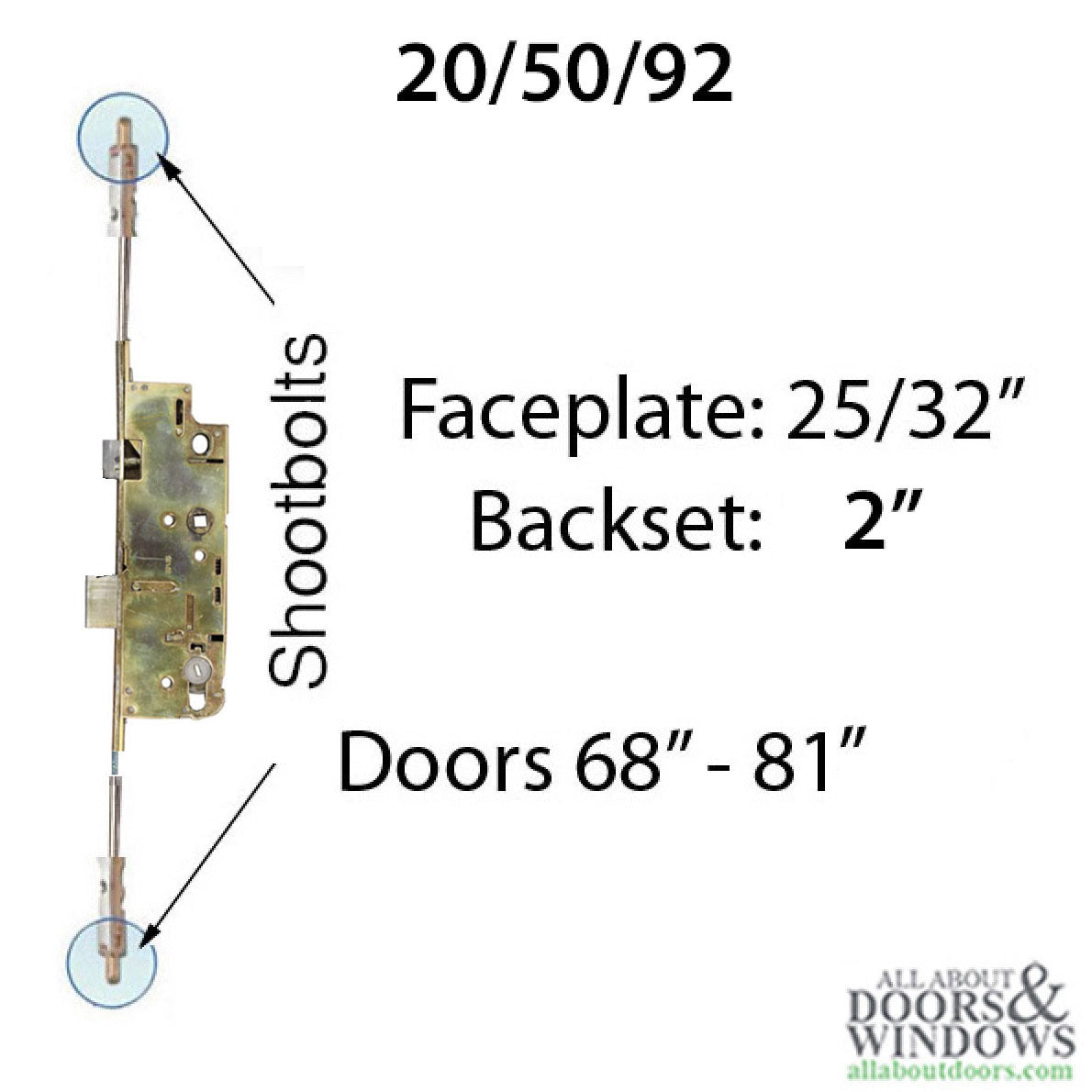

Part Number: G-17567-19 Price: $174.75Active 20/50/92 Multipoint lock with Shootbolts. An after market G-U replacement for Superior Door and others with the old style lock.
Application: Active Door, 3 point Lock
Faceplate Width: 3/4 inch ( 20mm)
Cylinder Type: American Version
Backset: 2 inch (50mm)
Handle Height: 35 inch (889mm)
Overall Length: 74-3/4 inch to 81 inch doors
Faceplate Color: Yellow Dichromate ( YDI)

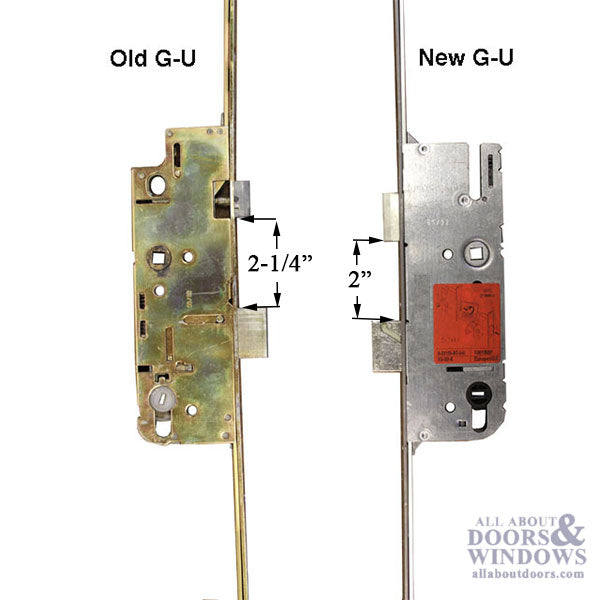

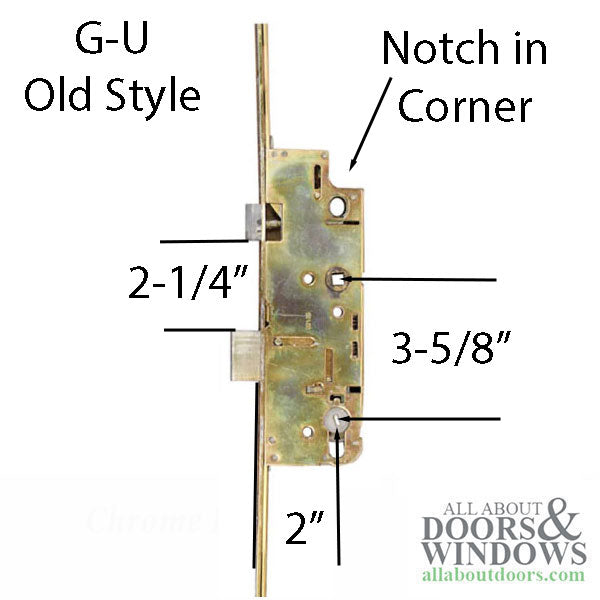

Note: The lock case should replace any old style G-U Multipoint locks. It will NOT replace the new style - see additional images
Application: Active Door, 3 point Lock
Faceplate Width: 3/4 inch ( 20mm)
Cylinder Type: American Version
Backset: 2 inch (50mm)
Handle Height: 35 inch (889mm)
Overall Length: 74-3/4 inch to 81 inch doors
Faceplate Color: Yellow Dichromate ( YDI)
Note: The lock case should replace any old style G-U Multipoint locks. It will NOT replace the new style - see additional images
