Winkhaus One Motion Lock Replacement

Multipoint 1 Hook Lock, P2000 Door

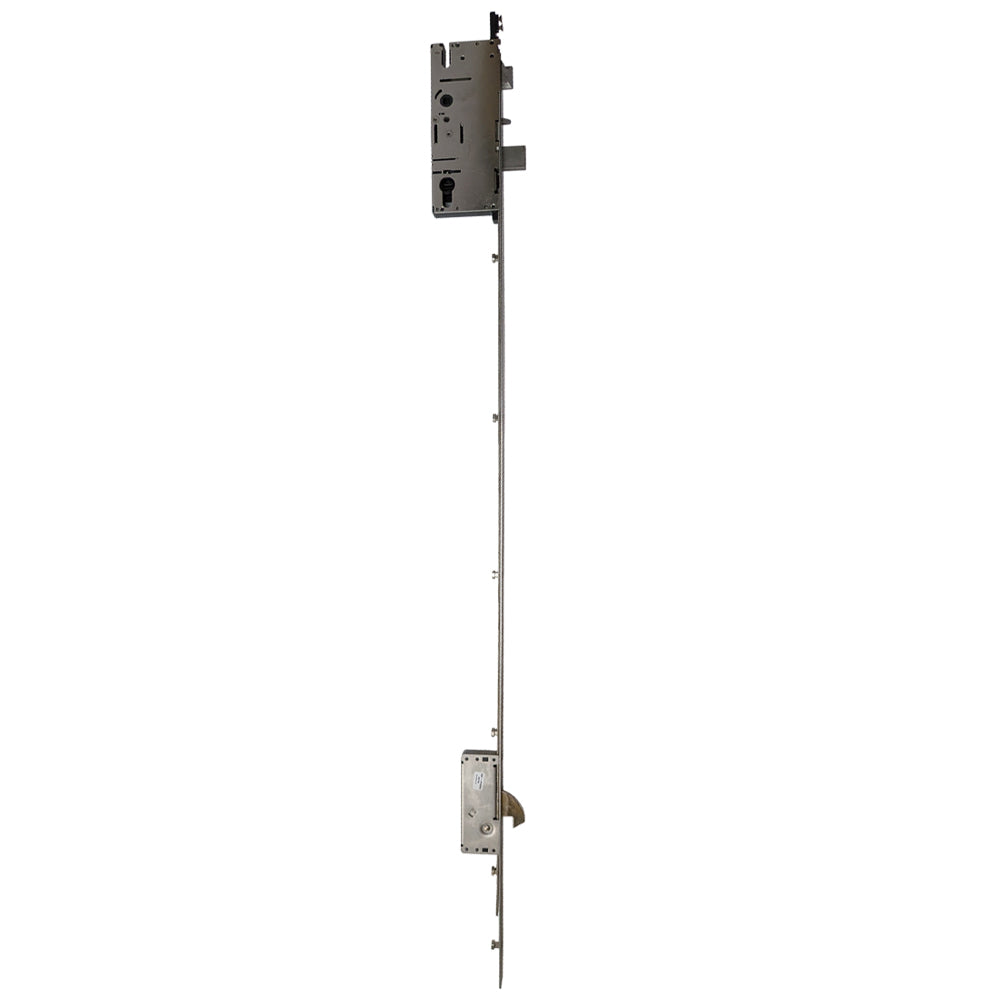

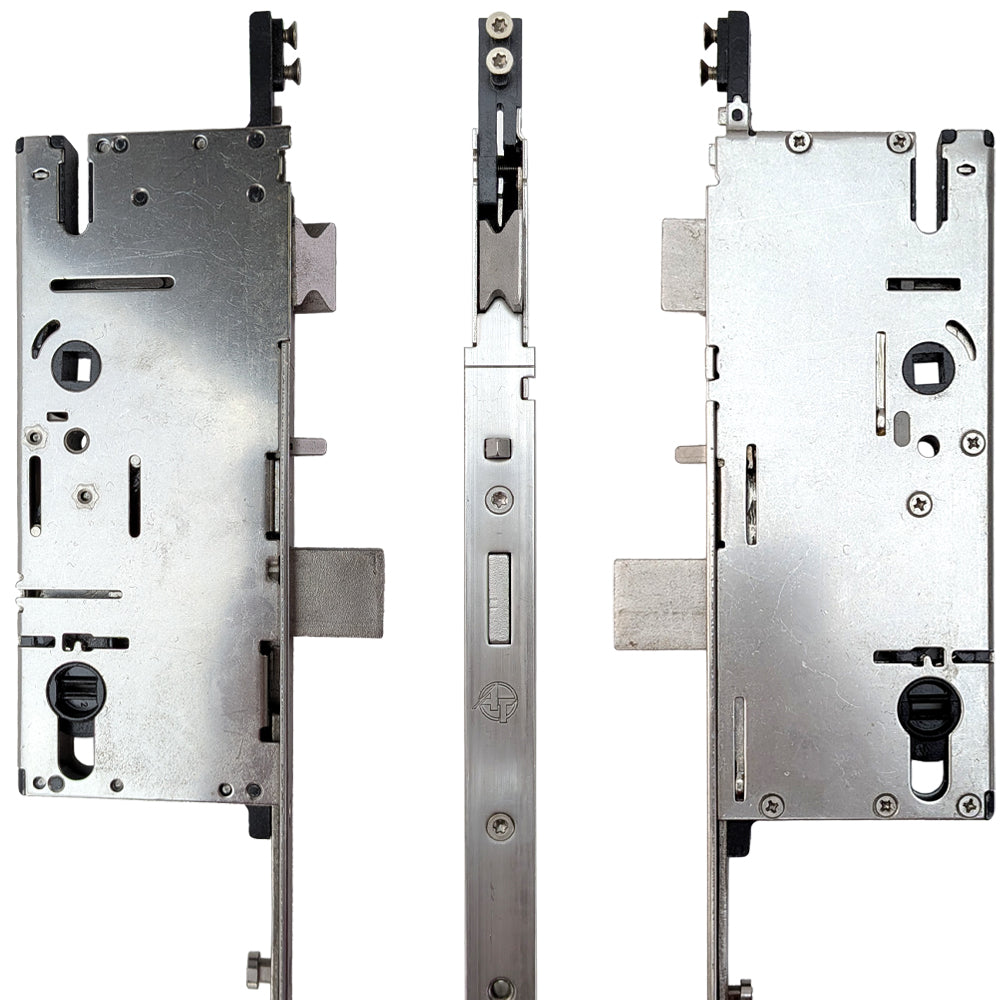

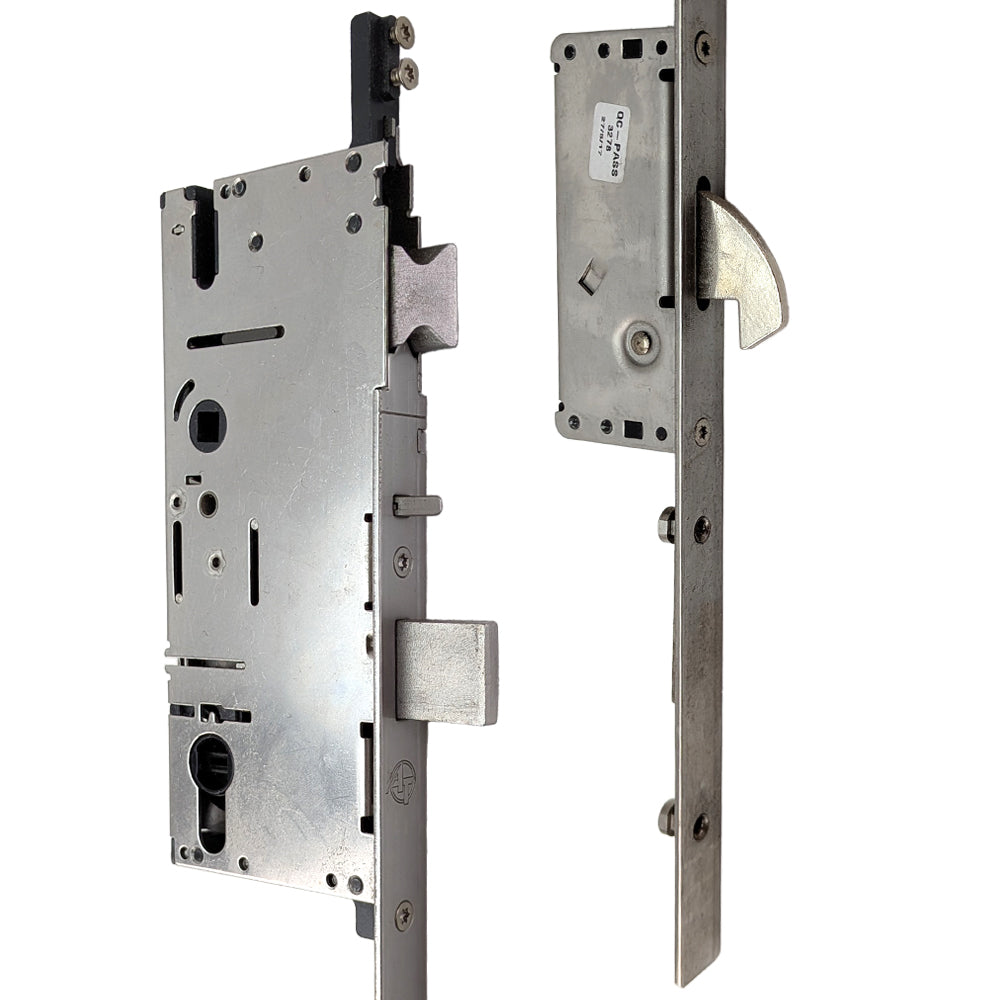

This bottom gear & hook have the best fit available to replace a Winkhaus One Motion Multipoint Lock.

The original style of handle is below the cylinder; replacement handle is above the cylinder.

Lock Operation

• To lock door: Lift the handle to lock door and turn thumbturn to secure into locked position. When the handle is lifted, the deadbolt extends along with the other locking devices.
• To unlock door: Turn thumbturn or key to unlocked position and push down on lever.

For doors with overall height of 76-82 inches.

• Cylinder Type: American
• Faceplate Width: 20mm (13/16 inch)
• Handle Height: 980mm (38-9/16 inches)
• PZ (Center of handle to center of key cylinder): 92mm (3-5/8 inches)
• Backset: 60mm (2-3/8 inches)
• Bottom Hook Position: 773mm (30-7/16 inches)
• Deadbolt Throw: 25mm (1 inch)

Adjustments for Door Height

This lock system is comprised of several components that will need to be fitted to a door based on its height. Some components will be cut to length as needed.

When cutting for door height and hook location, the new lock will need to be overlayed with the old lock to place the handle height and hooks in the correct location.
