20mm P1000 Active 45/92 Rhino Hook

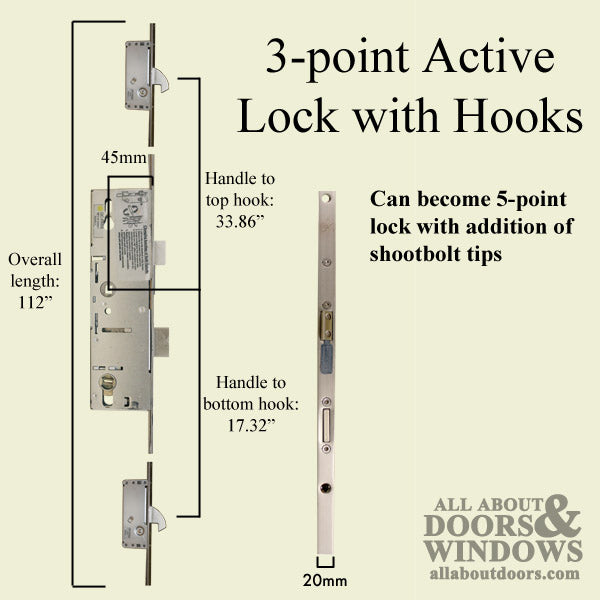

Premiere 1000 Series, 1 piece MPLock, 3-Point Hook
Shootbolt Teeth: Yes - This can be converted to 5-Point Lock by adding Shootbolts

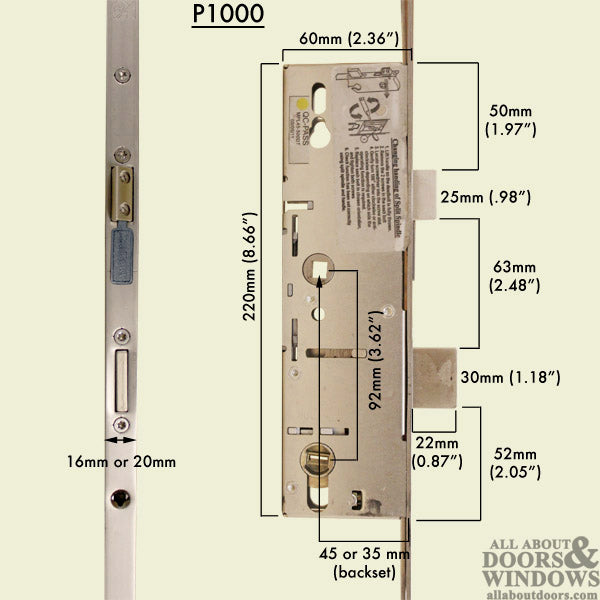

OA Length: 112-1/2 inch
Backset: 1-3/4 inch (45mm)
Gearbox: American 3-5/8 inch (92mm)
Faceplate: 25/32 inch (20mm)
Bottom Hook Positions: 17.32 inch
Top Hook Positions: 33.86 inch
Handle Height: 40 inch (croppable)
Markings: 1286 Faceplate, 1986U, 1984L

To Change Handing:
1. Lift handle to fully extend deadbolt
2. Remove 2 screws in latch bolt
3. Reverse spring Latch tip
4. Replace Latch bolts
5. Check Function, before closing door, to be sure lock is working correctly


LOCK OPERATION:
To Lock door: Lift the handle to lock door and turn thumbturn to secure in locked position
When the handle is lifted the Deadbolt extends with other locking devices.
To unlock door: Turn thumb turn or key to unlocked position and push down on lever
