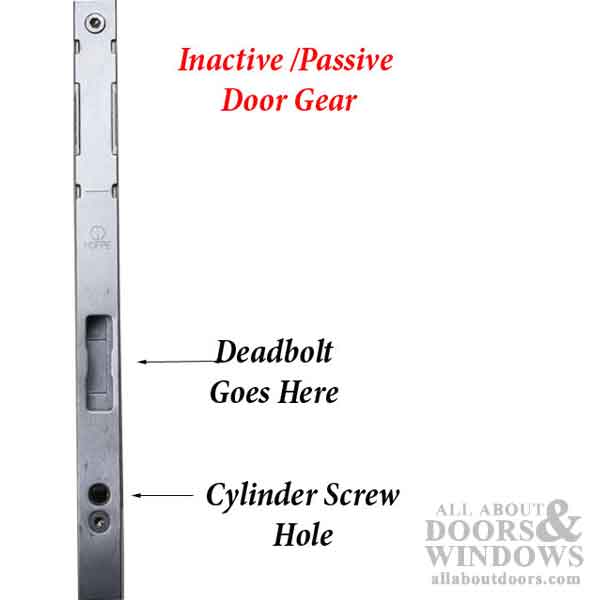

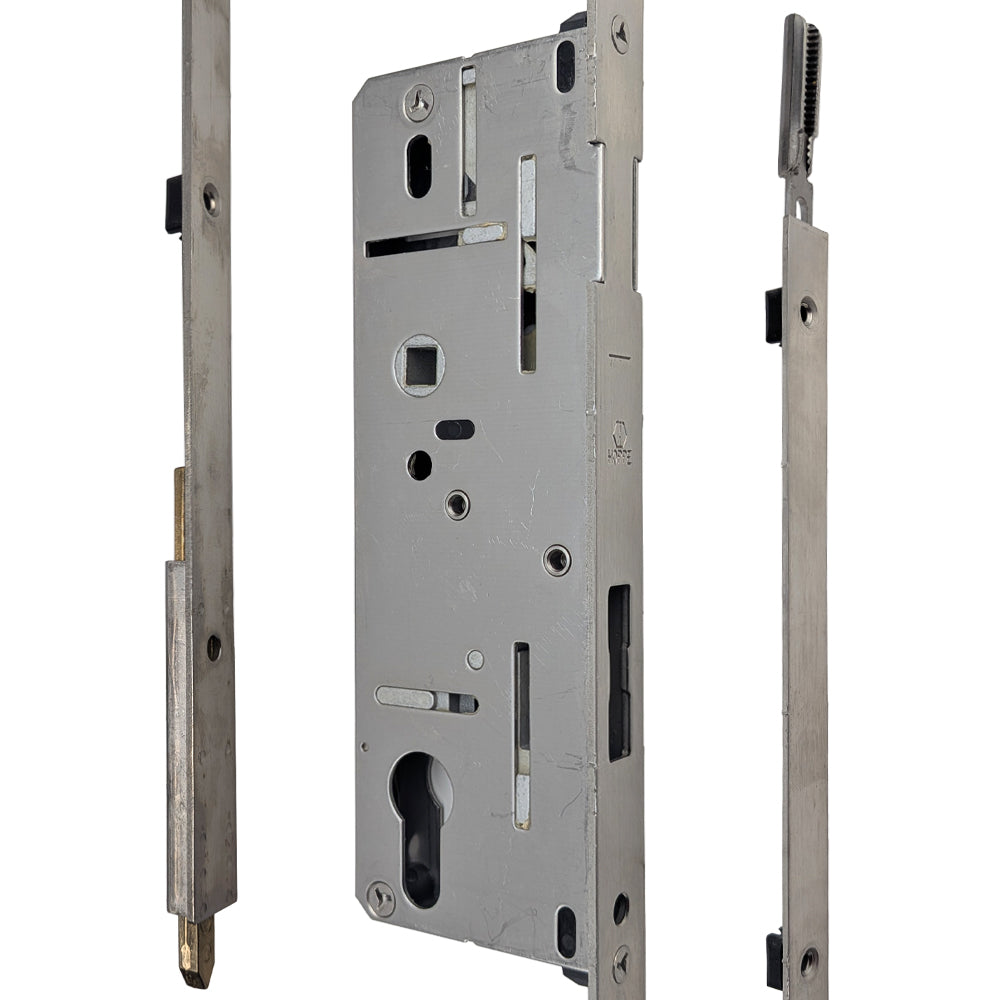

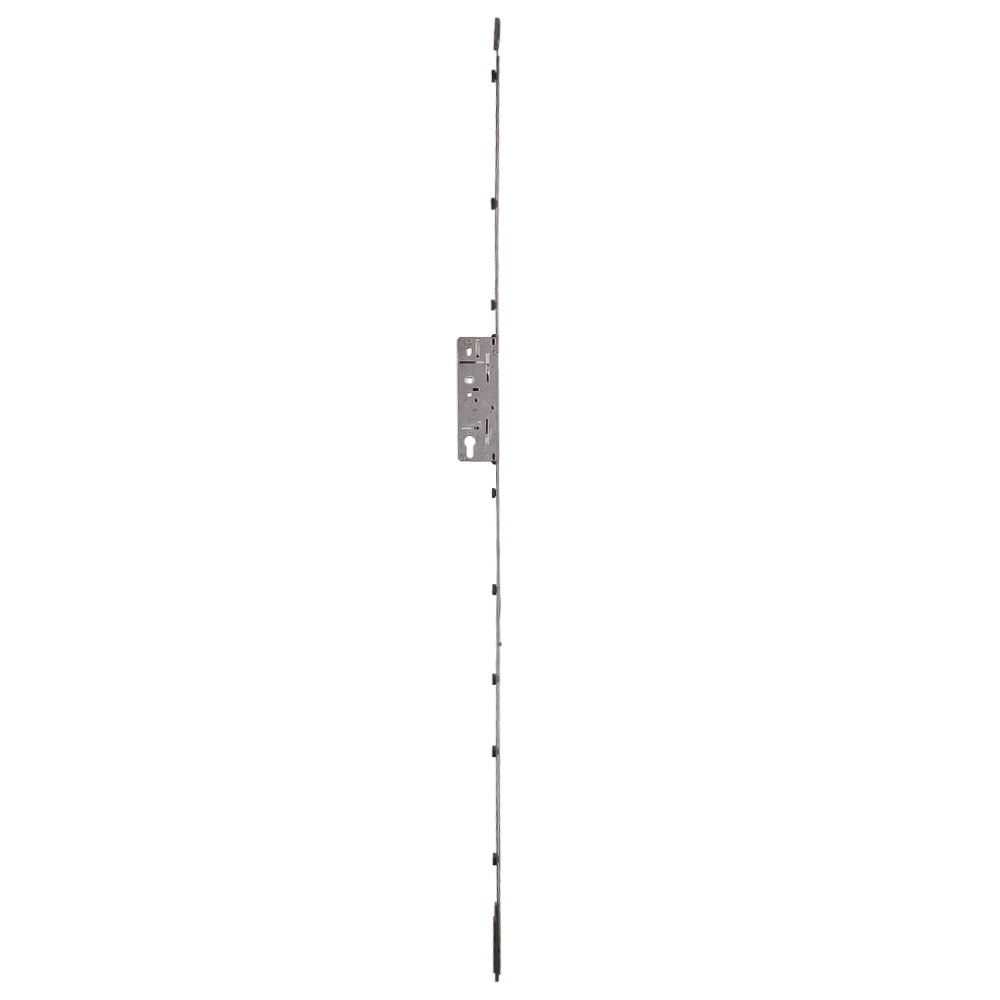

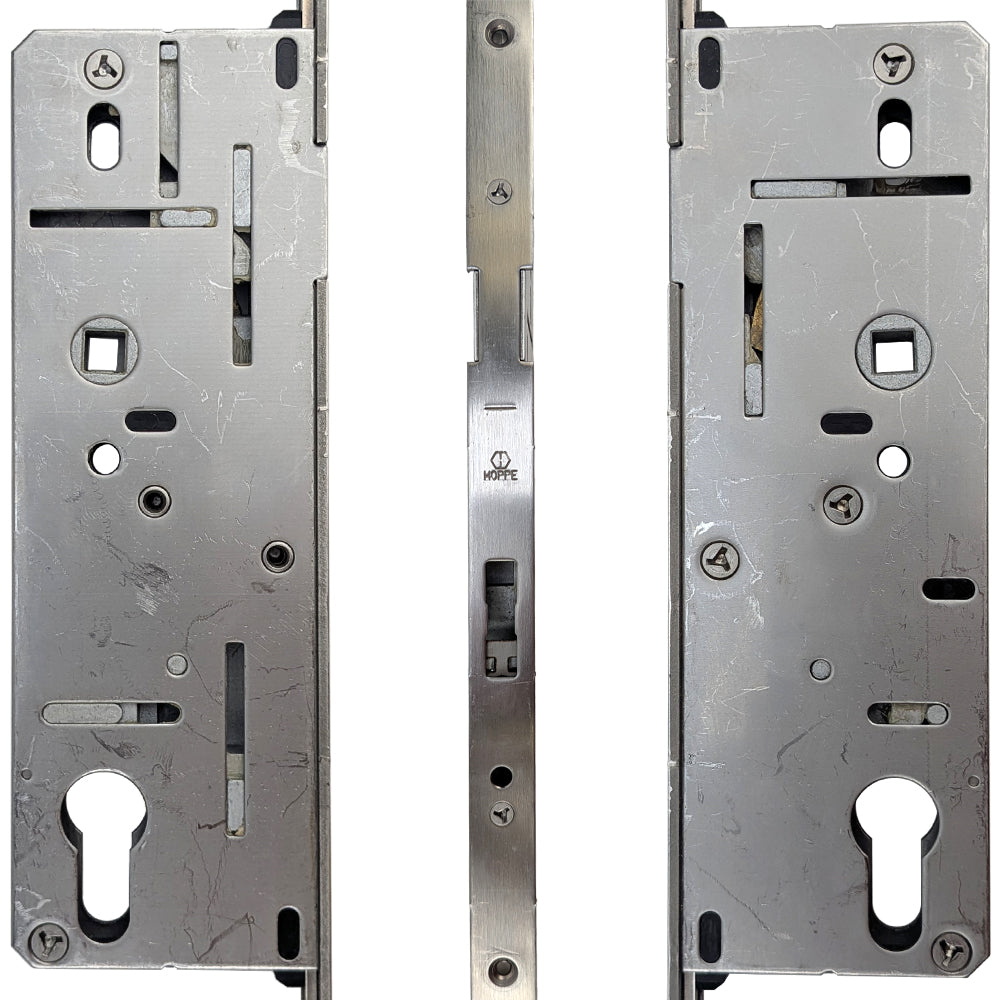

Hoppe HLS9000 Inactive 20mm Door Gear

45/92 Assembly with Lower Shootbolt

This lock has serrated teeth at the top for attaching an optional top extension. Top extension is sold separately; see Related Items below to complete your multipoint lock.

Specifications:

• Faceplate Width:  20 mm (13/16 inch)
• Faceplate Length:  1384 mm (54-1/2 inches)
• Backset:  45 mm (1-3/4 inches)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92 mm (3-5/8 inches)
• Handle Height:  914.5 mm (36 inches)
• Deadbolt Throw:  20 mm (13/16 inch)
