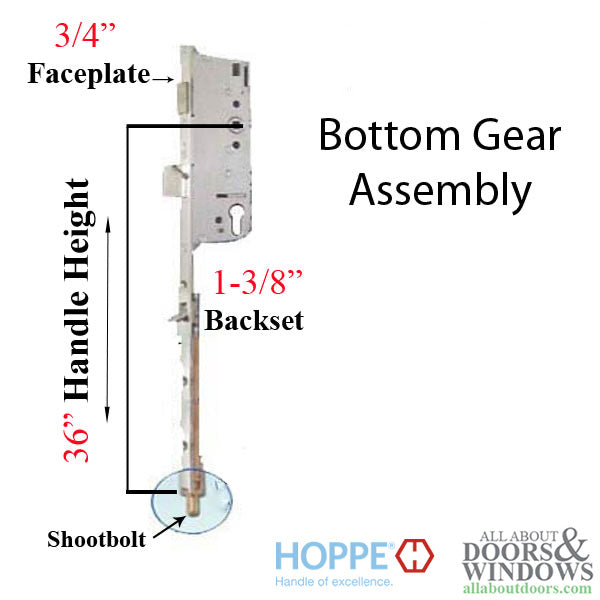

Hoppe HLS9000 Shootbolt 20mm Manual Version Faceplate Bottom Gear, Locking System Active Door.
Faceplate Width: 3/4" (16mm);

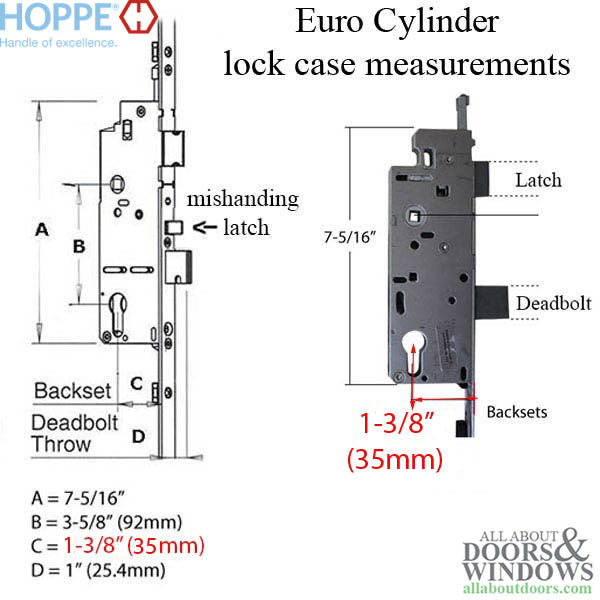

Backset: 1.38" (35mm);
Deadbolt Throw: 1" (25.4mm);

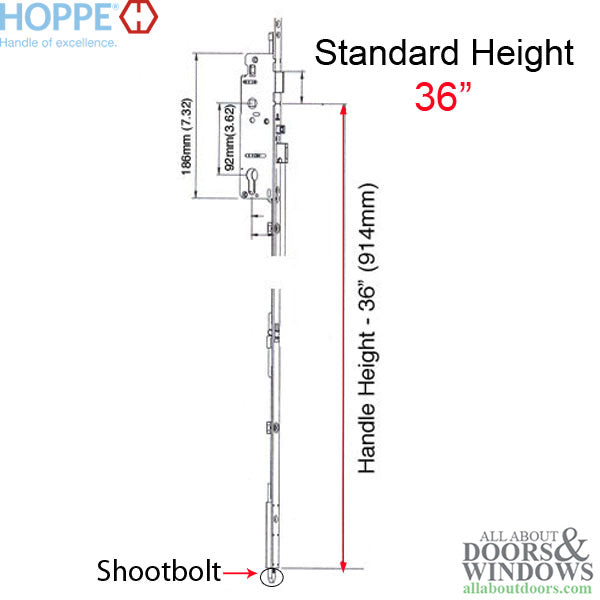

Handle Height:36" (914mm);
Max. Cutoff: N/A;
Number of Screws: 6
Related Article:
HLS Swing Door Multipoint Hardware Installation And Adjustment
Faceplate Width: 3/4" (16mm);
Backset: 1.38" (35mm);
Deadbolt Throw: 1" (25.4mm);
Handle Height:36" (914mm);
Max. Cutoff: N/A;
Number of Screws: 6
Related Article:
HLS Swing Door Multipoint Hardware Installation And Adjustment
