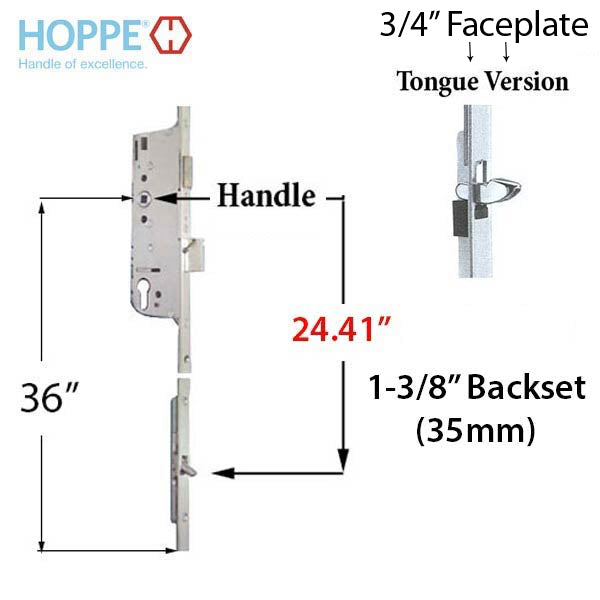

HOPPE HLS9000 Multipoint Lock with Manual Gear, Tongue Version for Active Door with 3/4 inch wide faceplate and 1-3/8 inch backset

Specifications:
Faceplate Width: 3/4", 0.78" (20mm),
Backset: 1.38" (35mm),
Deadbolt Throw: 1.00" (25.4mm)
Handle Height: 36" (914mm),
Bottom Tongue Position: 24.41" (620mm)
Maximum Cutoff : 6.30" (160mm)
Number of Screws: 6

Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.

Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To unlock door, Turn Thumbturn or key and then depress lever.
