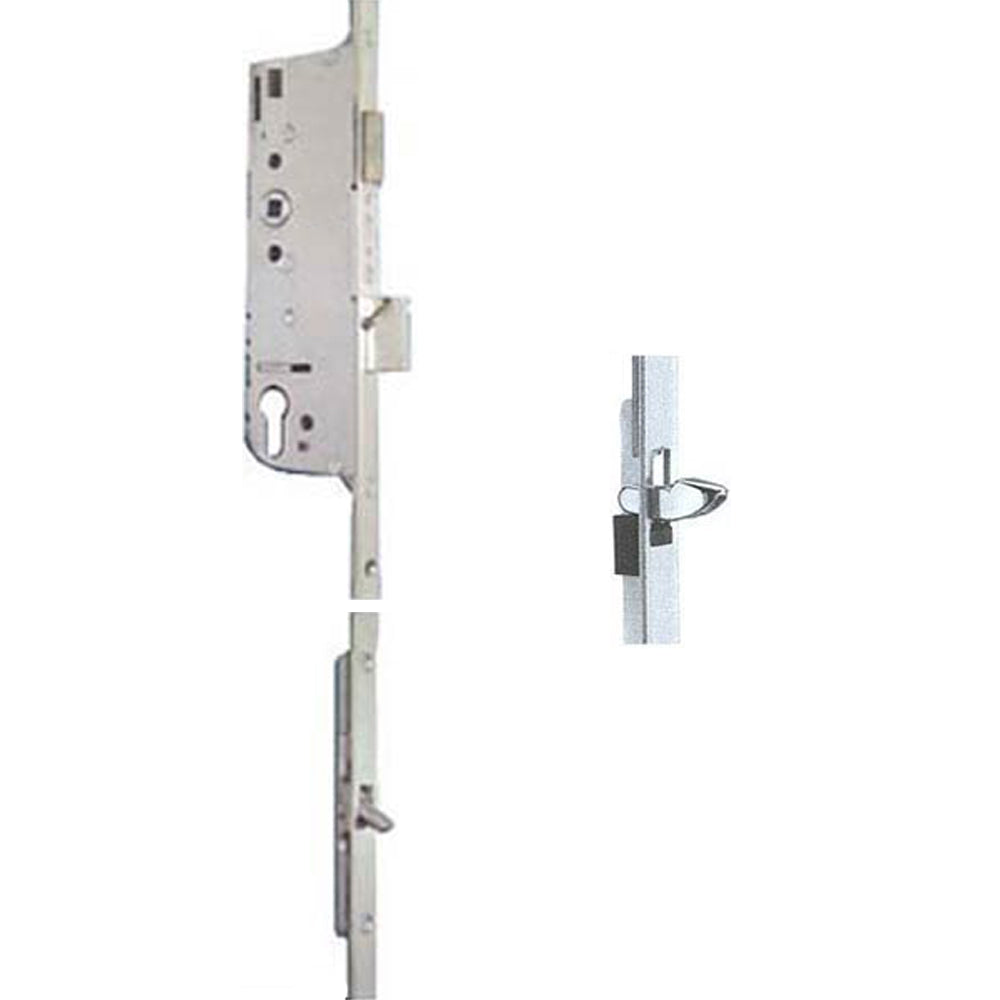

20mm Manual Gear, 45/92, Tongue at 26.42", 1" Deadbolt Throw
Use the arrows or swipe left to view all images for this product
20mm Manual Gear, 45/92, Tongue at 26.42", 1" Deadbolt Throw
Part Number: $166.66HOPPE HLS9000 Tongue Version for Active Door Multipoint Lock with Manual Gear and 3/4" ( 20mm) Faceplate
Specifications:

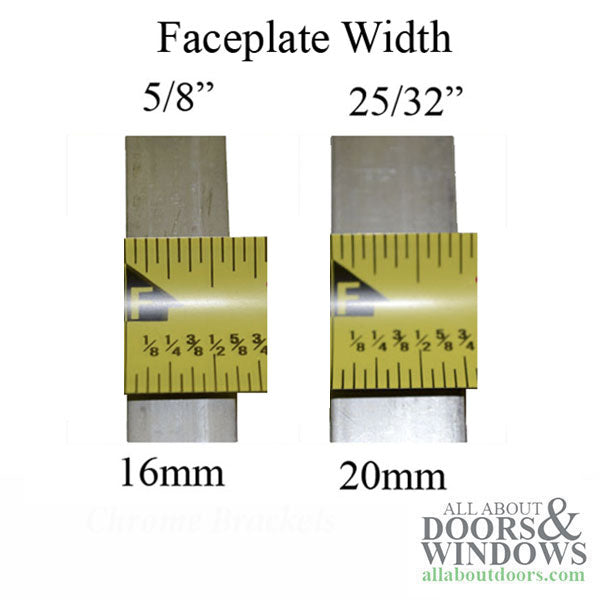

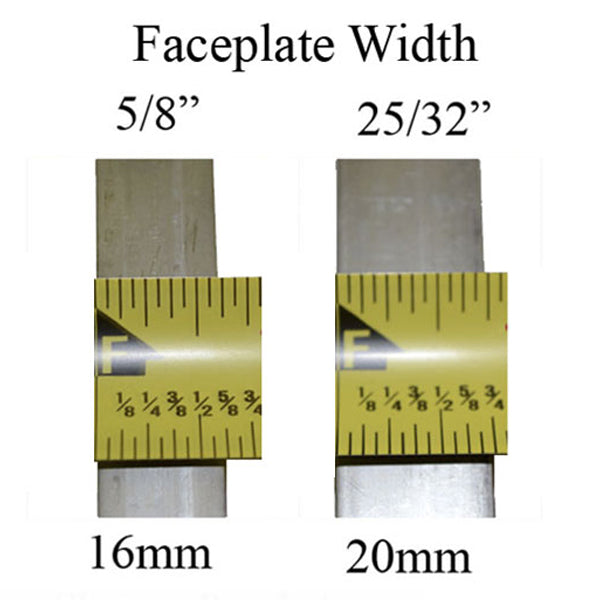

- Faceplate Width: 3/4 inch (20mm)
- Overall Height: 39-1/2 Inches

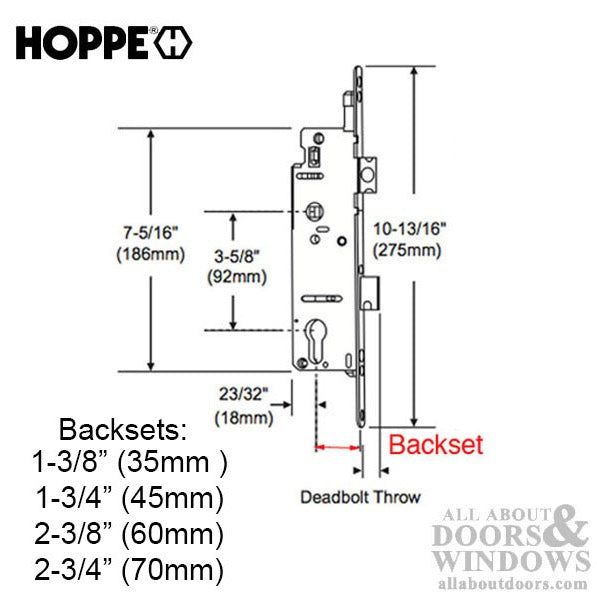

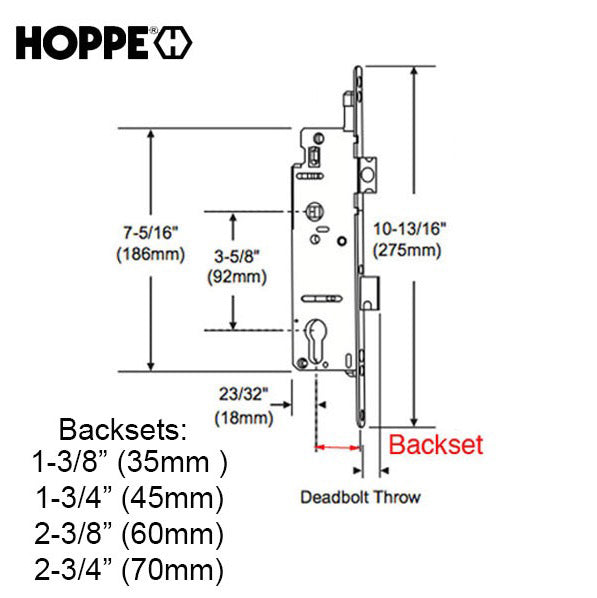

- Backset: 1-3/4 Inches
- Deadbolt Throw: 1 Inch
- Handle Height: 36" Inches

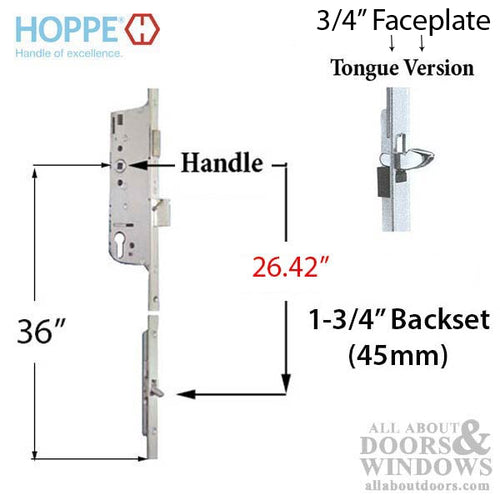

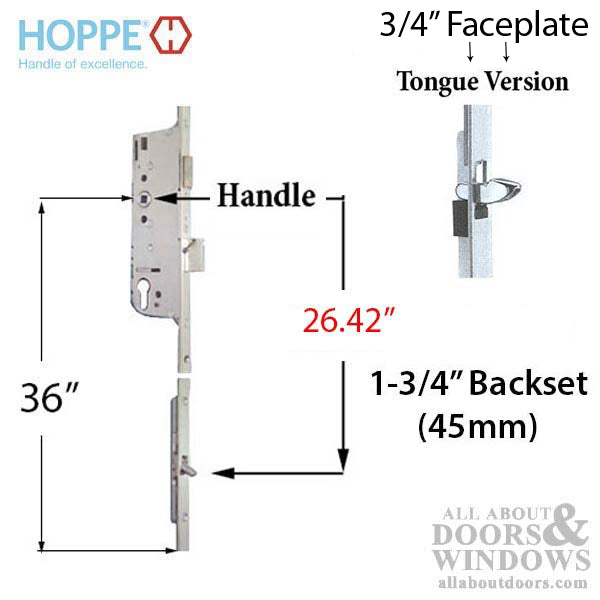

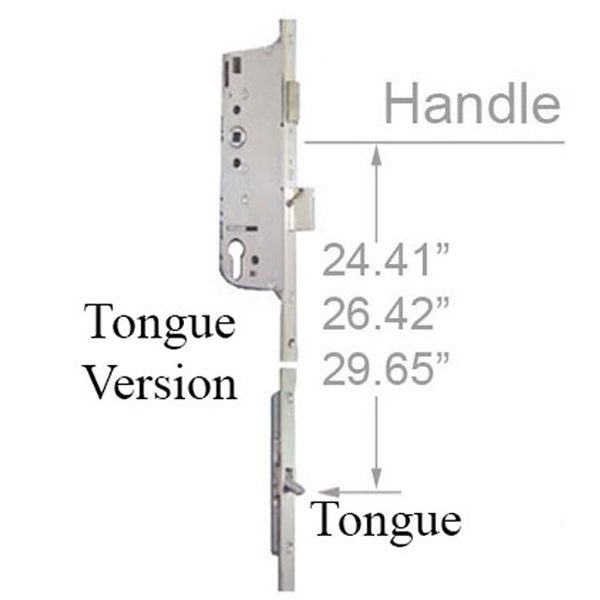

- Bottom Tongue Position: 26-7/16 Inches
- Maximum Cutoff: 4-1/2 Inches
- Number of Screws: 6
- Includes: As Shown, Bottom assembly only, does not include additional upper extensions or other components.

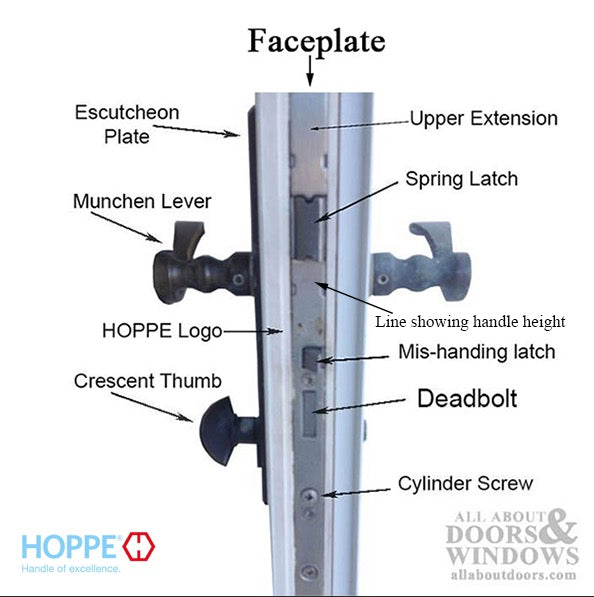

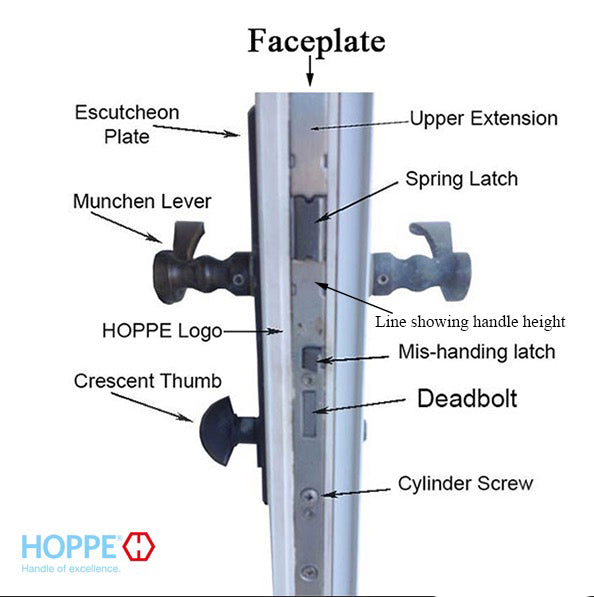

- Operation: Manual Function To lock door, Lift handle and then turn thumbturn or Key to extend deadbolt
To unlock door, Turn Thumbturn or key and then depress lever.
HOPPE HLS9000 Tongue Version for Active Door Multipoint Lock with Manual Gear and 3/4" ( 20mm) Faceplate
Specifications:
Faceplate Width: 3/4 inch (20mm) 0.78"
Backset: 1-3/4 inch (45mm), 1.77
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6
Includes: As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function To lock door, Lift handle and then turn thumbturn or Key to extend deadbolt To unlock door, Turn Thumbturn or key and then depress lever.
