20mm Manual Gear, 60/92 Shootbolt, 1" D/B
Part Number: $271.34Hoppe Manual Shootbolt Version 20mm Faceplate
Faceplate Width: 3/4" (20mm);

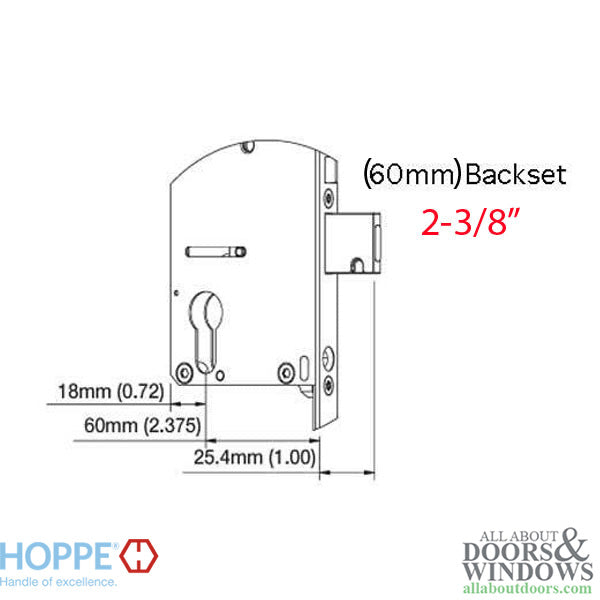

Backset: 2.375" (60mm);
Deadbolt Throw: 1" (25.4mm);

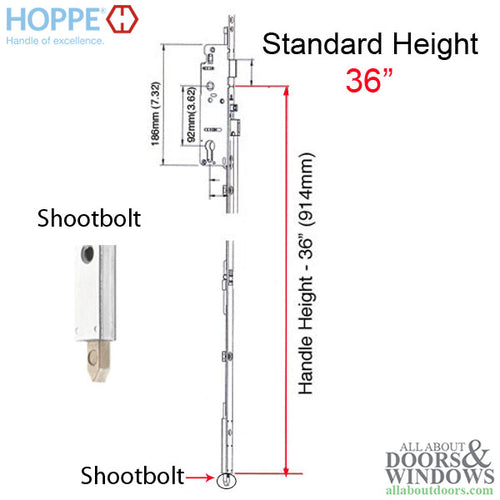

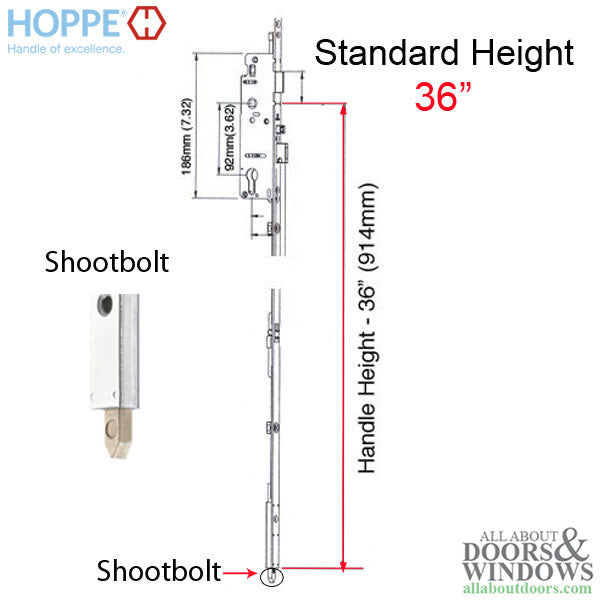

Handle Height: 36" (914mm);
Number of Screws: 6
Includes:

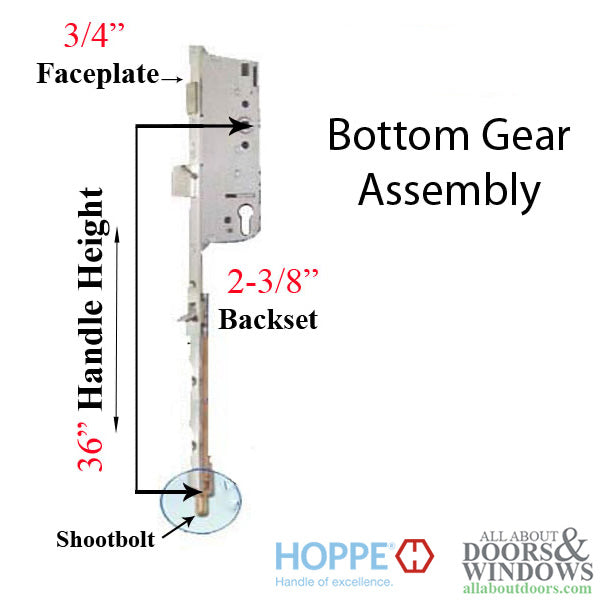

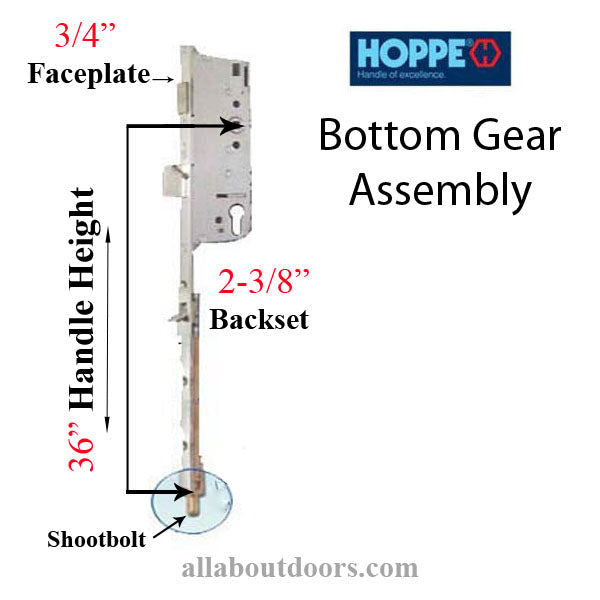

Bottom gear assembly only, additional upper extensions or other components sold separately.
Operation: Manual Function
To lock door, lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and depress lever.
