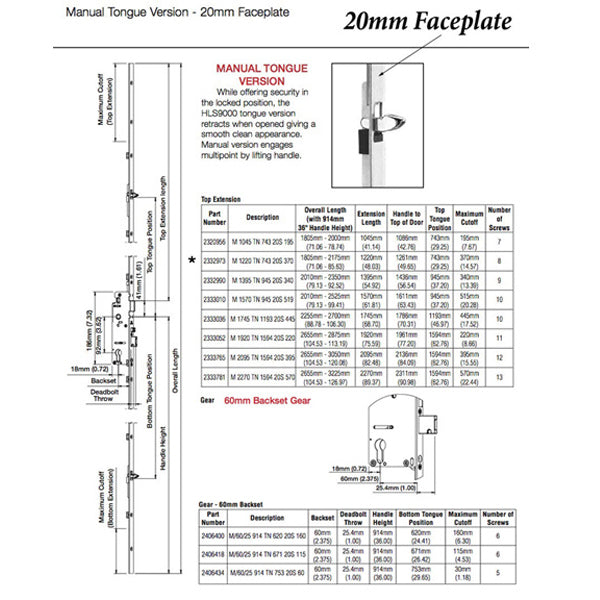

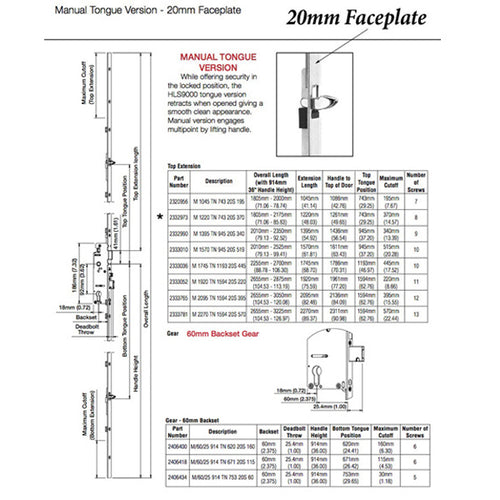

20mm Manual Gear, 60/92, Tongue @ 24.41", 1" Deadbolt Throw
Part Number: Price: $176.24Hoppe 20mm Stainless Steel Faceplate, Manual Bottom Gear,

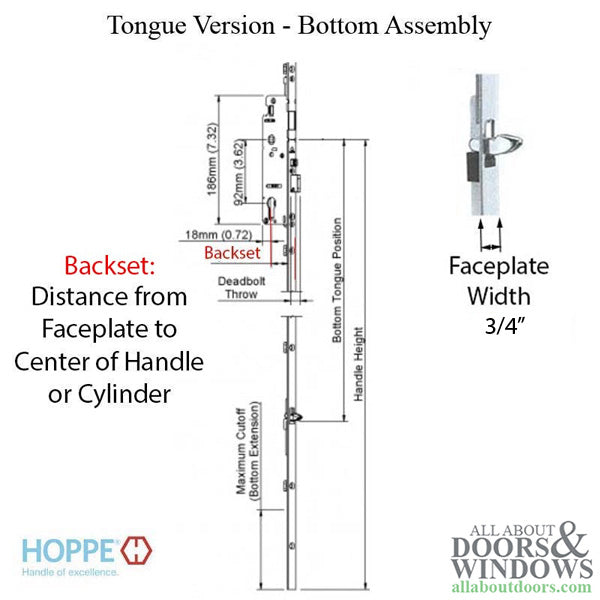

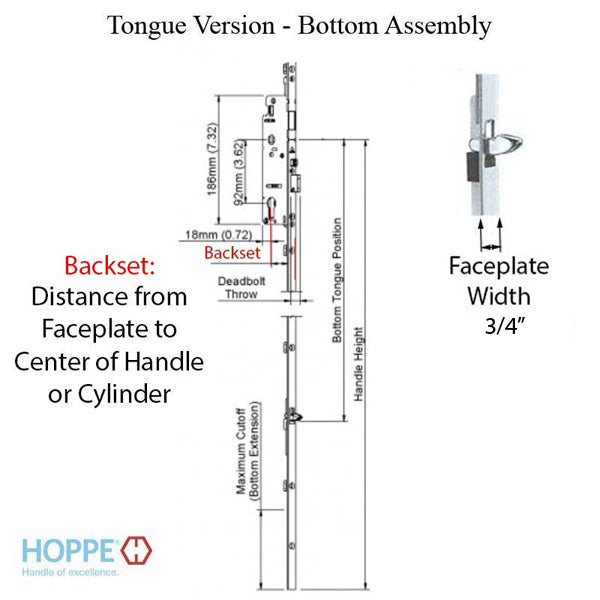

Tongue Version for Active Door

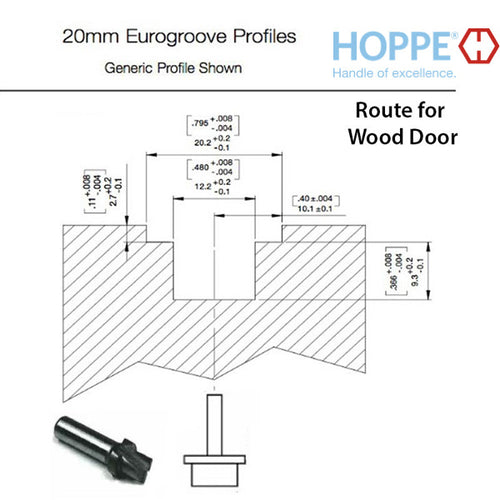

Faceplate width: 3/4", 0.78" (20mm)

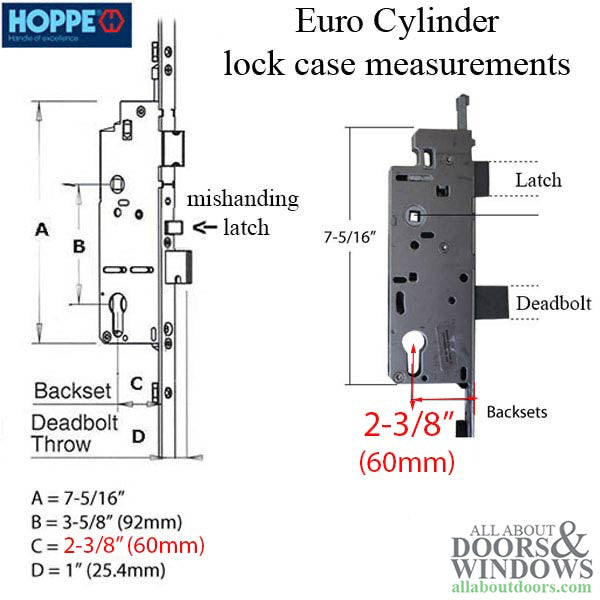

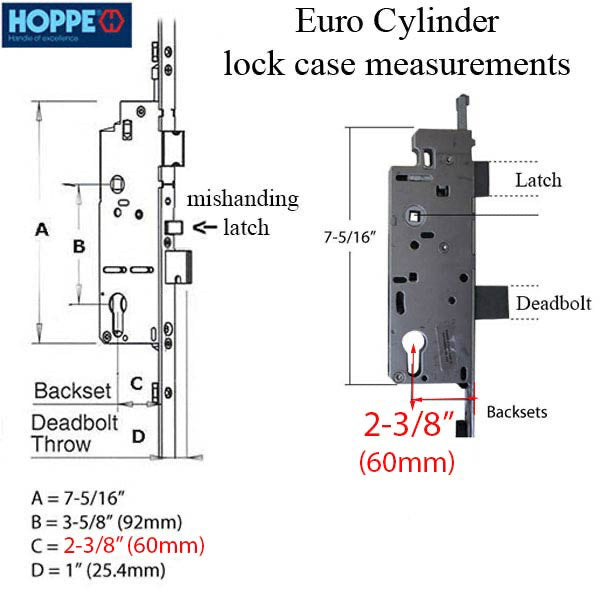

Backset: 2.37" (60mm )
Deadbolt Throw: 1" (25.4mm)

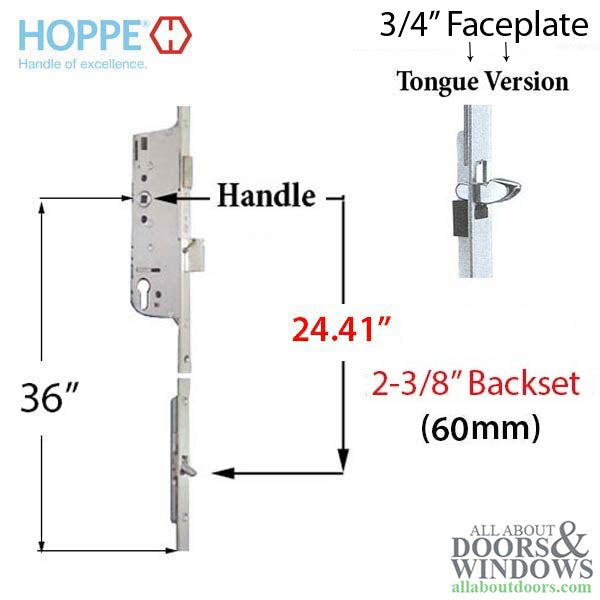

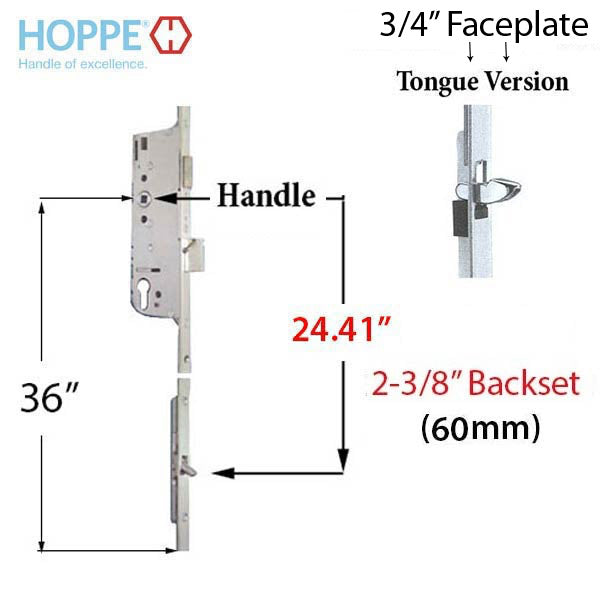

Handle Height: 36" (914mm)

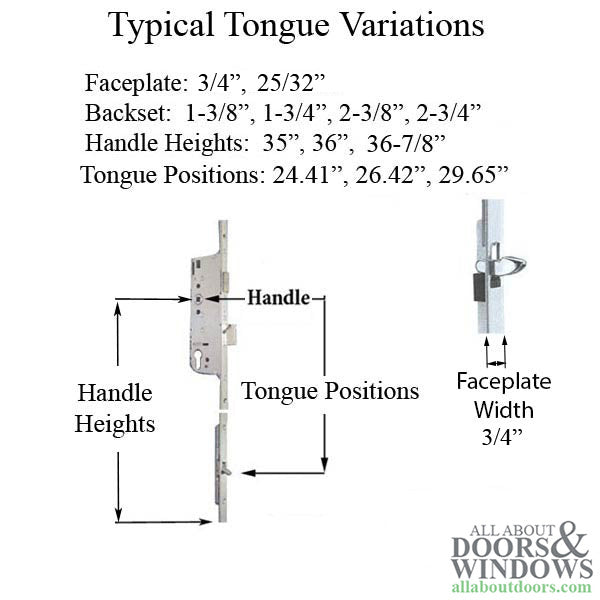

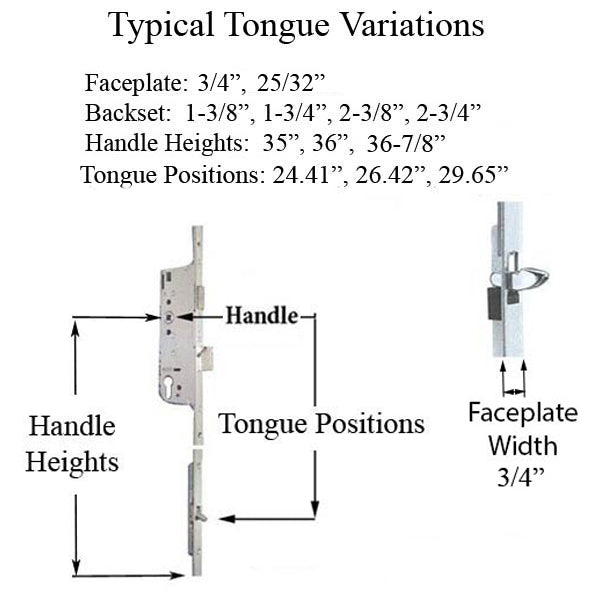

Bottom Tongue Position: 24.41" (620mm)
Maximum cutoff 1.18" (30mm)
Number of screws: 5
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
NOTE: The Profile cylinder will need a 3-3.25” length screw for a 60mm or 70mm backset.
Tongue Version for Active Door
Faceplate width: 3/4", 0.78" (20mm)
Backset: 2.37" (60mm )
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 24.41" (620mm)
Maximum cutoff 1.18" (30mm)
Number of screws: 5
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
NOTE: The Profile cylinder will need a 3-3.25” length screw for a 60mm or 70mm backset.
