20mm Manual Middle Extension, Shootbolt-Tongue @ 23.62", 27.20" Length
Part Number: Price: $63.89HOPPE HLS9000 Middle Extension for active tongue / shootbolt manual version lock

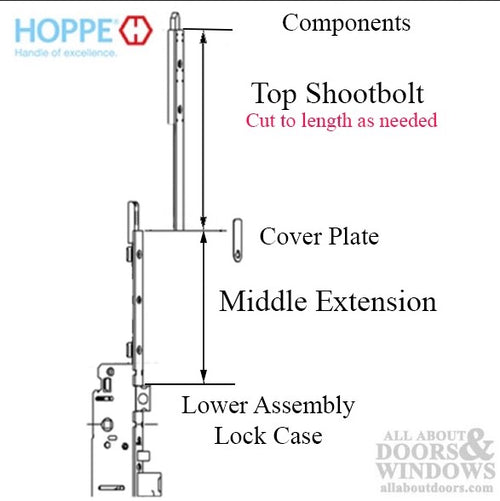

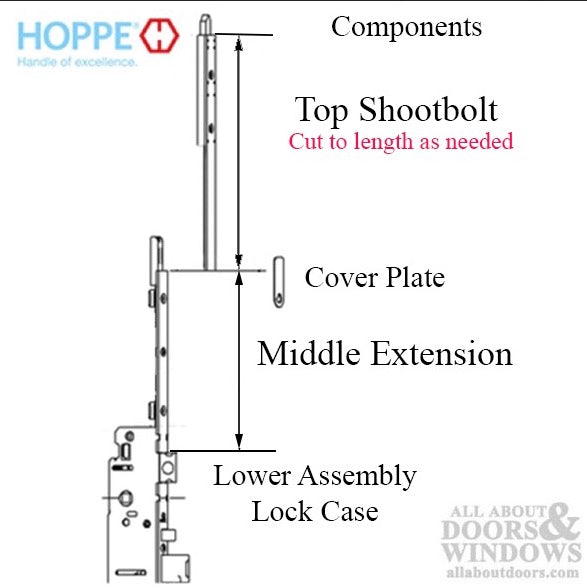

This is used in combination with Top Extension to obtain desired height.

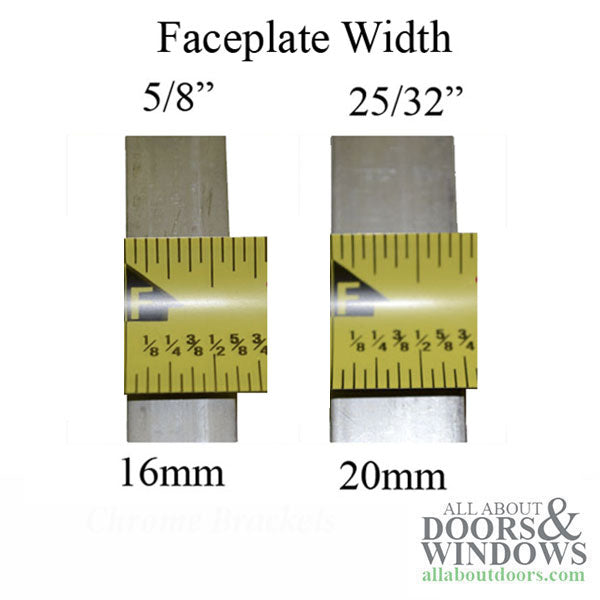

Faceplate Width: .787 inch (20mm),

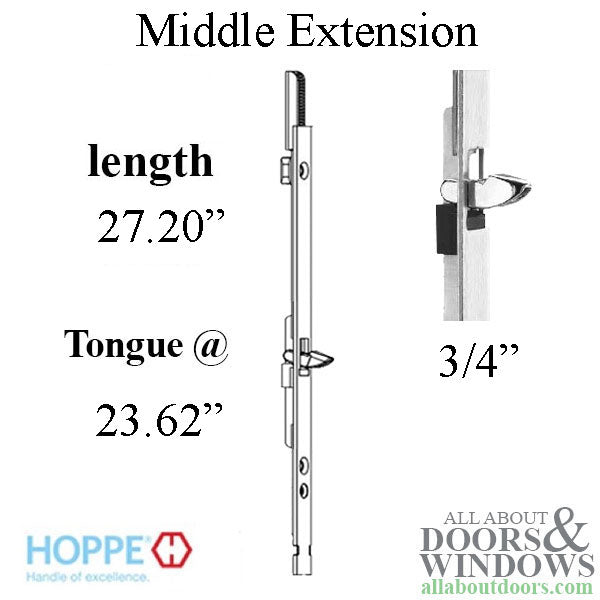

Middle Extension Length: 27.20 inches (691mm)
Top tongue position 23.62 (600mm)
Maximum Cutoff: N/A, can not be cut
Number of Screws: 4.
This is used in combination with Top Extension to obtain desired height.
Faceplate Width: .787 inch (20mm),
Middle Extension Length: 27.20 inches (691mm)
Top tongue position 23.62 (600mm)
Maximum Cutoff: N/A, can not be cut
Number of Screws: 4.
