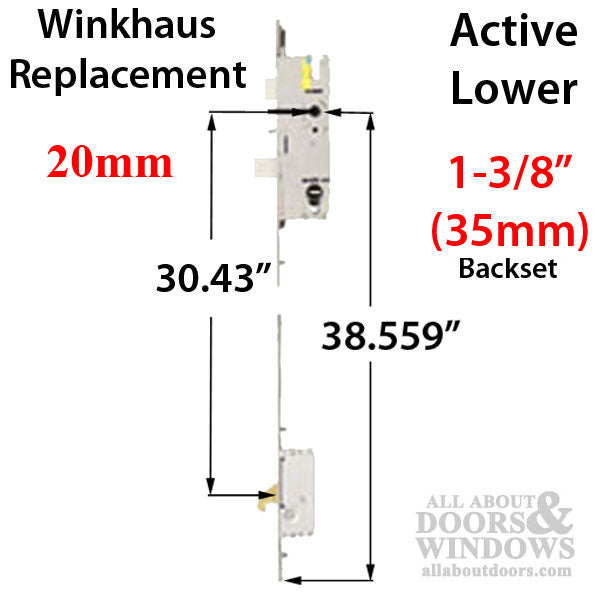

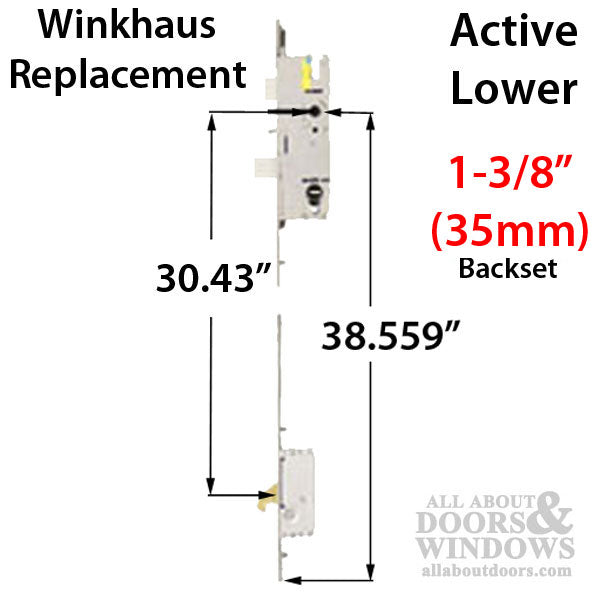

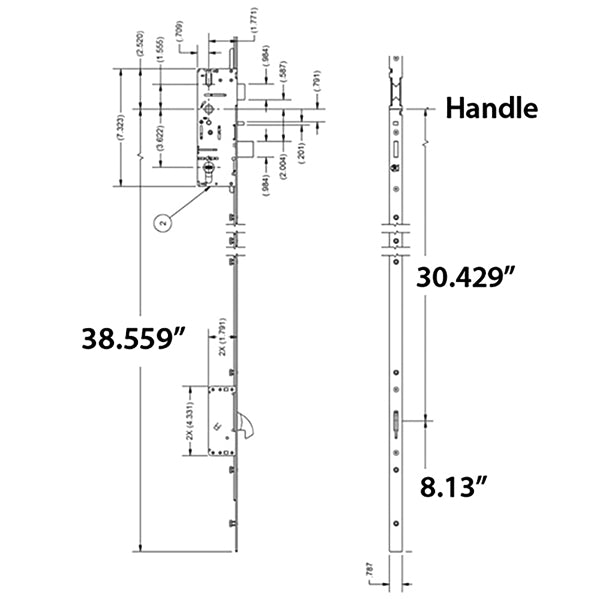

20mm P2000 Active Lower 35/92 Rhino Hook @ 30.429, Winkhaus OML, 38.559 HH

Part Number:20-8735-2239 Price: $213.23
LOWER ACTIVE ASSEMBLY # 8745223981LA USED WITH ALL WINKHAUS HEIGHTS
Handle Height: 38.559"

Milgard / Amesbury P2000 Active MP Lock, 3 point hook version;
Winkhaus Active Replacement Multipoint Lock with Rhino Hooks
Construction: Stainless Steel construction makes it suitable for coastal applications.
Handing: Reversible - Pull and twist Latch
Faceplate Width: 25/32 inch .787" (20mm)
Backset: 1-3/8 inch (35mm)
Handle Height, bottom: 38.559 inch
Overall Length: 76.250 inches - Milgard Fiberglass Door ( 8735223981LA + 20-2239UA)
Handle to Cylinder- PZ : 3-5/8 inches (92mm)
Lock Cylinder Type: American Version with Flat tailpiece
Bottom Hook Position: 30.429 inches to center
Top Hook Position: 24.413 inches to center
Handle Position: Key Below Lever

Markings on Faceplate: LF2239 Front - 2039L Back
LOWER ACTIVE ASSEMBLY # 8745223981LA USED WITH ALL WINKHAUS HEIGHTS <br/>Handle Height: 38.559" <br/><br/>Milgard / Amesbury P2000 Active MP Lock, 3 point hook version; <br/>Winkhaus Active Replacement Multipoint Lock with Rhino Hooks <br/>Construction: Stainless Steel construction makes it suitable for coastal applications.<br/>Handing: Reversible - Pull and twist Latch <br/>Faceplate Width: 25/32 inch .787" (20mm) <br/>Backset: 1-3/8 inch (35mm)<br/>Handle Height, bottom: 38.559 inch <br/>Overall Length: 76.250 inches - Milgard Fiberglass Door ( 8735223981LA + 20-2239UA) <br/>Handle to Cylinder- PZ : 3-5/8 inches (92mm) <br/>Lock Cylinder Type: American Version with Flat tailpiece <br/>Bottom Hook Position: 30.429 inches to center <br/>Top Hook Position: 24.413 inches to center <br/>Handle Position: Key Below Lever <br/><br/>Markings on Faceplate: LF2239 Front - 2039L Back <br/>
Add to Card
