20mm P2000 Active Lower 45/92 Shootbolt Assembly, 36 HH

Part Number: 20-8045-2264 Price: $249.48

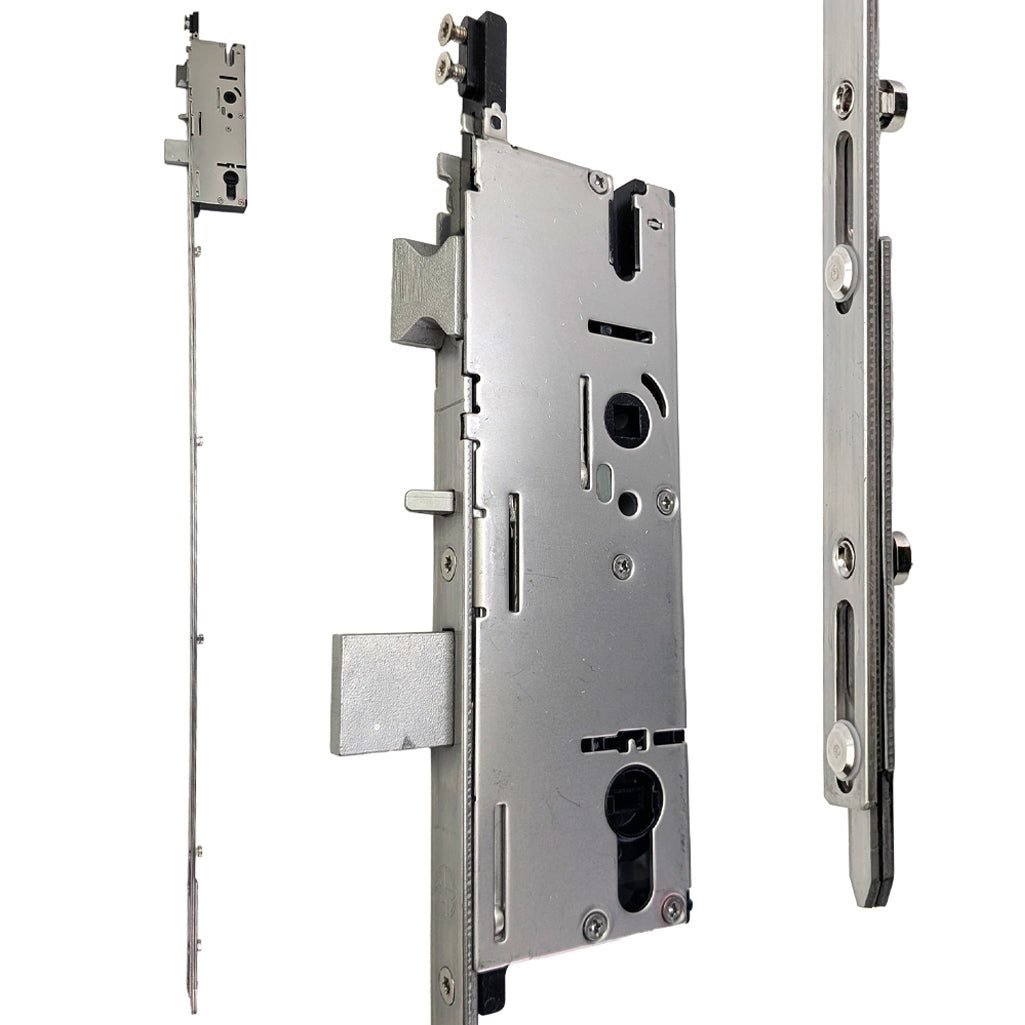

Amesbury P2000 Active Lower Assembly, 45/92 American shootbolt multipoint lock

This is made with shootbolts attached to lock and can not be cut down

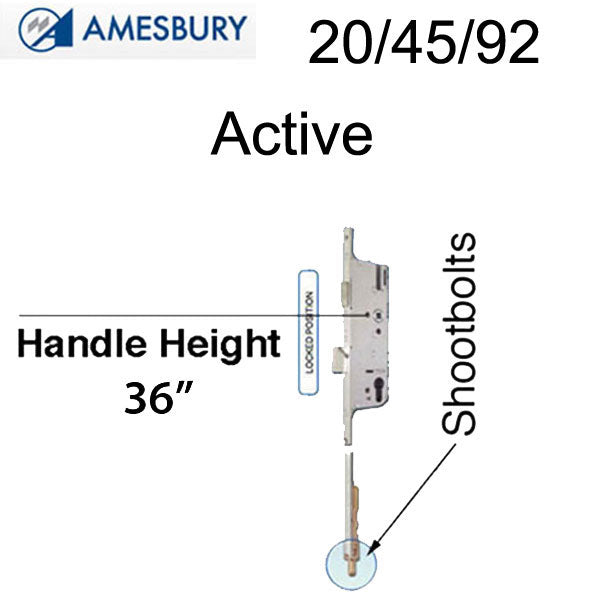

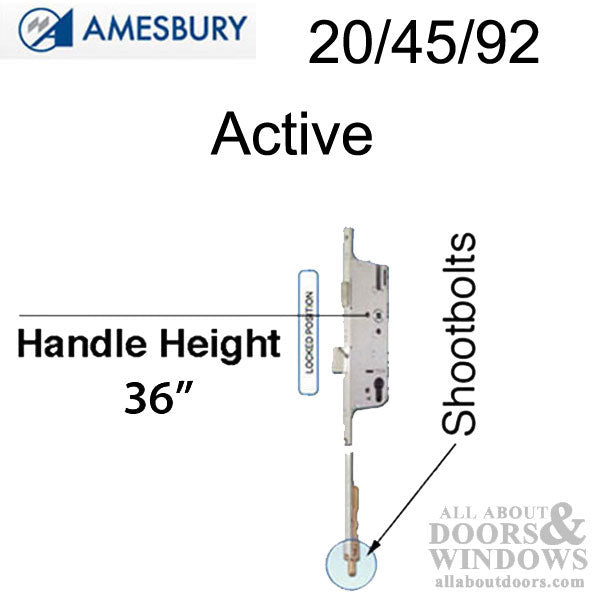

Handle height  (HH):  36 inches (914mm)
Faceplate Width:   25/32 inch (20 mm)
Faceplate Markings: Lower LF2264
Material: 430 SS, Standard Stainless Steel
Note: Stainless Steel available for coastal regions is 304 SS

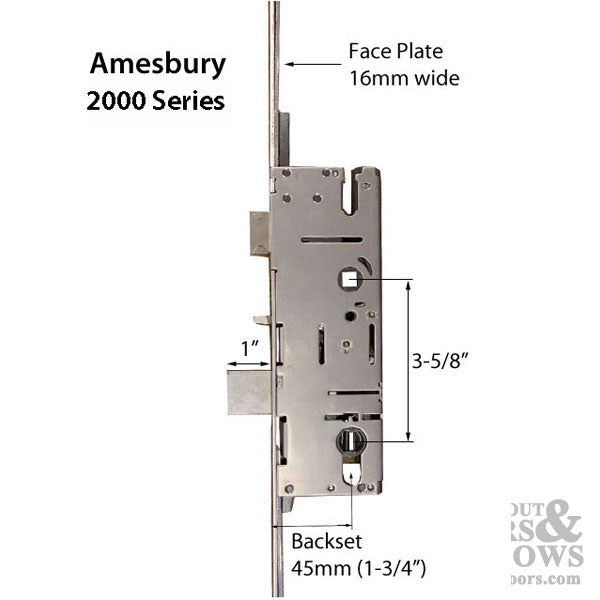

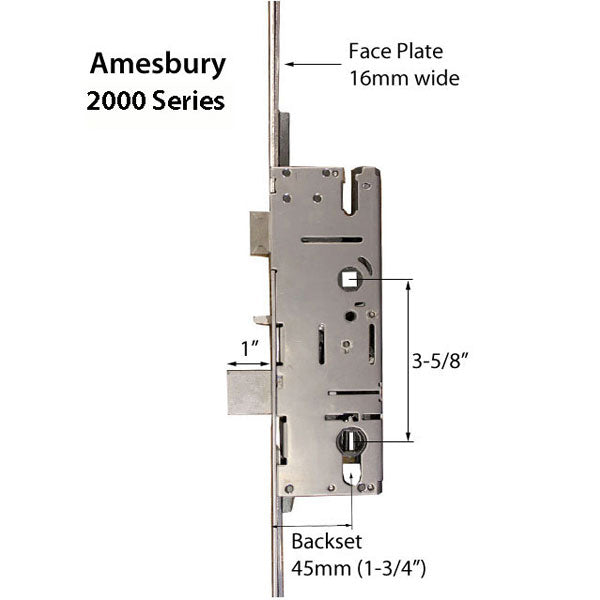

Backset:   1-3/4 inch ( 45 mm)
Deadbolt Throw: 1 inch  (25 mm)
Cylinder PZ: 3-5/8 inch (handle to thumbturn)
Cylinder Type: American Version with flat tail piece

Handing:
To change the direction of spring latch - pull out and spin around

Lock operation:
To lock door: Lift the handle to lock door and turn thumbturn to secure in locked position.
When the handle is lifted the Deadbolt extends with other locking devices.
To unlock door: Turn thumb turn or key to unlocked position and push down on lever.

Priced and sold each.
