20mm P2000 Passive Lower 35/92 Hook / Shootbolt, Winkhaus OML, 38.559 HH
Part Number: Price: $111.11Premiere P2000 Passive Shootbolt American Version, Lower Gear
The passive gear and be used on doors with astragals or without. (when the locks are face to face)
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts

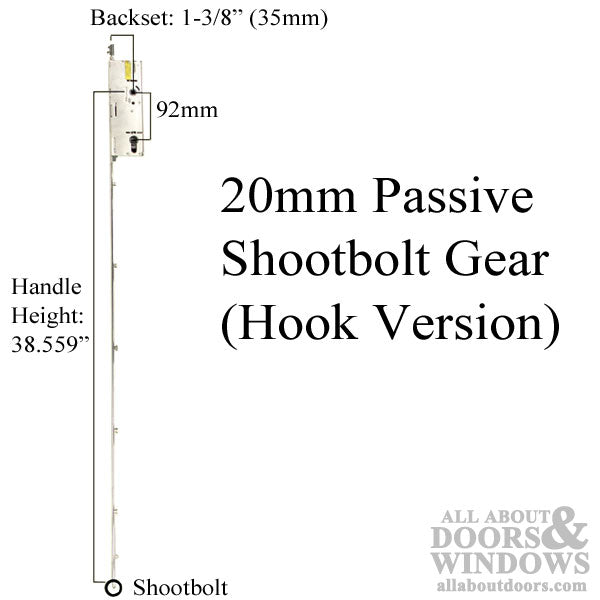

Handle Height: 38.559" Custom Winkhaus Replacement
Backset: 35mm (1.38 inches)
Stamped numbers on front of gear LF2237 - Back of gear LD2037
CUSTOM PASSIVE GEAR - For use with Winkhaus Replacements

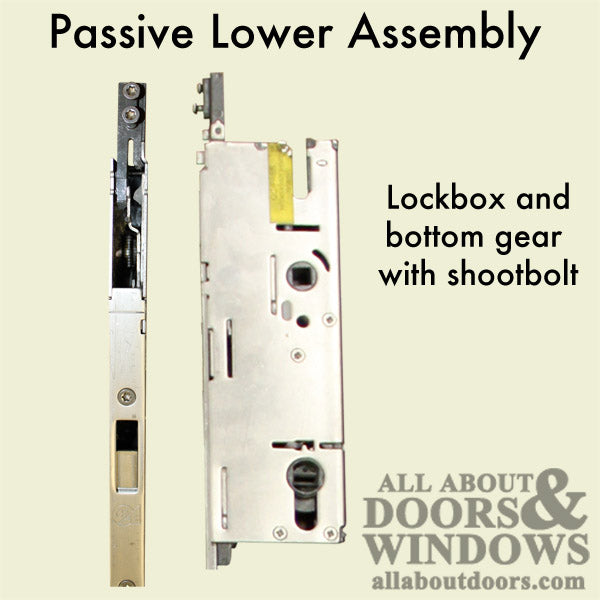

Bottom Gear with Shootbolt Attached
Top Shootbolt & Middle Extension Sold separately
The passive gear and be used on doors with astragals or without. (when the locks are face to face)
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts
Handle Height: 38.559" Custom Winkhaus Replacement
Backset: 35mm (1.38 inches)
Stamped numbers on front of gear LF2237 - Back of gear LD2037
CUSTOM PASSIVE GEAR - For use with Winkhaus Replacements
Bottom Gear with Shootbolt Attached
Top Shootbolt & Middle Extension Sold separately
