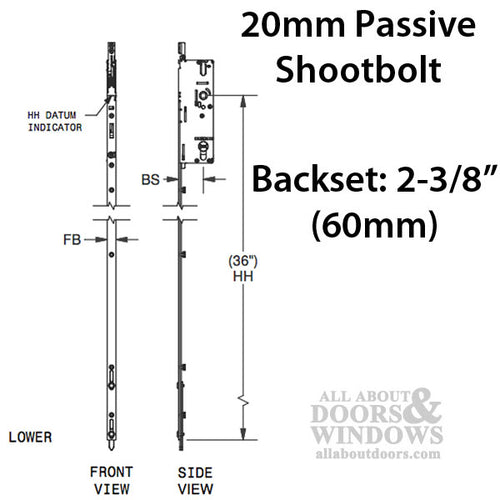

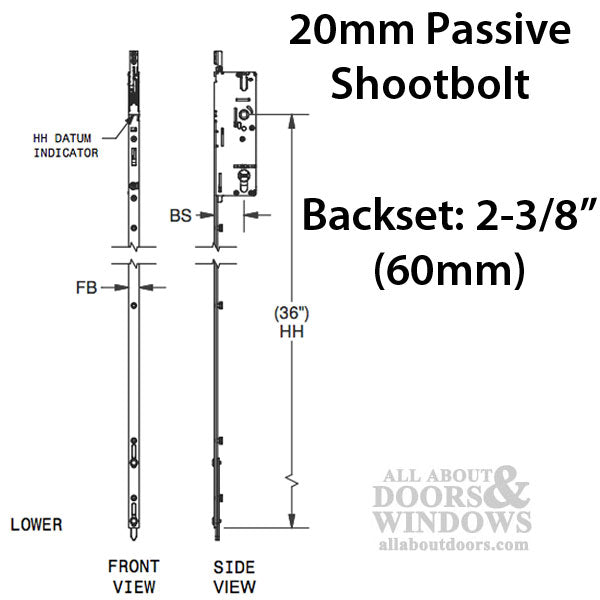

20mm P2000 Passive Lower 60/92 Shootbolt, 36 HH

This is the lower assembly of a 2 point lock with vertical shootbolts locking at top and bottom of door

It has a receptacle for the latch and deadbolt, normally used for Face to Face application, when there is not an astragal between the locks

Type: Lower Gear Assembly with Shootbolt attached
Faceplate Width: 13/16 inch (20mm)
Backset: 2-3/8 inch (60mm)
Handle Height, bottom: 36 inch (914mm)
Handle to Cylinder- PZ : 3-5/8 inches (92mm)
Gearbox Lock Cylinder: American Version with Flat tailpiece
Markings on Faceplate: LF2270 lower

NOTE: Requires 3 pieces to make complete Passive lock assembly
1. Lower Assembly with Gear
2. Upper Assembly, per height requirement
3. Shootbolt Tip 5670-80-81 attaches to Upper to complete overall length

There are 4 combinations of Upper Extensions to fit varied door heights
20-2274UA Door heights 69.0" - 82.5"
20-2275UA Door heights 82.0" - 95.5"
20-2276UA Door heights 95.0" - 108.5"
20-2271UA Door heights 108.0" - 121.5"
