20mm P2000 Passive Shootbolt w/Rhino Hook Receptacle (35-15/16 length), 76-1/4" Door

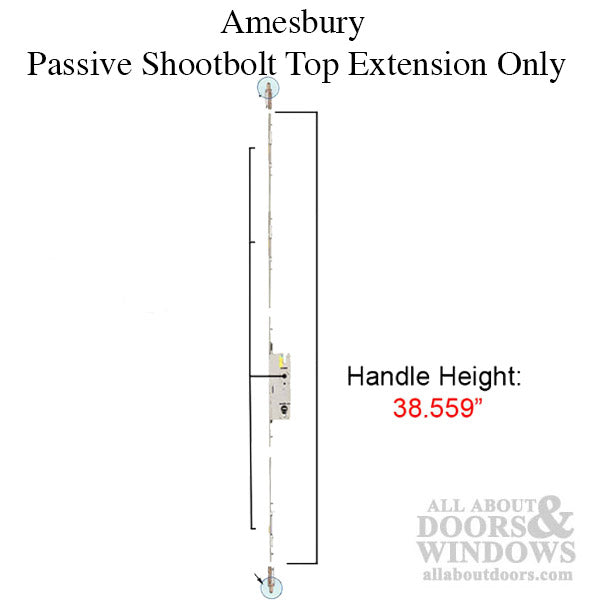

Part Number: Price: $249.60Passive Top Shootbolt Extension - 1 Piece with Shootbolt Attached - Custom Sized for 76-1/4 inch door
Faceplate Width: .787" / 13/16 inch (20mm)
Upper Has 1 Hook receptacle
Overall Length: 35-15/16"
When Used with 38.559" HH, Overall Length: 76-1/4" (Milgard 6-8 door )
NOTE: Active Hook would be 8745223881 and the Passive would be 8545223681
Optional Double Door Shootbolt Kit - Fits Double Doors from 84.5"- 98.5"
Active Shootbolt Door, 3 point lock
8045-2239-81-LA - Lower SB Gear Handle Height: 38.559"
2295UA - Upper extension
5670-80-81 - Upper Shootbolt Tip, 20mm

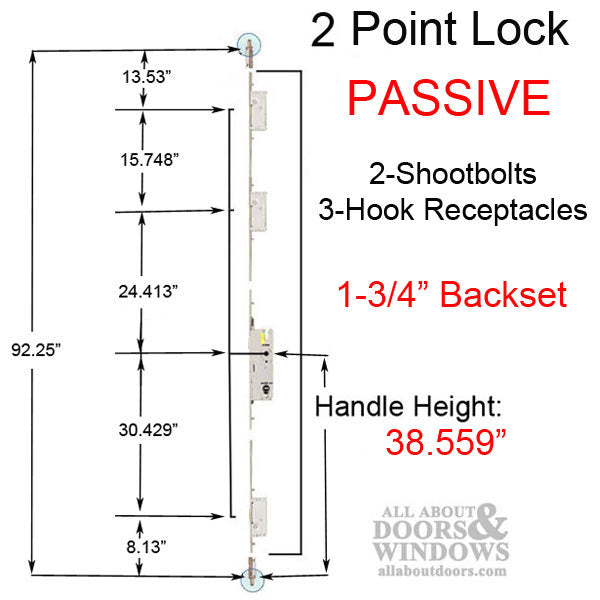

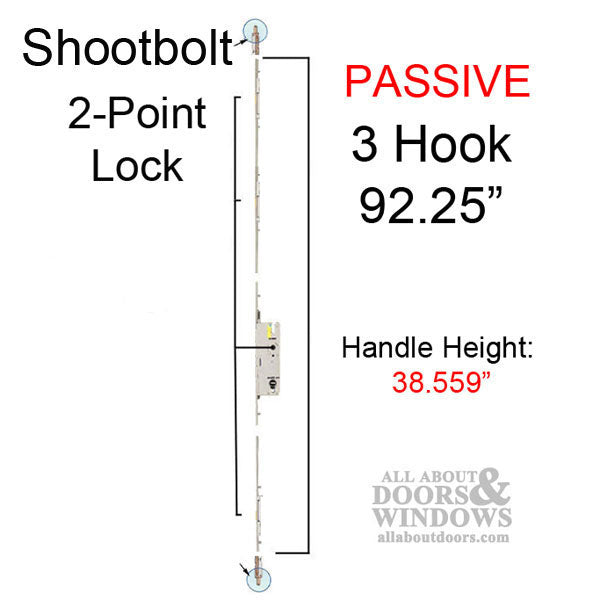

Passive Shootbolt Door, 2 point lock

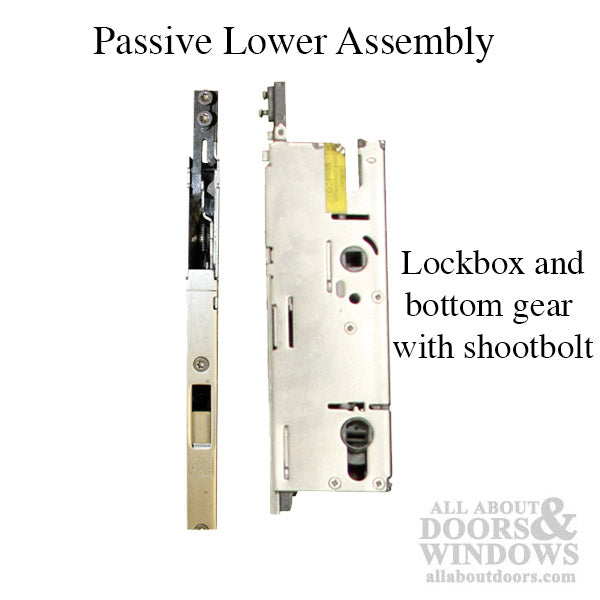

8545-2237-81-LA - Lower SB Gear Handle Height: 38.559"
2275UA - Upper Extension w/ Receptacle for hook
5670-80-81 - Upper Shootbolt Tip, 20mm
Faceplate Width: .787" / 13/16 inch (20mm)
Upper Has 1 Hook receptacle
Overall Length: 35-15/16"
When Used with 38.559" HH, Overall Length: 76-1/4" (Milgard 6-8 door )
NOTE: Active Hook would be 8745223881 and the Passive would be 8545223681
Optional Double Door Shootbolt Kit - Fits Double Doors from 84.5"- 98.5"
Active Shootbolt Door, 3 point lock
8045-2239-81-LA - Lower SB Gear Handle Height: 38.559"
2295UA - Upper extension
5670-80-81 - Upper Shootbolt Tip, 20mm
Passive Shootbolt Door, 2 point lock
8545-2237-81-LA - Lower SB Gear Handle Height: 38.559"
2275UA - Upper Extension w/ Receptacle for hook
5670-80-81 - Upper Shootbolt Tip, 20mm
