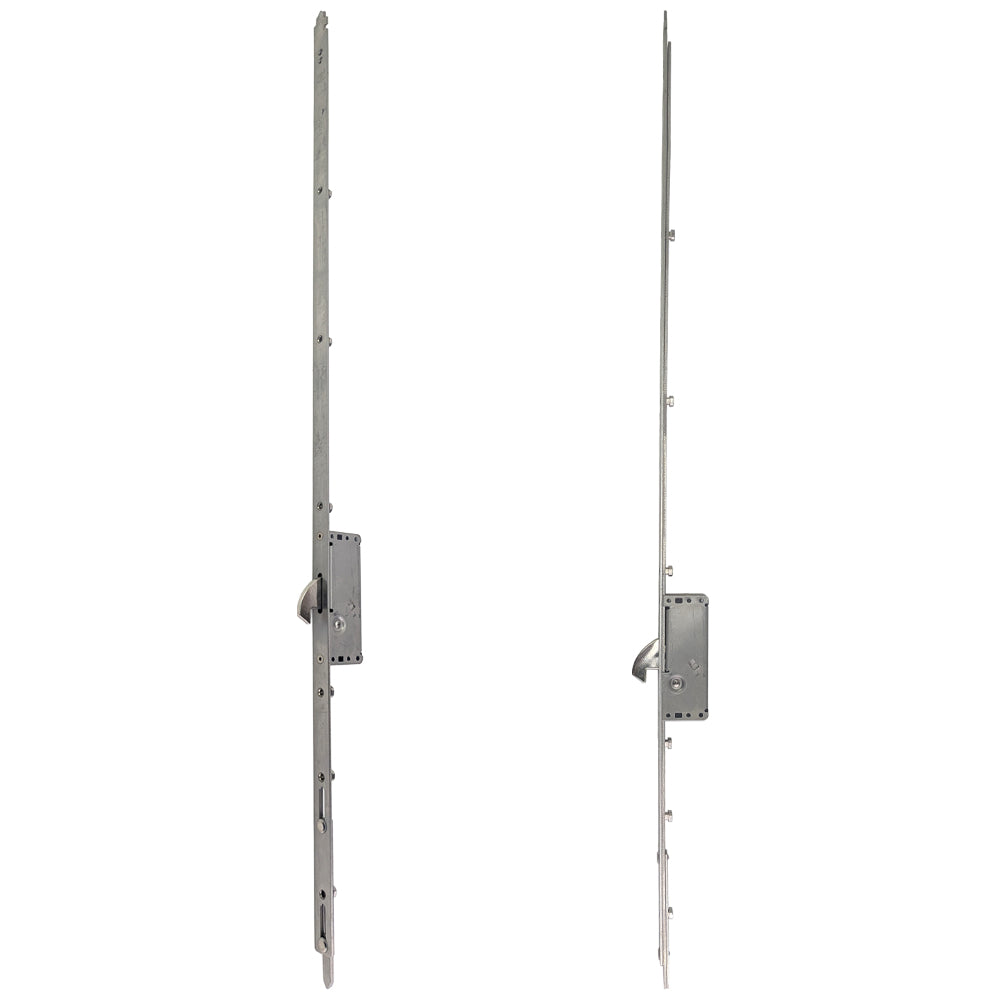

AmesburyTruth P3000 Multipoint Lock Gear
For 5-point Rhino Hook and Shootbolt Locks
This P3000 lower hook gear can be used with multiple upper extensions depending on door panel height.
-
Faceplate Width:3/4" (20mm)
-
Lower Rhino Hook:24.87" (632mm)
Combine with active/passive P3000 upper/middle assembly, optional top extension, and upper shootbolt for a complete 5-point lock.
See related items below for middle/upper extensions with active/passive gears, shootbolt extensions, and other necessary parts.
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Amesbury P3000 Multipoint lock gear for 5-point, Rhino hooks and shootbolts</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Key above handle</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman"; min-height: 15px;"><br></p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Faceplate width: 3/4" (20mm)</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Backset: 2-3/8" (60mm)</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Handle Spacing: 3-5/8" (92mm)</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Handle Height: 36" (914mm)</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Lower Rhino Hook: 24.87" (632mm)</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman"; min-height: 15px;"><br></p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">This P3000 gear is used with multiple upper extensions depending on door panel height</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman"; min-height: 15px;"><br></p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Related parts</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Upper (middle) Active Extensions-</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 666032017UA for doors 69-82.5", Upper hook at 14.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 666032018UA for doors 82-95.5", Upper hook at 27.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 666032019UA for doors 95-108.5", Upper hook at 40.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 666032020UA for doors 108-121.5", Upper hook at 53.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Top Shootbolt extension # 20-3467</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Rhino Hook / Tongue Strike Plates: 2856-82</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman"; min-height: 15px;"><br></p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Passive Gear for Double Doors: 20mm Faceplate, 60/92, 36" Handle height 36" # 20-32013LA</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Upper (middle) Passive Extensions-</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 656032013UA for doors 69-82.5", Upper hook receptacle at 14.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 656032014UA for doors 82-95.5", Upper hook receptacle at 27.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 656032015UA for doors 95-108.5", Upper hook receptacle at 40.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";"> 656032016UA for doors 108-121.5", Upper hook receptacle at 53.47"</p>
<p style="margin: 0px; font-stretch: normal; line-height: normal; font-family: "Times New Roman";">Top Shootbolt extension # 20-3467</p>
