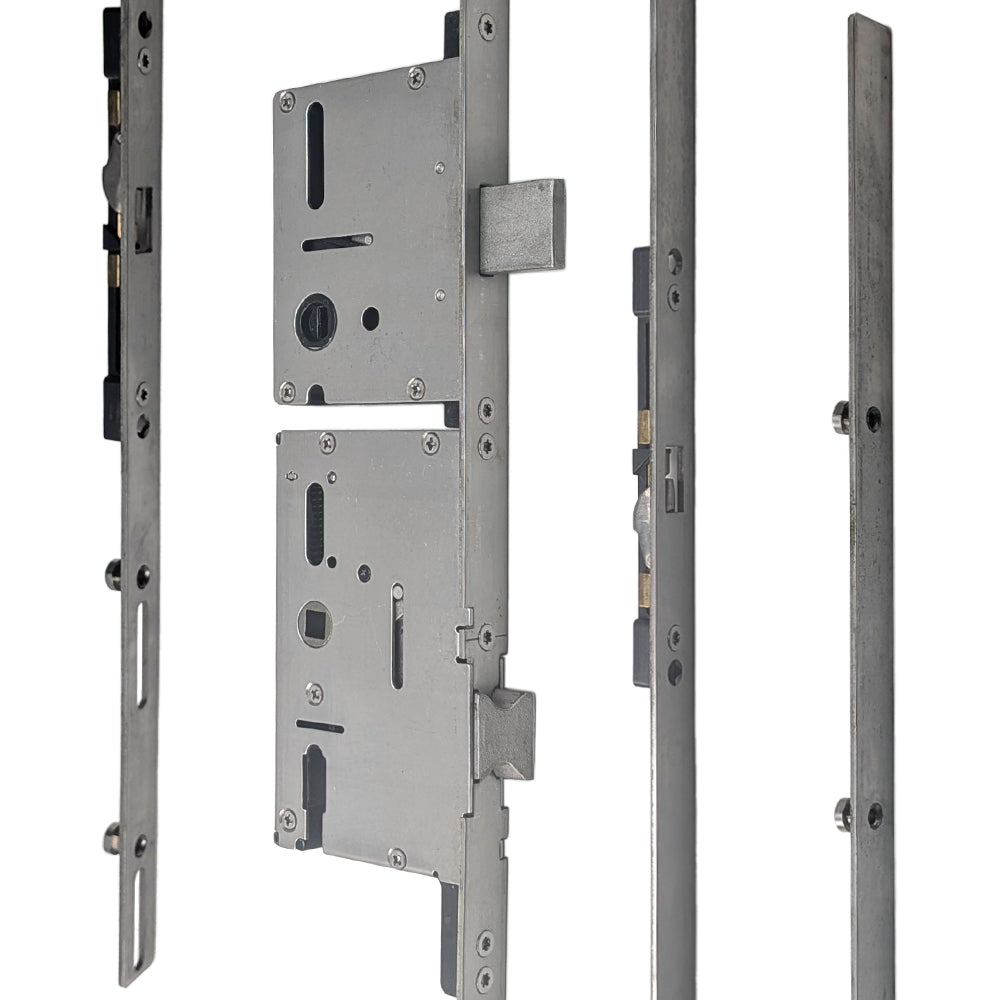

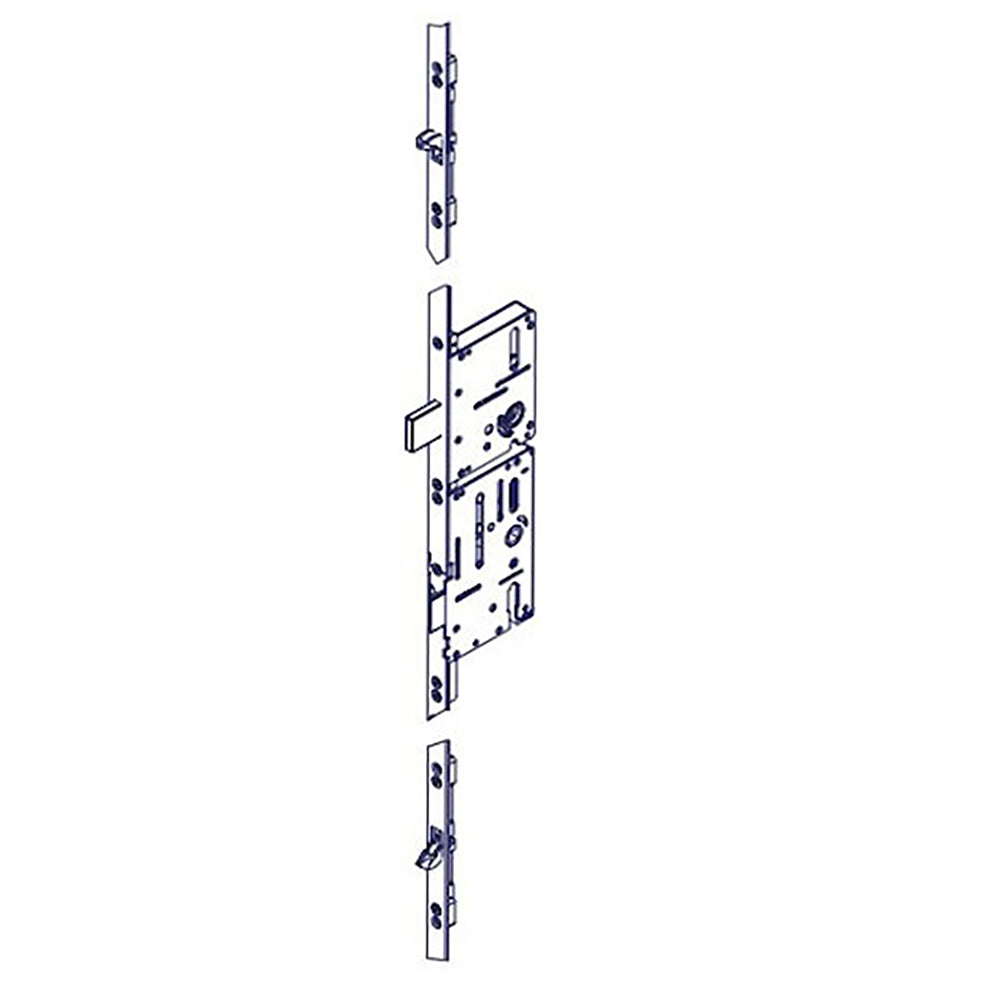

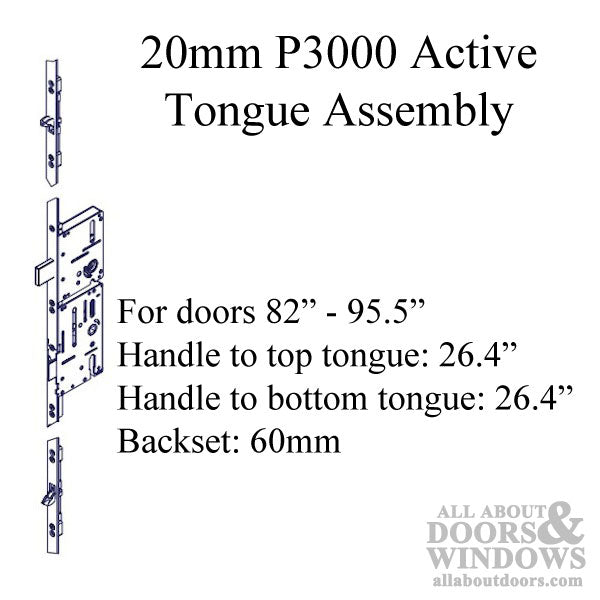

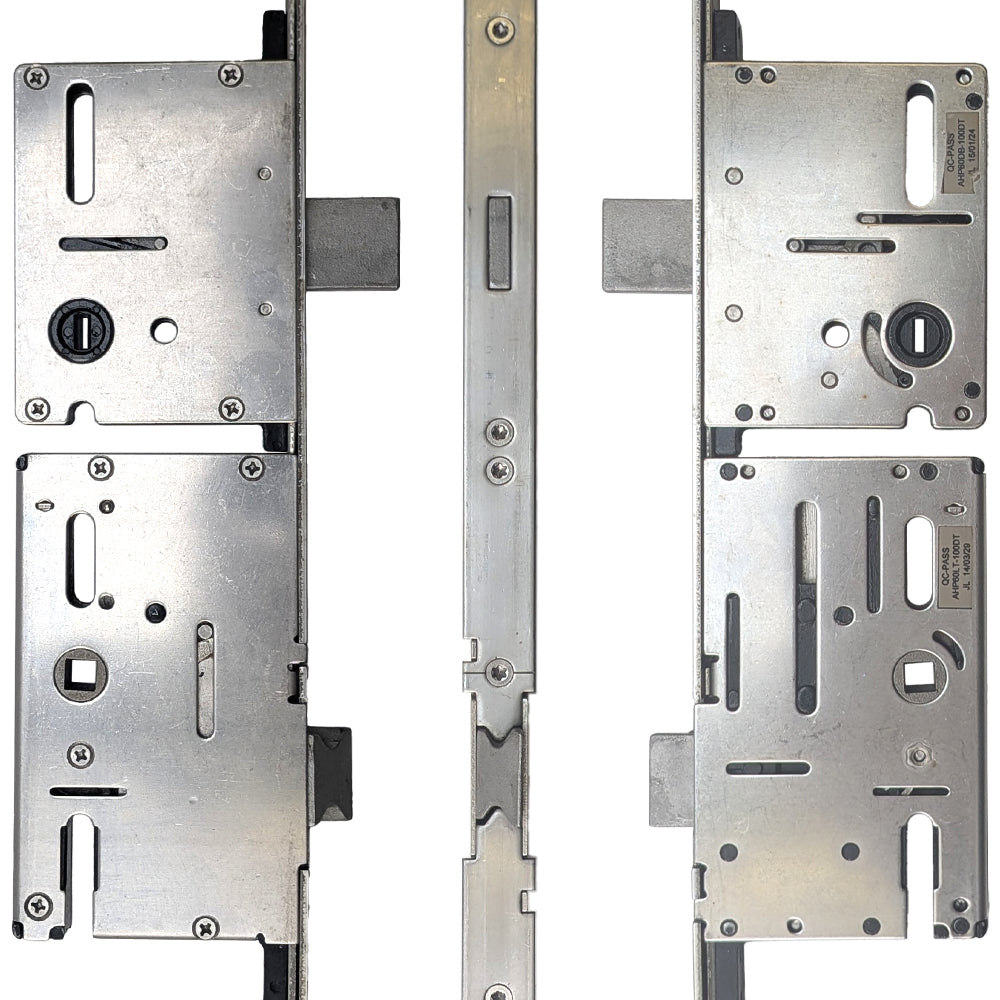

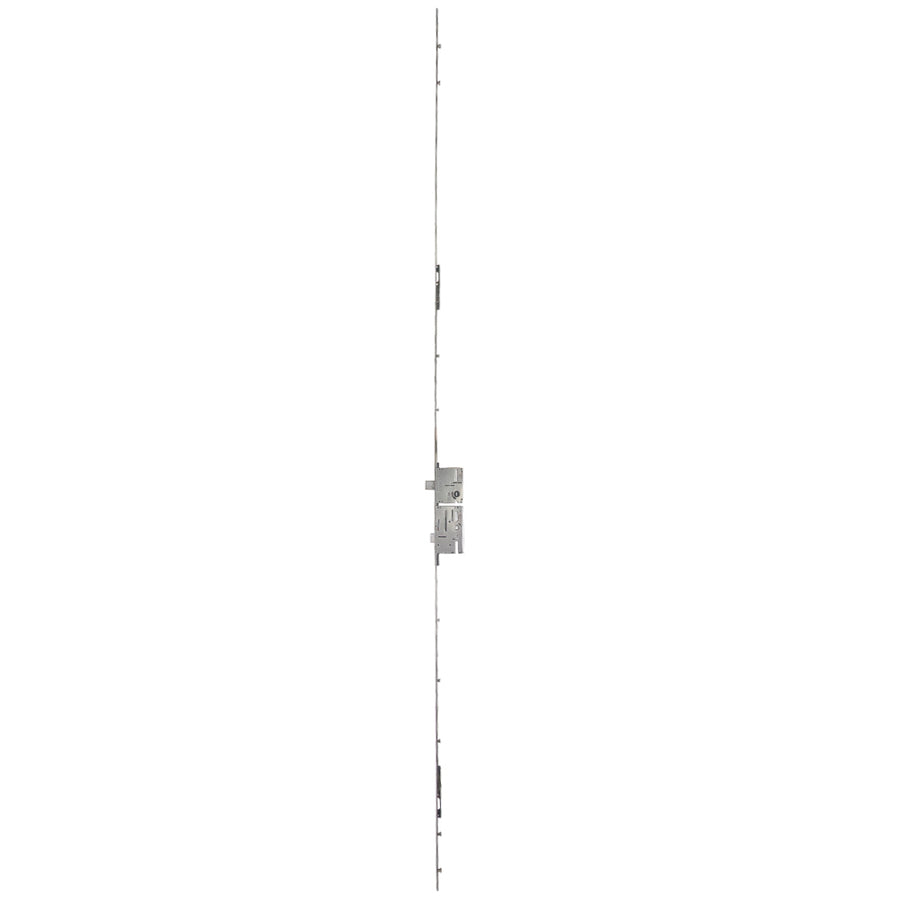

20mm P3000 Active 60/92 Tongue Assembly, Doors 82 - 95.5

Part Number:20-6160-32006 Price: $245.70

AmesburyTruth P3000 3-Point Lock

Tongue version Lower & Upper Extension - Complete

Positions of locking devices are measured from center of handle - Up and Down
Faceplate Width: 25/32" (20mm)
Upper Tongue Position: TT = 26.39
Markings: UF32006
Bottom Tongue Position: BT = 26.42
Markings: LF32009

Lock Backset: 2-3/8" ( 60mm)
Cylinder Type: American Version with Slot
Deadbolt Throw: 1" (25.4mm)
Door Panel Height: 82-95.5" door
Material: Stainless Steel
Tongue versions are used with Astragals. The Rhino and Shootbolt can be used with or without astragal.


<h3>Related Parts:</h3><p>656032014 Passive 20mm Complete Assembly, upper and lower components<br />20-3467 Passive 20mm Top Shootbolt Tip <br />20-32005LA Lower Assembly only, Active Active 60/92 with bottom Tongue @ 26.42"<br />616032006UA Upper Assembly only, with upper Tongue @ 26.39"<br />3475-82 Latch &amp; Deadbolt Strike Plate, Curved Lip, P3000 1-3/4" thick door - Stainless Steel<br />3080-82 Strike Plate, Tongue or Rhino Hook, Radius Corner - Stainless Steel</p><h3>How To Operate P3000 Lock</h3><p><strong>This is a different design than most Multipoint Locks </strong></p><p>1. To Lock Door: Throw the deadbolt, then lift handle to engage the tongues or Hooks</p><p>2. To Unlock Door: Retract deadbolt and push lever down to open </p>
