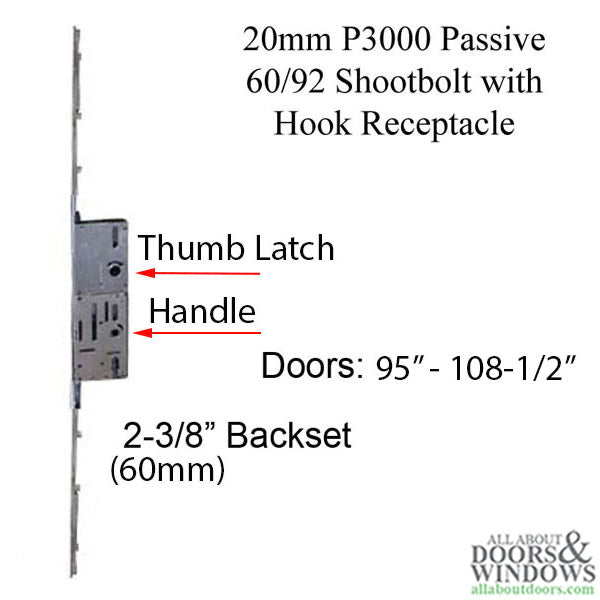

20mm P3000 Passive 60/92 Shootbolt with Hook Receptacle, Doors 95.0” - 108.5"
Part Number: 20-6560-32015 Price: $294.12Amesbury Passive 2-Point P3000 Series MPL - Key above Handle
OPERATION: Lift the handle to extend Shootbolts, Turn the thumb turn to secure the lock
FaceplateWidth: 25/32" (20mm)
Backset: 2-3/8 inches (60mm)

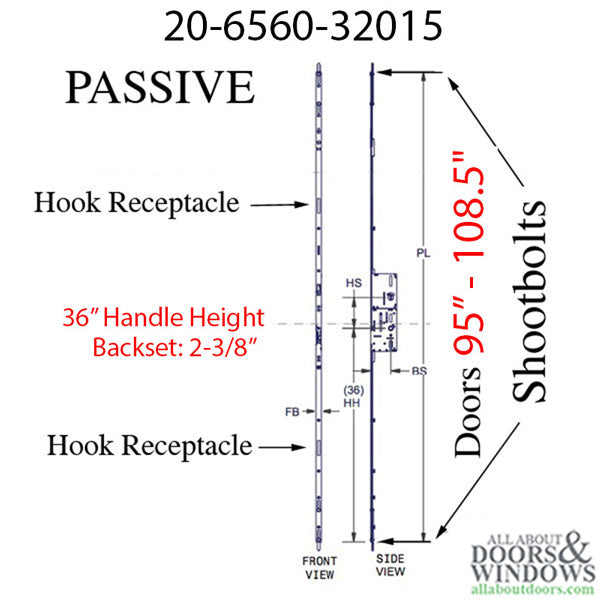

Bottom Receptacle Position: BT @ 24.87 inches
Upper Receptacle Position: TT @ 40.47 inches
Door Panel Height: 95-108.5 inches
Handle to Cylinder Spacing(Centers): 3-5/8 inch (92mm)
Markings on Faceplate: UF32015 Top / LF32013 Bottom
The Premiere 3000 multi-point lock system incorporates an American style look with the thumbturn oriented above the handle and the deadbolt operation is independent of the satellite locking points. Available with a multitude of locking options, this system is the premium solution in today's multi-point locking technology.

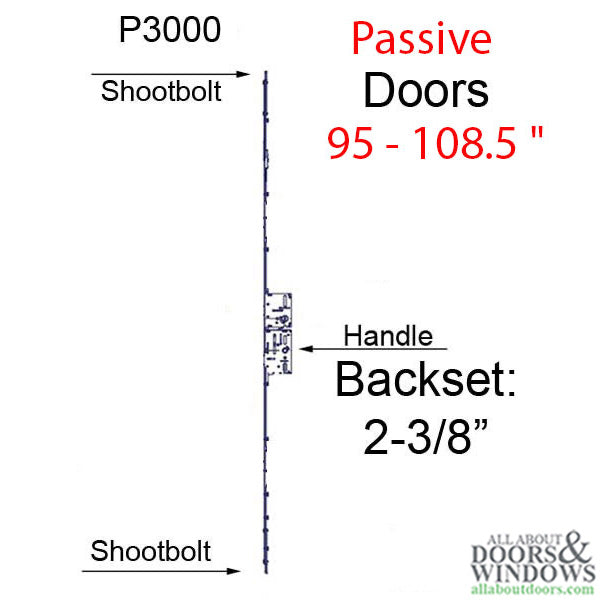

How To Operate P3000 Passive Lock - Lift Lever to engage upper and lower shoot bolts. If the handleset has a thumb turn it can be turned to secure shoot bolts.
If the passive trim does not have a thumb turn when the deadbolt is locked it blocks the shoot bolts from moving.
How To Operate P3000 Active Lock - This is a different design than most Multipoint Locks
Sometimes referred to as babysitter lock because the deadbolt can be locked without engaging the other locking devices.
1. To Lock the Door: Throw the deadbolt, then, if desired lift the handle to engage the Additional Locking points.
2. To Unlock Door: Retract the deadbolt and push the lever down to open
This lock is Deadbolt activated, use the deadbolt first to lock or unlock the door.
Related P3000 20mm Active Rhino 60/92 Assembly, less top shootbolt tip:
676032021 - 20mm Active 5-point hook, 60/92 69.0 - 82.5"
676032022 - 20mm Active 5-point hook, 60/92 82.0" - 95.5”
676032023 - 20mm Active 5-point hook, 60/92 95.0” - 108.5"
676032024 - 20mm Active 5-point hook, 60/92 108.0 - 121.5"
Related P3000 20mm Passive Rhino 60/92 Assembly, less top shootbolt tip:
656032013 - 20mm Passive 60/92 69.0 - 82.5"
656032014 - 20mm Passive 60/92 82.0" - 95.5”
656032015 - 20mm Passive 60/92 95.0” - 108.5"
656032016 - 20mm Passive 60/92 108.0 - 121.5"
Related P3000 Hardware:
20-3467: Shootbolt Tip
3475-82: Latch and Deadbolt strike plate, Stainless Steel
