70 S2 Multipoint Lock

Part Number:6-33524-05-0-FG Price: $358.18

Description
Additional Information

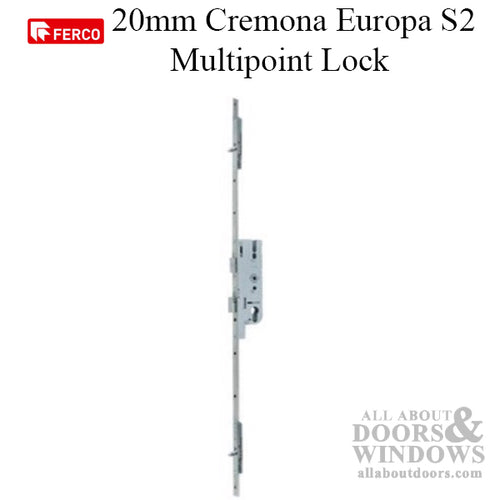

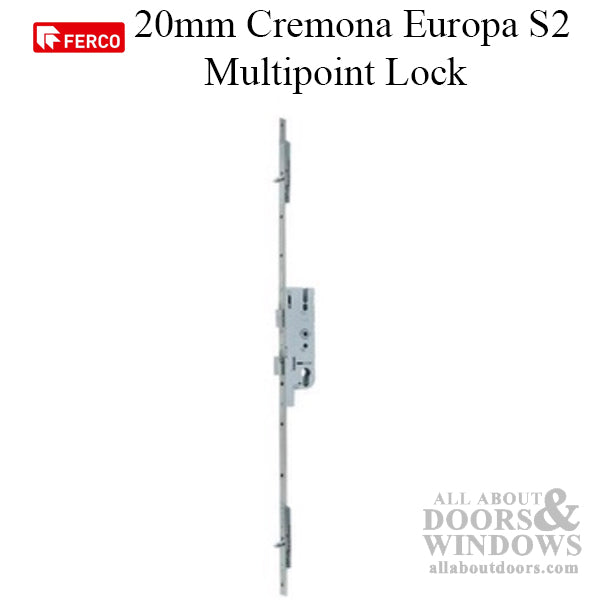

G-U/Ferco Cremona Europa Tripact 50/70 S2 Multipoint Lock

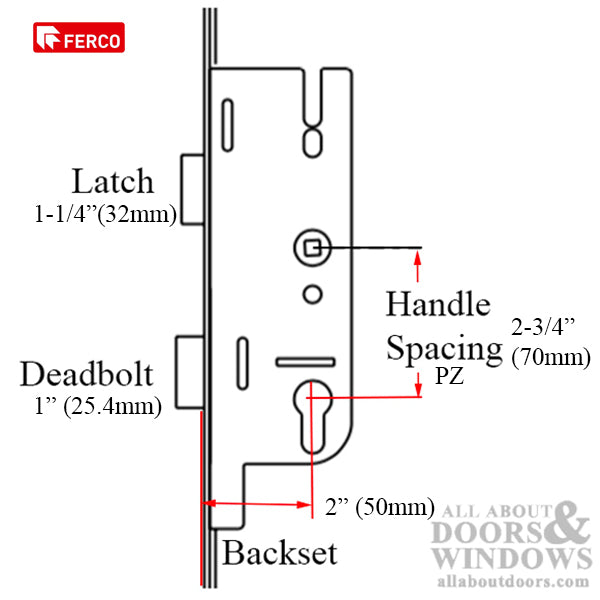

Lock Version: EURO
Faceplate Width: 3/4 inch (20mm)
Backset: 2 inch (50mm)
Handle to Cylinder PZ: 2-3/4 inch (70mm) Special Size
Spindle Diameter: 1/4 inch (7mm)
Deadbolt Throw: 1 inch (25.4mm)

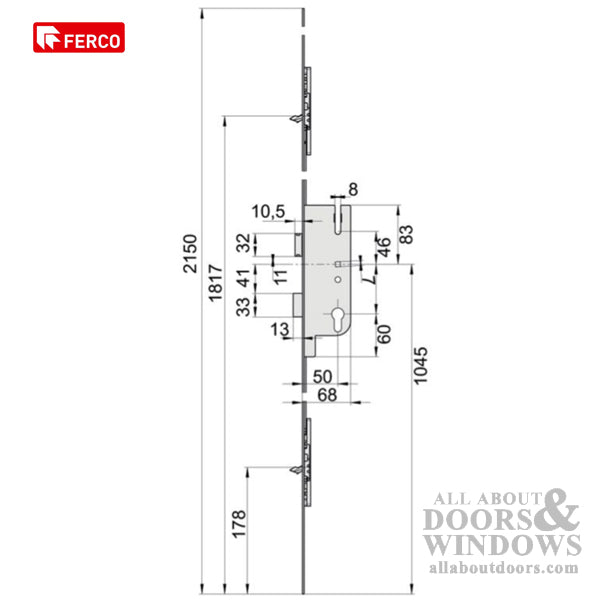

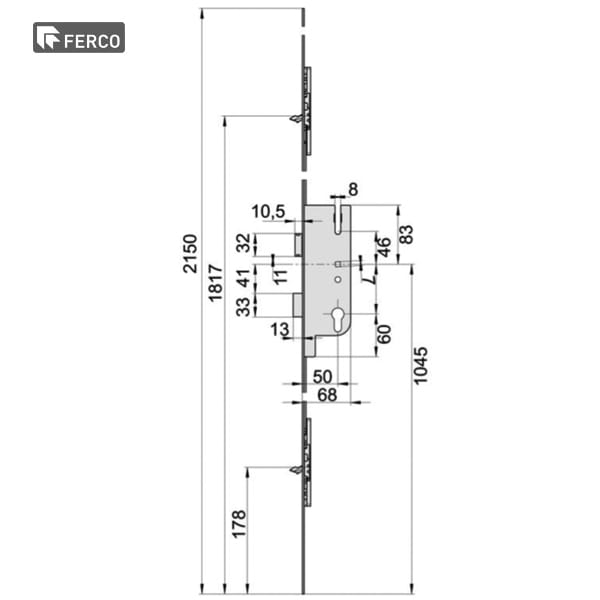

Top Tongue Position: 34-3/8 inch (876.5mm)
Bottom Tongue Position: 35-5/16 ( 897.5mm)
Handle Height: 41-1/8 inch (1045mm) ( croppable )
Overall Length: 84-5/8 inch ( 2150mm)

G-U /Ferco Cremona Europa Tripact 50/70 S2, Multipoint Lock

Measurements:
Lock Version: EURO <a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a> Width: 3/4 inch (20mm) <a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 2 inch (50mm) <a href="https://www.allaboutdoors.com/backset" target="_blank">Handle to Cylinder PZ</a>: 2-3/4 inch (70mm) Special Size <a href="https://www.allaboutdoors.com/multipoint-lock-spindle" target="_blank">Spindle</a> Diameter: 1/4 inch (7mm) <a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt Throw</a>: 1 inch (25.4mm)
 <a href="https://www.allaboutdoors.com/multipoint-locking-positions" target="_blank">Top Tongue Position</a>: 34-3/8 inch (876.5mm)
Bottom Tongue Position: 35-5/16 ( 897.5mm) <a href="https://www.allaboutdoors.com/handle-height" target="_blank">Handle Height</a>: 41-1/8 inch (1045mm) ( croppable ) <a href="https://www.allaboutdoors.com/multipoint-lock-overall-length" target="_blank">Overall Length</a>: 84-5/8 inch ( 2150mm)

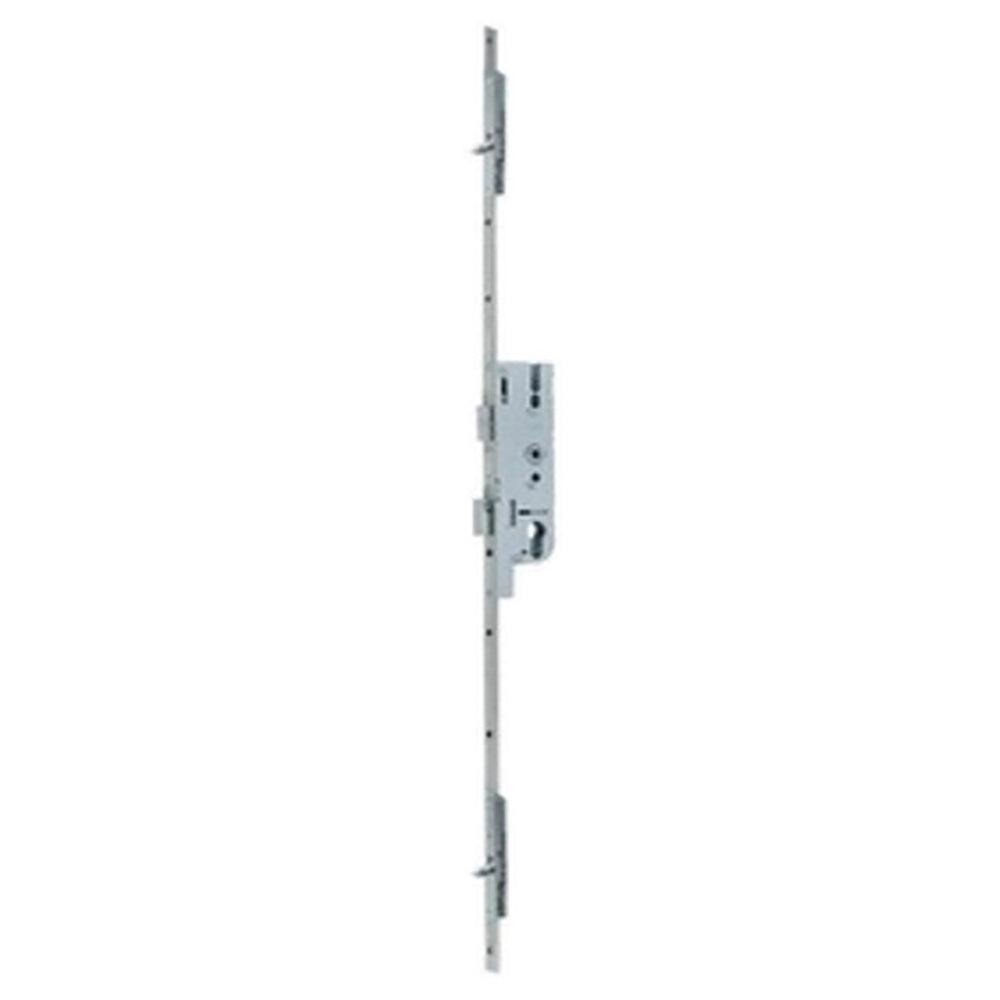

G-U/Ferco Cremona Europa Tripact 50/70 S2 Multipoint Lock

G-U/Ferco Cremona Europa Tripact 50/70 S2 Multipoint Lock

G-U/Ferco Cremona Europa Tripact 50/70 S2 Multipoint Lock
