16 mm Hoppe 60/92 Bottom Gear for 16/25 Inactive Shootbolt Version
Use the arrows or swipe left to view all images for this product

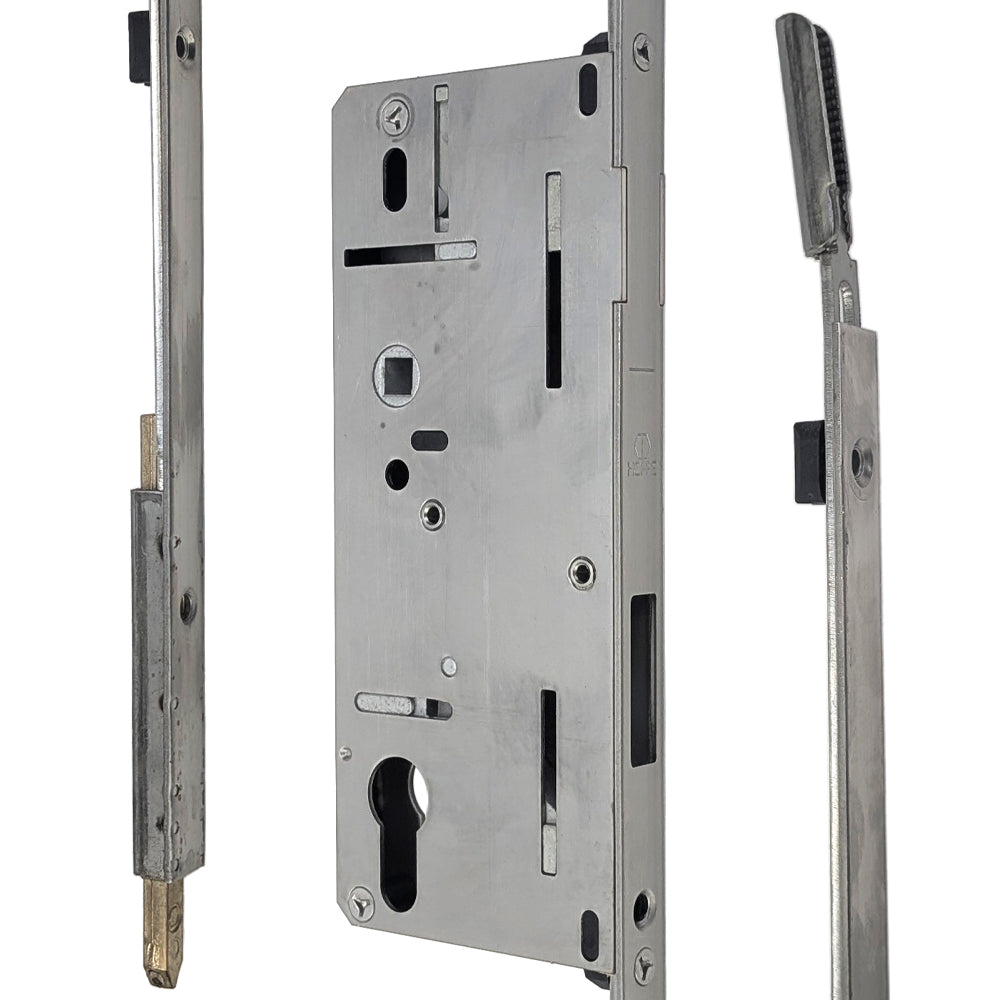

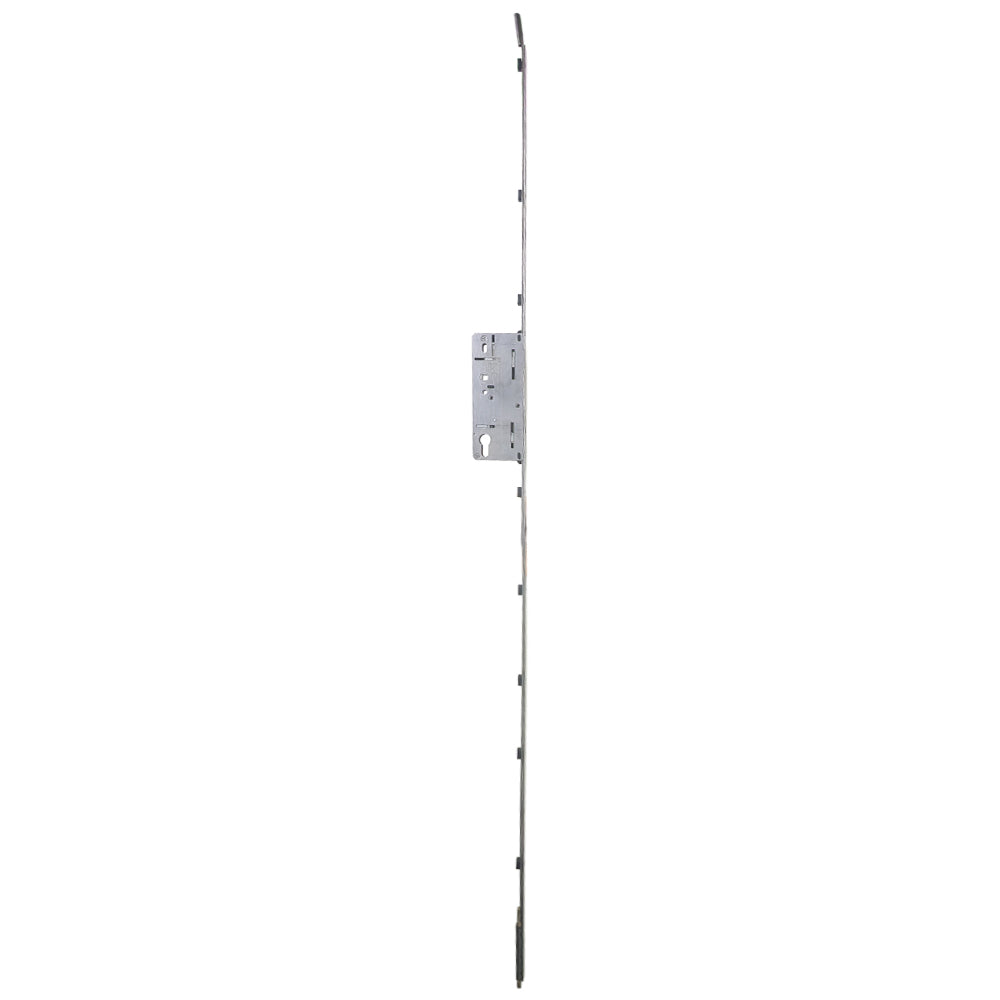

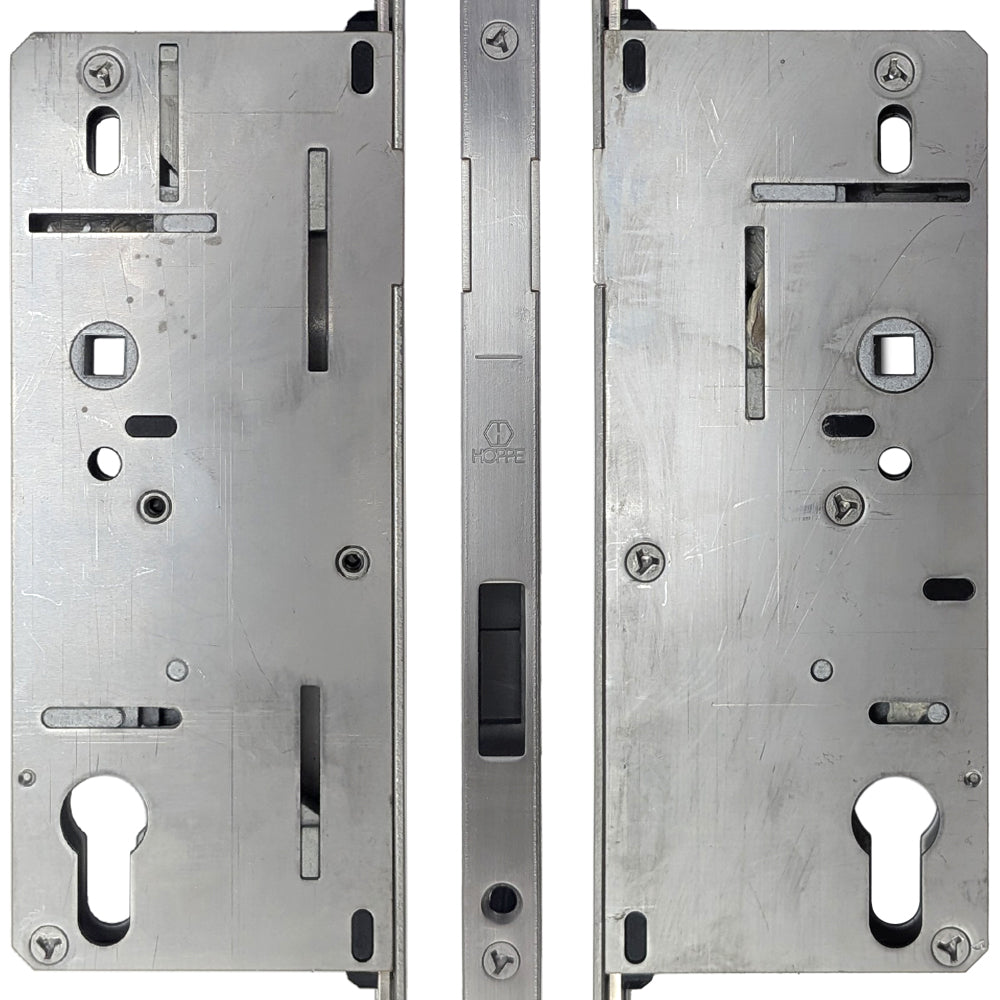

16 mm Hoppe 60/92 Bottom Gear for 16/25 Inactive Shootbolt Version
Part Number: $310.05Hoppe 60/92 Bottom Gear
16/25 Inactive Version
Part of 2-piece multipoint lock for 36 inch handle height that uses a shootbolt with a 1 inch (25mm) throw.
This is the bottom gear for the 2-piece version. Needs 1 top extension and 1 cover plates to complete inactive shootbolt, sold separately. See related items below.
- Faceplate: 16mm (5/8 inch)
- Shootbolt Throw: 25mm (1 inch)
- Backset: 60mm (2-3/8 inches)
- PZ (Distance from center-of-handle to center-of-cylinder): 92mm (3-5/8 inches)
- Handle Height: 914mm (36 inches)
- Locking Function: Bottom gear with lower shootbolt attached
- Number of Screws: 9
Hoppe Bottom Gear for 16/25 Inactive version; Part of 2-Piece Multipoint lock that uses shootbolt with 1 inch (25mm) throw; This is the bottom gear for 2 piece version needs 1 top extension and 1 cover plates to complete Inactive Shootbolt. This 2 piece bottom gear is for sizes with standard 36 inch handle height. Faceplate: 5/8 inch (16mm) Backset: 2.375 (60mm) Handle Height: 36 inch (914mm) Type: Bottom Gear with shootbolt attached Shootbolt Throw: 1 inch (25mm) Number of Screws: 9 Related Parts: 2875118 - Cover plate for connection 8785695 - 1-3/8 inch (35mm) stainless steel Installation screw for wood door, 8mm head 2024962 - Socket Strike for 1 inch throw - Brass 2074564 - Backset: 1-3/8 inch (35mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH 1997447 - Backset: 1-3/4 inch (45mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH 2406557 - Backset: 2-3/8 inch (60mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH 2406565 - Backset: 2-3/4 inch (70mm) 20mm Shootbolt Throw, Inactive Gear w/ 36" HH 2406936 - Cylinder screw for 60mm or 70mm backset
