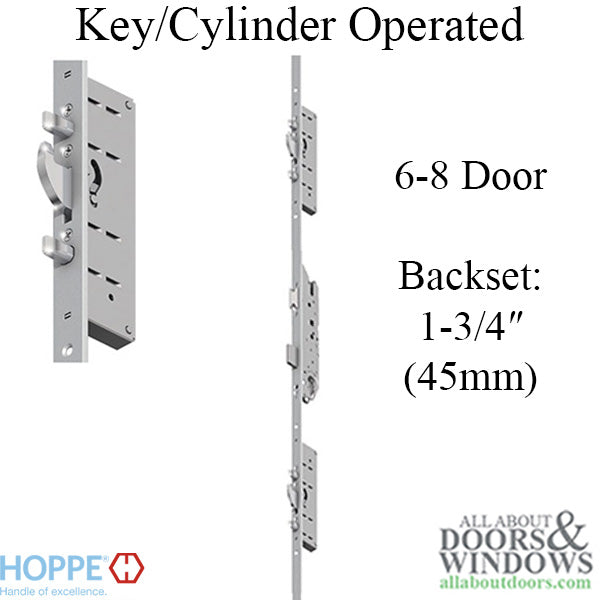

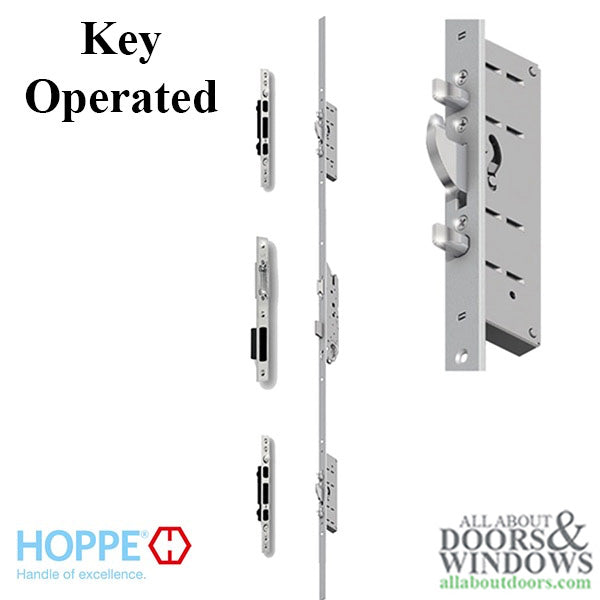

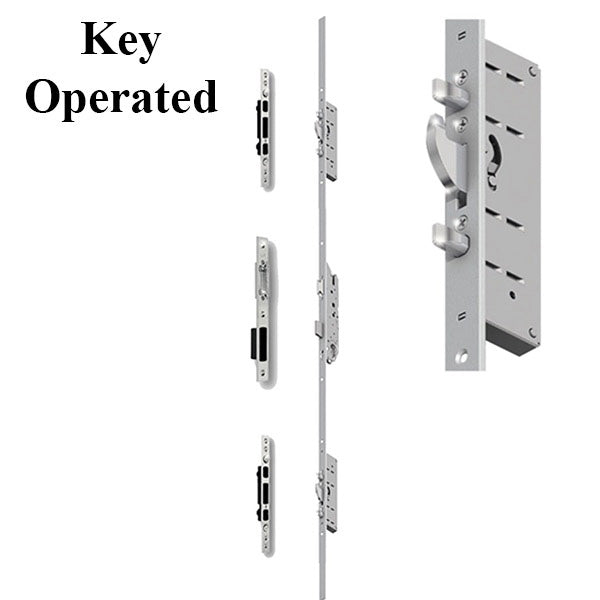

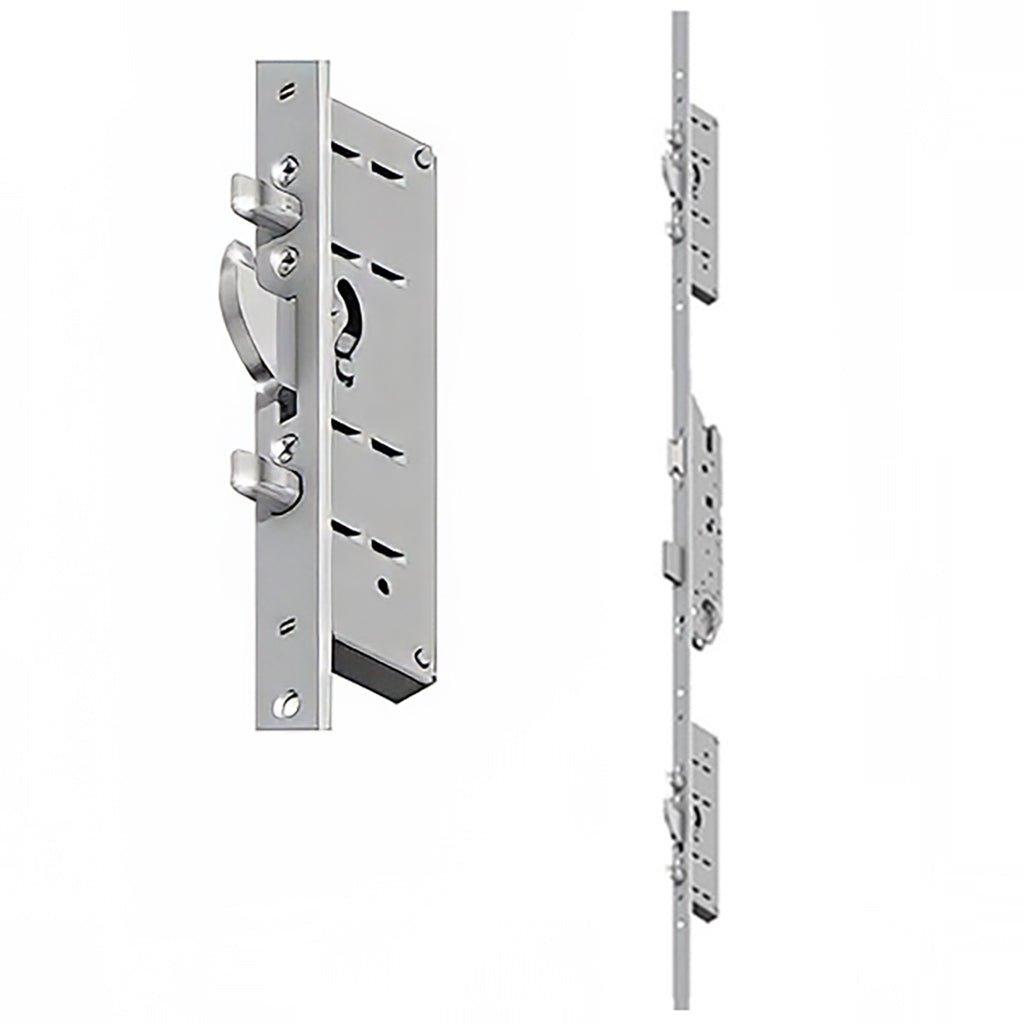

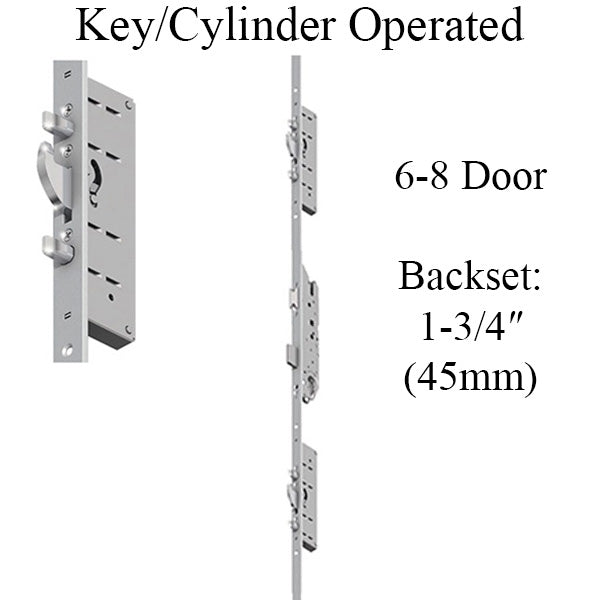

Hoppe Standard Function, Key operated Multipoint Lock, New for 2019
Available with Standard Spring Latch or Roller Latch
Specifications:

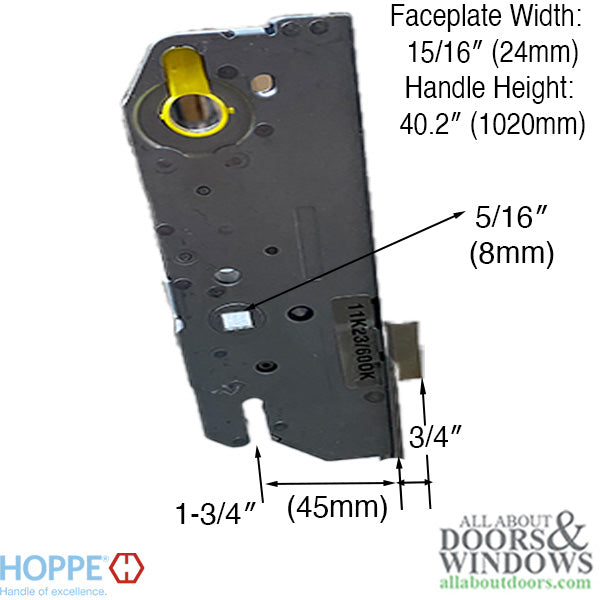

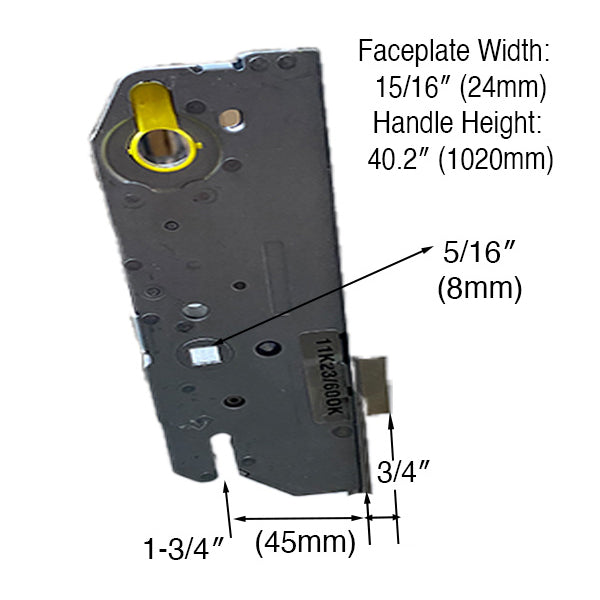

Faceplate Width: 15/16 inch (24mm) 0.945
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 3/4 inch (20mm)
Locking Devices: Swinghook & Round bolts
Upper Hook Position: 28-5/8 inch from handle
Lower Hook Position: 30-13/16 inch from handle
Handle Height: 40.2 inch ( 1020mm)
Handle Hub / Shaft: 5/16 inch (8mm) Standard ( 9mm Egress lock)
Panel Height: Doors 73.62-85.43 inch ( 1870-2170mm)
Latch Type: Spring
Material: Stainless Steel
Standard Function
Rotate the exterior key or interior thumbturn, two turns to lock and unlock the door. The exterior key or interior thumb turn retracts the latch.
The interior lever, when used will also retracts the latch.
8 mm handle shaft
Egress Function
The interior lever retracts the latch and any extended bolts.
Rotate the exterior key or interior thumbturn two turns to lock and unlock the door.
The exterior key or interior thumb turn also retracts the latch.
The interior lever will retracts all locking points
9mm handle shaft
Important Installation Notes
A 360° Cylinder is REQUIRED for this lock
You may use this 360° Cylinder - 413232130 - be sure to check that your door thickness works for your selected cylinder before purchasing
You may also purchase a 90° Cylinder but you will need to convert it to a 360° Cylinder before using it with this lock - our 90° Cylinders with our conversion video can be found here
