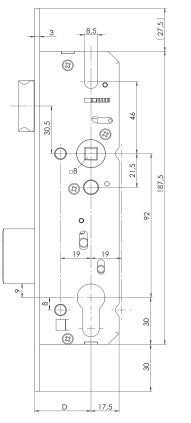

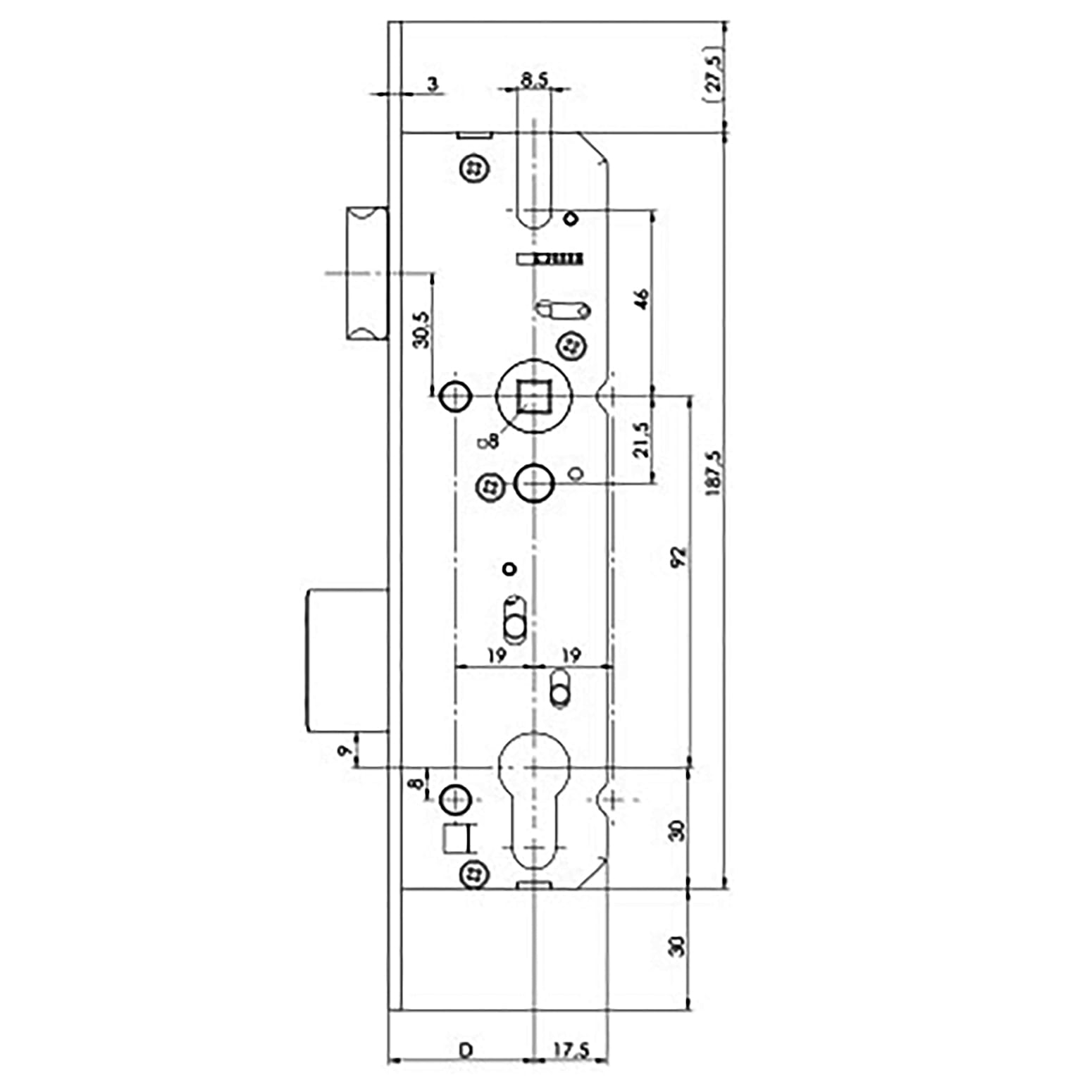

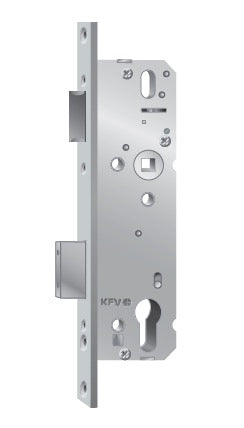

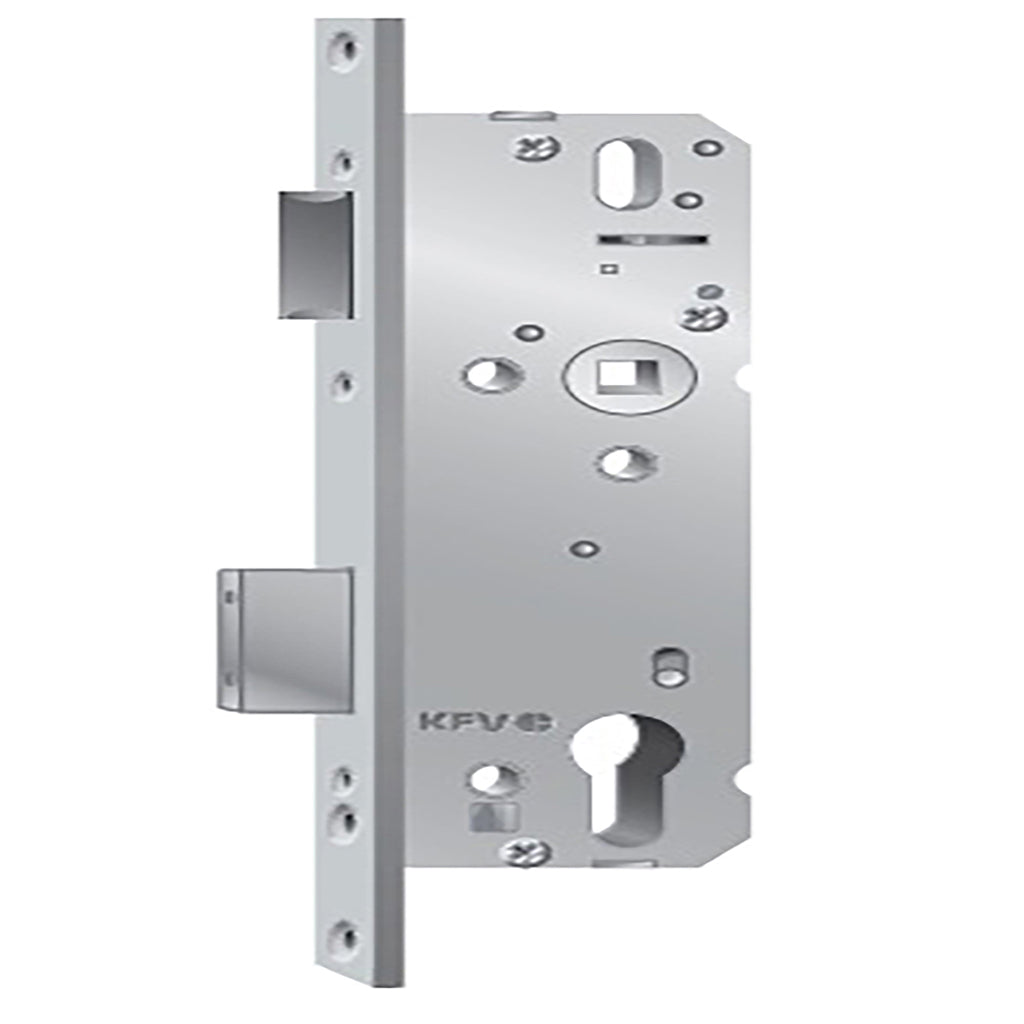

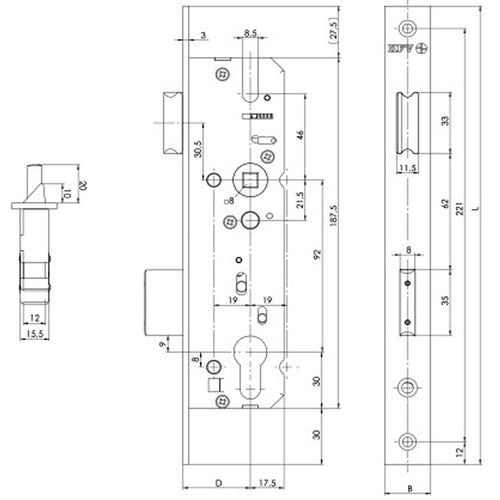

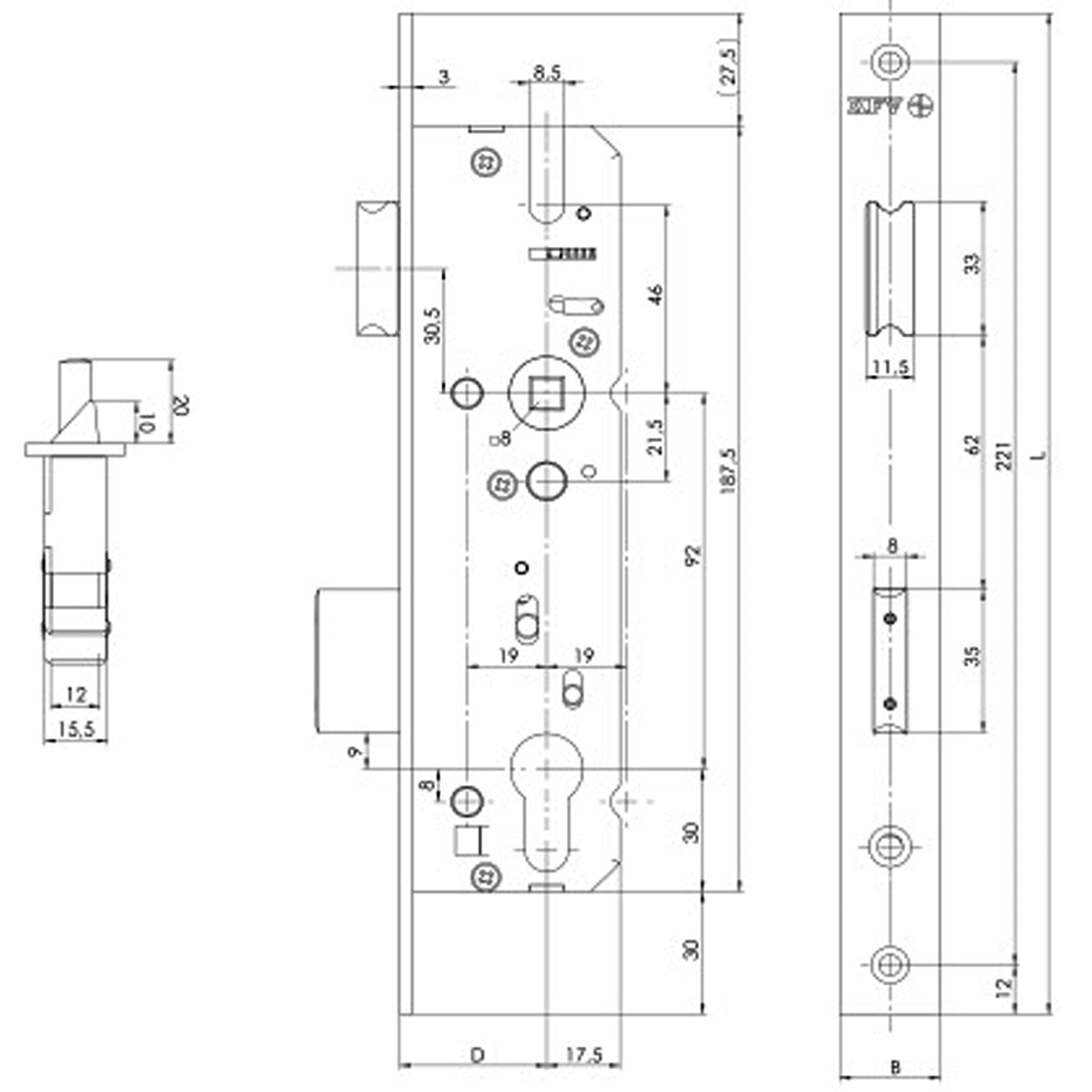

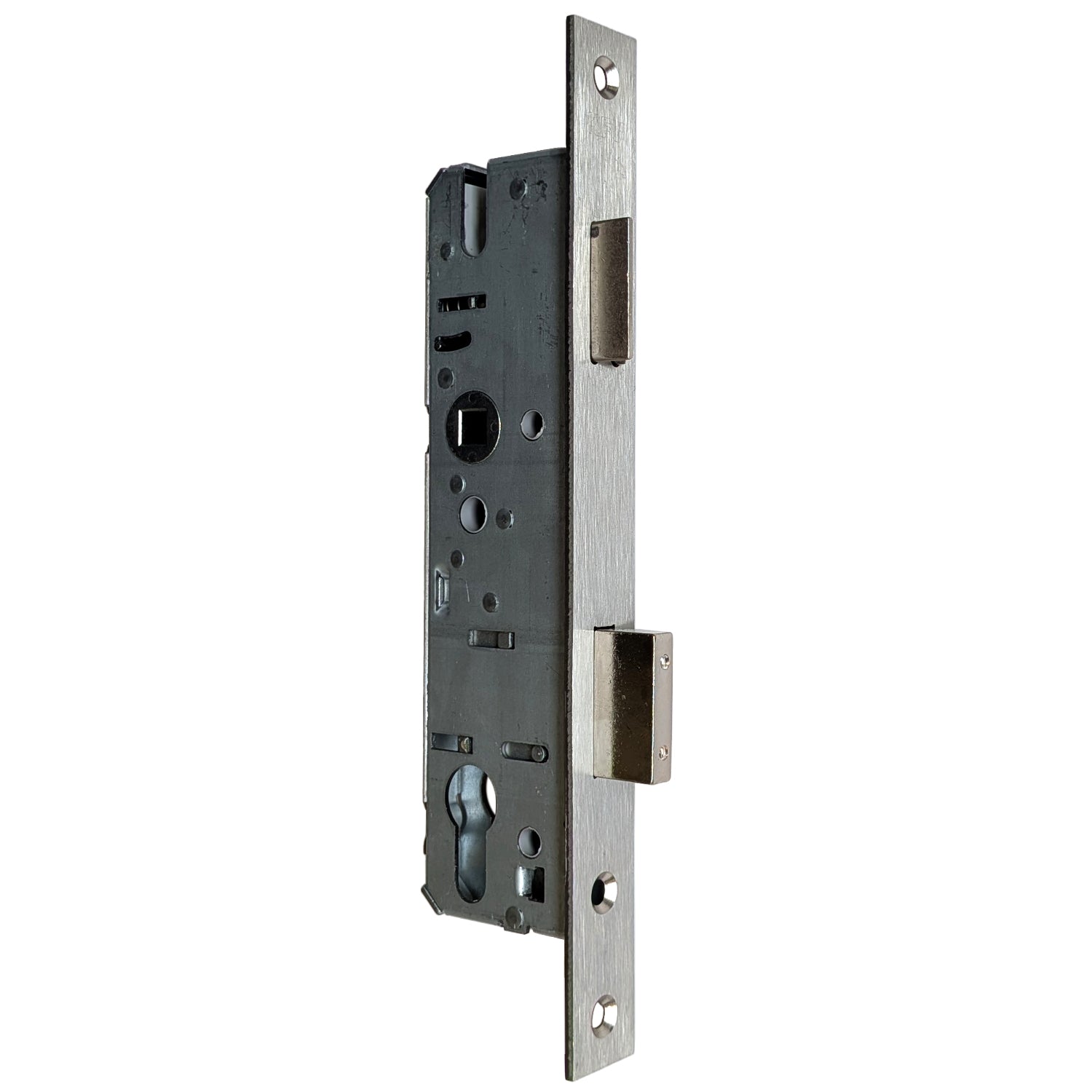

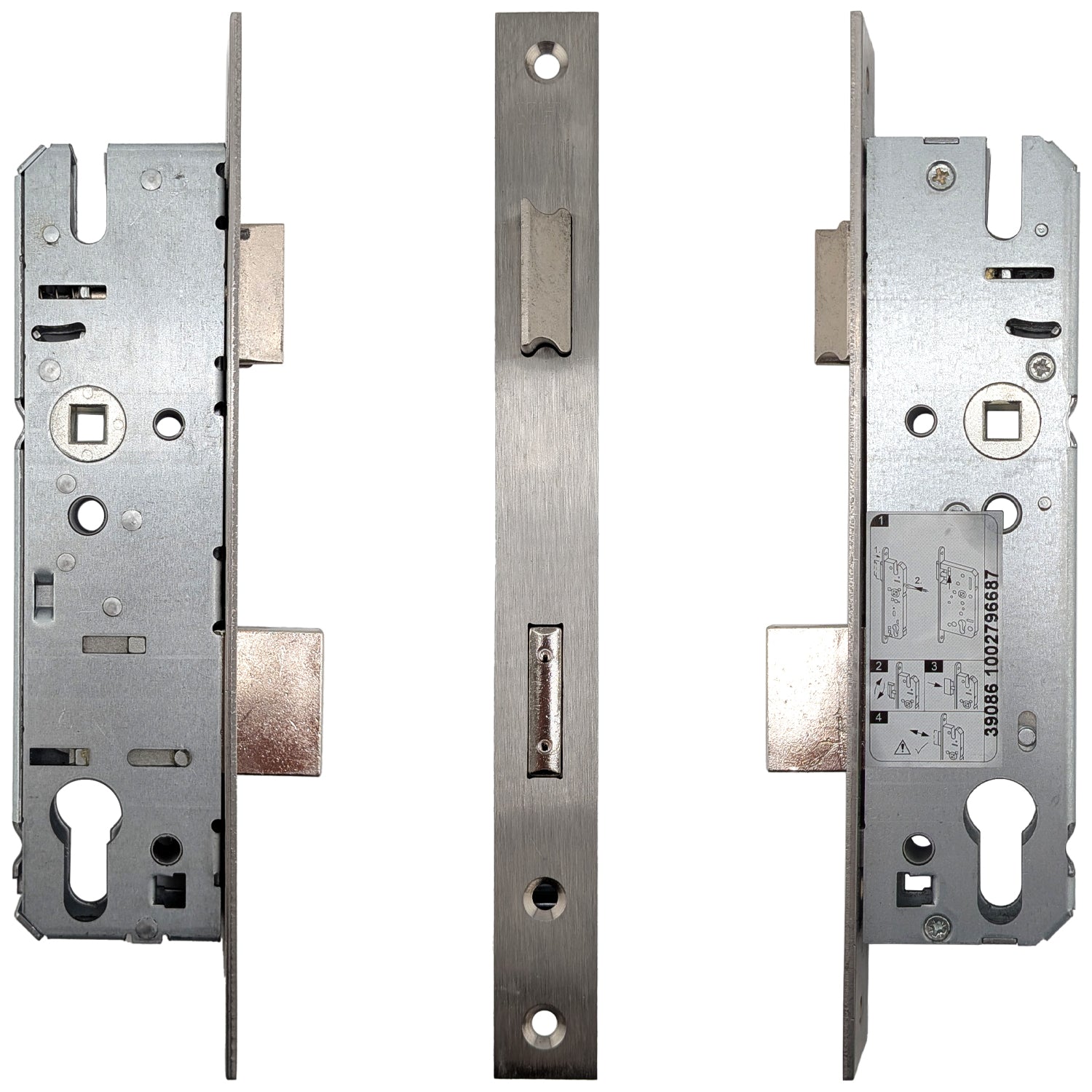

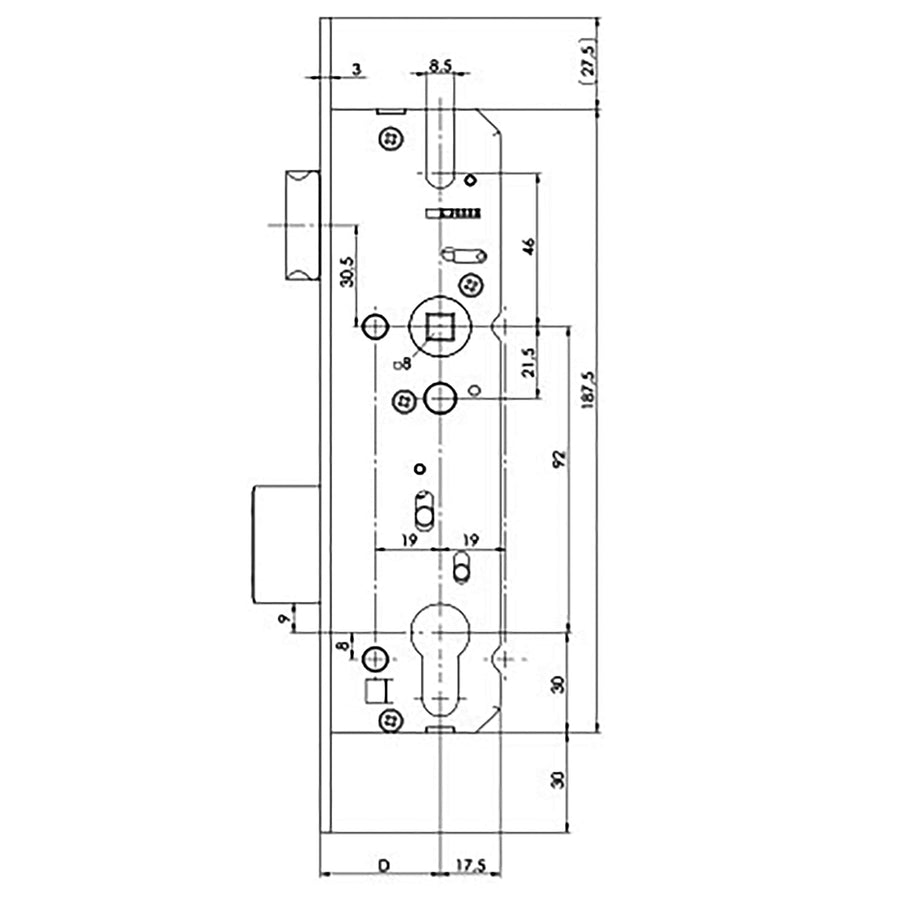

KFV Single Point Mortise Lock 35mm Backset for Steel and UPVC Doors Stainless Steel
Part Number: $230.18KFV Single Point Mortise Lock for Steel and UPVC Doors
Backset: 1-3/8 inch (35mm)
Handle to Cylinder PZ: 3-5/8 inch (92mm)
Faceplate Width: 15/16 inch (24mm)
Faceplate Length: 9-5/8 inch (245mm)
Spindle hole: 8mm
Faceplate: Flat - Stainless Steel
Series: 49N PZW
Related parts:
3469505: 35/92, SS Flat faceplate 24mm x 245mm
3474228: 35/92, SS Flat faceplate 24mm x 280mm
3469529: 35/92, SS U-Profile faceplate 6mm thick x 24mm wide x 245mm long
3474019: 35/92, SS U-Profile faceplate 6mm thick x 24mm wide x 280mm long
3474884: 35/92, SS U-Profile faceplate 8mm thick x 24mm wide x 245mm long
Backset: 1-3/8 inch (35mm)
Handle to Cylinder PZ: 3-5/8 inch (92mm)
Faceplate Width: 15/16 inch (24mm)
Faceplate Length: 9-5/8 inch (245mm)
Spindle hole: 8mm
Faceplate: Flat - Stainless Steel
Series: 49N PZW
Related parts:
3469505: 35/92, SS Flat faceplate 24mm x 245mm
3474228: 35/92, SS Flat faceplate 24mm x 280mm
3469529: 35/92, SS U-Profile faceplate 6mm thick x 24mm wide x 245mm long
3474019: 35/92, SS U-Profile faceplate 6mm thick x 24mm wide x 280mm long
3474884: 35/92, SS U-Profile faceplate 8mm thick x 24mm wide x 245mm long
