3/4 inch offset Contemporary Bottom Pivot Set, left hand out-swing, right hand in-swing - Brushed / Satin Chrome US26D

Part Number: 380086
Please note, this product has been discontinued.
Dor-O-Matic Contemporary Bottom Pivot set for metal or wood doors.
This pivot set will work on Left Hand Out-swing OR Right Hand In-swing doors only.
Used on interior or exterior doors.

Measurements:
Weight Limit: 450 pounds
Max door height: 8 feet
Max door width: 4 feet
Jamb Pivot Bracket - Width: 1-1/8\", Length: 4-3/4\"
Door Pivot Bracket - Width: 1-1/8\", Length: 5-1/2\"

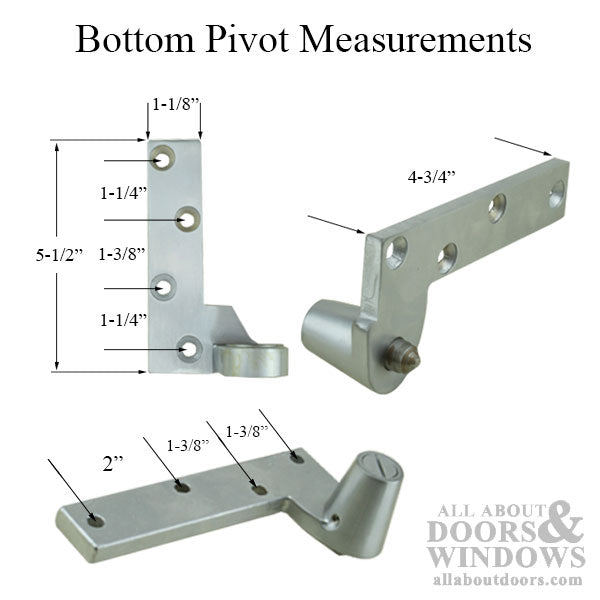

See additional images for screw hole measurements.

Contents:
2 bottom Pivots (mounted to side jamb and door)

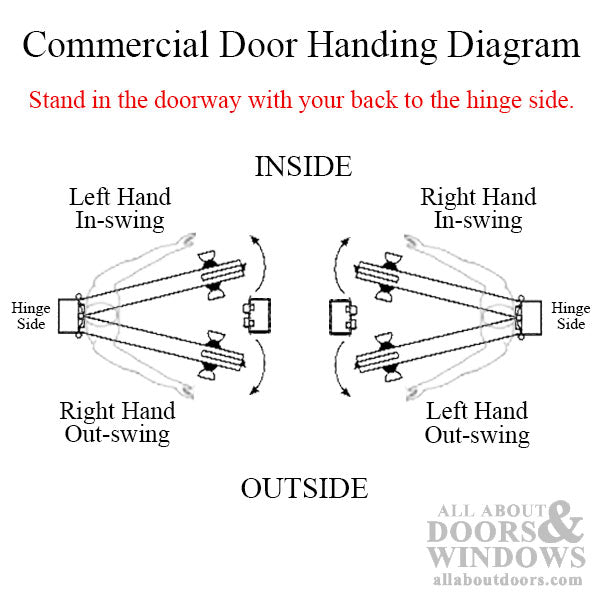

Handing:

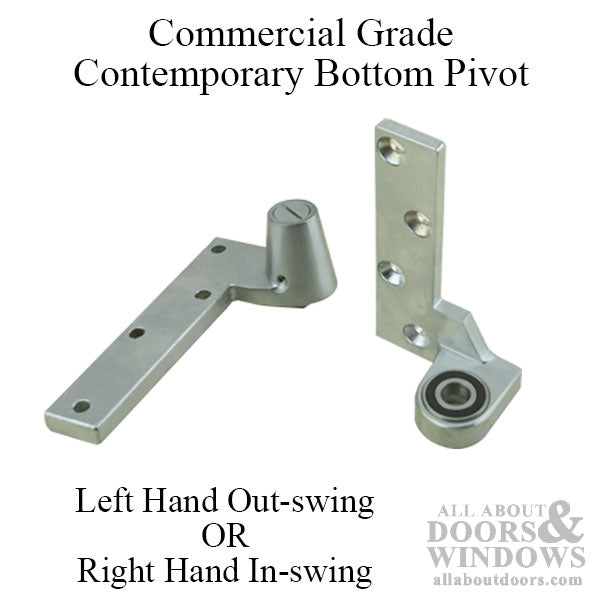

Left Hand Out-swing OR Right Hand In-swing shown.
For opposite handing please see 380087

Note: This is a 2 piece set of commercial grade bottom pivots.
Priced and sold as a set.
Please ensure you are ordering the correct handing for your door.
No returns, refunds or exchanges on this item.

Related Parts:
380082 - 3/4\" offset Top Pivot
380084 - 3/4\" offset Intermediate Pivot
